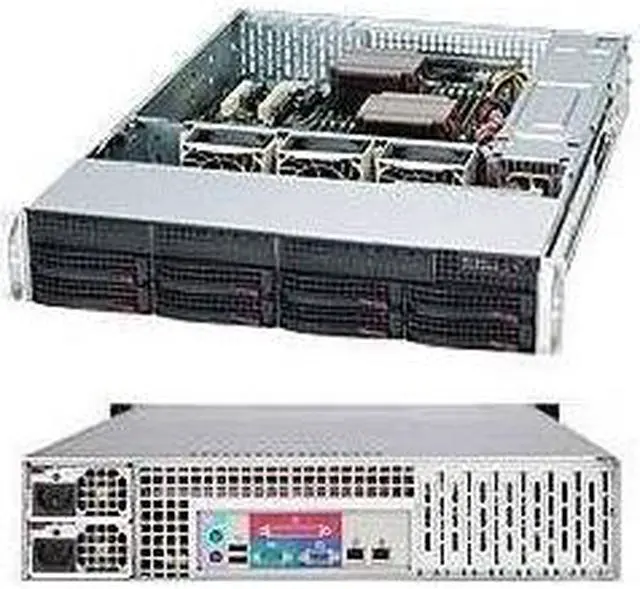

SUPERMICRO CSE-825TQC-R1K03LPB 2U Rackmount 2U General Purpose Server Chassis with 8 x 3.5” bays Redundant 1000W Titanium Level (96%+ ) efficiency power supplies w/ PMBus 1.2 and I2C

Case Type: 2U Rackmount Color: Black M/B Type: Max Motherboard Size - 13.68 x 13.00 inch, E-ATX 12.0 x 13.0 inch, ATX 12.0 x 10.0 inch Processor Support: Dual, Single Intel/AMD Processors Drive Bays: 8x 3.5' Hot-swap SAS/SATA Drive Bays w/ SGPIO; 2x 3.5' Fixed Drive Bays Expansion Slots: 7x Low-profile Expansion Slots Backplane: 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD Cooling System: 3 x 80mm heavy duty fans with PWM fan speed control Front Panel: Buttons: Power On/Off, System Reset LEDs: Power Status, Hard Drive Activity, 2x Network Activity, Power Fail, System Information Power Supply: 800W/ 1000W 80 PLUS Titanium Certified Redundant Titanium Single Output Power Supply W/PMbus Dimensions (WxDxH): 17.2 x 25.5 x 3.5 inch / 437.0 x 647.0 x 89.0 mm Gross Weight: 52.0 lbs / 23.59 kg Chassis Only. Does not include CPU, MB, HDD, memory or other parts. Detail Specifications Form Factor 2U chassis supports for maximum motherboard sizes - 13.68 x 13, E-ATX 12 x 13, ATX 12 x 10 motherboards Processor Support Dual and Single Intel and AMD processors Available Color Black Expansion Slots 7 low-profile expansion slot(s) Drive Bays 8 x 3.5 hot-swap SAS/SATA drive bay with SGPIO 2 x 3.5 fixed drive bay Backplane 8-port 2U SAS3 12Gbps TQ backplane, support up to 8x 3.5-inch SAS3/SATA3 HDD/SSD Peripheral Drives Optional 1 x slim DVD-ROM drive bay Optional 2 x USB 2.0 ports Optional 1 x COM port tray Optional 2 x USB 3.0 ports Front Panel Buttons: Power On/Off button System Reset Button LEDs: 2 Network Activity LEDs HDD activity LED Power Status LED Power Fail LED System Information LED Motherboard (for CSE- 825TQC-R1K03LPB) X11DPi-N X11DPi-NT Servers (for CSE- 825TQC-R1K03LPB) 6029P-TR 6029P-TRT Systems Cooling Fans: 3 x 80mm heavy duty fan(s) with PWM fan(s) speed control Operating Environment (System) Operating Temperature Range: 5 o C - 35 o C (41 o F - 95 o F) Non-Operating Temperature Range: -40 o C - 70 o C (-40 o F - 158 o F) Operating Relative Humidity Range: 8% - 90% (non-condensing) Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) Power Supply 1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus Power Efficiency: 96% Total Output Power and Input: 800W with Input 100 - 127Vac 1000W with Input 200 - 240Vac 1000W with Input 200 - 240Vdc AC Input Frequency: 50-60Hz Dimensions (L x W x H): 336 x 76 x 40 mm Output Type: Backplanes (gold finger) +12V: Max: 66.7A (100Vac - 127Vac) Max: 83A (200Vac - 240Vac) Max: 83A (200 - 240) +5Vsb: Max: 4A / Min: 0A Power Distributor: PDB-PT825-8824 O/P: 12V/75 +5V Max: 30 +3.3V Max: 24 -12V Max: 0.6 Certification: Titanium Certified Regulatory (Power Supply) Power Supply Safety / EMC: BSMI CCC CE/EMC FCC class A UL/CB UL/CUL Item Dimension (LxWxH) NA Weight 55 lbs Warranty Information 3 years labor, 1 year parts, 1 year limited cross ship
