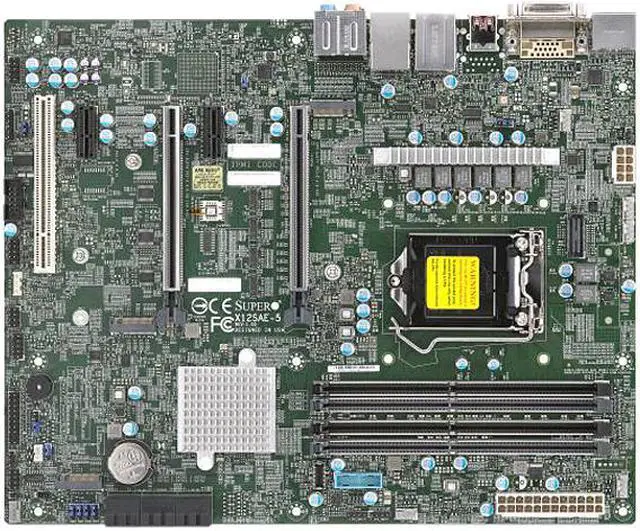

SUPERMICRO MBD-X12SAE-5-O ATX Server Motherboard LGA 1200 Intel W580

Be the first to review this product...
  • 11th Generation Intel Core i5/i7/i9 Processors, Intel Xeon W-1300 Processors
  • Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
  • Intel W580
  • 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
  • 2 PCI-E 4.0 x16 slots (16/NA or 8/8)2 PCI-E 3.0 x1, 1 - 5V PCI 32bit
  • M.2 Interface: 1 PCI-E 4.0 x4 and 2 PCI-E 3.0 x4, RAID 0 & 1
  • M.2 Form Factor: 2280/22110
  • M.2 Key: M-Key
  • RAID 5 only applied for INTEL Storage Device
  • 1 DP 1.4a port, 1 HDMI 2.0b port, 1 DVI - D port
  • Intel W580 controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  • Single LAN with Intel Ethernet i225V
  • Single LAN with Intel PHY I219LM LAN controller for AMT/vPro
+
+
Specs
Reviews

Learn more about the Supermicro MBD-X12SAE-5-O

Model
Brand SUPERMICRO
Model MBD-X12SAE-5-O
Supported CPU
CPU Socket Type LGA 1200
CPU Type Supports 11th Generation Intel Core i5/i7/i9 Processors, Intel Xeon W-1300 Processors
Chipsets
North Bridge Intel W580
Memory
Number of DDR4 Slots 4 x 288-pin
DDR4 Standard DDR4 3200
Maximum Memory Supported 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-3200MHz, in 4 DIMM slots
ECC Supported Yes
Expansion Slots
PCI Express 4.0 x16 2 x PCI Express 4.0 x16 (16/NA or 8/8)
PCI Express x1 2 x PCI Express 3.0 x1
Storage Devices
SATA 4 x SATA 6.0Gb/s
SATA RAID 0/1/5/10
M.2 M.2 Interface: 1 PCI-E 4.0 x4 and 2 PCI-E 3.0 x4, RAID 0 & 1
Form Factor: 2280/22110
Key: M-Key
RAID 5 only applied for INTEL Storage Device
Onboard Audio
Audio Chipset Realtek ALC888S
Onboard LAN
LAN Chipset Intel I225-V
LAN Speed 2.5Gbps
Second LAN Chipset Intel I219-LM
Second LAN Speed 10/100/1000Mbps
Rear Panel Ports
Back I/O Ports 1 x RJ45 2.5 Gigabit Ethernet LAN port
1 x RJ45 Gigabit Ethernet LAN ports
2 x USB 2.0 ports (2 via headers)
2 x USB 3.2 Gen1 ports (2 via headers)
4 x USB 3.2 Gen2 ports (4 Rear Type A)
2 x USB 3.2 Gen2x2 ports (1 Type C)
1 x DP 1.4a port, 1 HDMI 2.0b port, 1 DVI - D port
1 x COM Port (1 header)
1 x TPM Header
Dimensions
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Additional Information
Date First Available September 14, 2021
