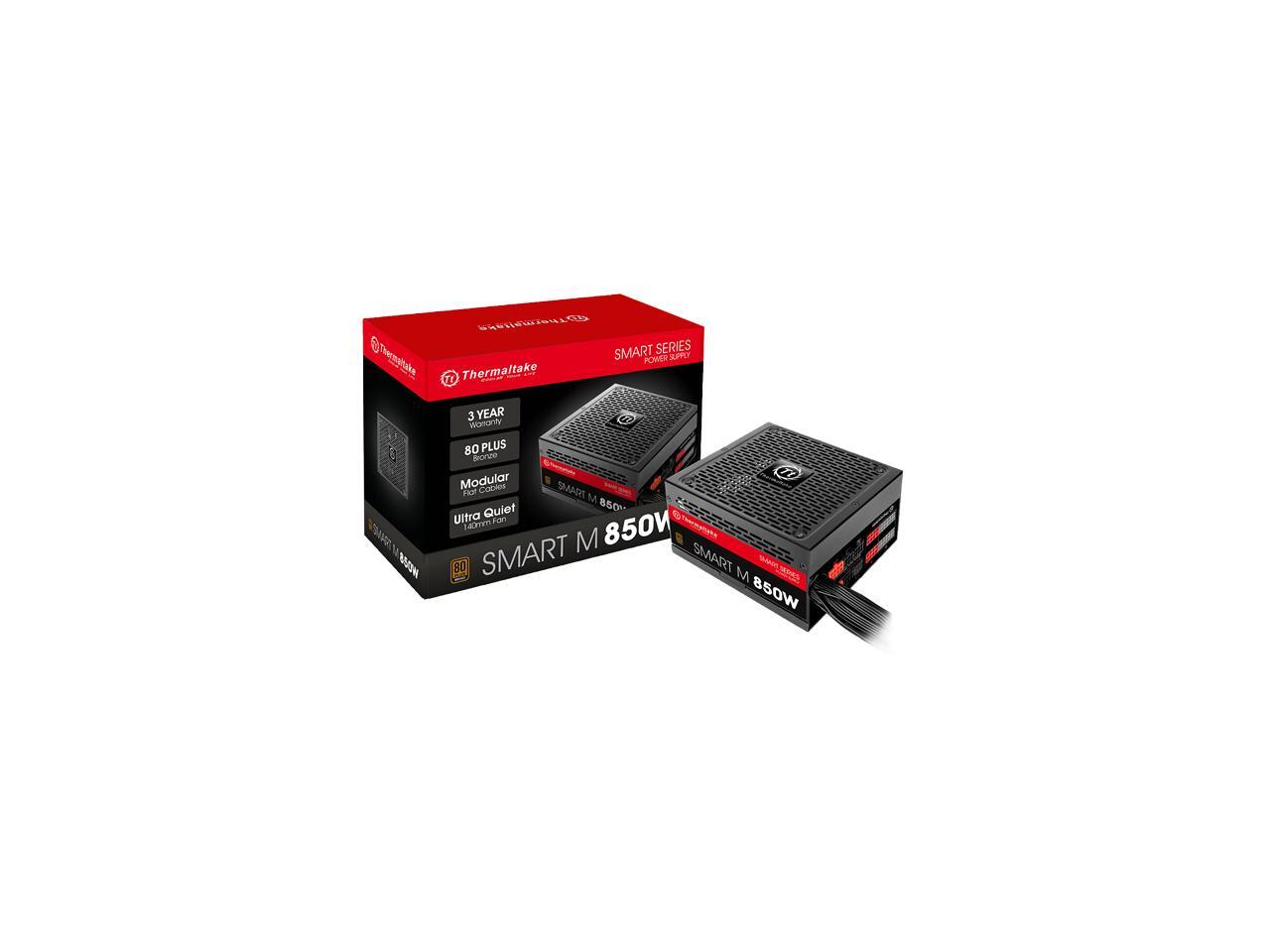

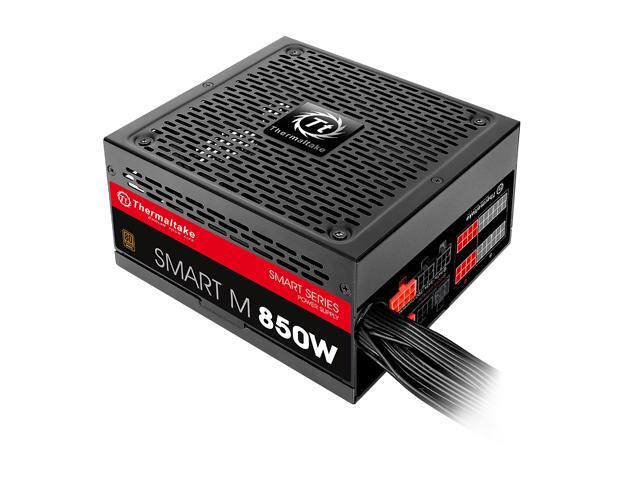

The latest presentation from Thermaltake in the essence of mainstream systems – the Smart M Series PSU, a performance series of power supply units (PSU) that incorporated various PSU high-tech components, leading technology and Eco-friendly credentials, ranged between 650W to 850W with semi-modular that will accommodate any mainstream build under any circumstance. It is ideal for users to build a home or office system for 24/7 stable demands.
80 Plus Bronze certified, offers up to 85% efficiency at 20-100% load under real world load conditions and promise lowest power losses. Saving the unnecessary waste of energy and environmental protection.
Low-profile flat cables that not only increased the airflow and made chassis thermal performance improved, but also allow for effortless cable routing.

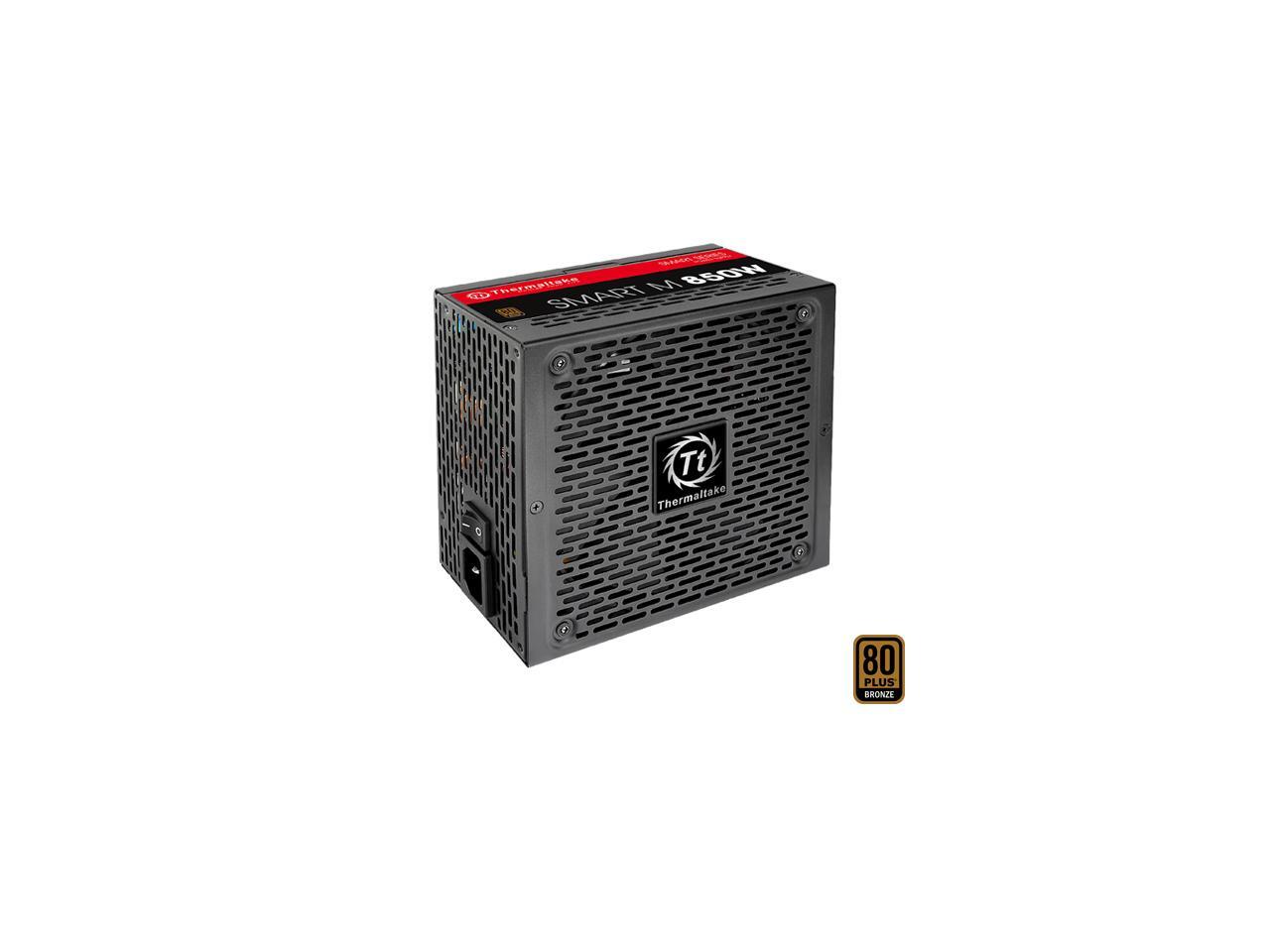

Smart M Series adopts 140mm cooling fan with intelligent RPM control, presenting cool performance and silent operation.

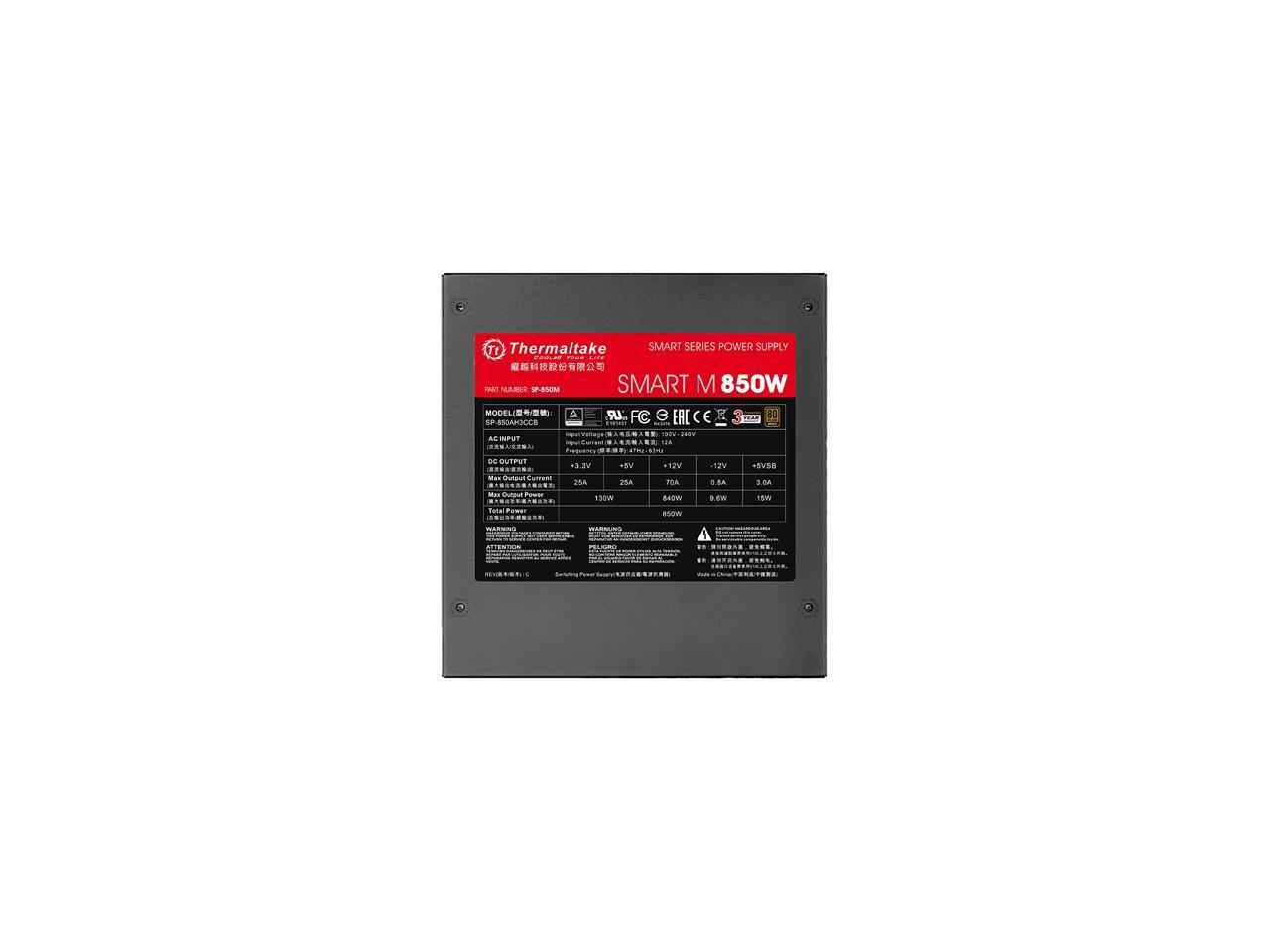

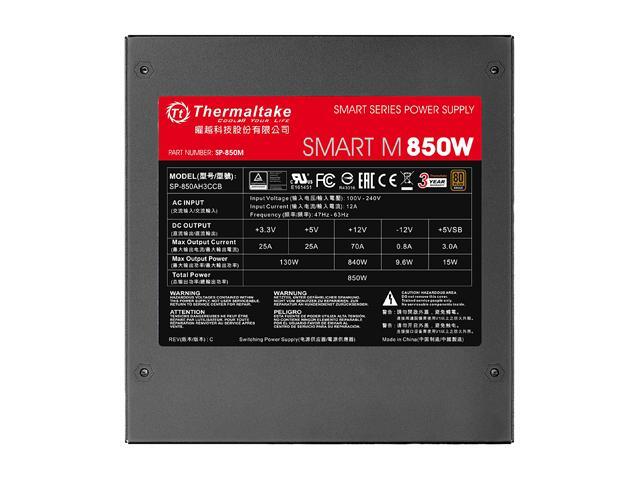

Smart M 850W Bronze is equipped with a powerful single +12V rail, please see the output specification :
High quality of Japanese main capacitor produces supreme performance with low impedance characteristics. The stable operation works for longer time with excellent reliability to enhance the power supply performance.
Built in industrial-grade protections: Over Current, Over Voltage, Under Voltage, Over Power and Short-Circuit protections.
|Type||ATX 12V v2.4 and EPS v2.92|
|Dimension (H x W x D)||86mm x 150mm x 160mm|
|Max. Output Capacity||850W|
|Peak Output Capacity||1020W|
|PFC (Power Factor Correction)||Active PFC|
|CPower Good Signal||100-500 msec|
|Hold Up Time||> 16msec at 80% of full load|
|Input Frequency Range||47 Hz - 63 Hz|
|Input Voltage||100 Vac- 240 Vac|
|Operating Temperature||0°C to +40°C|
|Operating Humidity||20% to 90%,non-condensing|
|Storage Temperature||-20°C to +70°C|
|Storage Humidity||5% to 95%, non-condensing|
|Cooling System||140mm Fan: 2300 R.P.M. ± 10%|
|Efficiency||Meet 80 PLUS®Bronze at 115Vac input.|
|MTBF||100,000 hrs minimum|
|Safety Approval||UL/CUL/TUV/CE/FCC and BSMI|
|PCI-E Connector||PCI-E 6+2pin x 4|
