Ubiquiti Pro Max 48 PoE, 48-Port Layer 3 PoE Switch (USW-Pro-Max-48-PoE (720W))

Name: Ubiquiti Pro Max 48 PoE, 48-Port Layer 3 PoE Switch (USW-Pro-Max-48-PoE (720W))
Brand: Ubiquiti Networks
SKU: 2BH-0073-00050
Price: 6116.84 SAR
Availability: InStock
Rating: 5 (3 reviews)

(3) Write a Review

Model: Pro Max 48 PoE

Pro Max 48 PoE
Pro Max 24 PoE
Pro Max 16 PoE
Pro Max 48
Pro Max 16

Primary Port: 48 Port

16 Port
48 Port
24 Port

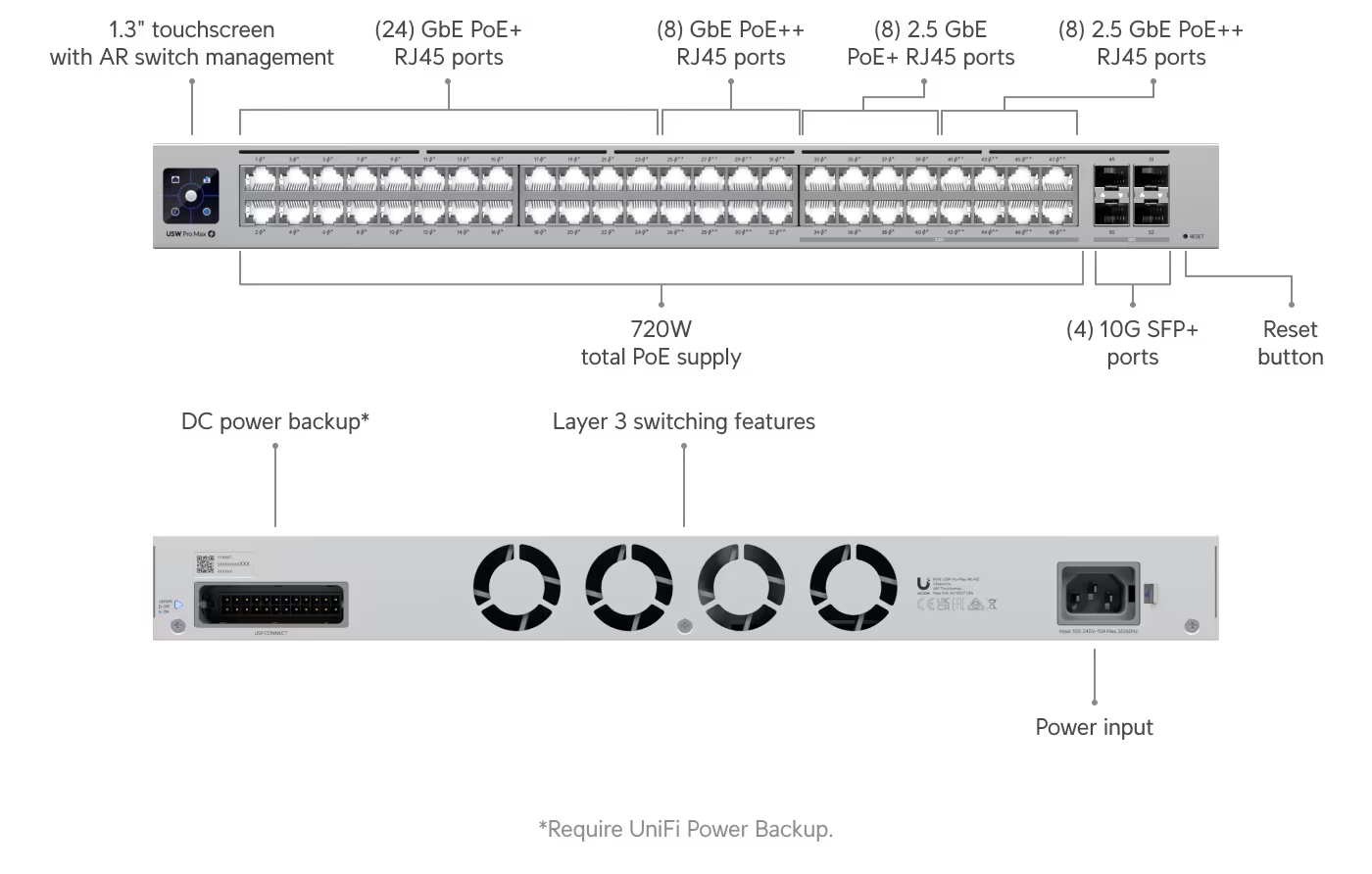

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
(16) 2.5 GbE ports including (8) PoE+ and (8) PoE++
(32) GbE ports including (24) PoE+ and (8) PoE++
(4) 10G SFP+ ports
DC power backup ready
720W total PoE availability
Managed with UniFi Network 8.0.24 and later

Overview

Specs

Reviews (3)

Pro Max 48 PoE

USW-Pro-Max-48-PoE

Layer 3 Switch

Uplink Speed: Up to 10 Gbps for high-speed backbone connectivity, ensuring low latency and maximum throughput between aggregation switches, servers.
Downlink Speed: The Pro Max 48 PoE Switch delivers up to 2.5 Gbps downlink for modern networks.
Pro A/V Support: Supports AV over IP solutions out of the box. Apply port profiles to speed Pro AV deployment, supporting protocols.

Deployment

The Pro Max 48 PoE switch offers seamless deployment, ideal for large networks requiring advanced Layer 3 features, high PoE++ output, and Etherlighting for efficient cable management.

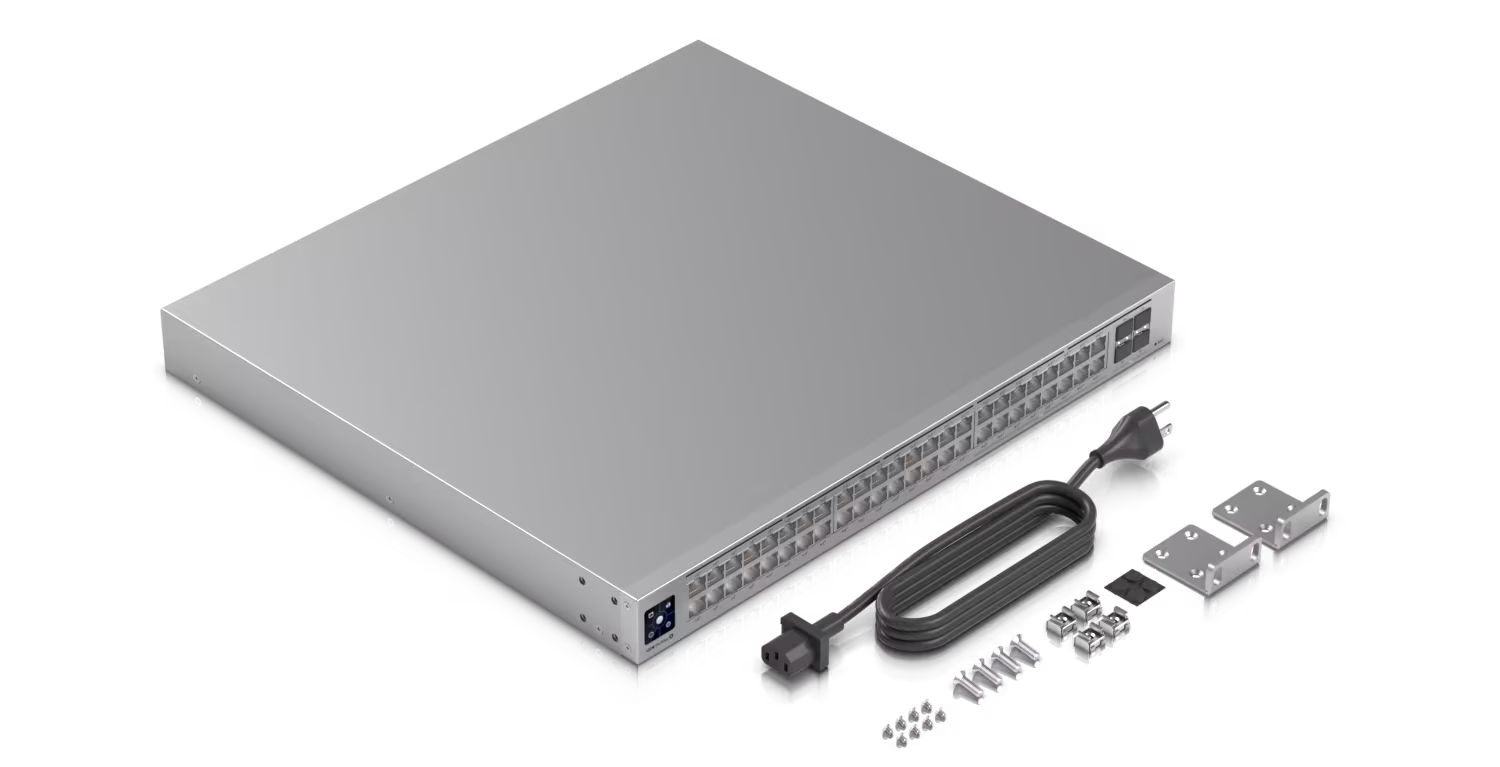

Package Content

Included:

(1) Switch
(1) Mounting Accessories

Product Comparison

	Pro Max 48 PoE Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output	Pro Max 48 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE	Pro Max 24 PoE Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output	Pro Max 24 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE	Pro Max 16 PoE Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output
Dimensions	442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7")	442 x 325 x 44 mm (17.4 x 12.8 x 1.7")	442 x 325 x 44 mm (17.4 x 12.8 x 1.7")	442 x 325 x 44 mm (17.4 x 12.8 x 1.7")	325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
Port Count	48 + 4 SFP+	48 + 4 SFP+	24 + 2 SFP+	24 + 2 SFP+	16 + 2 SFP+
Downlink Speed	Up to 2.5 Gbps	Up to 2.5 Gbps	Up to 2.5 Gbps	Up to 2.5 Gbps	Up to 2.5 Gbps
Uplink Speed	10 Gbps	10 Gbps	10 Gbps	10 Gbps	10 Gbps
PoE Output	Up to PoE++	-	Up to PoE++	-	Up to PoE++
PoE Availability	720W	-	400 W	-	180 W
Etherlighting™	-	-	-	-	-
Pro A/V Support	✓	✓	✓	✓	✓
Mounting	Rack	Rack	Rack	Rack	Desktop Wall Rack*
Redundancy	UniFi Power Backup ready	UniFi Power Backup ready	UniFi Power Backup ready	UniFi Power Backup ready	-

Notes:

* With optional Rack Mount accessory.

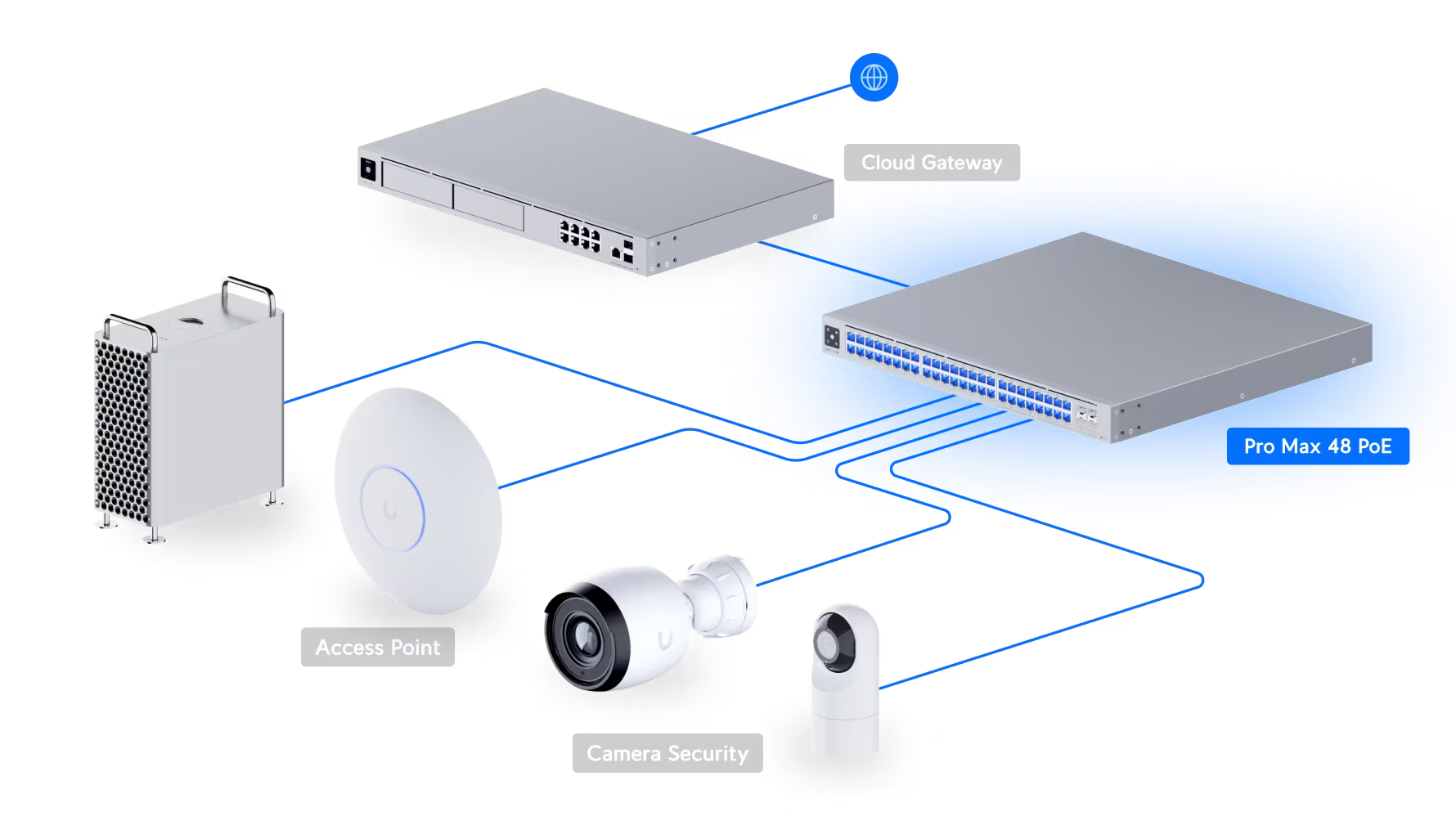

Enhance your business network with the Pro Max 48 PoE 48-Port Managed Network Switch, designed to support advanced IP cameras, access points, and other PoE-enabled devices. It features sixteen 2.5G Ethernet ports, including eight 60W PoE++ ports and eight 30W ports. Additionally, there are eight Gigabit speed Ethernet ports with 60W power and twenty-four ports offering 30W each, providing a total power budget of 720W for connected devices. The switch also includes four SFP+ ports supporting uplinks of up to 10 Gb/s.

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Return for refund within: 30 days

Returns are subject to restocking fees and return shipping fees. Please click here to learn more about restocking fees and return shipping fees.

This item is covered by Newegg.com's International Order Return Policy. Read full return policy for details.
*Subject to applicable law
Warranty Notice:
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.

Format	Rackmount
Network Management Type	Managed

Primary Ports	48 x RJ45 + 4 x SFP+
Primary Port Speed	Total non-blocking throughput 112 Gbps Switching capacity 224 Gbps Forwarding rate 166.656 Mpps
Primary Port Type	(32) GbE RJ45 ports (16) 1/2.5 GbE RJ45 ports (4) 10G SFP+ ports

Management Interface	Ethernet In-Band
VLAN Support	Yes
Jumbo Frames	Yes

PoE	Yes
Layer	3
Layer 2 Features	IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs
Layer 3 Features	DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs
Port Mirroring	Yes
LEDs	System Status Ethernet PoE Speed/link/activity SFP+ Link/activity RPS Status
Button	Factory reset

PoE Ports	(32) PoE/PoE+ (Pins 1, 2+; 3, 6-) (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Power	Power method (1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input Power supply AC/DC, internal, 820W Supported voltage range 100—240V AC Total available PoE 720W
Max Power Consumption	100W (Excluding PoE output)
