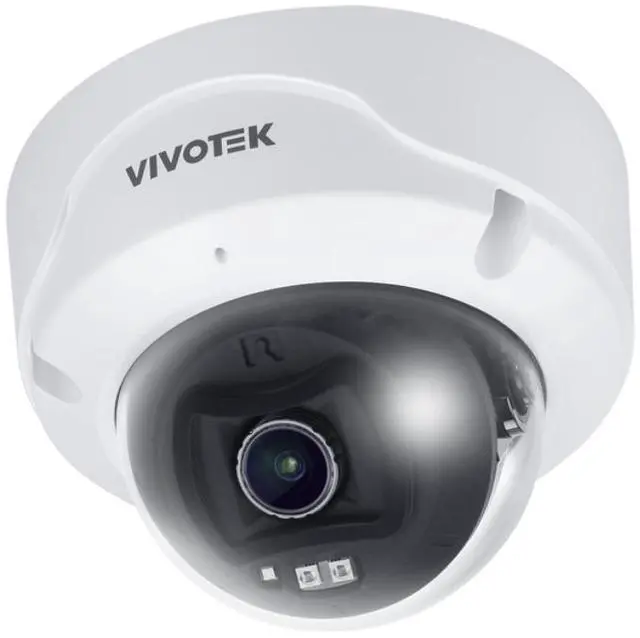

Vivotek FD9189-H-V3, 5MP Indoor Fixed Dome Camera
- HDMI output for public display
- AI-powered Smart Motion Detection and Smart VCA
- RealSight Engine for unparalleled visibility
- Built-in IRs up to 30M
- Signed Firmware, Secure Boot, TPM 2.0
+
+
Specs
Reviews
Learn more about the VIVOTEK Inc. FD9189-H-V3
| Brand | Vivotek |
|---|---|
| Series | V Series |
| Model | FD9189-H-V3 |
| Part Number | FD9189-H-V3 |
| Network Camera | Yes |
|---|---|
| Type | Indoor Fixed Dome Camera |
| Connection Type | Connectors: RJ-45 cable connector for 10/100 Mbps Network/PoE connection HDMI Output (Type D) Audio line input* Audio line output* Digital input: 1* Digital output *1 (DO+: 12V, 50mA; DO-: 30V, Open Drain, 1A)* * Requires AO-014 cable |
| Networking Protocol | Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management, Built-in FIPS 140-2 Level 2 certified Trusted Platform Module (TPM) |
|---|---|
| ONVIF | Yes |
| Pan/Tilt/Zoom | Pan/Tilt/Zoom Functionalities: ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in) |
|---|---|
| Sensor & Detector | CMOS |
| MAX Resolution | 2560 x 1920 |
| Video Capture Resolution | Video Compression: H.265, H.264, MJPEG Maximum Frame Rate: 30 fps @ 2560x1920 (5MP) Maximum Streams: 3 video streams (Up to 8 configurable profiles) Main Stream: 30fps @2560x1920,2048x1536,1920x1440,1600x1200,1280x960,800x600,640x480 (4:3) 30fps @ 2560x1440, 1920x1080, 1600x904, 1360x768,1280x720, 640x360 (16:9) 60 fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9) 2nd Stream: 30fps @ 1920x1440, 1600x1200, 1280x960, 800x600, 640x480 (4:3); 30fps @ 1920x1080, 1600x904, 1360x768, 1280x720, 640x360 (16:9) 60 fps @ 1280x720, 640x360 (16:9) 3rd Stream: 30fps @ 1280x960, 800x600, 640x480 (4:3); 30 fps @ 1280x720, 640x360 (16:9); 60 fps @ 1280x720, 640x360 (16:9) S/N Ratio: 55 dB Dynamic Range: 120 dB Video Streaming: Adjustable resolution, quality and constant bit rate control, Smart Stream III Image Settings: General settings video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings Illuminators illuminators, anti-overexposure, VCA-based Smart IR III Image settings white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS (built-in gyro sensor), scene mode (auto, deblur) Exposure BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR Focus zoom, focus Privacy mask pixel calculator Scheduled profile settings Display Mode: HDMI output (type D; 1080p/720p @30/25fps(60/50Hz)) |
| Frame Rate | Maximum Frame Rate: 30 fps @ 2560x1920 (5MP) |
| Lens Type | Fixed Focal Lens |
| Security | Access list, CSRF protection, digest authentication, HTTPS , IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management, Built-in FIPS 140-2 Level 2 certified Trusted Platform Module (TPM) |
| Night Vision | Yes |
| Audio | Audio Audio Capability: Two-way audio (Full duplex)* * Requires AO-014 cable Compression: G.711, G.726, MPEG-2 AAC-LC Interface: Built-in microphone External microphone Input* External line output* * Requires AO-014 cable Effective Range: 5 meters |
| Power | Power Input: IEEE 802.3af PoE Class 3 Power Consumption: Max. 12.4W/ 9.6W (IR on/off) |
|---|
| Humidity | 90% RH (non-condensing) |
|---|---|
| Temperature | Starting Temperature: 0°C ~ 40°C (32°F ~ 104°F) Working Temperature: 0°C ~ 45°C (32°F ~ 113°F) (IR off) 0°C ~ 40°C (32°F ~ 104°F) (IR on) |
| Dimension | ø 120 x 89.6 mm |
|---|---|
| Weight | 370 g |
| Features | AI Analytics Compute Capability: SoC with built-in hardware deep learning accelerator Vision Object Analytics: Object Detection People, Vehicle (4-wheeled, 2-wheeled), Human / Vehicle Bestshot, Path Extraction Attribute Extraction People (gender, clothing color, bag, hat), Vehicle (bike, bus, car, motorcycle, truck, color) Human face Bestshot, Re-Search Extraction Application: Deep Learning VCA (Smart Motion Detection, Smart VCA) Smart VCA - Group 1 Smart Motion Detection (Five-window video motion detection, People detection, Vehicle detection, Time filter), Smart VCA (Intrusion detection, Loitering detection, Line crossing detection, face detection) Smart VCA - Group 2 Unattended object detection, Missing object detection, Crowd detection Application available with license: Smart VCA - Group 3 Running detection, Parking Violation Detection, Restricted Zone Detection *Support for more analytic applications and free trial,please visit VIVOTEK website. RealSight Engine: Smart IR III, Deblur, WDR, White Balance, Exposure Control |
|---|
| First Listed on Newegg | December 02, 2025 |
|---|
