Question 1

I only see 2 SATA plugins and they're by the "ASRock" heat-sink. Where are the other 2?

Accepted Answer

At the bottom right of the board, you see the two satas, then right above the right most one you see a black box thing. Its two stacked on top of each other facing what would be your hard drive area.

Question 2

will this motherboard work with a Amd FX CPU?

Accepted Answer

No, the FX series of processors uses the AM3+ socket. This ASRock motherboard uses the AM4 socket which is for the Ryzen series of processors.

Question 3

will I be able to use a ryzen 3 1200 cpu with a rx550 in this board?

Accepted Answer

From the ASRock website for the board, your CPU and graphics card should be compatible with the board. Buying compatible memory (also given on the website) may be very important.

Question 4

can i overclock with this board?

Accepted Answer

No. This board uses the A320 Promontory Chipset and DOES NOT support Overclocking. Basic OC is supported on B350 boards. Full overclocking is supported on X370 boards.

Question 5

Will this AsRock Mother board work with Windows 7?

Accepted Answer

Yes, see answers on MB description page:

BEST ANSWER: Windows 7 does not have the drivers built in to it for this platform. You have to create a Windows 7 ISO with the Ryzen drivers in it. The tool is available from most motherboard manufacturers. Afterwards, I was able to get this board and another MSI AM4 board to run Windows 7 just fine.

Question 6

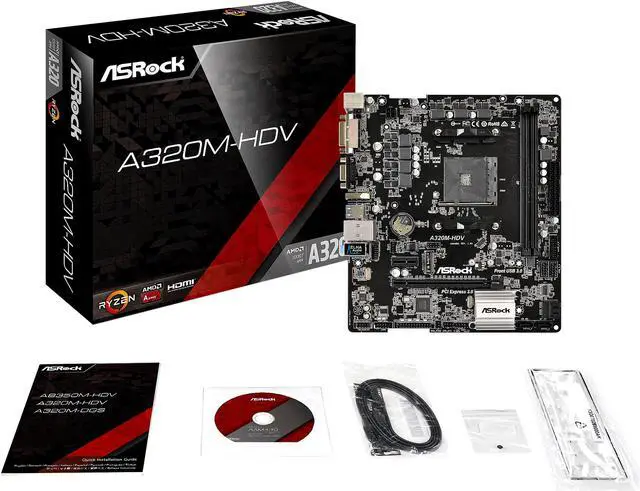

What is the tiny screw that comes with the motherboard in the little bag with a serial number and where does it go?

Accepted Answer

This is for the OnBoard M2 SSD hard drive, to hold it in place, Do not loose it, They are very expensive to replace, $10-$25.00

Question 7

Does this mobo have a wifi card?

Accepted Answer

sorry the motherboard has no wifi on-board

Question 8

Will it support AMD A10-9700 processor ?

Accepted Answer

Yes. The ASRock MB site lists the A10-9700 CPU on the CPU Support List. Also, the A10-9700 CPU is listed as a AM4 socket CPU.
Hope this helps.

Question 9

Can I put two sticks of 8gb ram in here?

Accepted Answer

I currently have 1 8GB stick of RAM in mine, and 16 GB is well within the limit of the motherboard, so there should be no problem with 2 8GB sticks of RAM.

Question 10

I can not get it to boot with a ryzen 3 1200, there was no bios sticker on the box..   any ideas?

Accepted Answer

If it is booting (power) but you do not see anything.. the likely cause is that the Ryzen 3 1200 does not have on board graphics and requires an add on graphics card.

Brand	ASRock
Model	A320M-HDV

CPU Socket Type	AM4
CPU Type	Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge, Raven Ridge and Pinnacle Ridge) Digi Power design 7 Power Phase design Supports CPU up to 65W

Number of Memory Slots	2x288pin (DDR4)
Memory Standard	AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory* AMD 7th Gen A-Series APUs support DDR4 2400/ 2133 non-ECC, un-buffered memory* * For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs.
Maximum Memory Supported	32GB * Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel Supported	Dual Channel

PCI Express 3.0 x16	AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* AMD 7th A-Series APUs / Raven Ridge CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode) (If you use Athlon 2xxGE series APU, PCIE2 slot will run at x4 mode.)* * Supports NVMe SSD as boot disks
PCI Express x1	1 x PCI Express 2.0 x1 Slot

Serial ATA (SATA)	4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug
M.2	1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16Gb/s) (with A-Series APU, and Athlon 2xxGE series APU)* * Supports ASRock U.2 Kit * Supports NVMe SSD as boot disks
SATA RAID	0/1/10

Meet Your Seller

ASRock A320M-HDV AM4 AMD Promontory A320 USB 3.1 HDMI Micro ATX AMD Motherboard

Learn more about the ASRock A320M-HDV

Customer Reviews of the ASRock A320M-HDV

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Manufacturer Contact Info

Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x D-Sub Port 1 x DVI-D Port
HDMI	1 x HDMI
RJ45	1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.1	4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
USB 1.1/2.0	2 x USB 2.0 Ports (Supports ESD Protection)
Audio Ports	HD Audio Jacks: Line in / Front Speaker / Microphone

Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors	1 x Print Port Header 1 x COM Port Header 1 x TPM Header 1 x Chassis Intrusion and Speaker Header 1 x CPU Fan Connector (4-pin)* 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) 1 x Front Panel Audio Connector * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

Form Factor	Micro ATX
Dimensions (W x L)	9.1" x 8.1"
Power Pin	1 x 24-pin ATX Power Connector 1 x 4-pin 12V Power Connector

Onboard LAN
LAN Chipset	Realtek RTL8111GR
Max LAN Speed	1Gbps
