S$220.64
GST-Inclusive Price
Ships from China.
Most customers receive within 7-17 days.
Meet Your Seller

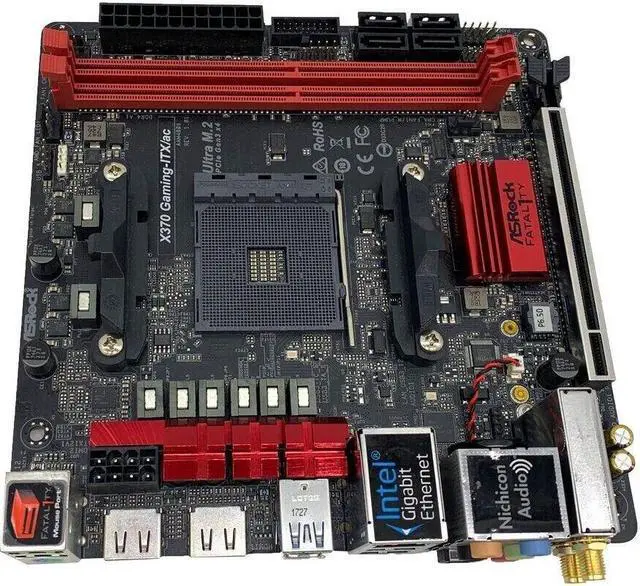

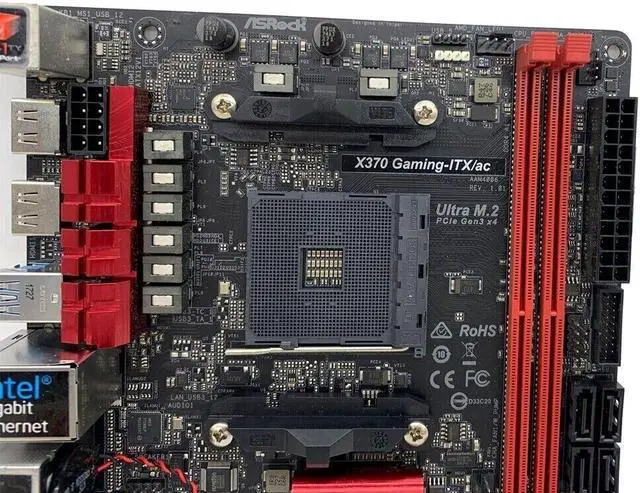

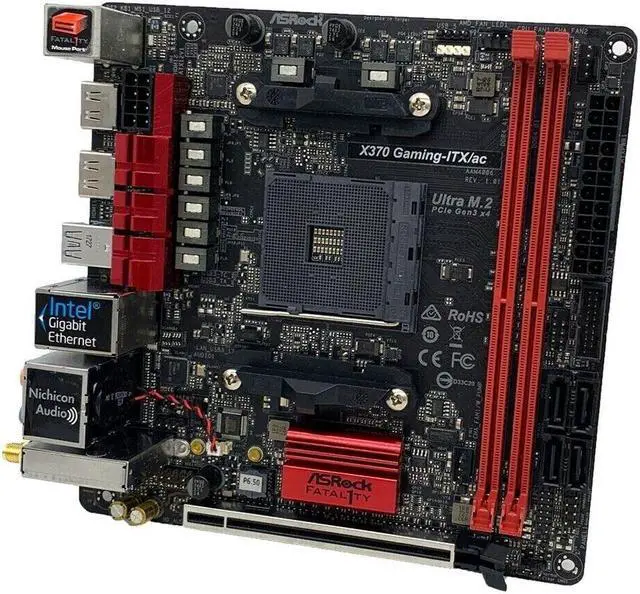

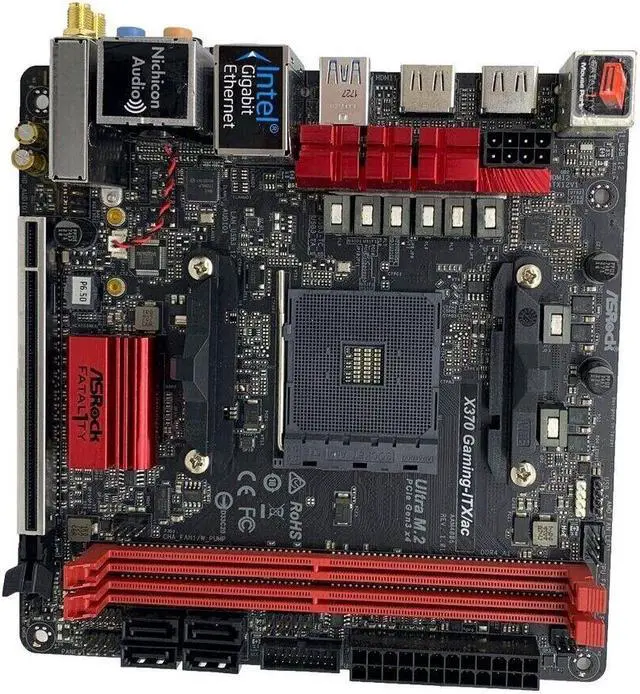

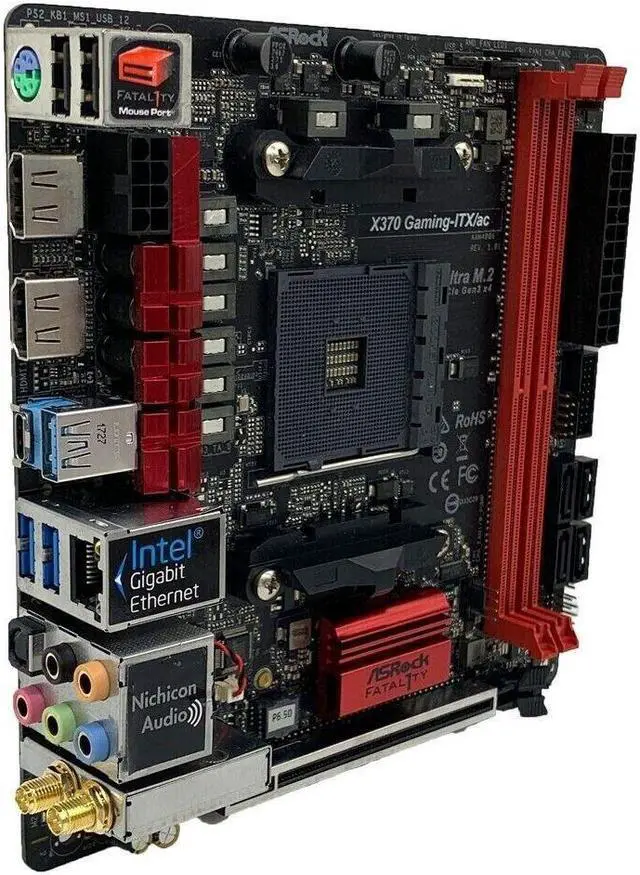

ASRock Fatal1ty X370 Gaming-ITX/ac Motherboard Mini-ITX AMD Promontory X370 Socket AM4 DDR4 32GB SATA3 M.2 HDMI WiFi SPDIF+I/O
REFURBISHED Product Type
- Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Summit Ridge & Raven Ridge)
- Supports DDR4 3466+ (OC) (Ryzen CPU) / 2400 (A-series APU)
- 1 PCIe 3.0 x16
- Graphics Output: 2 HDMI
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster Cinema 3
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
- 6 USB 3.1 Gen1 (1 Type-C, 2 Front, 3 Rear)
- Intel® Gigabit LAN
- Intel® 802.11ac WiFi + BT 4.2
+
+
Overview
Specs
Reviews
CPU
- Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Vermeer, Cezanne, Renoir, Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)*
- Digi Power design
- 8 Power Phase design
*Bristol Ridge does not supports since BIOS version 7. XX.
Vermeer, Cezanne and Renoir CPUs are supported after updating the BIOS, using another CPU for that update.
Chipset
- AMD Promontory X370
Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+ (OC) / 3200 (OC) / 2933 (OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+ (OC) / 3200 (OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
- AMD 7th Gen A-Series APUs support DDR4 2400 / 2133 ECC & non-ECC, un-buffered memory**
- Max. capacity of system memory: 32GB**
- 15 Gold Contact in DIMM Slots
*For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only supported with PRO CPUs.
Please refer to below table for DDR4 UDIMM maximum frequency support.
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, DRAM, PCH 1.05V, PROM 2.5V, Voltage Multi-adjustment
Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
- Integrated AMD Radeon R-Series Graphics in A-series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB. **
- Supports 2 x HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Ports (Compliant HDMI monitor is required)
- Supports HDCP 1.4 with HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with HDMI Ports
*Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed.
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Nichicon Fine Gold Series Audio Caps
- 120dB SNR DAC with Differential Amplifier
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- Supports Creative Sound Blaster Cinema 3
LAN
- Gigabit LAN 10/100/1000 Mb/s
- GigaLAN Intel® I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3 az
- Supports PXE
Wireless LAN
- Intel® 802.11 ac WiFi Module (Free Bundle)
- Supports IEEE 802.11 a/b/g/n/ac
- Supports Dual-Band ( 2.4 /5 GHz)
- Supports high speed wireless connections up to 867Mbps
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 4.2 / 3.0 + High speed class II
Slots
AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
AMD 7th A-Series APUs / Raven Ridge CPUs
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*
AMD Ryzen series CPUs (Picasso, Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*
AMD Athlon series CPUs
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x4 mode)*
- 1 x Vertical M. 2 Socket (Key E) with the bundled WiFi- 802.11 ac PCIe WiFi module (on the rear I/O)
- 15 Gold Contact in VGA PCIe Slot (PCIE1)
*Supports PCIe riser cards to extend one x16 slot to two x8 slots if you install AMD Ryzen series CPUs
Supports NVMe SSD as boot disks
Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Ultra M. 2 Socket, supports M Key type 2280 M. 2 SATA3 6.0 Gb/s module and M. 2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon series APU)*
*Supports NVMe SSD as boot disks
Connector
- 1 x LPC Header
- 1 x AMD Fan LED Header*
- 1 x CPU Fan Connector (4-pin)**
- 1 x Chassis Fan Connector (4-pin)
- 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) ***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x AMD LED Fan USB Header
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
*The AMD Fan LED Connector supports LED strip of maximum 3A (36W) and LED strip length up to 2.5M.
**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
***The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
CHA_FAN1/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.

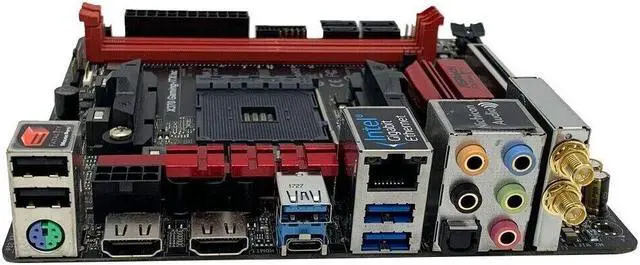

Rear Panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 2 x HDMI Ports
- 1 x Optical SPDIF Out Port
- 2 x USB 2.0 Ports (Supports ESD Protection) *
- 1 x USB 3.1 Gen1 Type-A Port (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
- 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
*1 x Fatal1ty Mouse Port (USB 2.0 ) is included
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, DRAM, PCH 1.05V, PROM 2.5V, Voltage Multi-adjustment
Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
- Integrated AMD Radeon R-Series Graphics in A-series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB. **
- Supports 2 x HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Ports (Compliant HDMI monitor is required)
- Supports HDCP 1.4 with HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with HDMI Ports
*Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed.
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Nichicon Fine Gold Series Audio Caps
- 120dB SNR DAC with Differential Amplifier
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- Supports Creative Sound Blaster Cinema 3
LAN
- Gigabit LAN 10/100/1000 Mb/s
- GigaLAN Intel® I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3 az
- Supports PXE
Wireless LAN
- Intel® 802.11 ac WiFi Module (Free Bundle)
- Supports IEEE 802.11 a/b/g/n/ac
- Supports Dual-Band ( 2.4 /5 GHz)
- Supports high speed wireless connections up to 867Mbps
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 4.2 / 3.0 + High speed class II
Slots
AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
AMD 7th A-Series APUs / Raven Ridge CPUs
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*
AMD Ryzen series CPUs (Picasso, Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*
AMD Athlon series CPUs
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x4 mode)*
- 1 x Vertical M. 2 Socket (Key E) with the bundled WiFi- 802.11 ac PCIe WiFi module (on the rear I/O)
- 15 Gold Contact in VGA PCIe Slot (PCIE1)
*Supports PCIe riser cards to extend one x16 slot to two x8 slots if you install AMD Ryzen series CPUs
Supports NVMe SSD as boot disks
Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Ultra M. 2 Socket, supports M Key type 2280 M. 2 SATA3 6.0 Gb/s module and M. 2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon series APU)*
*Supports NVMe SSD as boot disks
Connector
- 1 x LPC Header
- 1 x AMD Fan LED Header*
- 1 x CPU Fan Connector (4-pin)**
- 1 x Chassis Fan Connector (4-pin)
- 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) ***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x AMD LED Fan USB Header
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
*The AMD Fan LED Connector supports LED strip of maximum 3A (36W) and LED strip length up to 2.5M.
**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
***The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
CHA_FAN1/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 2 x HDMI Ports
- 1 x Optical SPDIF Out Port
- 2 x USB 2.0 Ports (Supports ESD Protection) *
- 1 x USB 3.1 Gen1 Type-A Port (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
- 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
*1 x Fatal1ty Mouse Port (USB 2.0 ) is included
Hardware Monitor
- Temperature Sensing: CPU, Chassis, Chassis Optional/Water Pump Fans
- Fan Tachometer: CPU, Chassis, Chassis Optional/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by
CPU temperature): CPU, Chassis, Chassis Optional/Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis, Chassis Optional/Water Pump Fans
- Voltage monitoring: +12V, +5V, + 3.3V, CPU Vcore
Form Factor
- Mini-ITX Form Factor: 6.7 -in x 6.7 -in, 17.0 cm x 17.0 cm
- 2oz Copper PCB
OS
- Microsoft® Windows® 10 64-bit / 11 64-bit*
Package Included:
1PCS ASRock Fatal1ty X370 Gaming-ITX/ac Motherboard Mini-ITX
1PCS I/O Shield Backplane
2PCS SATA Cable
- Supports AMD Socket AM4 A-Series APUs (Bristol Ridge) and Ryzen Series CPUs (Vermeer, Cezanne, Renoir, Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge)*
- Digi Power design
- 8 Power Phase design
*Bristol Ridge does not supports since BIOS version 7. XX.
Vermeer, Cezanne and Renoir CPUs are supported after updating the BIOS, using another CPU for that update.
Chipset
- AMD Promontory X370
Memory
- Dual Channel DDR4 Memory Technology
- 2 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+ (OC) / 3200 (OC) / 2933 (OC) / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Picasso) support DDR4 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
- AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+ (OC) / 3200 (OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
- AMD 7th Gen A-Series APUs support DDR4 2400 / 2133 ECC & non-ECC, un-buffered memory**
- Max. capacity of system memory: 32GB**
- 15 Gold Contact in DIMM Slots
*For Ryzen Series CPUs (Picasso and Raven Ridge), ECC is only supported with PRO CPUs.
Please refer to below table for DDR4 UDIMM maximum frequency support.
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, DRAM, PCH 1.05V, PROM 2.5V, Voltage Multi-adjustment
Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
- Integrated AMD Radeon R-Series Graphics in A-series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB. **
- Supports 2 x HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Ports (Compliant HDMI monitor is required)
- Supports HDCP 1.4 with HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with HDMI Ports
*Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed.
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Nichicon Fine Gold Series Audio Caps
- 120dB SNR DAC with Differential Amplifier
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- Supports Creative Sound Blaster Cinema 3
LAN
- Gigabit LAN 10/100/1000 Mb/s
- GigaLAN Intel® I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3 az
- Supports PXE
Wireless LAN
- Intel® 802.11 ac WiFi Module (Free Bundle)
- Supports IEEE 802.11 a/b/g/n/ac
- Supports Dual-Band ( 2.4 /5 GHz)
- Supports high speed wireless connections up to 867Mbps
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 4.2 / 3.0 + High speed class II
Slots
AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
AMD 7th A-Series APUs / Raven Ridge CPUs
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*
AMD Ryzen series CPUs (Picasso, Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*
AMD Athlon series CPUs
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x4 mode)*
- 1 x Vertical M. 2 Socket (Key E) with the bundled WiFi- 802.11 ac PCIe WiFi module (on the rear I/O)
- 15 Gold Contact in VGA PCIe Slot (PCIE1)
*Supports PCIe riser cards to extend one x16 slot to two x8 slots if you install AMD Ryzen series CPUs
Supports NVMe SSD as boot disks
Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Ultra M. 2 Socket, supports M Key type 2280 M. 2 SATA3 6.0 Gb/s module and M. 2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon series APU)*
*Supports NVMe SSD as boot disks
Connector
- 1 x LPC Header
- 1 x AMD Fan LED Header*
- 1 x CPU Fan Connector (4-pin)**
- 1 x Chassis Fan Connector (4-pin)
- 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) ***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x AMD LED Fan USB Header
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
*The AMD Fan LED Connector supports LED strip of maximum 3A (36W) and LED strip length up to 2.5M.
**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
***The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
CHA_FAN1/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 2 x HDMI Ports
- 1 x Optical SPDIF Out Port
- 2 x USB 2.0 Ports (Supports ESD Protection) *
- 1 x USB 3.1 Gen1 Type-A Port (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
- 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
*1 x Fatal1ty Mouse Port (USB 2.0 ) is included
BIOS
- 128Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, DRAM, PCH 1.05V, PROM 2.5V, Voltage Multi-adjustment
Graphics
- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
- Integrated AMD Radeon R-Series Graphics in A-series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB. **
- Supports 2 x HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Ports (Compliant HDMI monitor is required)
- Supports HDCP 1.4 with HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with HDMI Ports
*Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed.
Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Nichicon Fine Gold Series Audio Caps
- 120dB SNR DAC with Differential Amplifier
- Pure Power-In
- Direct Drive Technology
- PCB Isolate Shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- Supports Creative Sound Blaster Cinema 3
LAN
- Gigabit LAN 10/100/1000 Mb/s
- GigaLAN Intel® I211AT
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3 az
- Supports PXE
Wireless LAN
- Intel® 802.11 ac WiFi Module (Free Bundle)
- Supports IEEE 802.11 a/b/g/n/ac
- Supports Dual-Band ( 2.4 /5 GHz)
- Supports high speed wireless connections up to 867Mbps
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 4.2 / 3.0 + High speed class II
Slots
AMD Ryzen series CPUs (Matisse, Summit Ridge and Pinnacle Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
AMD 7th A-Series APUs / Raven Ridge CPUs
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*
AMD Ryzen series CPUs (Picasso, Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*
AMD Athlon series CPUs
- 1 x PCI Express 3.0 x16 Slot (PCIE1: x4 mode)*
- 1 x Vertical M. 2 Socket (Key E) with the bundled WiFi- 802.11 ac PCIe WiFi module (on the rear I/O)
- 15 Gold Contact in VGA PCIe Slot (PCIE1)
*Supports PCIe riser cards to extend one x16 slot to two x8 slots if you install AMD Ryzen series CPUs
Supports NVMe SSD as boot disks
Storage
- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Ultra M. 2 Socket, supports M Key type 2280 M. 2 SATA3 6.0 Gb/s module and M. 2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Matisse, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with A-Series APU and Athlon series APU)*
*Supports NVMe SSD as boot disks
Connector
- 1 x LPC Header
- 1 x AMD Fan LED Header*
- 1 x CPU Fan Connector (4-pin)**
- 1 x Chassis Fan Connector (4-pin)
- 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) ***
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x AMD LED Fan USB Header
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
*The AMD Fan LED Connector supports LED strip of maximum 3A (36W) and LED strip length up to 2.5M.
**The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
***The Chassis Optional/Water Pump Fan supports the water cooler fan of maximum 1.5A (18W) fan power.
CHA_FAN1/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 2 x HDMI Ports
- 1 x Optical SPDIF Out Port
- 2 x USB 2.0 Ports (Supports ESD Protection) *
- 1 x USB 3.1 Gen1 Type-A Port (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Type-C Port (Supports ESD Protection)
- 2 x USB 3.1 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
*1 x Fatal1ty Mouse Port (USB 2.0 ) is included
Hardware Monitor
- Temperature Sensing: CPU, Chassis, Chassis Optional/Water Pump Fans
- Fan Tachometer: CPU, Chassis, Chassis Optional/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by
CPU temperature): CPU, Chassis, Chassis Optional/Water Pump Fans
- Fan Multi-Speed Control: CPU, Chassis, Chassis Optional/Water Pump Fans
- Voltage monitoring: +12V, +5V, + 3.3V, CPU Vcore
Form Factor
- Mini-ITX Form Factor: 6.7 -in x 6.7 -in, 17.0 cm x 17.0 cm
- 2oz Copper PCB
OS
- Microsoft® Windows® 10 64-bit / 11 64-bit*
Package Included:
1PCS ASRock Fatal1ty X370 Gaming-ITX/ac Motherboard Mini-ITX
1PCS I/O Shield Backplane
2PCS SATA Cable
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies*
- Return for refund within: 30 days
- Return for replacement within: non-replaceable
- This item is covered by DoDo DIY Return Policy
- *Subject to applicable law
Warranty Notice:
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.
Manufacturer Contact Info
- For a directory of all our manufacturers, please click below.
- Manufacturers Directory
LOADING...
LOADING...
