PCI-E Dahdi Card Asterisk Card with 4 FXO+4 FXS ports,with Low Profile,TDM800E Analog Board Asterisk Board Voice Board tdm800 for Free PBX Appliance IP PABX System AEX800
- -Supports Asterisk,issabel,Freepbx,Dahdi,Free PBX

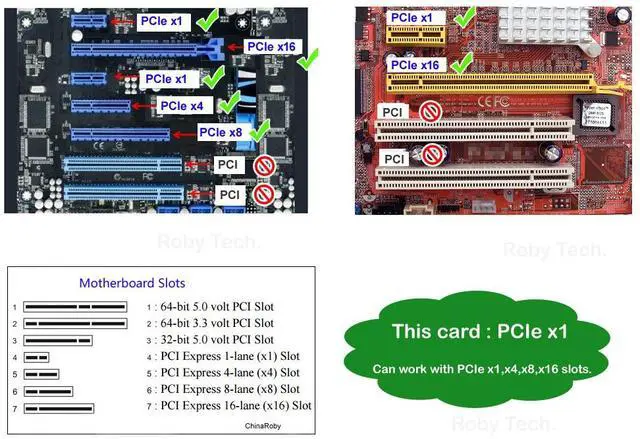

- -with PCI-E (PCIe x1) connector
- -with 4 FXO+4 FXS ports
- --Using the card, open source software and PC,you can build a telephone solution / IP PBX / call center /SIP server/VoIP Gateway Trunk appliance easily at a very low cost.
+
+
Overview
Specs
Reviews
Purchase Notice:

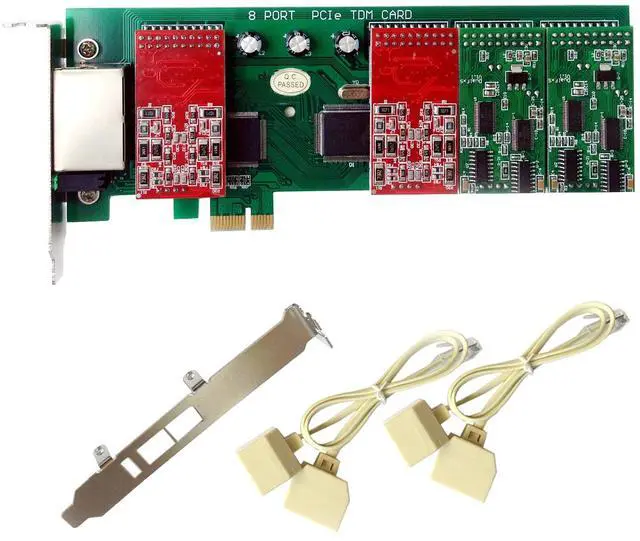

The card is with 4 FXO+4 FXS ports.
with PCI-E connector
Supports Asterisk,issabel,Freepbx,Dahdi
Description:
The Asterisk card supports up to 8 FXO/FXS ports, plug and play. Using the analog card, open source Asterisk PBX and stand alone PC, users can create their SOHO telephony solution include all the sophisticated features of traditional PBX, and extend features such as voicemail in IP PBX.
It supports standard dahdi / zaptel drivers, can work with Asterisk / Free Pbx / Issabel ...
Specification:

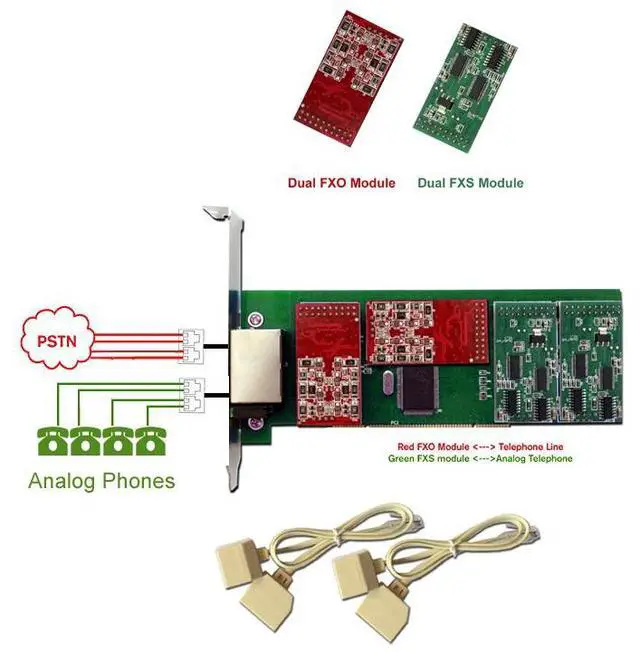

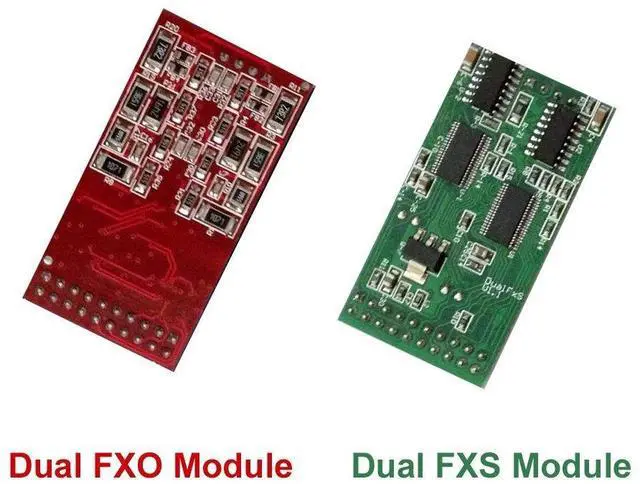

The FXO module is in red and the FXS model is in green.
FXO port connects to PSTN line and the FXS port connects to the telephone. You can get any combination of FXO & FXS modules with the same price, no any additional cost. Please specify what configuration you need when purchase.

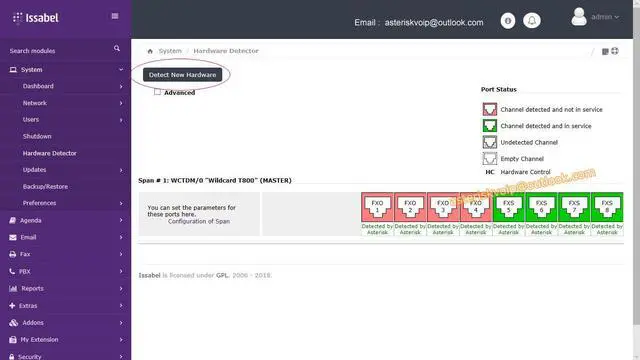

Issabel/FreePBX Settings:
[ .localdomain]#dahdi_genconf
[ .localdomain]#dahdi_cfg -vvvv
DAHDI Tools Version - 2.2.0
DAHDI Version: 2.2.0
Echo Canceller(s): MG2
Configuration
====================
Channel map:
Channel 01: FXS Kewlstart (Default) (Echo Canceler: mg2)
Channel 02: FXS Kewlstart (Default) (Echo Canceler: mg2)
Channel 03: FXS Kewlstart (Default) (Echo Canceler: mg2)
Channel 04: FXS Kewlstart (Default) (Echo Canceler: mg2)
Channel 05: FXO Kewlstart (Default) (Echo Canceler: mg2)
Channel 06: FXO Kewlstart (Default) (Echo Canceler: mg2)
Channel 07: FXO Kewlstart (Default) (Echo Canceler: mg2)
Channel 08: FXO Kewlstart (Default) (Echo Canceler: mg2)
======================
The card is with 4 FXO+4 FXS ports.
with PCI-E connector
Supports Asterisk,issabel,Freepbx,Dahdi
Description:
The Asterisk card supports up to 8 FXO/FXS ports, plug and play. Using the analog card, open source Asterisk PBX and stand alone PC, users can create their SOHO telephony solution include all the sophisticated features of traditional PBX, and extend features such as voicemail in IP PBX.
It supports standard dahdi / zaptel drivers, can work with Asterisk / Free Pbx / Issabel ...
Specification:
The FXO module is in red and the FXS model is in green.
FXO port connects to PSTN line and the FXS port connects to the telephone. You can get any combination of FXO & FXS modules with the same price, no any additional cost. Please specify what configuration you need when purchase.
Issabel/FreePBX Settings:
[ .localdomain]#dahdi_genconf
[ .localdomain]#dahdi_cfg -vvvv
DAHDI Tools Version - 2.2.0
DAHDI Version: 2.2.0
Echo Canceller(s): MG2
Configuration
====================
Channel map:
Channel 01: FXS Kewlstart (Default) (Echo Canceler: mg2)
Channel 02: FXS Kewlstart (Default) (Echo Canceler: mg2)
Channel 03: FXS Kewlstart (Default) (Echo Canceler: mg2)
Channel 04: FXS Kewlstart (Default) (Echo Canceler: mg2)
Channel 05: FXO Kewlstart (Default) (Echo Canceler: mg2)
Channel 06: FXO Kewlstart (Default) (Echo Canceler: mg2)
Channel 07: FXO Kewlstart (Default) (Echo Canceler: mg2)
Channel 08: FXO Kewlstart (Default) (Echo Canceler: mg2)
======================
