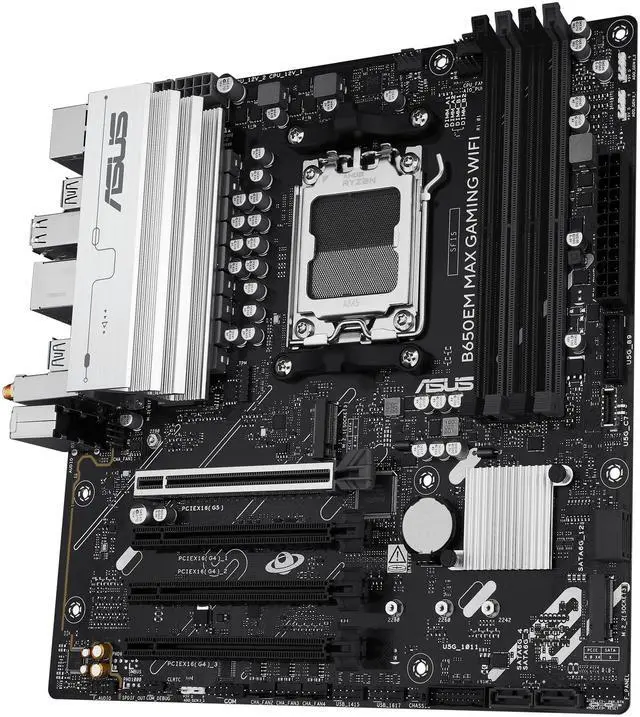

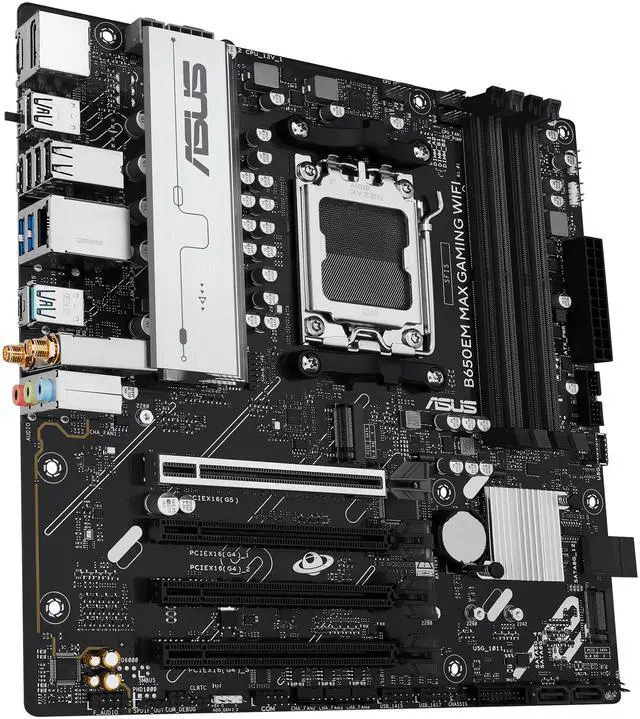

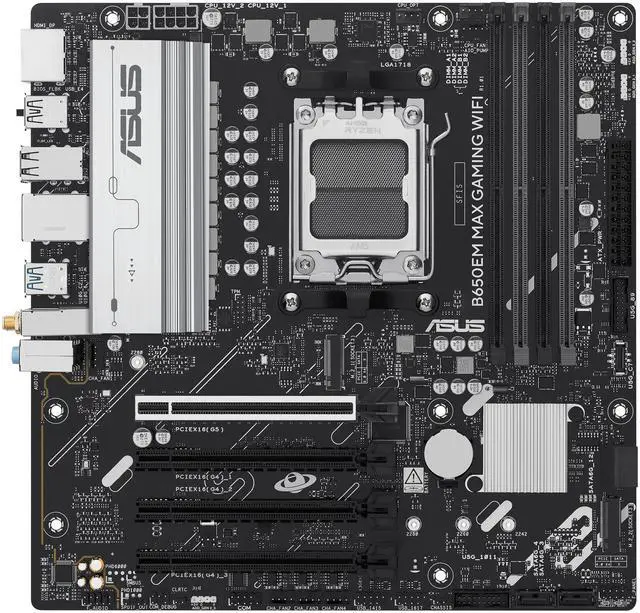

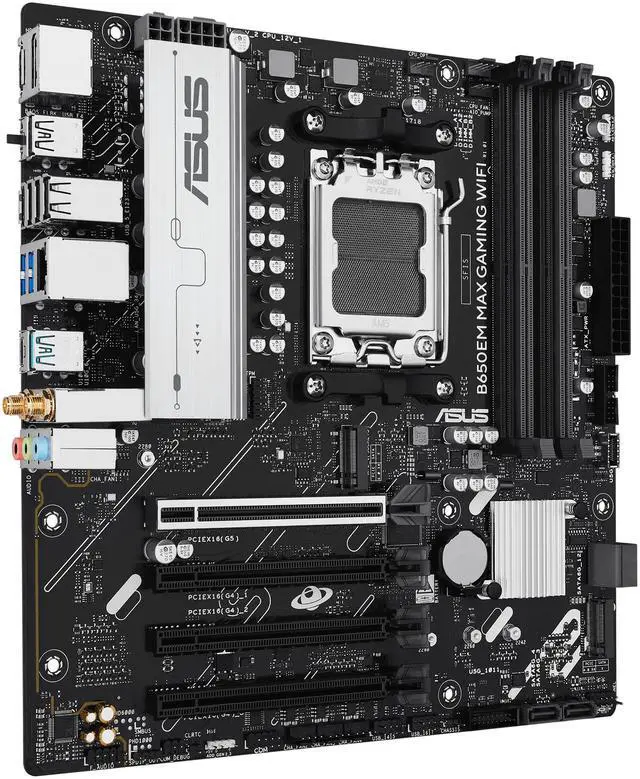

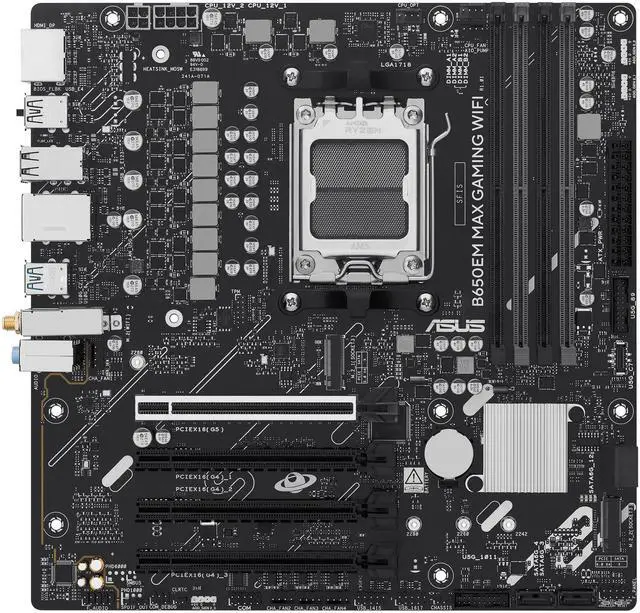

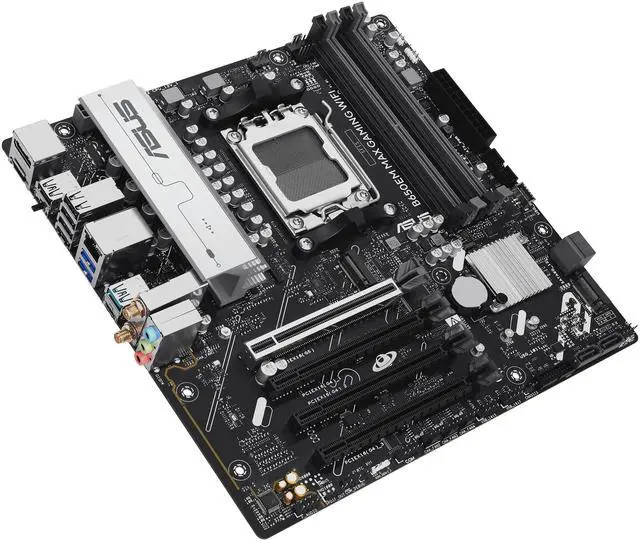

ASUS B650EM MAX GAMING WIFI AMD B650 mATX motherboard, DDR5, PCIe 5.0 Ready, three M.2 slots, WiFi 6, Realtek 1Gb Ethernet, DisplayPort, HDMI, rear USB 10Gbps Type-A & Type-C ports support, BIOS FlashBack, Aura Sync
- Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
- AMD AM5 Socket: Ready for AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
- Enhanced Power Solution: 8+2+1 phase power design, 6-layer PCB, alloy chokes and durable capacitors for stable power delivery
- Ultrafast Connectivity: Wi-Fi 6, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, rear USB 10Gbps Type-A & Type-C ports, front USB 5Gbps Type-C support
- Comprehensive Cooling: VRM heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- DIY Friendly Design: BIOS FlashBack, Q-LED Core
- Unmatched Personalization: Three Addressable RGB Gen 2 headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
- Renowned Software: Armoury Crate, ASUS DriverHub
- CEC Tier II ready
+
+
Specs
Reviews
Learn more about the ASUS B650EM MAX GAMING WIFI
| Brand | ASUS |
|---|---|
| Model | B650EM MAX GAMING WIFI |
| Part Number | 90MB1LK0-MVAAY0 |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD B650 |
|---|
| Number of Memory Slots | 4x288pin (DDR5) |
|---|---|
| Memory Standard | Supports up to 8000+MT/s (OC) |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| Memory Feature | ASUS Enhanced Memory Profile (AEMP) |
| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors* 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)** *** PCIEX16 (G4)_3 slot will be disabled with some 8000 Series processors. |
|---|---|
| PCI Express 4.0 x16 | 3 x PCIe 4.0 x16 slots (support x1 mode) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) |
| SATA RAID | AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
| Audio Channels | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|---|
| Max LAN Speed | 1Gbps |
|---|---|
| Wireless LAN | Wi-Fi 802.11 ax |
| Bluetooth | Bluetooth 5.4 |

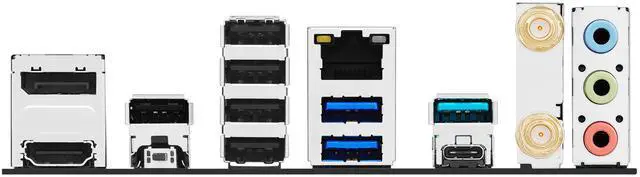

| Back I/O Ports | 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C) 2 x USB 5Gbps ports (2 x Type-A) 5 x USB 2.0 ports (5 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button |
|---|
| Onboard USB | 1 x USB 5Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|---|---|
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector 1 x 4-pin +12V CPU Power connector |
| BIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS |
|---|---|
| Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Two-Way AI Noise Cancelation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS DriverHub ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
| Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED Aura Sync - Addressable RGB Gen 2 headers |
|---|

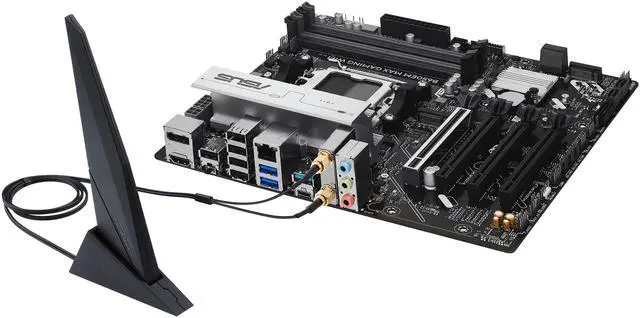

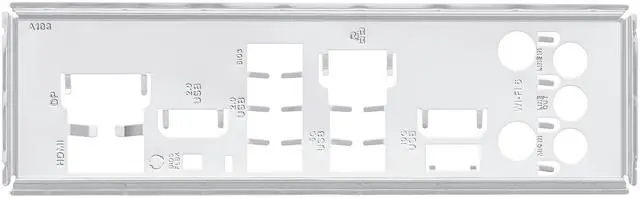

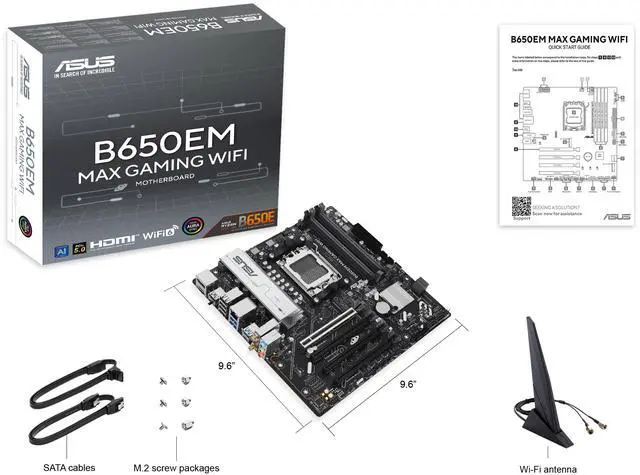

| Package Contents | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x I/O Shield 3 x Screw packages for M.2 SSD Documentation 1 x Quick start guide |
|---|
| First Listed on Newegg | August 20, 2025 |
|---|
