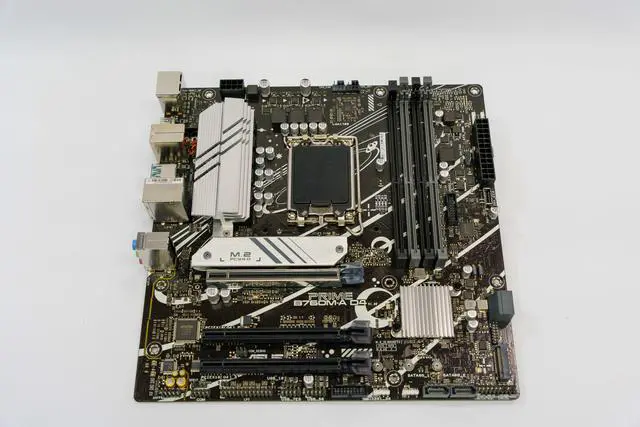

ASUS PRIME B760M-A D4 Intel B760 (LGA 1700)(13th and 12th Gen) mATX motherboard, PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, DisplayPort, Dual HDMI, SATA 6 Gbps, rear USB 3.2 Gen 2
REFURBISHED Product Type
- Intel LGA 1700 socket: Ready for 13th Gen Intel Core processors & 12th Gen Intel Core, Pentium® Gold and Celeron® Processors.
- Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C.
- Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking.
- Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.
- Memory: DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)
- /4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133
+
+
Overview
Specs
Reviews
Specifications
Make and Model ASUS PRIME PRIME B760M-A D4 Motherboard
Part Number PRIME PRIME B760M-A D4
Windows® Support Windows® 11 / 10, 64 bit
Chipset Intel® B760 Chipset
CPU Socket Intel® Socket 1700
CPU Support 13th & 12th Gen Intel® Core / Pentium® / Celeron® Processors for Socket BGA 1700
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 on matching CPUs.
Memory 4x DDR4 DIMM RAM Slots, Supports up to 128GB RAM (4x 32GB)
Overclocked RAM: DDR4-5333 / 5066 / 5000 / 4800 / 4600 / 4400 / 4266 / 4000 / 3733 / 3600 / 3466 / 3400 / 3333 MHz
Stock Clocked RAM: DDR4-3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Supports OptiMem II
Expansion Slots 1x PCIe 4.0 x16 slot
1x PCIe 4.0 x16 slot (supports x4 mode)
1x PCIe 4.0 x1 slot
Multiple Graphic Cards Multiple Graphic Cards are not supported by this Motherboard
Onboard Graphics 2x HDMI® v 2.1 port (Up to 4K/60Hz)
1x DisplayPort v 1.4 port (Up to 4K/60Hz)
Storage M. 2_1 PCIe 4.0 x4 Slot (Key M), type 2242/2260/2280
M. 2_2 PCIe 4.0 x4 Slot (Key M), type 2242/2260/2280
4x SATA III 6Gb/s ports
Intel® Rapid Storage Technology supports SATA III RAID 0/1/5/10
USB Ports 6x Rear USB Ports:
2x USB 3.2 Gen 2 (10Gbps) Type-A ports
4x USB 2.0 (480Mbps) Type-A ports
Supports 9x Front USB Ports:
1x USB 3.2 Gen 1 (5Gbps) USB Type-C port (via 1x USB 3.2 Gen 1 header)
4x USB 3.2 Gen 1 (5Gbps) Type-A ports (via 2x USB 3.2 Gen 1 header)
5x USB 2.0 (480Mbps) ports (via 3x USB 2.0 Headers)
LAN REALTEK LAN Chipset:
1x 2.5G b RJ45 LAN port
WiFi WiFi Not Supported
Bluetooth Bluetooth Not Supported
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC:
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
- Supports up to 7.1 Channel Audio*
* A chassis with an HD Audio Module in the front panel is required for 7.1 Surround Sound audio output.
Audio Features:
- Audio Shielding
- Premium Audio Capacitors
- Dedicated Audio PCB Layers
Rear I/O Ports 2x USB 3.2 Gen 2 (10Gbps) Type-A ports
4x USB 2.0 (480Mbps) Type-A ports
2x HDMI® v 2.1 ports (Up to 4K/60Hz)
1x DisplayPort v 1.4 port (Up to 4K/60Hz)
1x Realtek 2.5G b Ethernet port
3x 3.5 mm Audio jacks
1x PS/2 Combo Keyboard / Mouse port
Internal I/O Connectors Power:
1x 24-pin Main Power connector
1x 8-pin +12V Power connector
Fan and Cooling:
1x 4-pin CPU Fan header
1x 4-pin AIO Pump header
2x 4-pin Chassis Fan headers
Storage:
2x M. 2 slots (Key M)
4x SATA 6Gb/s ports
USB:
1x USB 3.2 Gen 1 (5Gbps) USB Type-C port (via 1x USB 3.2 Gen 1 header)
4x USB 3.2 Gen 1 (5Gbps) Type-A ports (via 2x USB 3.2 Gen 1 header)
5x USB 2.0 (480Mbps) ports (via 3x USB 2.0 Headers)
Miscellaneous
3x Addressable Gen 2 headers
1x Aura RGB header
1x Clear CMOS header
1x COM Port header
1x LPT header
1x Front Panel Audio header (AAFP)
1x S/PDIF Out header
1x SPI TPM header (14-1pin)
1x 20-3 pin System Panel header with Chassis intrude function
LED Headers 3x Addressable Gen 2 headers
1x Aura RGB header
Special Features ASUS 5X PROTECTION III:
- DIGI+ VRM
- LAN
Guard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design:
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS EZ DIY:
- ProCool
ASUS Thermal Solution:
- M. 2 heatsink
- VRM heatsink design
Aura Sync:
- Aura RGB header
- Addressable Gen 2 headers
Software ASUS Exclusive Software:
Armoury Crate:
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3:
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS:
ASUS EZ DIY:
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS 128 Mb Flash ROM, UEFI AMI BIOS
Manageability WOL by PME, PXE
Form Factor mATX Form Factor
Dimensions (LxW) 244 x 244mm
