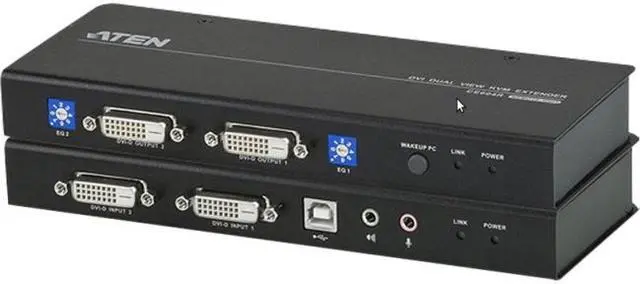

ATEN CE604 Dual View KVM Extender

Be the first to review this product...

Video Resolution 1920x1200 @ 60Hz (100 ft., 30 m); 1024x768 @ 60Hz (200ft., 60 m)

Overview

Specs

Reviews

MAIN OVERVIEW FEATURES: Connectivity Technology: WiredNumber of Computers Supported: 1Number of Remote Users Supported: 1Maximum Operating Distance: 196.85 ftGraphic Mode: WUXGAMaximum Video Resolution: 1920 x 1200Network (RJ-45): YesUSB: YesDVI: YesNumber of Network (RJ-45) Ports: 4Number of USB Ports: 3Number of DVI Ports: 4Input Voltage: 5.3 V DCPackage Contents: DVI Dual View KVM Extender1 x USB DVI KVM Cable Set1 x DVI Cable2 x Power Adapters1 x Mounting Kit1 x User InstructionsEnvironmentally Friendly: YesEnvironmental Certification: RoHS,WEEE

Model
Brand	ATEN
Model	CE604

Details
Type	DVI
PC Connectors	USB: 1 x USB Type B Female (White) (CE604L) Speakers : 1 x Mini Stereo Jack Female (Green) (CE604L) Mic.: 1 x Mini Stereo Jack Female (Pink) (CE604L) Video input: 2 x DVI-D Female (White) (CE604L)
Console Connectors	Video: 2 x DVI-D Female (White) (CE604R) Speakers : 1 x Mini Stereo Jack Female (Green) (CE604R) Mic.: 1 x Mini Stereo Jack Female (Pink) (CE604R) Keyboard: 1 x USB Type A Female (White) (CE604R) Mouse : 1 x USB Type A Female (White) (CE604R)
Video Resolution	1920x1200 @ 60Hz (100 ft., 30 m); 1024x768 @ 60Hz (200ft., 60 m)

Features
Power Features	Power Consumption: DC5.3V, 3.4W D5.3V, 4.3W
Features	Local and Remote Units connect at distances up to 200 feet (60 m) using two Cat 5e cables Transmit speaker, keyboard, mouse, DDC and one DVI via one Cat5 cable; RS-232, microphone and another DVI by adding a second Cat 5e cable Supports Dual View video source transmission (one PC with two video output ports) Audio Enabled – supports stereo speakers and microphone Supports Real DDC bypass and ATEN default EDID technology – set up various confi gurations via hotkeys Supports PC wakeup function via one pushbutton or hotkey RS-232 serial channel – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 9600 bps) Compatible with other ATEN Dual View KVM devices, such as CS1642A/ CS1644A and CS1762A/CS1764A Superior video quality – up to 1920 x 1200 @ 60 Hz at 100 feet (30 m); 1024 x 768 @ 60 Hz at 200 feet (60 m) Manual compensation control to adjust video signal quality in order to compensate for distance Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection

Dimensions & Weight
Dimensions	1.00" x 3.40" x 8.00" (H x W x L) (CE604L) 1.00" x 3.40" x 8.00" (H x W x L) (CE604R)
Weight	1.10lbs
