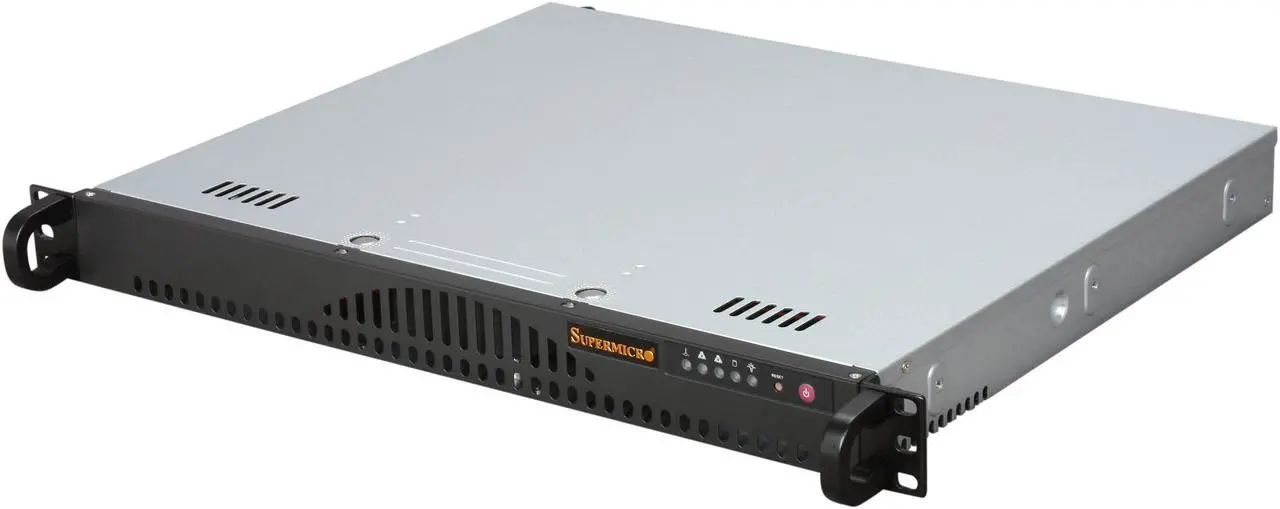

SUPERMICRO SuperChassis CSE-512L-200B Black 1U Rackmount Server Case 200W
- 14" Mini 1U chassis support for max. motherboard size - 12" x 9.6" ATX
- 2 x 3.5" fixed drive bay
- SAS or enterprise SATA HDD only recommended
- 1U 200W Multi-output power supply with 20pin, YM-5201D
- 1 full-height & half-length expansion slot(s) (Riser Card Required)
- 1 x 10cm blower
+
+
Overview
Specs
Reviews (10)
SUPERMICRO SuperChassis CSE-512L-200B Black 1U Rackmount Server Case
Features
- 200W Power Supply
- 2x 3.5" Internal Drive Bays
- 1x 10cm Blower Fan
- 1x I/O Expansion Slot
- Power Switch, Reset, and 5x LED Indicators
Specifications
| Product SKUs | |
| CSE-512L-200B | SuperChassis 512L-200B (Black) |
| Form Factor | |
| Form Factor | 14" Mini 1U chassis support for max. motherboard size - 12" x 9.6" ATX |
| Processor Support | |
| Processor Support | Supports single Intel® / AMD processor |
| Dimensions | |
| Height | 1.7" (43mm) |
| Width | 16.8" (426mm) |
| Depth | 14.0" (356mm) |
| Gross Weight | 11 lbs (5kg) |
| Available Colors | Black |
| Expansion Slots | |
| Expansion Slots | 1x full-height half-length expansion slot (Riser Card Required) |
| Drive Bays | |
| Internal Bay |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| System Cooling | |
| Fans | 1x 10cm 3,800 RPM PWM blower fan |
| Operating Environment (System) | |
| Operating Temperature Range | 5°C ~ 35°C (41°F ~ 95°F) |
| Non-Operating Temperature Range | -40°C ~ 60°C (-40°F ~ 140°F) |
| Operating Relative Humidity Range | 8% ~ 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
| Power Supply and Distributor | |
| Power Supply | 200W Low Noise AC-DC power supply with PFC |
| AC Voltage | 100 - 240V, 50-60Hz, 3-1.5 Amp Max |
| +5V | 16.0 Amp |
| +5V standby | 2.0 Amp |
| +12V | 15.0 Amp |
| -12V | 0.8 Amp |
| +3.3V | 17.0 Amp |
| Regulatory (Power Supply) | |
| Power Supply Safety / EMC |
|
What's in the Box

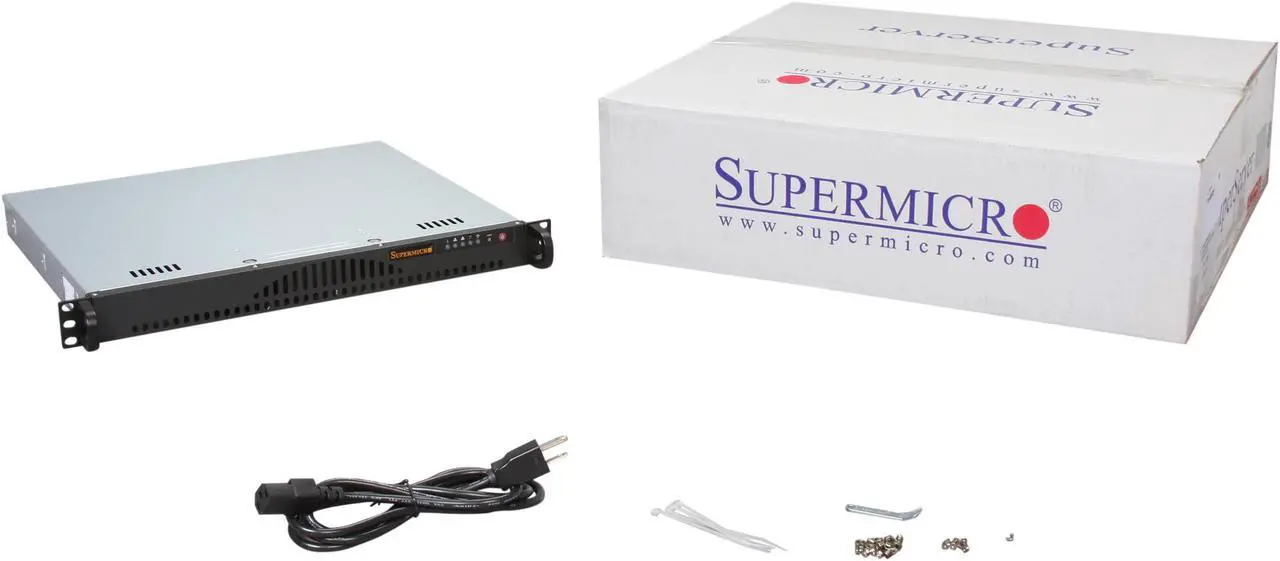

MAIN OVERVIEW FEATURES: Motherboard Supported: ATXNumber of Fans Installed: 1Number of Internal 3.5" Bays: 2Number of Total Expansion Bays: 2Number of Total Expansion Slots: 1Total Number of USB Ports: 2Number of Power Supplies Supported: 1Number of Power Supplies Installed: 1Power Supply Wattage: 200 WColor: BlackCompatible Rack Unit: 1UForm Factor: Rack-mountableHeight: 1.70" (43.18 mm)Width: 16.80" (426.72 mm)Depth: 14" (355.60 mm)Weight (Approximate): 4.99 kgPackage Contents: SuperChassis SC512L-200B Rackmount Enclosure1 x Front cable (16-pin to 16-pin)1 x US power cord 18 AWG1 x 200W 1U power supply1 x 100mm 4-pin PWM blower fan1 x I/O shield for X8 server MB (3rd LAN + 4xLAN)
