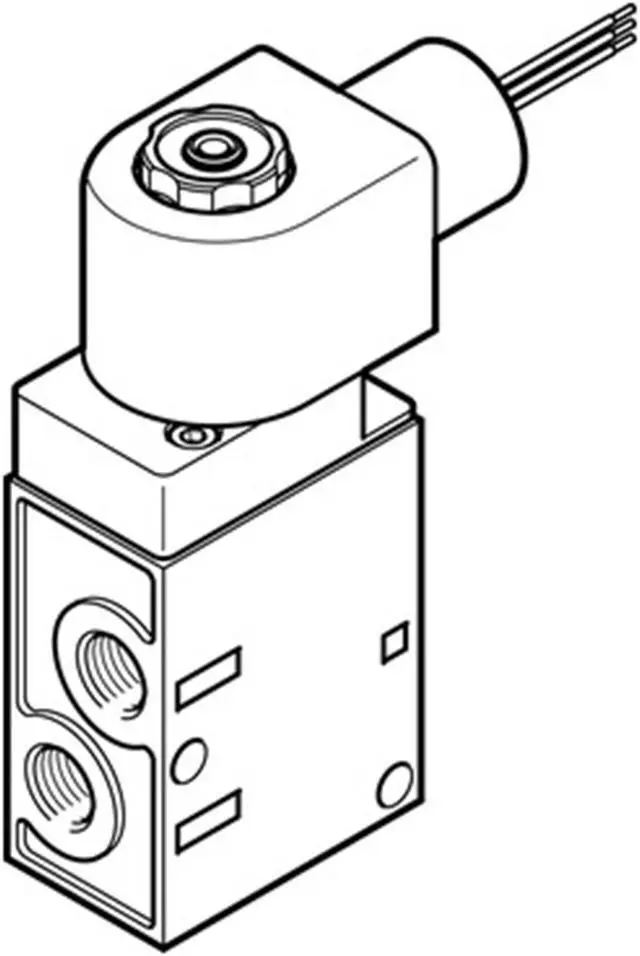

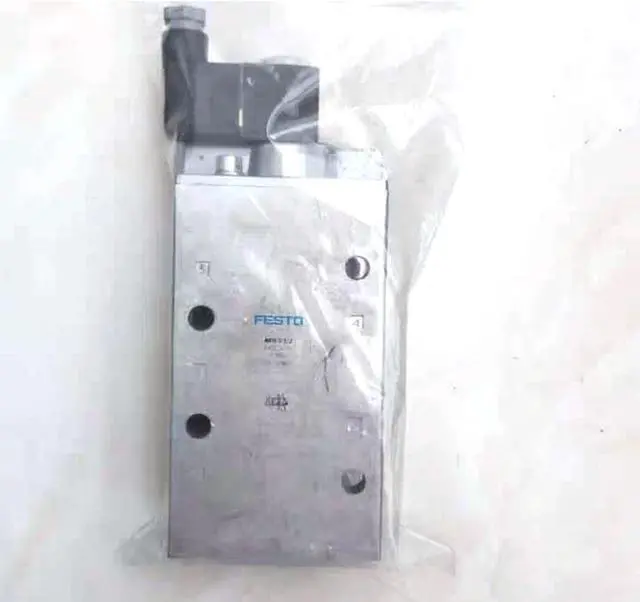

FESTO MFH-3-1/4-24-NPT-EX 541658 Air Solenoid Valve New
- FESTO MFH-3-1/4-24-NPT-EX 541658 Air Solenoid Valve New
+
+
Overview
Specs
Reviews
Valve function
3/2, closed, monostable
Lap
Underlap
Actuation type
Electrical
Width
73 mm
Standard nominal flow rate
800 l/min
Pneumatic working port
1/4 NPT
Operating voltage
24V DC
Operating pressure
1.5 bar ... 8 bar
Reset method
Mechanical spring
Degree of protection
IP65
Nominal width
5 mm
Type code
MFH
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Manual override
Detenting
Type of control
Pilot-controlled
Flow direction
Non-reversible
Symbol
00991008
Switching time off
29 ms
On switching time
12 ms
Coil characteristics
24 V DC: 4.6 W
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
1 - Low corrosion stress
Temperature of medium
-5 °C ... 40 °C
Ambient temperature
-5 °C ... 40 °C
Product weight
425 g
3/2, closed, monostable
Lap
Underlap
Actuation type
Electrical
Width
73 mm
Standard nominal flow rate
800 l/min
Pneumatic working port
1/4 NPT
Operating voltage
24V DC
Operating pressure
1.5 bar ... 8 bar
Reset method
Mechanical spring
Degree of protection
IP65
Nominal width
5 mm
Type code
MFH
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Manual override
Detenting
Type of control
Pilot-controlled
Flow direction
Non-reversible
Symbol
00991008
Switching time off
29 ms
On switching time
12 ms
Coil characteristics
24 V DC: 4.6 W
Operating medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media
Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC)
1 - Low corrosion stress
Temperature of medium
-5 °C ... 40 °C
Ambient temperature
-5 °C ... 40 °C
Product weight
425 g
