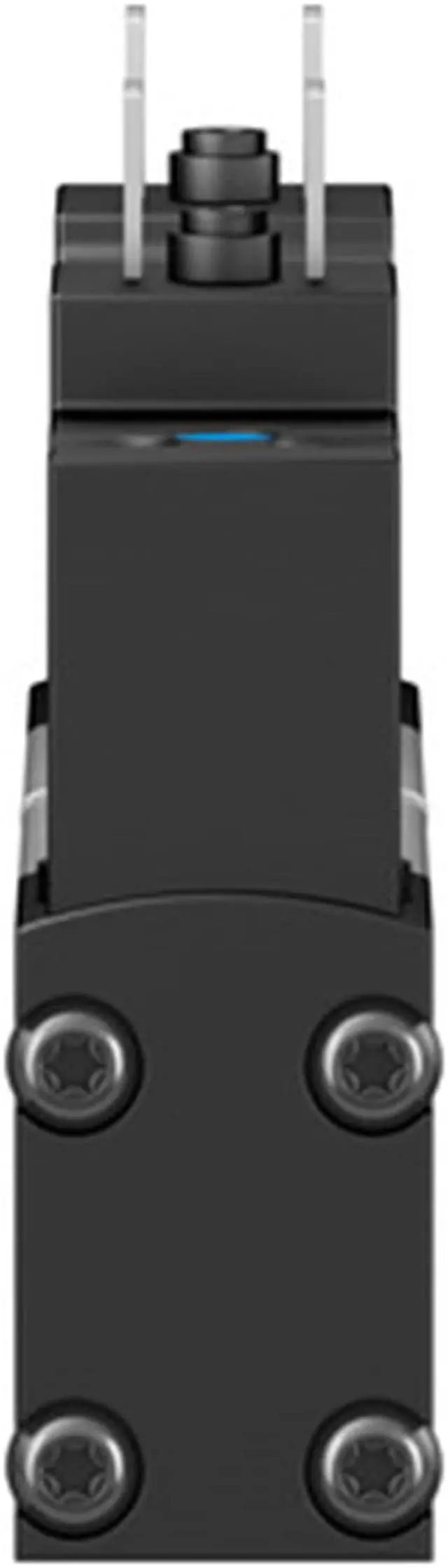

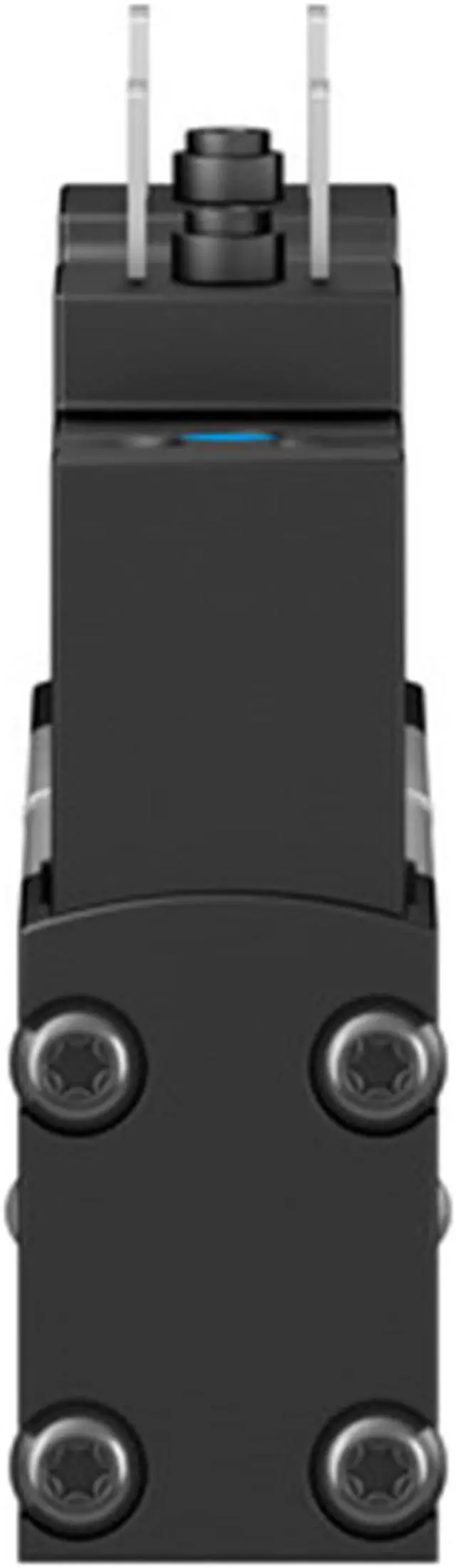

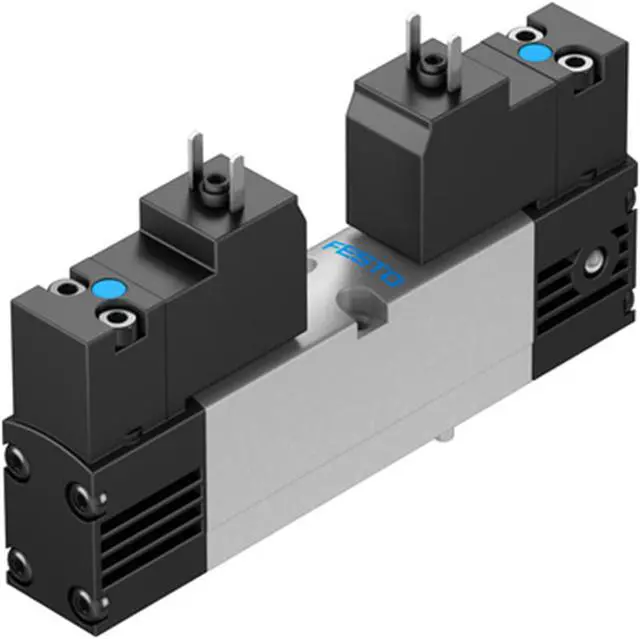

FESTO VSVA-B-P53E-H-A1-1AC1 547104 Air Solenoid Valve New
- FESTO VSVA-B-P53E-H-A1-1AC1 547104 Air Solenoid Valve New
+
+
Overview
Specs
Reviews
Valve function
5/3, exhausted
Lap
Overlap
Actuation type
Electrical
Valve size
26 mm
Standard nominal flow rate
1000 l/min
Operating voltage
24V AC
Operating pressure
3 bar ... 10 bar
Design
Piston gate valve
Reset method
Mechanical spring
Nominal width
9 mm
Type code
VSVA
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Switching time off
58 ms
On switching time
23 ms
Changeover time
35 ms
Duty cycle
100%
Corrosion resistance class (CRC)
0 - No corrosion stress
Temperature of medium
-5 °C ... 50 °C
Relative air humidity
0 - 90 %
Noise level
85 dB(A)
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-5 °C ... 50 °C
Max. tightening torque for valve mounting
2 Nm
Product weight
305 g
5/3, exhausted
Lap
Overlap
Actuation type
Electrical
Valve size
26 mm
Standard nominal flow rate
1000 l/min
Operating voltage
24V AC
Operating pressure
3 bar ... 10 bar
Design
Piston gate valve
Reset method
Mechanical spring
Nominal width
9 mm
Type code
VSVA
Exhaust air function
With flow control option
Sealing principle
Soft
Mounting position
Any
Switching time off
58 ms
On switching time
23 ms
Changeover time
35 ms
Duty cycle
100%
Corrosion resistance class (CRC)
0 - No corrosion stress
Temperature of medium
-5 °C ... 50 °C
Relative air humidity
0 - 90 %
Noise level
85 dB(A)
Pilot medium
Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature
-5 °C ... 50 °C
Max. tightening torque for valve mounting
2 Nm
Product weight
305 g
