Covered with exclusive conformal coating protects it from dust and stains.
80 Plus Platinum Certification
HYDRO PTM X PRO series is a power supply with 80 PLUS Platinum that provides over 92% efficiency at a load of 50 % and reduces electricity costs.
AC/DC
AC Input
100-240Vac~ 11-5.5A 50-60Hz (Not for China)/200-240Vac~ 5.5A 50-60Hz (Only for China)
DC Output
+3.3V/+5V/+12V/-12V/+5Vsb
Max Output Current
20A/20A/70.83A/0.3A/3A
Max Combined Power
120W/850W/18.6W/
Total Power
Total Power
SPECIFICATIONS
Model
HPT3-850M,Gen5
Rated Output Power
850W
Form Factor
ATX
80 PLUS Certification
Platinum
Input Voltage
100-240V
Input Current
13-6A
Input Frequency
50-60Hz
PFC
Active PFC
Efficiency
92%
Fan Type
FDB fan, 120mm

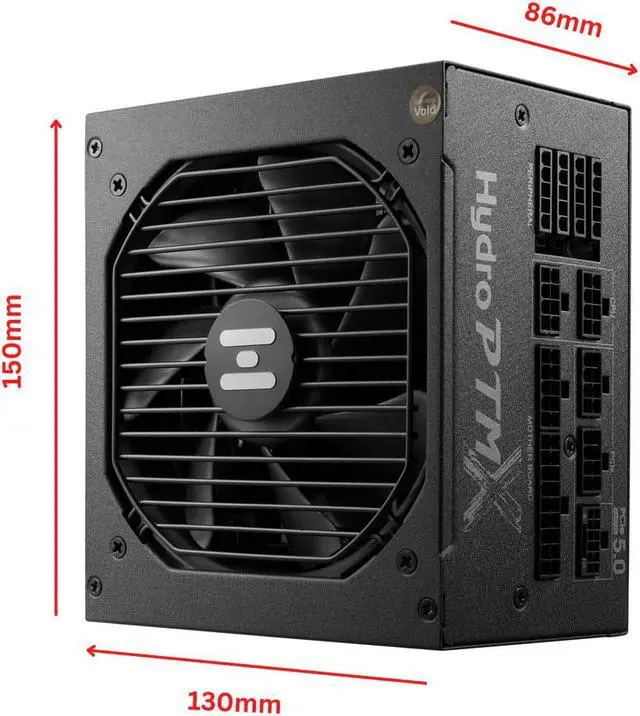

Dimensions(L x W x H)
130×150×86 mm
Operation Temp.
100,000 Hrs
Protection
OCP,OVP OPP, SCP, OTP
FSP HYDRO PTM X PRO series features 12VHPWR Connector and complies ATX 3.0 with PCIe 5.0 is a fully modular low-noise power supply with 130mm length to deliver up to 1200W and high efficiency 80 Plus® Platinum power to your PC built. With the full-bridge LLC topology circuit design and 450V, 105°C Japanese main bulk capacitors, PC parts receive premium power input from HYDRO PTM X PRO series power supplies. Besides, for demanding PC upgrades, you can have all the connections needed from HYDRO PTM X PRO series power supplies.

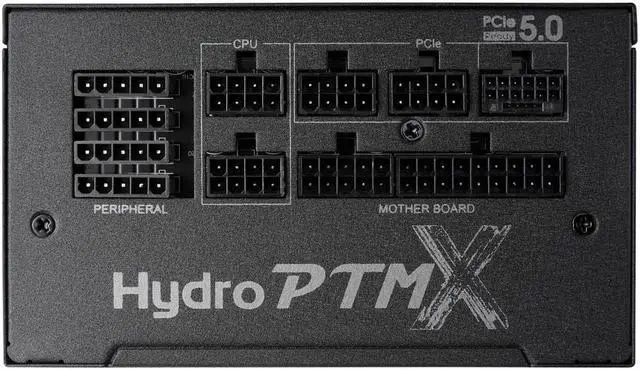

Complies with ATX 12V V 3.0 & EPS 12V V 2.92 Efficiency 92% @ typical load Active PFC 0.9 450V, 105°C Japanese bulk capacitors Japanese electrolytic capacitors +12V single-rail design +5V & 3.3V DC to DC module design Eco semi-fanless fan control switch 120mm fluid dynamic bearing (FDB) fan Fully modular cabling design Black flat cables Changeable side stickers for DIY enthusiasts and gamers Complete protection: OCP/OVP/OPP/SCP/OTPComplies with ATX 12V V 3.0 & EPS 12V V 2.92 Efficiency 92% @ typical load Active PFC 0.9 450V, 105°C Japanese bulk capacitors Japanese electrolytic capacitors +12V single-rail design +5V & 3.3V DC to DC module design Eco semi-fanless fan control switch 120mm fluid dynamic bearing (FDB) fan Fully modular cabling design Black flat cables Changeable side stickers for DIY enthusiasts and gamers Complete protection: OCP/OVP/OPP/SCP/OTP
