Conformal Coating Application
Off-Wet, Off-Dust and Off-Stain
The Hydro PTM PRO series is covered with a conformal coating which protects it from dust, stains, and humidity. The conformal coating is guaranteed to offer better and reliable performance in harsh environments and is tested to work in environments up to 95% relative humidity.
LLC Half Bridge Topology with DC-DC Module Design
The Hydro PTM PRO series adheres to an extremely tight voltage regulation that produces an output voltage under +/- 1% at any load change and offers greater efficiency and voltage stability.

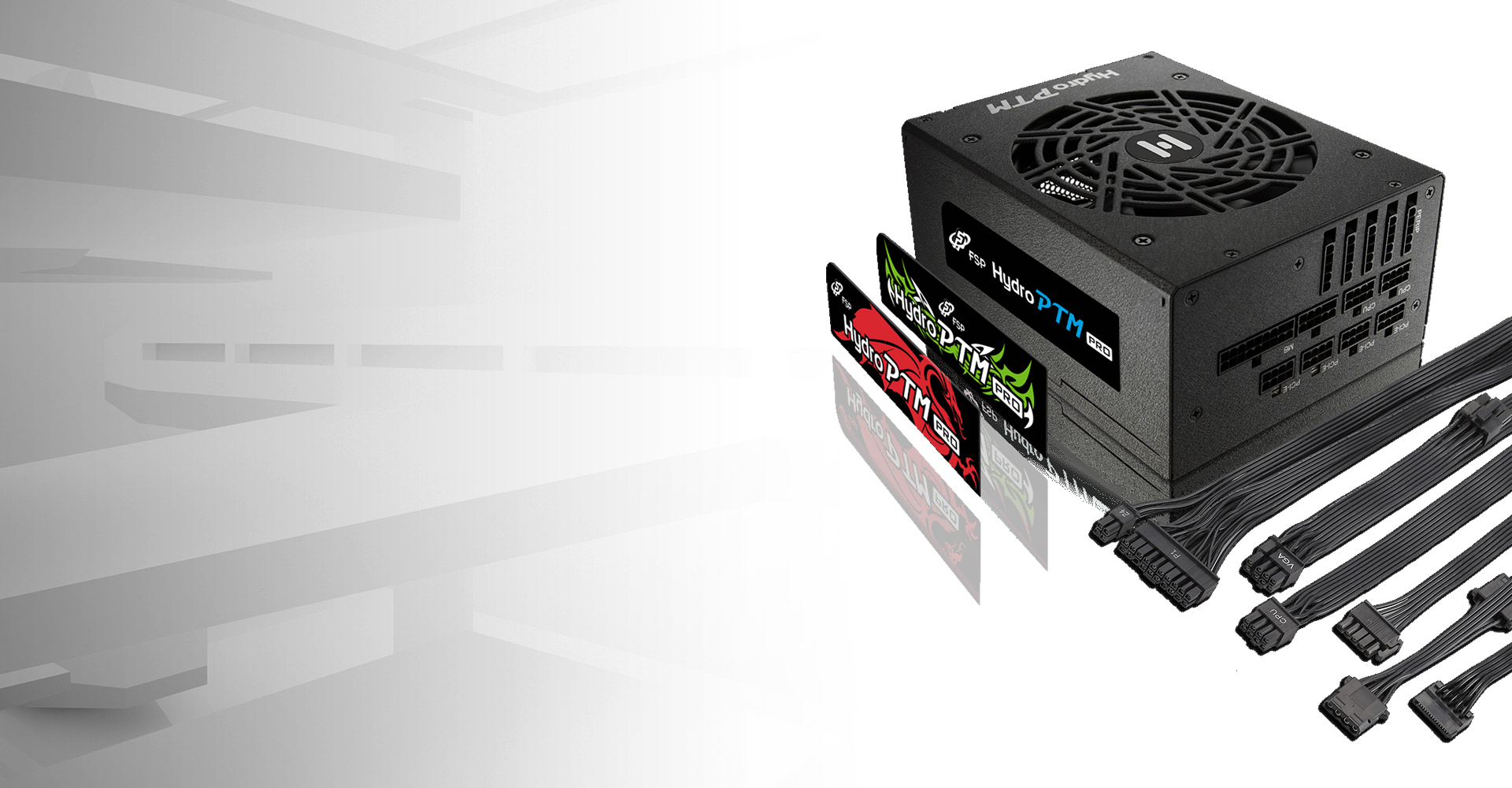

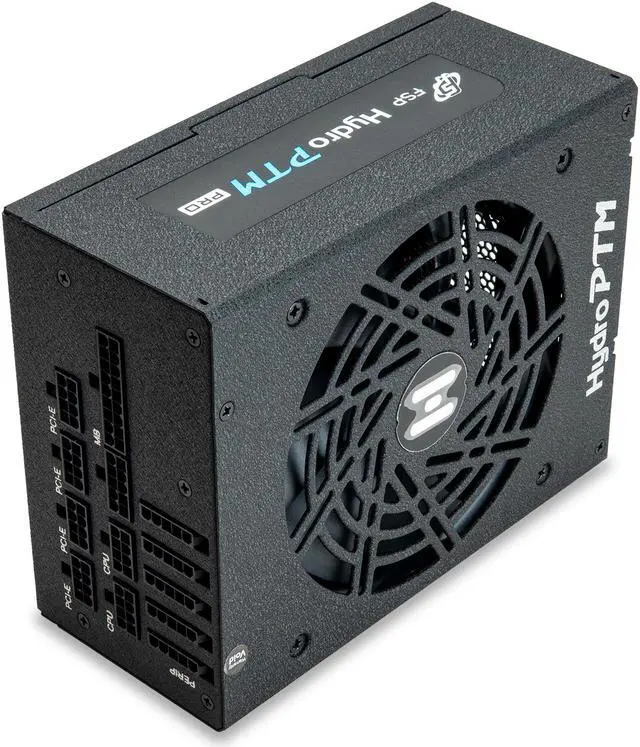

Fully Modular Design for Quick and Easy Installation
The fully modular design simplifies installation and allows you to use only the cables you need for a cleaner and tidier build.

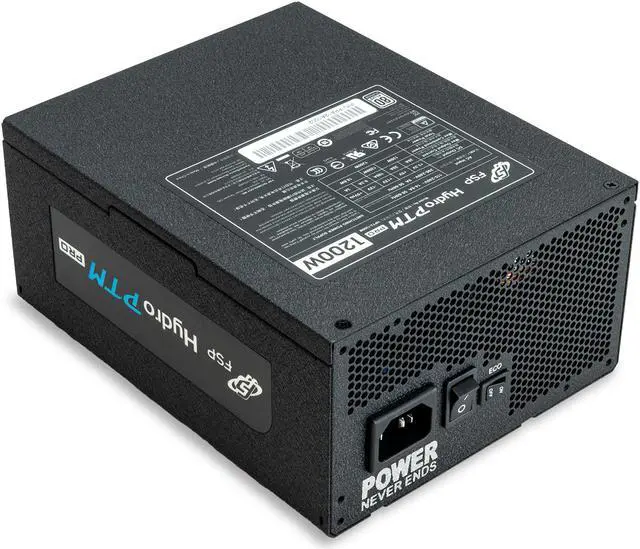

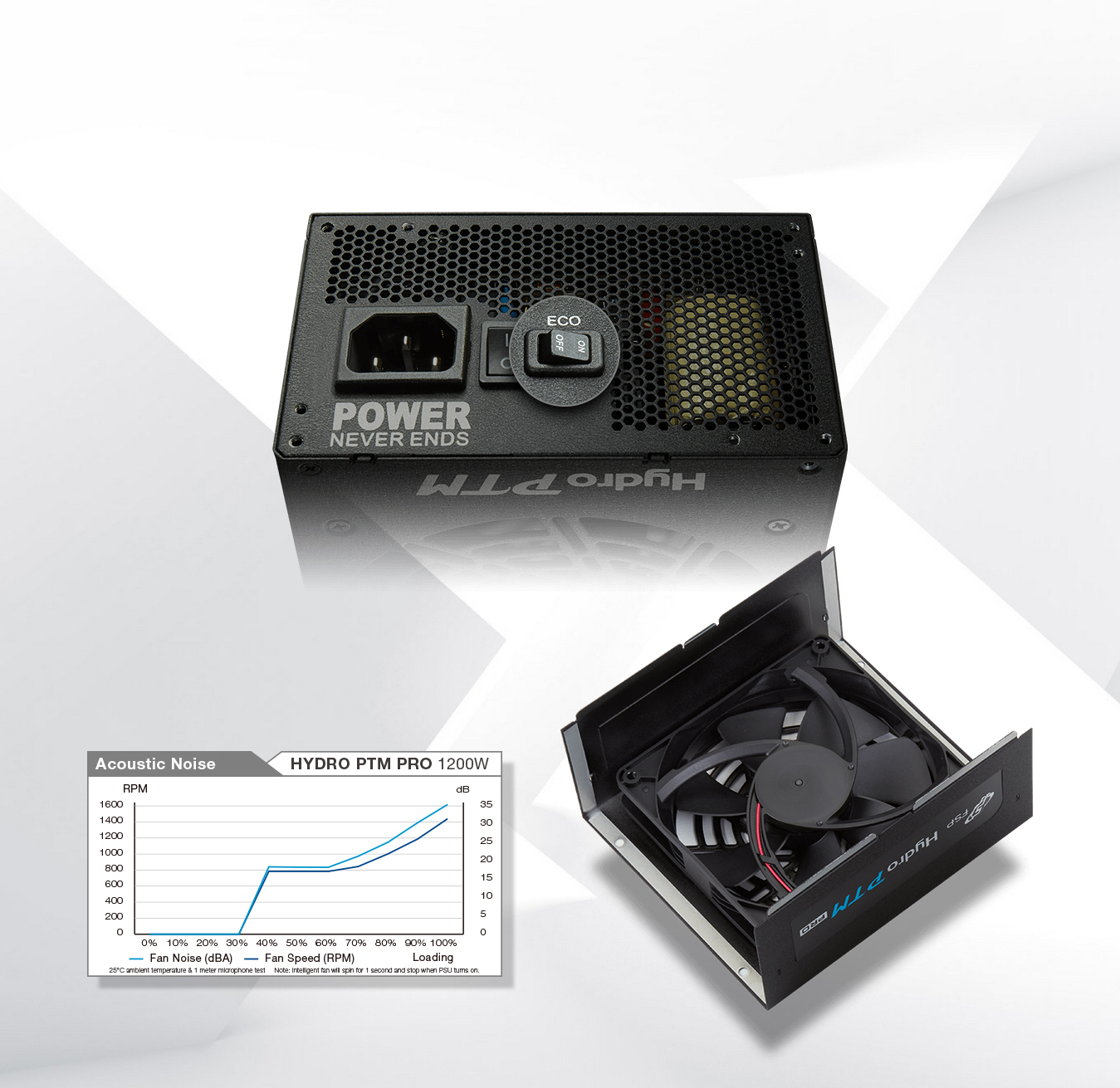

ECO Switch, Quieter and Longer Lasting Fan
The Hydro PTM PRO series offers an Eco Switch that allows the PSU to operate quieter and uses up less power consumption. When the power supply is equal to or less than 30% load, the power supply enters a silent state and the fan is turned off.
The Hydro PTM PRO series comes with a FDB fan and an intelligent 0dBA function to reduce noise and has a longer lasting life span.

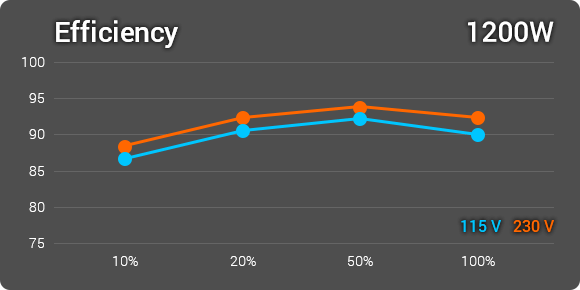

80 Plus Platinum Certification
The Hydro PTM PRO series come with 80 Plus Platinum Certification, which means the power supply produces less heat and has a lower operating cost. The power supply is guaranteed to operate at a minimum of 92% efficiency at 50% load of PSU rated power.
10-Year Warranty
FSP is committed to manufacturing reliable high-quality power supplies. The Hydro PTM PRO series is backed by our 10-year warranty.
Compliance with UL 62368
FSP Group features the latest in green power technology and provides additional safety approvals to keep its power supplies ahead of regulation changes. FSP has upgraded the majority of its power supplies to the newer UL 62368 standards.
Supports Latest CPU Systems
The Hydro PTM PRO series fully supports high performance systems, and complies with the most recent Intel, ATX12V v2.4 & EPS12V v2.92 standards.
Safety Protection
OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection), and full guardian circuit protections to keep your hardware safe.

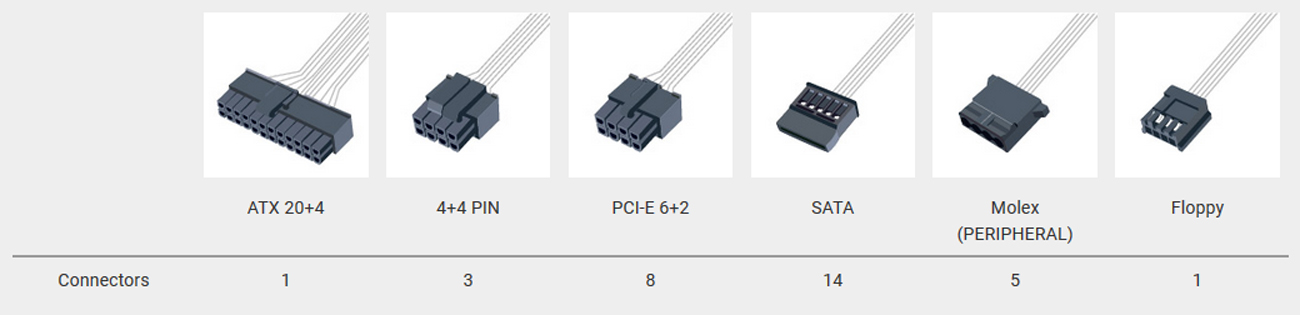

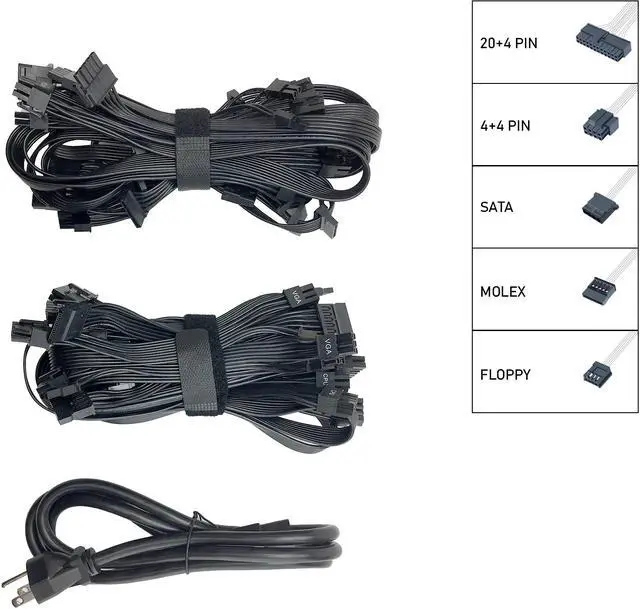

Cables

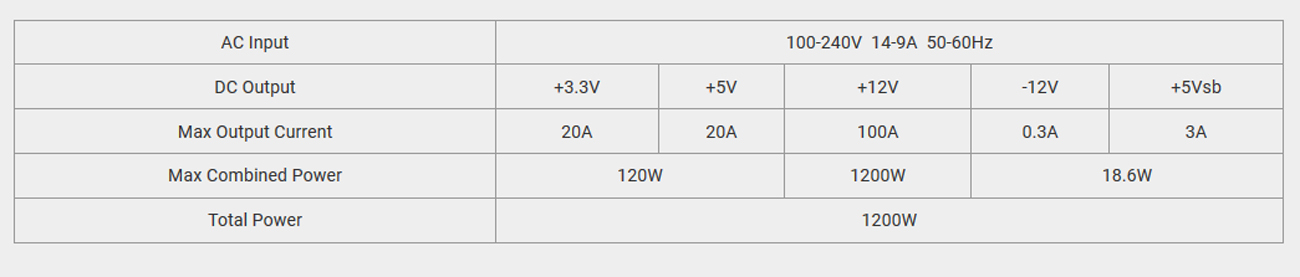

AC/DC
Specifications
| Model | HPT2-1200M |
| Rated Output Power | 1200W |
| Form Factor | ATX |
| 80 PLUS Certification | Platinum |
| Input Voltage | 100-240V |
| Input Current | 14-9A |
| Input Frequency | 50-60Hz |
| PFC | Active PFC |
| Efficiency | ≥ 92% |
| Fan Type | FDB Fan, 135mm |
| Dimensions(L x W x H) | 150 x 190 x 86 mm |
| Protection | OCP, OVP, SCP, OPP, OTP, UVP |
