S$879.11
GST-Inclusive Price
Add to PC build list
Ships from United States.
Sold by Newegg
Shipped by Newegg

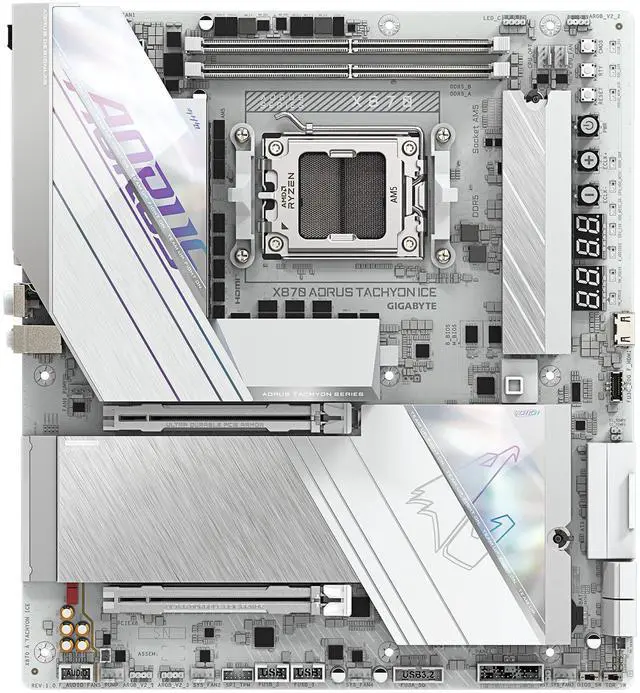

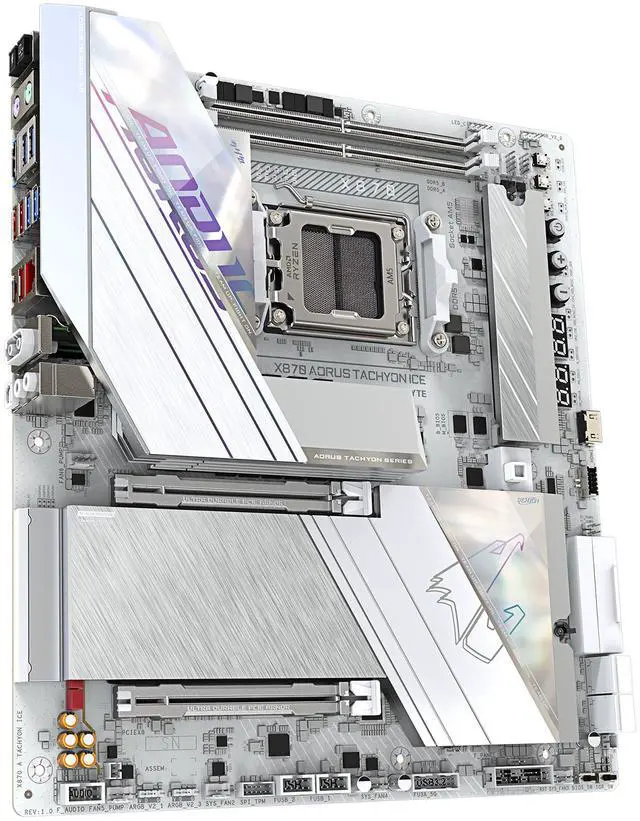

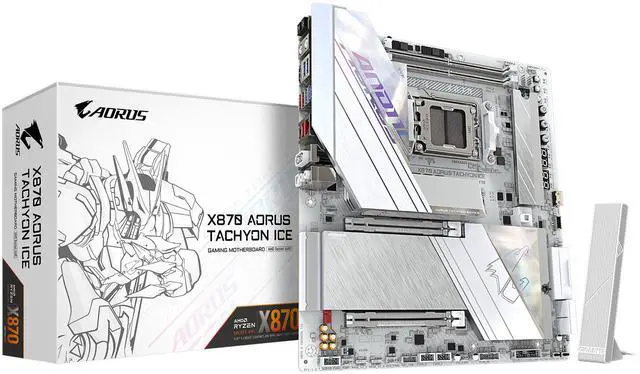

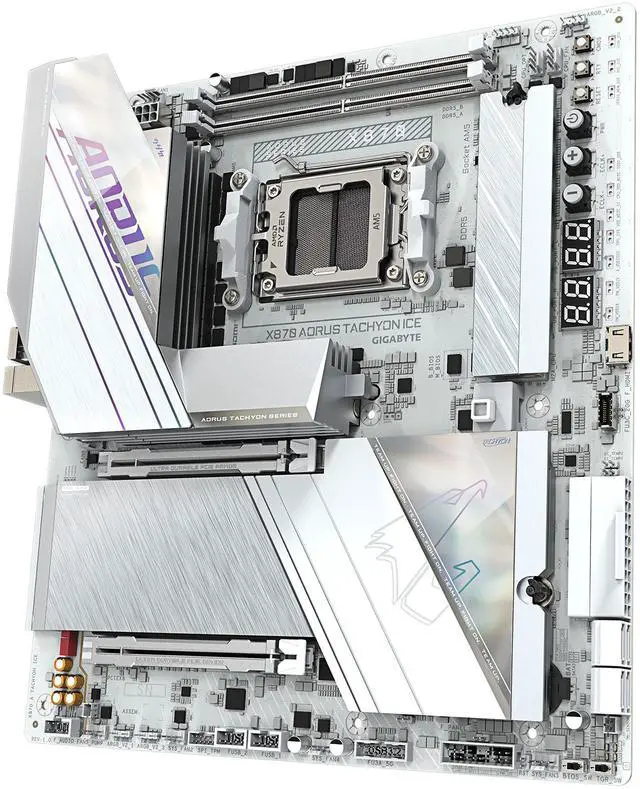

GIGABYTE X870 AORUS TACHYON ICE AM5 AMD X870 Extended ATX AMD X870 Motherboard
- X3D Turbo Mode: Unleash new era gaming performance
- DDR5 OC up to 9600MT/s
- AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 18+2+2 phases VRM solution
- Exclusive onboard Overclocking Kit for Extreme Overclocking
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click: M.2 heatsinks with screwless design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Premium Compatibility: 2*DIMMs DDR5 with AMD EXPOMemory Module Support
- Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard Extention
- D5 Bionic Corsa for Infinite Memory Performance
- AORUS AI SNATCH: Auto-Overclocking Software by AI models
- Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
+
+
Specs
Reviews
Learn more about the GIGABYTE X870 AORUS TACHYON ICE
| Brand | GIGABYTE |
|---|---|
| Model | X870 AORUS TACHYON ICE |
| CPU Socket Type | AM5 |
|---|---|
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD X870 |
|---|
| Number of Memory Slots | 2x288pin (DDR5) |
|---|---|
| Memory Standard | Support for DDR5 9600(OC)/ 9200(OC)/ 8800(OC)/ 8600(OC)/ 8400(OC)/ 8200(OC)/ 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode. * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU: - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x8 mode * The PCIEX8 slot becomes unavailable when an AMD Ryzen 8000 Series-Phoenix 1/Phoenix 2 processor is used. |
|---|
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: - AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs |
| SATA RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 5Gbps |
|---|---|
| Wireless LAN | Wi-Fi 802.11 be |
| Bluetooth | BLUETOOTH 5.4 |

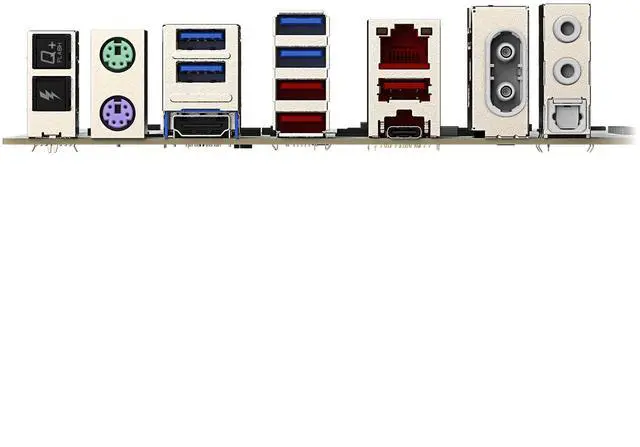

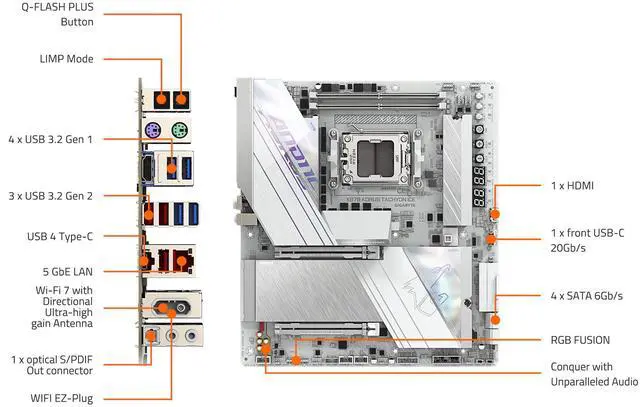

| Back I/O Ports | 1 x Q-Flash Plus button 1 x OC Ignition button 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x HDMI port (Note) 4 x USB 3.2 Gen 1 ports 3 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB4 USB Type-C port (DisplayPort (Note)) 1 x RJ-45 port 2 x antenna connectors (2T2R) 2 x audio jacks 1 x optical S/PDIF Out connector |
|---|
| Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 2 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x power button (PWR) 1 x reset button(RESET) 1 x Clear CMOS button (CMOS) 1 x Cold Reset button (RTY) 1 x CPU Clock up button (ECLK+) 1 x CPU Clock down button (ECLK-) 1 x BIOS switch (BIOS_SW) 1 x OC Trigger switch (TGR_SW) |
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 11.2" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| BIOS Feature | 2 x 256 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|---|
| Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|---|
| First Listed on Newegg | August 25, 2025 |
|---|
