Does this motherboard support the Ryzen 5000 processor without a bios update? if so can the bios update be done with a flash drive and no processor in the motherboard?

Ryzen 5000 support depends on the bios version, so if your board was on the shelf for a while it may not support it out of the box. ComboV2 1.0.8.1 will give you minimal support, and ComboV2 1.1.0.0 provides optimized performance for Ryzen 5000. If the motherboard does not boot with the Ryzen 5000 processor, download the required bios from Gigabyte support and extract the bios file to the root directory of a usb flash drive (formatted to fat32). Rename the file on the flash to GIGABYTE.bin. Insure the X570 Aorus Pro motherboard is connected to power, and insert the usb into the Q flash port in the rear I/O panel. Power on the motherboard and wait for approximately 20 seconds. There is a Q flash button and led light in the upper right corner of the motherboard near the ram slots, and the motherboard should start flashing the bios automatically. When it does, the led will start to flash. When the led stops flashing, the bios flash is complete and the board should be able to boot with the Ryzen 5000 processor.

Does this motherboard support Ryzen 5000 series processor?

Yes, go to Gigabyte's X570 Aorus PRO page and review the BIOS downloads - the latest BIOS does support the Ryzen 5000 series.

S$376^.19

GST-Inclusive Price

S$55.99 Shipping

Limit 99999 per customer.

Ships from Hong Kong.

Most customers receive within 10-17 days.

Add to wish list(Found on 5 wish lists)

Sold by Corn Electronics

Top Rated

4.2 (14,603 seller ratings)

Shipped by Corn Electronics

Meet Your Seller

Corn Electronics

See Seller Store

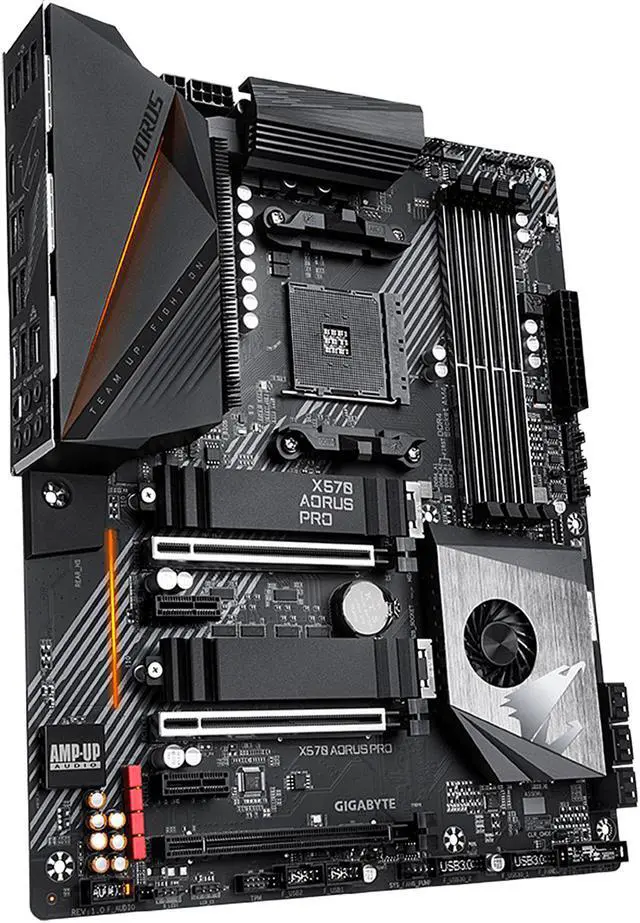

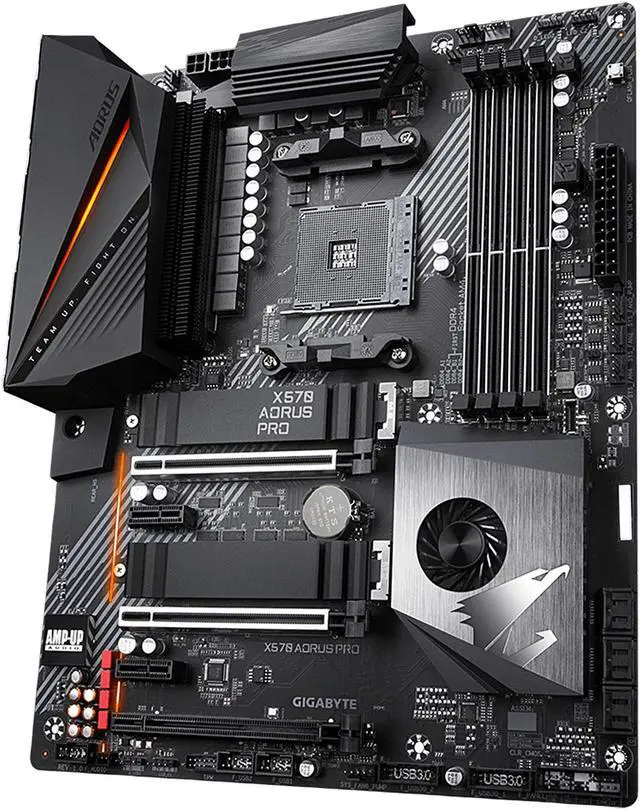

Main image of GIGABYTE X570 AORUS PRO AM4 AMD X570 ATX AMD Motherboard

Alt view image 2 of 6 - GIGABYTE X570 AORUS PRO AM4 AMD X570 ATX AMD Motherboard

Alt view image 3 of 6 - GIGABYTE X570 AORUS PRO AM4 AMD X570 ATX AMD Motherboard

Alt view image 4 of 6 - GIGABYTE X570 AORUS PRO AM4 AMD X570 ATX AMD Motherboard

Alt view image 5 of 6 - GIGABYTE X570 AORUS PRO AM4 AMD X570 ATX AMD Motherboard

Alt view image 6 of 6 - GIGABYTE X570 AORUS PRO AM4 AMD X570 ATX AMD Motherboard

Shop All GIGABYTE Products | Visit Corn Electronics Store

GIGABYTE X570 AORUS PRO AM4 AMD X570 ATX AMD Motherboard

(9) Write a Review

AMD X570
AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors
3rd Generation AMD Ryzen processors:
Support for DDR4 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
2nd Generation AMD Ryzen processors / AMD Ryzen with Radeon Vega Graphics processors:
Support for DDR4 3600(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules

Specs

Reviews (9)

Learn more about the GIGABYTE X570 AORUS PRO

Model
Brand	GIGABYTE
Model	X570 AORUS PRO

Supported CPU
CPU Socket Type	AM4
CPU Type	AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors

Chipsets
Chipset	AMD X570

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	3rd Generation AMD Ryzen processors: Support for DDR4 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules 2nd Generation AMD Ryzen processors / AMD Ryzen with Radeon Vega Graphics processors: Support for DDR4 3600(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 4.0 x16	Integrated in the CPU (PCIEX16/PCIEX8): 3rd Generation AMD Ryzen processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0/3.0 and running at x4 (PCIEX4) For 3rd Generation AMD Ryzen processors only.
PCI Express x1	2 x PCI Express x1 slots, supporting PCIe 4.0/3.0 For 3rd Generation AMD Ryzen processors only.

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0/3.0 x4/x2 SSD support) For 3rd Generation AMD Ryzen processors only.
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16GB Note: For 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors only.

Onboard Audio
Audio Chipset	Realtek ALC1220-VB * The back panel line out jack supports DSD audio.
Audio Channels	2/4/5.1/7.1-channel Support for S/PDIF Out

Onboard LAN
LAN Chipset	Intel GbE LAN chip
Max LAN Speed	1Gbps

Rear Panel Ports

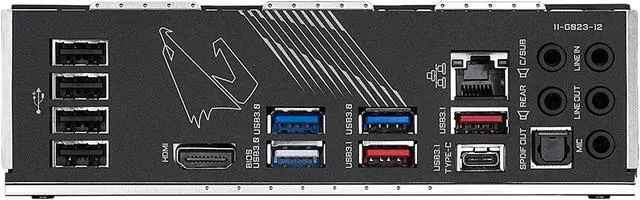

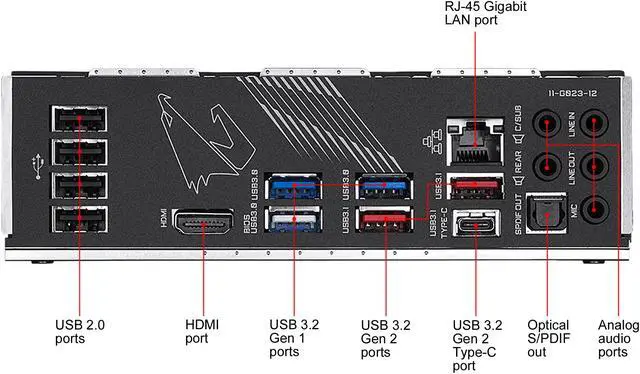

Back I/O Ports	1 x HDMI port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2/Gen 1 Type-A port (red) For 3rd Generation AMD Ryzen processors only. 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector

Features
Features	Multi-Graphics Technology: Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies Note: For 3rd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen processors only. I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS: 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) cFosSpeed XSplit Gamecaster + Broadcaster (12 months license) Operating System: Support for Windows 10 64-bit

Additional Information
Date First Available	June 12, 2020
