If the board supports PCIx 5 when does the CPU come out to support the PCIx 5? Is there a CPU that is available for PCI x 5?

The motherboard supports PCIe 5.0, but the information about the availability of CPUs that support PCIe 5.0 is not provided in the product information.

S$380^.15

GST-Inclusive Price

S$41.99 Shipping

Limit 99999 per customer.

Ships from Hong Kong.

Most customers receive within 10-17 days.

Add to wish list

Sold by Corn Electronics

Top Rated

4.2 (14,606 seller ratings)

Shipped by Corn Electronics

Meet Your Seller

Corn Electronics

See Seller Store

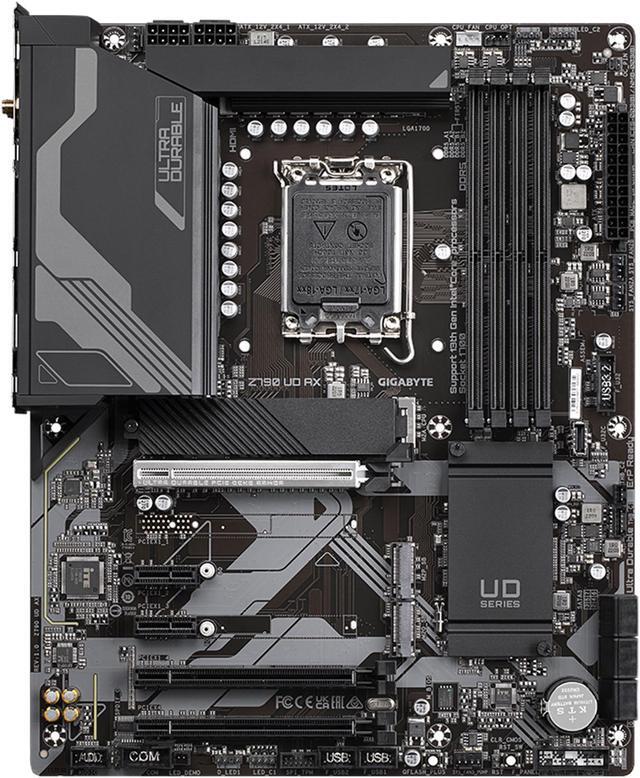

Main image of GIGABYTE Z790 UD AX LGA 1700 Intel Z790 ATX Motherboard with DDR5, Triple M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, PCIe EZ-Latch, Multi-Key

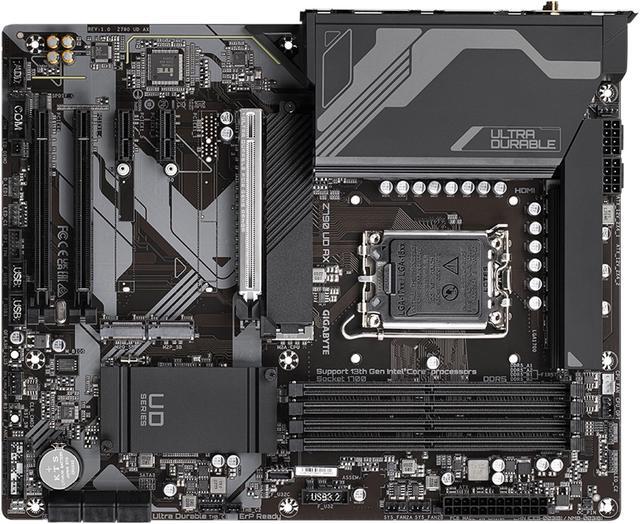

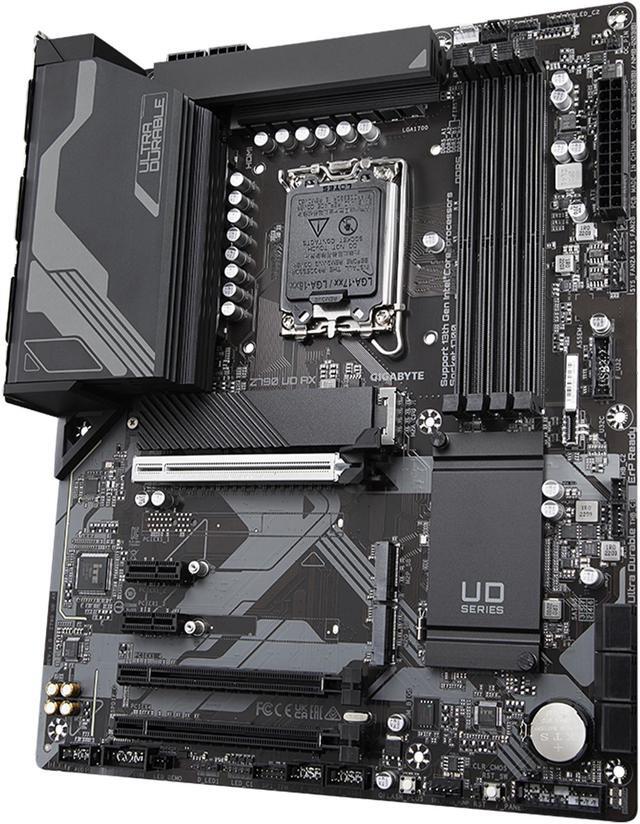

Alt view image 2 of 7 - GIGABYTE Z790 UD AX LGA 1700 Intel Z790 ATX Motherboard with DDR5, Triple M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, PCIe EZ-Latch, Multi-Key

Alt view image 3 of 7 - GIGABYTE Z790 UD AX LGA 1700 Intel Z790 ATX Motherboard with DDR5, Triple M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, PCIe EZ-Latch, Multi-Key

Alt view image 4 of 7 - GIGABYTE Z790 UD AX LGA 1700 Intel Z790 ATX Motherboard with DDR5, Triple M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, PCIe EZ-Latch, Multi-Key

Alt view image 5 of 7 - GIGABYTE Z790 UD AX LGA 1700 Intel Z790 ATX Motherboard with DDR5, Triple M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, PCIe EZ-Latch, Multi-Key

Alt view image 6 of 7 - GIGABYTE Z790 UD AX LGA 1700 Intel Z790 ATX Motherboard with DDR5, Triple M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, PCIe EZ-Latch, Multi-Key

Alt view image 7 of 7 - GIGABYTE Z790 UD AX LGA 1700 Intel Z790 ATX Motherboard with DDR5, Triple M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, PCIe EZ-Latch, Multi-Key

Customer images

Shop All GIGABYTE Products | Visit Corn Electronics Store

GIGABYTE Z790 UD AX LGA 1700 Intel Z790 ATX Motherboard with DDR5, Triple M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, PCIe EZ-Latch, Multi-Key

(688)(92) Write a Review

Option: Z790 UD AX

Z790 AORUS ELITE AX
Z790 UD AC
Z790 GAMING X AX
Z790 UD AX
Z790 AORUS PRO X
Z790 AORUS ELITE X WIFI7
Z790 AORUS PRO X WIFI7
Z790 EAGLE AX
Z790M AORUS ELITE AX ICE
Z790 GAMING PLUS AX

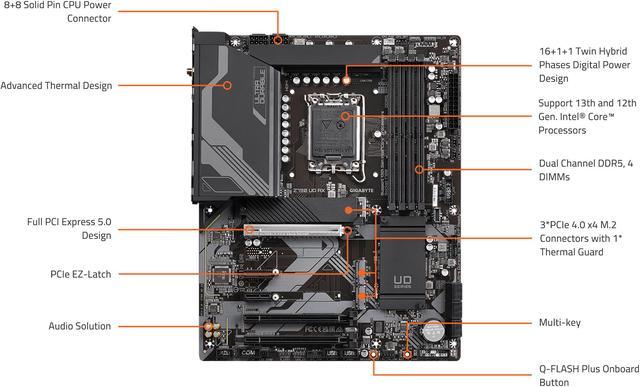

Intel LGA 1700 Socket: Supports 13th and 12th Gen Intel Core Series Processors
DDR5 Compatible: Dual Channel DDR5, 4 DIMMs
Sturdy Power Design: 16+1+1 Twin Hybrid Phases Digital Power Design with 60A DrMOS
Comprehensive Thermal Design: Fully Covered MOSFET Heatsinks, M.2 Thermal Guard, Ultra Durable Armor, 6-layer & 2X Copper PCB
Next Gen Connectivity: PCIe 5.0, Triple NVMe PCIe 4.0 x4 M.2, SuperSpeed USB 3.2 Gen 2x2 Type-C
Fast Networking: 2.5GbE LAN, Intel Wi-Fi 6E, BT5.3
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU

Specs

Reviews (688)

Learn more about the GIGABYTE Z790 UD AX

Model
Brand	GIGABYTE
Model	Z790 UD AX

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold

Chipsets
Chipset	Intel Z790

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 4800
Maximum Memory Supported	192GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x16	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
PCI Express 3.0 x16	1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)
PCI Express x1	2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
SATA RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Additional RAID Controller	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

Onboard Audio
Audio Channels	7.1 Channels

Onboard LAN
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6E AX210
Bluetooth	Bluetooth 5.3

Rear Panel Ports

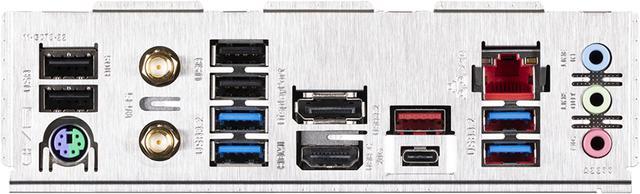

Back I/O Ports	1 x USB Type-C port, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x serial port header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
Power Pin	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors

Features
Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup

Additional Information
First Listed on Newegg	May 23, 2024
