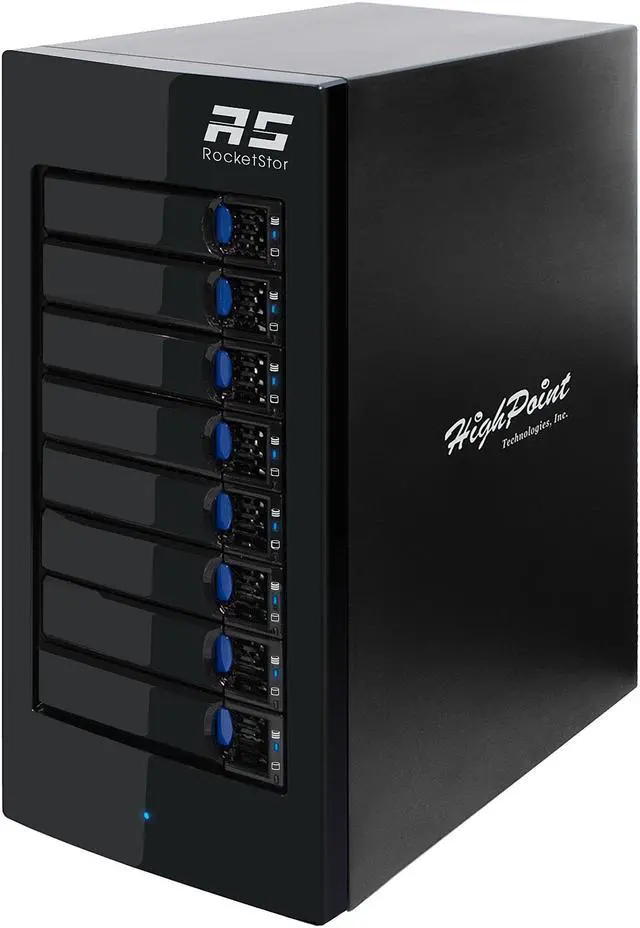

HighPoint RocketStor 6618A RAID 0, 1, 5, 6, 10, 50, JBOD 8-Bay Thunderbolt 3 40Gb/s Hardware RAID Storage Enclosure
- 2x Thunderbolt USB-C Ports
- Performance up to 2,700MB/s
- Integrated SAS/SATA Hardware RAID Technology
- Advanced Streaming I/O for sustained high-performance data transfer
Specs
Reviews
Learn more about the HighPoint Technologies, Inc. RocketStor 6618A
| Brand | HighPoint |
|---|---|
| Model | RocketStor 6618A |
| Drive | SAS & SATA |
|---|---|
| RAID Levels | RAID 0, 1, 5, 6, 10, 50, JBOD |
| OS Supported | Window 2008 and Window 8 and later |
|---|
| Power Supply | AC Iinput: 100-240V ~ 5A 50/60Hz; DC Output: 250W |
|---|
| Temperature | Operating: 5 degree C - 45 degree C Non-Operating: -40 degree C - 65 degree C |
|---|---|
| Humidity | Operating 8% - 90% RH (Non-condensing) Non-operating 5% - 95% RH (Non-condensing) |
| Features | Form Factor: 8-Bay Tower Hardware RAID Enclosure Host Port: 2x Thunderbolt 3 40Gb/s (USB-C) I/O Storage Processor: RAID-On-Chip Onboard Onboard Cache: 512MB DDR 3 Cache Memory with ECC Protection RAID Level: 0, 1, 5, 6, 10, 50, JBOD Max. Capacity: Up to 80 TB Number Of drives: Up to 8 Drive Interface: SAS, SATA Drive Form Factor: 3.5" & 2.5" Chassis Material: Aluminum & Heavy-duty cold-rolled steel Advanced RAID Features: Configurable RAID Block Size up to 1MB Flash ROM for Upgradeable Firmware DV Mode Technology Storage Health Inspector Redundant RAID Configurations Bootable RAID Array EFI BIOS for Mac Platform Multiple RAID Partitions supported Online Array Roaming Online RAID Level Migration (ORLM) Online Capacity Expansion (OCE) RAID Initialization Background/Foreground/Quick Global Hot Spare Disk support Automatic and configurable RAID Rebuilding Priority Auto resume incomplete rebuilding after power on or reboot system Disk media scan and repair Automatic remap and fix drive bad block for RAID array - Redundant RAID Levels (RAID 1, 5, 6, 10, 50) NVRAM with Write Journaling enhances RAID integrity Disk Format compatible: 512, 512e, 4Kn Larger than 2 TB Drive and RAID Array support Spin down Massive Arrays of Idle Disks support Native Command Queuing Write Back and Write Through Enclosure: Cooling Fan: 80 x 80 x 25mm, Dual Fans LED Display For Enclosure: HDD Power, Present, Active, Fail, Rebuilding and Identify Alarm Buzzer: Buzzer beeping for Fan Failure or Temperature exceeds 50 degree C |
|---|
| Dimensions | 13.00" x 5.67" x 10.12" |
|---|---|
| Weight | 12.90 lbs. |

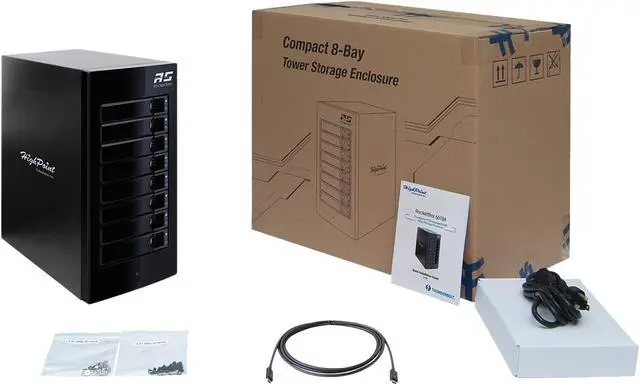

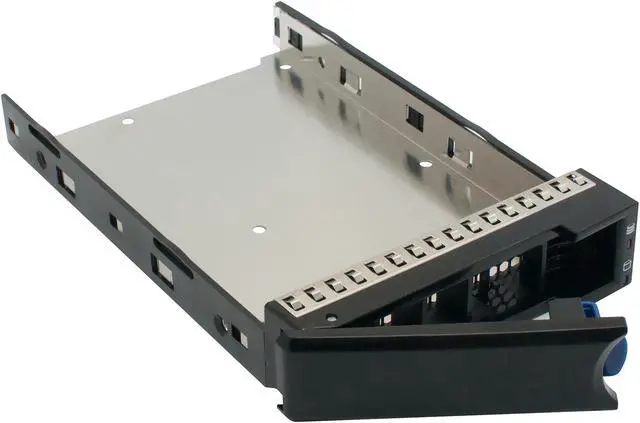

| Package Contents | 1 x 8-Bay Tower RAID Enclosure 8 x Drive Trays 1 x Thunderbolt 3 40Gb/s Cable (2 meters) 1 x UL Power Cord 32 x 3.5" HDD mounting screws 32 x 2.5" SSD mounting screws 1 x Quick Installation Guide |
|---|
| Date First Available | January 19, 2017 |
|---|
