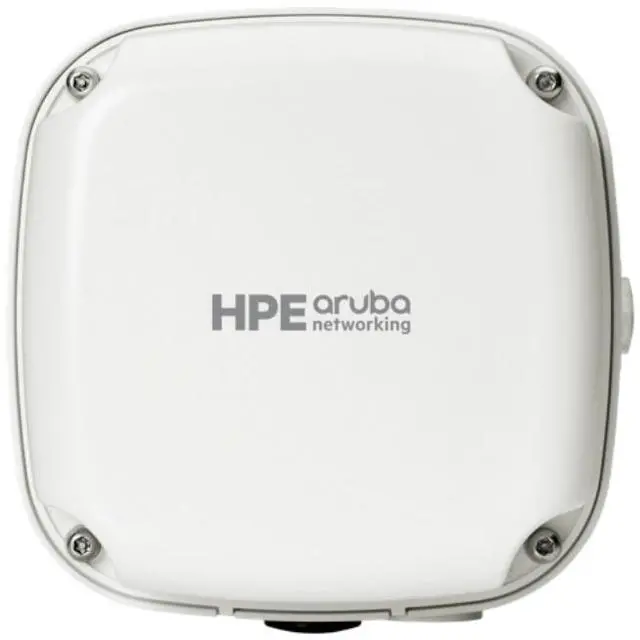

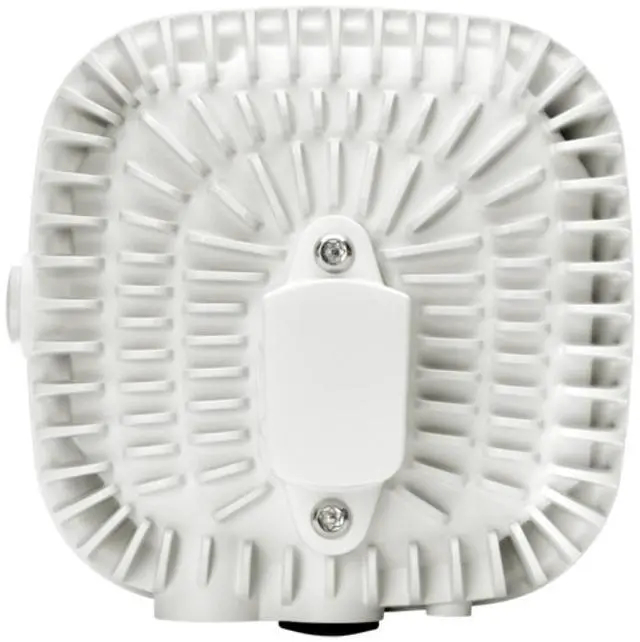

HPE Aruba Networking AP-567 802.11ax Dual 2x2 Radio Integrated Directional Antennas Outdoor Access Point | R4W49A

Model: AP-567

Supports features such as orthogonal frequency-division multiple access (OFDMA), downlink MIMO (MU-MIMO), and target wait time (TWT).
Supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio.
Offers stronger encryption and authentication with WPA3, protected credentials/keys storage for guest access with Enhanced Open, and user and IoT access policy enforcement firewalls.

Overview

Specs

Reviews

Aruba AP-567 (US) 802.11ax Dual 2x2:2 Radio Integrated Directional Antenna Outdoor AP

Warranty & Returns

Return for refund within: 30 days

Returns are subject to restocking fees and return shipping fees. Please click here to learn more about restocking fees and return shipping fees.

This item is covered by Newegg.com's International Order Return Policy. Read full return policy for details.
*Subject to applicable law
Warranty Notice:
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.

Standards	Wi-Fi 6 (IEEE 802.11ax) Bluetooth 5 and 802.15.4 radio 2.4 GHz–Bluetooth 5: up to 8 dBm transmit power and -95 dBm receive sensitivity Zigbee: up to 8 dBm transmit power and -97 dBm receive sensitivity Up to 4 dBm transmit power (class 2) and -91 dBm receive sensitivity
WiFi Generation	Wi-Fi 6
Antenna	Built-in 90°H x 90°V directional antennas with 6.7 dBi gain, max, for 5 GHz antennas and 7.0 dBi gain, max, for 2.4 GHz antennas
Mounting Location	Indoor
Operating Range	AP type: Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 2x2 MIMO and 2.4 GHz 2x2 MIMO Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1)
Interface	E0: 10/100/1000BASE-T (RJ-45)
Max Power Consumption	Maximum power consumption: 15.6W Maximum power consumption in idle mode: 4.2W Maximum power consumption in deep-sleep mode: 1.7 Power sources sold separately

Certifications	CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED™ ac (with wave 2 features) Wi-Fi CERTIFIED Location™
Compliance	FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU IEC/EN/UL 62368-1 EN 60601-1-1, EN60601-1-2 Railway Certs: EN 50155:2017-Railway Applications EN 50121-1:2017-Railway EMC EN 50121-3-2-Railway EMC EN 50121-4:2016-Railway Immunity IEC 61373 ed2:2008-Railway Shock and Vibration

Dimensions	16.5x16.5x11 cm
Weight	1.09Kg
