Can i use this switch as 8 port poe + 8 port standard?

Yes, 8 of the ports can be used to power PoE devices and the the others 8 ports can be used for networking. The 8 PoE ports can be used for networking as well if you don't have powered devices plugged in.

are there 16 poe ports or just 8 poe ports ?

From Google search on "LGS116P" Ports 16-port switch with 8 PoE+ ports (first 1–8 ports) and dedicated PoE power budget of 80 W

is this switch fanless?

It does not seem to have fan. I keep it in a cool place hung up on a wall in my room and it does not seem to get warm at all. Great switch, well worth the price.

How to configure this switch in the supported protocols like LAG if there is no webinterface?

This is an Unmanaged Switch, meaning there is no configuration. It is "dumb"

UNAVAILABLE FOR SINGAPORE Shipping Limitations

This item is currently out of stock and it may or may not be restocked.

UNAVAILABLE

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

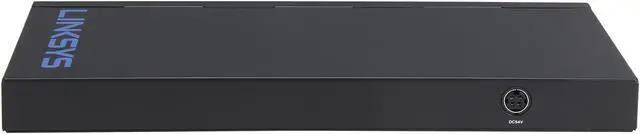

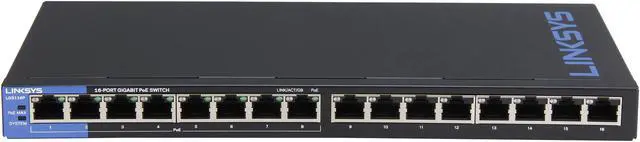

Main image of LINKSYS LGS116P 16-Port Business Desktop Gigabit PoE+ Switch

Alt view image 2 of 5 - LINKSYS LGS116P 16-Port Business Desktop Gigabit PoE+ Switch

Alt view image 3 of 5 - LINKSYS LGS116P 16-Port Business Desktop Gigabit PoE+ Switch

Alt view image 4 of 5 - LINKSYS LGS116P 16-Port Business Desktop Gigabit PoE+ Switch

Alt view image 5 of 5 - LINKSYS LGS116P 16-Port Business Desktop Gigabit PoE+ Switch

Shop All Linksys Products

LINKSYS LGS116P 16-Port Business Desktop Gigabit PoE+ Switch

(6) Write a Review

8K MAC Address Table
Unmanaged
PoE

Overview

Specs

Reviews (6)

Linksys LGS116P 16-Port Desktop Gigabit PoE SwitchWired connection speeds up to 1,000Mbps16 Gigabit Ethernet auto-sensing portsPower over Ethernet (PoE+) supportEasy plug & play connectionQoSMeets EEE (Energy Efficient Ethernet) 802.3az standard16-Port Desktop Gigabit PoE Switch

Model
Brand	LINKSYS
Model	LGS116P

Format & Standards
Format	Desktop
Standards	IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az, 802.3af, and 802.3at (PoE+)
Network Management Type	Unmanaged

Ports & Interface
Primary Ports	16 x RJ45 (1-8 PoE+)
Primary Port Speed	10/100/1000Mbps

Data Transmission
MAC Address Table	8K

Details
Protocols	TCP/IP
PoE	Yes
LEDs	Link, speed, activity, and PoE indicators

Power Supply
Power	54 VDC, 1.66 A

Dimensions & Weight
Dimensions	11.02" x 4.72" x 0.98"
Weight	1.81 lbs.

Environmental
Temperature	0°C to 50°C (32°F to 122°F)
Humidity	10% - 90%, Non-condensing

Features
Features	Bandwidth: 32 Gbps (non-blocking) 16-port switch with 8 PoE+ ports (first 1-8 ports) and dedicated PoE power budget of 80 W Enclosure Type: Metal Mounting: Wall mount Gigabit Performance Power-Saving: Cable connected detection Sleep mode Quality of Service: 802.1p and DSCP External Power Supply Full line rate and forwarding rate of 64B frame at: 1.488 Mpps for 1000M port, 0.1488 Mpps for 100M port, 0.01488 Mpps for 10M port Minimum System Requirements: Connected devices need Ethernet connectivity and Ethernet cables

Packaging
Package Contents	Linksys LGS116P 16-Port Gigabit Ethernet PoE Switch Power Adapter Quick Start Guide

Manufacturer Warranty
Parts	Manufacturers Limited Warranty: Lifetime / Parts Only

Additional Information
First Listed on Newegg	December 13, 2013
