MSI PRO B760-VC WIFI IV DDR5 LGA 1700 Intel B760 SATA 6Gb/s ATX Motherboards - Intel, 5x PCI-E x16 slot 2x M.2 Wi-Fi 7, 2.5G LAN
- Wi-Fi 7: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
- Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
- 2.5G Network Solution: Featuring premium 2.5G LAN to deliver better network experience.
- EZ Debug LED: Easiest way to troubleshoot.
- Frozr AI Cooling: Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
- Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
+
+
Specs
Reviews (140)
Learn more about the MSI PRO B760-VC WIFI IV
| Brand | MSI |
|---|---|
| Model | PRO B760-VC WIFI IV |
| CPU Socket Type | LGA 1700 |
|---|---|
| CPU Type | Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) |
| Chipset | Intel B760 |
|---|
| Number of Memory Slots | 2x288pin (DDR5) |
|---|---|
| Memory Standard | DDR5 5600 |
| Maximum Memory Supported | 256GB |
| Memory Feature | 4x DDR5, Maximum Memory Capacity 256GB Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7000+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| PCI Express 4.0 x16 | PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
|---|---|
| PCI Express x4 | PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| PCI Express x1 | PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2 (Support PCIe 4.0 x4 & SATA) / 1 x M.2 (Support PCIe 4.0 x4) |
| SATA RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| Audio Channels | Realtek ALC897 Codec 7.1-Channel High Definition Audio Supports S/PDIF output |
|---|
| LAN Chipset | Realtek RTL8125BG 2.5G LAN |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. |
| Bluetooth | Supports Bluetooth 5.4 |

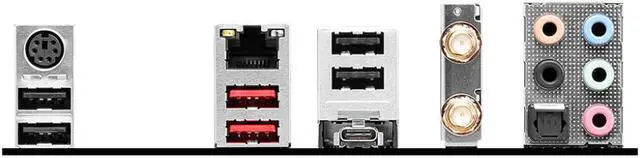

| Back I/O Ports | 1 x LAN (RJ45) / 1 x PS/2 / 1 x S/PDIF Coaxial Out / 1 x USB 3.2 Gen 2 Type-C / 2 x Antenna Bracket / 2 x USB 3.2 Gen 2 Type-A / 4 x USB 2.0/1.1 / 5 x Audio Jacks |
|---|
| Onboard USB | 4x USB 2.0 ports 2x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen1 Type C ports |
|---|---|
| Other Connectors | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 5x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x TBT connector (JTBT, supports RTD3) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) |
| Windows 11 | Supported |
|---|
| Form Factor | ATX |
|---|
| Features | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC) Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost High Quality PCB: 6-layer PCB made by 2oz thickened copper Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2 Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds 2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience |
|---|
| First Listed on Newegg | April 09, 2025 |
|---|
