Requires Tripp Lite B127-100-H, B127-200-H or B127-100-H-SR remote receiver
Maintains UHD resolutions up to 3840 x 2160 @ 60 Hz (4:4:4) for crystal-clear 4K video
Power over Cable (PoC) technology provides power to the receivers via Cat6 cable
Transmitter's local HDMI port allows you to see the image being displayed 125-ft. (38.1 m) away
Plug-and-play operation with no software required for easy, immediate installation
+
+
Overview
Specs
Reviews
Features Splitter Ideal for Digital Signage or Displaying Video in Schools or Trade Show Booths This eight-port transmitter/splitter is recommended for video presentations in conference rooms schools trade shows meeting facilities houses of worship retail settings and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127-008-D extends 4K video and stereo audio signals from a DisplayPort source device to eight HDMI-enabled projectors monitors or televisions up to 125 feet ( 38.1 meters) away via user-supplied Cat6 cabling. Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks Built-in Power over Cable (PoC) technology powers the connected B127-Series receivers over Cat6 cable.
Green and orange LEDs will light up to indicate the unit is receiving power and a signal is being received. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receivers away from an AC outlet. Transmits Crystal-Clear 4K Video with Multi-Channel Audio and 4:4: 4 Color The B127-008-D supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with full rich uncompressed DTS-HD Dolby AC-3 and 8-channel LPCM digital audio. The transmitter also supports 4:4: 4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Plug-and-Play Operation for Quick Setup and Immediate Use The included transmitter works right out of the box with no software required. Mounting hardware is included for installing the unit on a wall pole or 19-inch rack. Connect the transmitter to the source with a user-supplied DisplayPort cable (such as Tripp Lite's P580-Series). Then connect the transmitter to a Tripp Lite B127-100-H B127-200-H or B127-100-H-SR remote receiver using Cat6 Ethernet cable (such as Tripp Lite N202-Series cable). You can also connect an optional display to the local HDMI output to monitor the image transmitted to the receivers up to 125 feet away. TAA-Compliant for GSA Schedule Purchases The B127-008-D is compliant with the Federal Trade Agreements Act (TAA) which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. Typical Applications Connect a media server Blu-ray player cable/satellite box Roku gaming system or other home theater component to 8 large-screen 4K televisions or projectors Upgrade the video quality of your trade show presentation in a commercial or educational setting to 4K x 2K Set up digital signage with a single video signal being transmitted to 8 monitors each displaying its maximum resolution System Requirements Source device with DisplayPort output (Blu-ray player cable box laptop) Tripp Lite B127-100-H B127-200-H or B127-100-H-SR remote receivers Plug-and-play operation with no software required for easy immediate installation1-year limited warrantyTransmitter's local HDMI port allows you to see the image being displayed 125 ft.
awayPower over Cable (PoC) technology provides power to the receivers via Cat6 cableRequires Tripp Lite B127-100-H B127-200-H or B127-100-H-SR remote receiverMaintains UHD resolutions up to 3840 x 2160 @ 60 Hz ( 4:4: 4) for crystal-clear 4K video

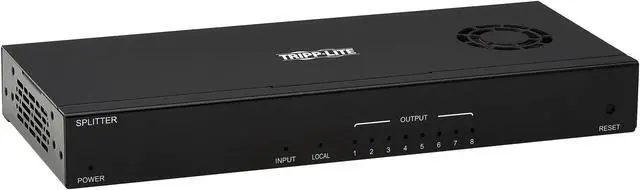

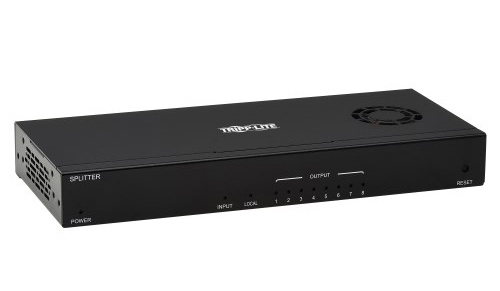

8-Port DisplayPort to HDMI over Cat6 Splitter/Extender, Transmitter for Video/Audio, PoC, 4K 60 Hz, 125 ft. (38 m), TAA
Transmitter/splitter extends a 4K DisplayPort audio/video signal via Cat6 cable to 8 HDMI monitors or HDTVs up to 125 ft. away.
Requires Tripp Lite B127-100-H, B127-200-H or B127-100-H-SR remote receiver
Maintains UHD resolutions up to 3840 x 2160 @ 60 Hz (4:4:4) for crystal-clear 4K video
Power over Cable (PoC) technology provides power to the receivers via Cat6 cable
Transmitter’s local HDMI port allows you to see the image being displayed 125-ft. (38.1 m) away
Plug-and-play operation with no software required for easy, immediate installation
Features
Splitter Ideal for Digital Signage or Displaying Video in Schools or Trade Show Booths
This eight-port transmitter/splitter is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127-008-D extends 4K video and stereo audio signals from a DisplayPort source device to eight HDMI-enabled projectors, monitors or televisions up to 125-ft. (38.1 m) away via user-supplied Cat6 cabling.
Transmits Crystal-Clear 4K Video with Multi-Channel Audio and 4:4:4 Color
The B127-008-D supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with full, rich uncompressed DTS-HD, Dolby AC-3 and 8-channel LPCM digital audio. The transmitter also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
Built-in Power over Cable (PoC) technology powers the connected B127-Series receivers over Cat6 cable. Green and orange LEDs will light up to indicate the unit is receiving power and a signal is being received. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receivers away from an AC outlet.
Plug-and-Play Operation for Quick Setup and Immediate Use

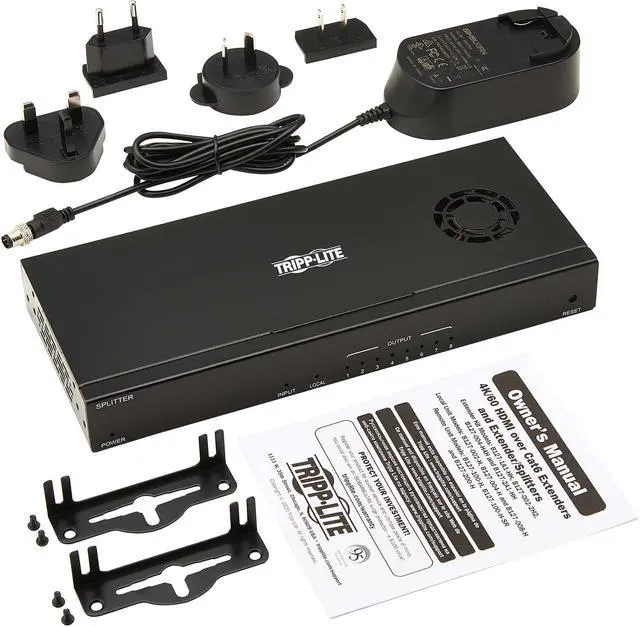

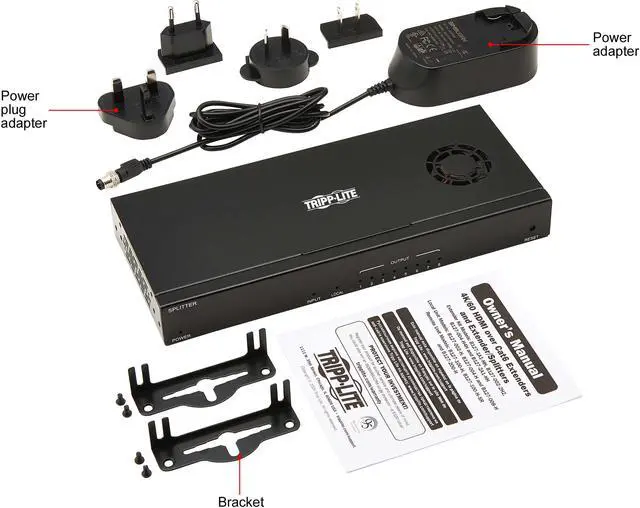

The included transmitter works right out of the box with no software required. Mounting hardware is included for installing the unit on a wall, pole or 19-inch rack. Connect the transmitter to the source with a user-supplied DisplayPort cable (such as Tripp Lite's P580-Series). Then, connect the transmitter to a Tripp Lite B127-100-H, B127-200-H or B127-100-H-SR remote receiver using Cat6 Ethernet cable (such as Tripp Lite N202-Series cable). You can also connect an optional display to the local HDMI output to monitor the image transmitted to the receivers up to 125-ft. (38.1 m) away.
TAA-Compliant for GSA Schedule Purchases
The B127-008-D is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
System Requirements
Source device with DisplayPort output (Blu-ray player, cable box, laptop)
Tripp Lite B127-100-H, B127-200-H or B127-100-H-SR remote receivers
