Tripp Lite Displayport Over Fiber Extender Kit 4K @ 30Hz Ir Usb Duplex Smf Singlemode Taa

Upgrade your video display experience with the DisplayPort Over Fiber Extender Kit offering unparalleled quality and versatility for various settings.

• Delivers stunning UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz.
• Supports uncompressed DTS-HD Dolby AC-3 and 8-channel LPCM digital audio for an immersive audiovisual experience.
• Meets DisplayPort 1.2a standards including 4:4:4 subsampling for HDR televisions.

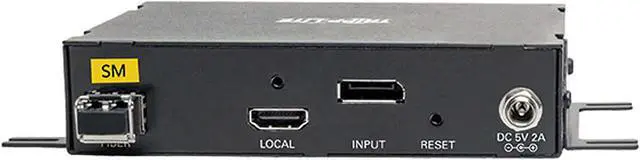

• Transmitter's local HDMI port allows real-time monitoring of the Ultra HD image being displayed.
• Plug-and-play operation ensures easy and immediate installation with no software required.

• Extends 4K video and stereo audio signals from a DisplayPort source device to a DisplayPort monitor up to 6.2 miles (10 kilometers) away via single-mode LC fiber cabling.
• Supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz with uncompressed audio and 4:4:4 color.
• Compatible with HDCP 2.2 DisplayPort 1.2a and other standards for HDR signals.
• Built-in equalization feature fine-tunes image quality at the remote display automatically.

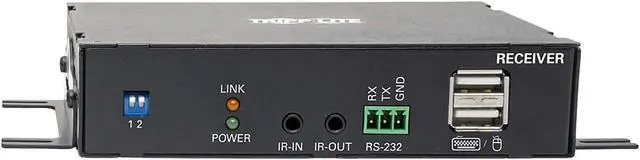

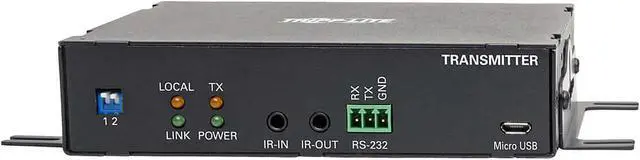

• Features dip switches to extend USB IR or RS-232 signals providing flexibility for different applications.

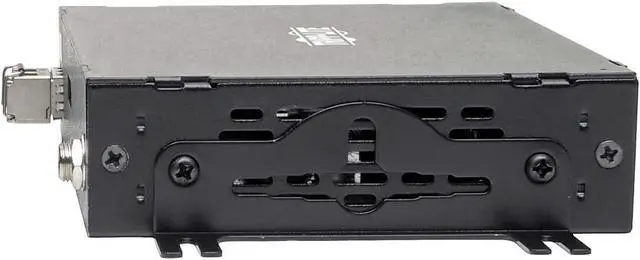

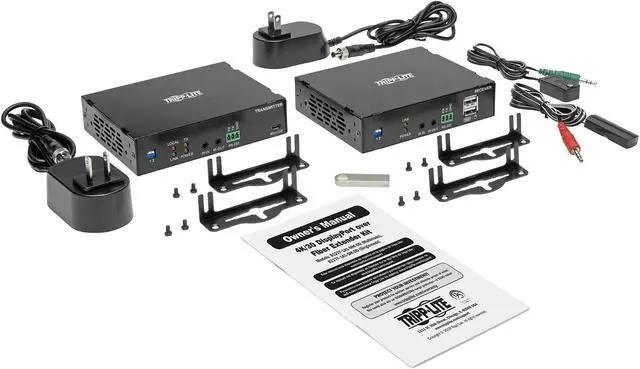

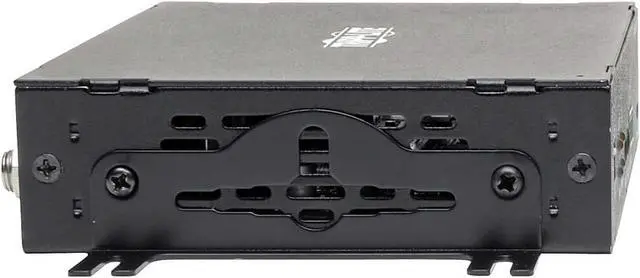

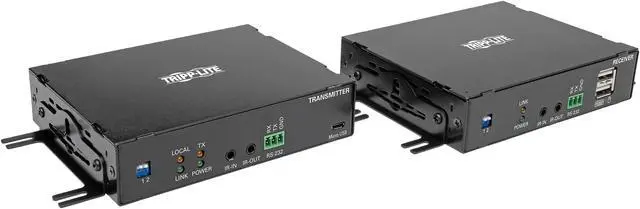

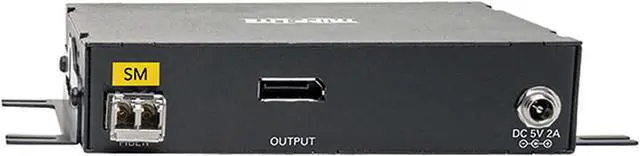

Set up the transmitter and receiver out of the box without the need for any software. Mounting hardware is included for easy installation on walls poles or 19-inch racks. Connect the transmitter to the video source and the receiver to the display using DisplayPort cables. Link the two units with a Duplex single-mode LC fiber cable for seamless signal transmission up to 6.2 miles.

Q: What applications is this extender kit suitable for?
A: This kit is recommended for video presentations in conference rooms schools trade shows meeting facilities houses of worship retail settings and digital signage applications where conventional A/V cables fall short.

Q: How far can the extender transmit signals?
A: The extender can transmit signals up to 6.2 miles (10 kilometers) away making it ideal for setups where the source and display are located far apart.

Q: Is the extender compatible with HDR signals?
A: Yes the extender is compatible with HDR signals ensuring a high dynamic range for enhanced visual quality.

Q: What type of audio formats does the extender support?
A: The extender supports uncompressed DTS-HD Dolby AC-3 and 8-channel LPCM digital audio delivering a rich audio experience along with the high-quality video display.

Q: Is the extender easy to set up?
A: Yes the extender offers plug-and-play operation allowing for quick and hassle-free installation without the need for additional software.
