Tripp Lite B127F-1A1-MM-DD Video Extender Transmitter/Receiver

• Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
• Supports uncompressed DTS-HD Dolby AC-3 and 8-channel LPCM digital audio
• Meets DisplayPort 1.2a standards including 4:4:4 subsampling for HDR televisions
• Transmitter’s local HDMI port allows you to see the Ultra HD image being displayed
• Plug-and-play operation with no software required for easy immediate installation

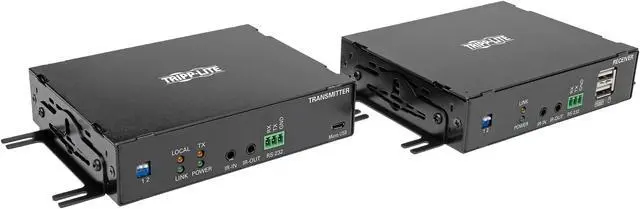

DisplayPort extender for digital signage or displaying video in schools or trade show booths. This complete transmitter and receiver system is recommended for video presentations in conference rooms schools trade shows meeting facilities houses of worship retail settings and digital signage applications where the source and display are farther apart than conventional A/V cables allow. The B127F-1A1-MM-DD extends 4K video and stereo audio signals from a DisplayPort (DP) source device to a DisplayPort monitor up to 985 feet (300 meters) away via user-supplied duplex multimode LC fiber cabling.

The B127F-1A1-MM-DD supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz with full rich uncompressed DTS-HD Dolby AC-3 and channel LPCM digital audio. Built-in equalization automatically fine-tunes the image quality at the remote display with no time-consuming manual fiddling needed. It’s compatible with HDCP 2.2 DisplayPort 1.2a and EDID standards for carrying HDR (high dynamic range) signals. It also supports 4:4:4 Chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

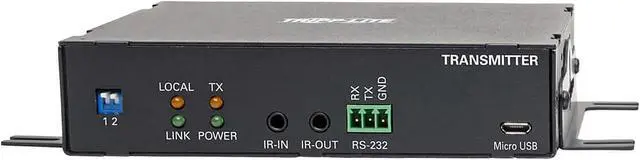

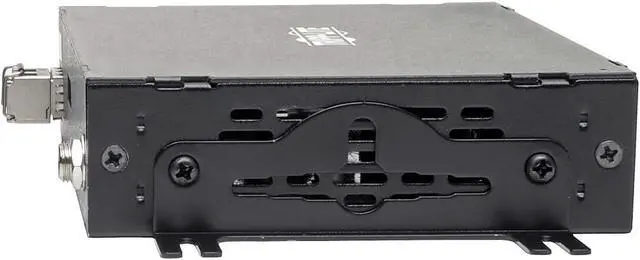

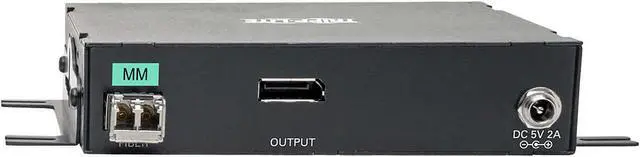

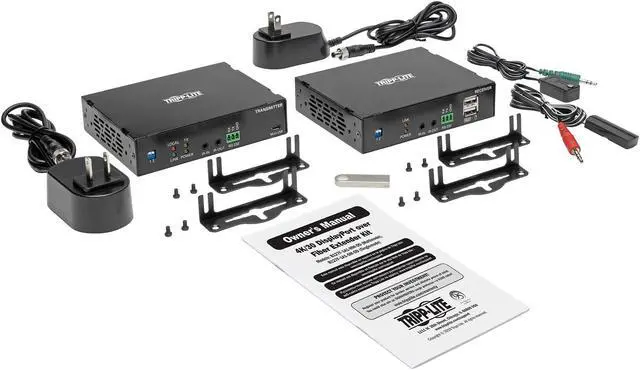

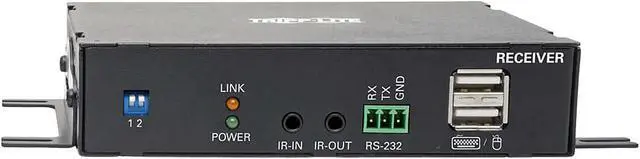

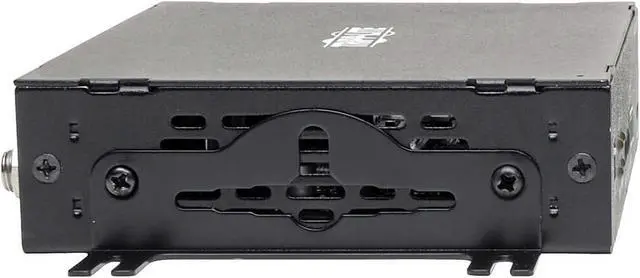

The dip switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1 Bi-Directional IR and RS-232 functions. Only one function can be extended at a time. The included transmitter and receiver units work right out of the box with no software required. Mounting hardware is included for installing the units on walls poles or 19-inch racks. Connect the transmitter to the source and the receiver to the display with DisplayPort cables (such as Tripp Lite's P580-Series). Then connect the two units using a Duplex multimode LC fiber cable (Tripp Lite N820-Series). Connect an optional display to the transmitter local HDMI output to monitor the image connected to the receiver up to 985 feet away.

1. Connect the transmitter to the source and the receiver to the display with DisplayPort cables.

2. Connect the two units using a Duplex multimode LC fiber cable.

3. Connect an optional display to the transmitter local HDMI output to monitor the image connected to the receiver.

The Tripp Lite DisplayPort Over Fiber Extender Kit can cover distances of up to 985 feet (300 meters) using user-supplied duplex multimode LC fiber cabling.

Yes the extender kit is compatible with HDR (high dynamic range) signals providing top-notch image quality for HDR content.

No only one function (USB 1.1 Bi-Directional IR or RS-232) can be extended at a time as per the dip switch settings on both the transmitter and receiver units.
