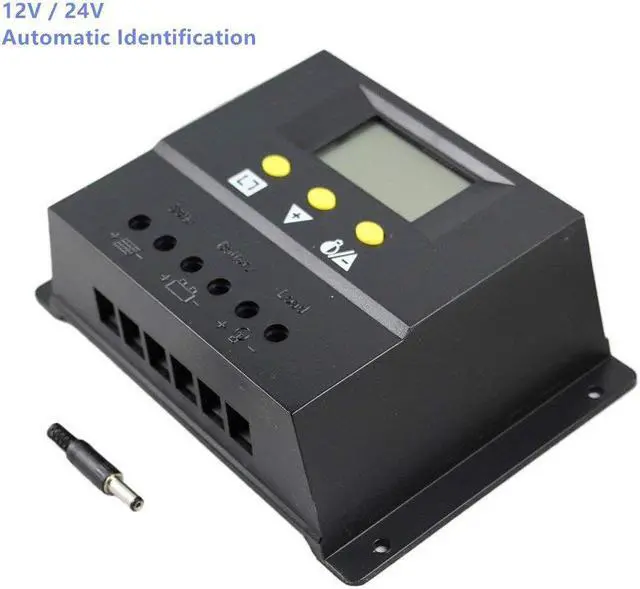

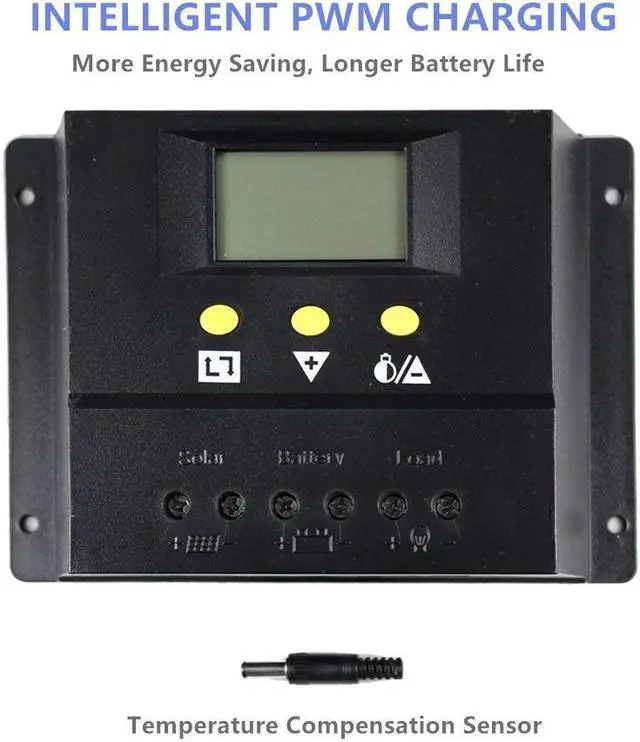

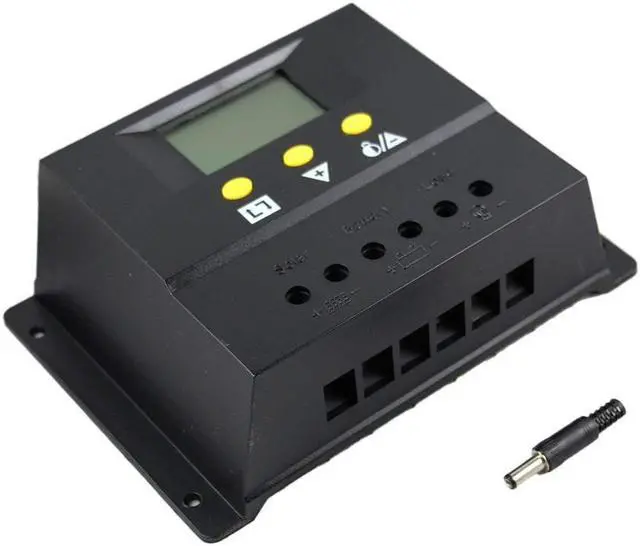

80A Solar Charge Controller PWM PV Solar Panel Charging Regulators with LCD Monitor 12V 24V Auto 960W 1360W Large amp Power Input Energy Controller
- Multi-purpose solar charge controller
- with Intelligent Control Interface LCD Display
- Simple & Easy Button Operation
- Engineering Overall Design
+
+
Overview
Specs
Reviews
Highlights: Intelligent Control
Interface LCD Display:
1. Graphic Symbols Display
2. System Voltage Identification
3. Intelligent PWM Charge Mode
4. Automatic Temperature Compensation
5. Charge-Discharge Amp-hr Statistics for Clear Use
Condition Simple Operation:
1. Simple & Easy Button Operation
2. Adjustable Charge-Discharge Parameter, Timer & Brightness Control
3. Operation Mode of Load is Settable Intelligent Batteries Protect Extend Lifetime: Reverse-discharge Protection, Low Voltage Disconnection (LVD), Reverse Connection Protection, Load Short-circuit Protection, Temperature Sensor Equipped for Automatic Temperature Compensation Efficient
Connection Port: Large Section of Connection Port for Easy Wiring, Significant Reductions to Energy Loss and Circuit Pressure Drop Engineering Overall Design: New Design Extended Alloy Cooling Fins to Achieve Higher Heat Dissipation CM series is a kind of intelligent controller, multi-purpose solar charge controller. This series of products using a custom LCD display has a friendly interface, The control parameters can be set flexible, fully meet your requirements of different applications. Benefits 60A Model Capable Solar
Panel Power: 720W/12V 1020W/24V 80A Model Capable Solar
Panel Power: 960W/12V 1360W/24V
Technical Parameter Model: 80A PWM Solar Charge Controller Rated Working Current: 80
Amps Rated Working Voltage: 12V/24V DC Auto Voltage of
Solar Panel: =50V Float Charging
Voltage (Settable): 13.7V / 27.4V Low
Voltage Protection (Settable): 10.7V / 21.4V Low
Voltage Recovery (Settable): 12.5V / 25.2V
No Load Loss: <30mA Loop
Voltage Drop: =200mV
Temperature Compensation: -4mv//cell Installable Max.
Cable: 3# AWG (25mm2)
Working temperature: -20? ~50? / -4? ~122?
Storage temperature: -30? ~70? / -22? ~158?
Temperature Requirement: =90%, No
Condensation Dimension: 130 mm×188 mm×62 mm
Mounting Hole Spacing: 98 mm×178 mm -F5 / 3.85 in×7 in -F 0.2 in
Weight: 590g / 20.81 oz
Interface LCD Display:
1. Graphic Symbols Display
2. System Voltage Identification
3. Intelligent PWM Charge Mode
4. Automatic Temperature Compensation
5. Charge-Discharge Amp-hr Statistics for Clear Use
Condition Simple Operation:
1. Simple & Easy Button Operation
2. Adjustable Charge-Discharge Parameter, Timer & Brightness Control
3. Operation Mode of Load is Settable Intelligent Batteries Protect Extend Lifetime: Reverse-discharge Protection, Low Voltage Disconnection (LVD), Reverse Connection Protection, Load Short-circuit Protection, Temperature Sensor Equipped for Automatic Temperature Compensation Efficient
Connection Port: Large Section of Connection Port for Easy Wiring, Significant Reductions to Energy Loss and Circuit Pressure Drop Engineering Overall Design: New Design Extended Alloy Cooling Fins to Achieve Higher Heat Dissipation CM series is a kind of intelligent controller, multi-purpose solar charge controller. This series of products using a custom LCD display has a friendly interface, The control parameters can be set flexible, fully meet your requirements of different applications. Benefits 60A Model Capable Solar
Panel Power: 720W/12V 1020W/24V 80A Model Capable Solar
Panel Power: 960W/12V 1360W/24V
Technical Parameter Model: 80A PWM Solar Charge Controller Rated Working Current: 80
Amps Rated Working Voltage: 12V/24V DC Auto Voltage of
Solar Panel: =50V Float Charging
Voltage (Settable): 13.7V / 27.4V Low
Voltage Protection (Settable): 10.7V / 21.4V Low
Voltage Recovery (Settable): 12.5V / 25.2V
No Load Loss: <30mA Loop
Voltage Drop: =200mV
Temperature Compensation: -4mv//cell Installable Max.
Cable: 3# AWG (25mm2)
Working temperature: -20? ~50? / -4? ~122?
Storage temperature: -30? ~70? / -22? ~158?
Temperature Requirement: =90%, No
Condensation Dimension: 130 mm×188 mm×62 mm
Mounting Hole Spacing: 98 mm×178 mm -F5 / 3.85 in×7 in -F 0.2 in
Weight: 590g / 20.81 oz
