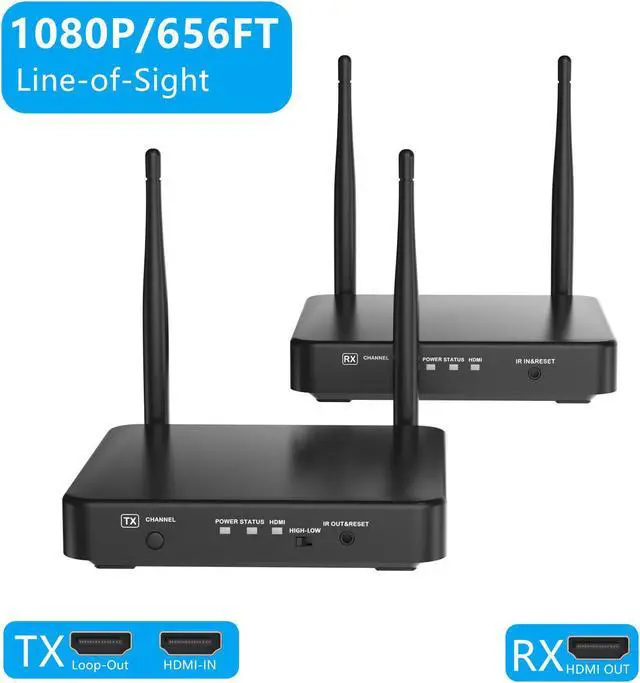

660FT 1080P Wireless HDMI Extender Kit Werleo 5G HDMI Wireless Transmitter and Receiver - Loop Out-IR Remote Streaming Full HD 3D Video Audio from PC Cable Netflix YouTube Xbox to HDTV Projector

Highlights: SUPERIOR
VIDEO AUDIO QUALITY: Wirelessly stream true 1080p high definition 3D video & digital audio to your TV or projector. Watch movies & TV shows from your laptop, PC, Mac, A/V receiver, gaming console, cable/satellite.
* Note: There’s a delay/latency time ( 0.5 seconds or less) due to data compression. Not recommended for real-time applications, such as PC gaming.
INCREASE YOUR VIEWING RANGE: Transmitted signal is crystal clear, able to stream HDMI A/V signals up to 660 feet (when no obstacles and interference with other signals) through line-of-sight environments, it works with most HDMI-equipped devices. PLUG & PLAY and EASY to

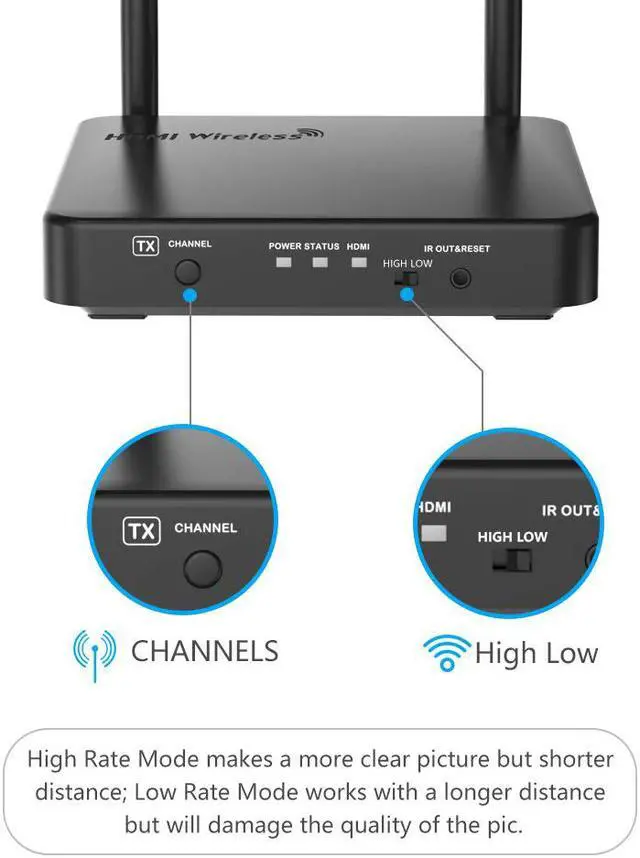

SET: Easy to install plug 'n play set up eliminates the need to install expensive, inconvenient cables. No software or WiFi connection required. We have added two physical buttons to switch High-Low Rate or Multi-Channels for different use.
NOTE: Do NOT install multiple kits in the same location as it may cause signal interference.
) 38KHZ IR TRANSMISSION: The infrared transmission function allows you to control HDMI source device at a remote location. You are able to control the IPTV in your living room while you are comfortable sitting in your bedroom watching TV.
100% SATISFACTION: Werleo provide Risk-Free 12-Month Manufacturer Warranty and Lifetime technical support. If you have any questions or concerns with this product, please do not hesitate to contact us
Specifications: HDMI
Resolution: up to 1080P@50/60Hz&SVGA/XGA/WXGA/SXGA/WXGA+/UXGA/ WSXGA+/ WUXGA
HDMI Audio Format: LPCM 2.0 /48KHz/16Bit
HDMI Max Bandwidth: 225MHz
HDMI Max Baud Rate: 6.75G bps
Input/Output TMDS Signal: 0.5 ~ 1.5V olts p-p (TTL)
Input/Output DDC Signal: 5V p-p (TTL)
HDMI Output Cable Distance: =12m AWG26 HDMI Standard
Cable Antenna Type: External Dual 3dBi
Gain Antenna Wireless Standard: IEEE 802.11 a/b/g/n
Wireless Band: 2.4GH z / 5GHz
ISM Band Max Data Rates: 2T2R up to 300Mbps Transmit
Output Power (IPEX): 16±2dBm
Transmission Distance: up to 200m 660ft (in open space)
IR Carrier Frequency: 38KHz
TX/RX Max Working Current: 1A
Power Adapter Format Input: AC/100V~ 240V 50HZ/60Hz DC5V/2A
Operating Temperature Range: -5? ~+45?
Storage Temperature Range: -20? ~+60? Operating
Humidity Range: 10%~90%RH (No Condensation)
Storage Humidity Range: 5%~95%RH (No Condensation)
Case Dimension (L * W * H): 127.5 * 127.5 * 25mm
Item Weight: TX175g/RX 170g

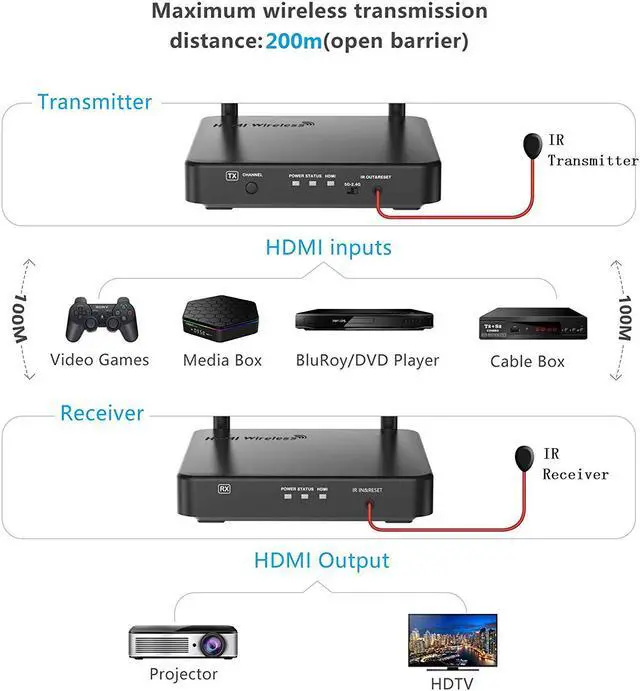

HOW TO INSTALL:

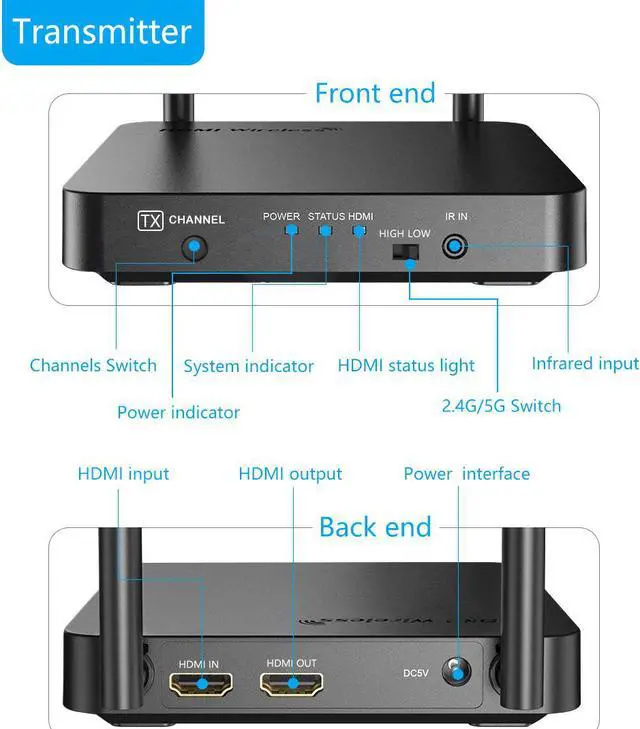

1. Connect one HDMI cable from the DVD/BD player into the HDMI input port of the HDMI wireless TX

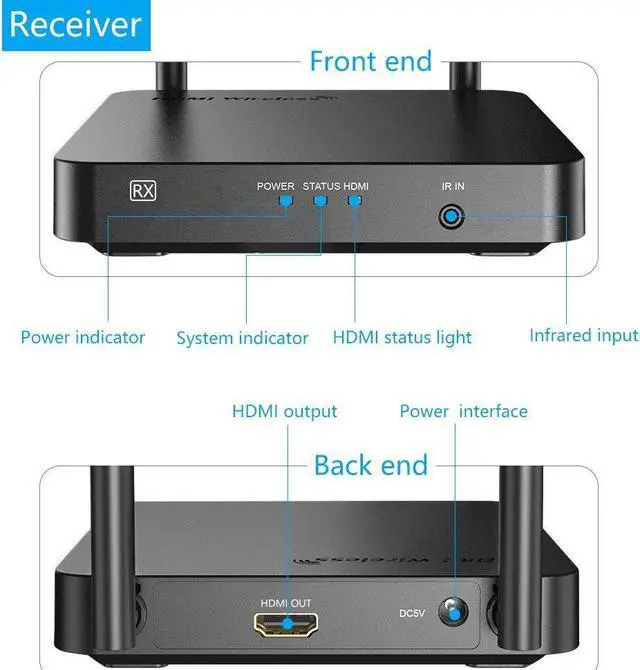

2. Connect one HDMI cable from TV/Monitor into the HDMI output port of the HDMI wireless RX

3. Connect the IR Transmitter cable to the HDMI wireless TX and the IR Transmitter cable must face to the control target device

4. Connect IR Receiver cable to the HDMI wireless RX

5. Connect 5V power supplies to the TX&RX
