JBL ACTIVE-1 Monitor Controller

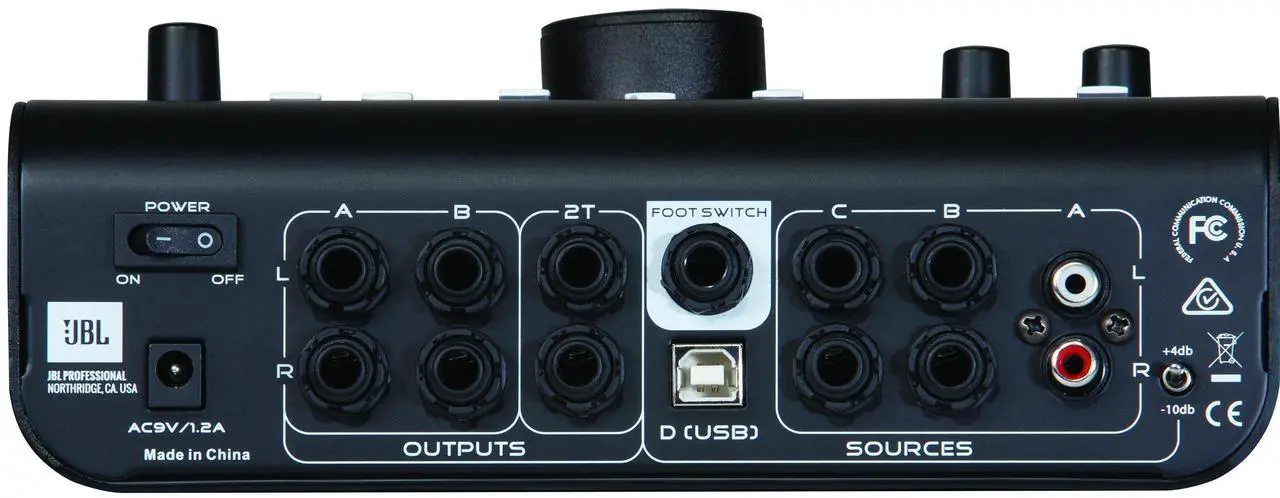

The M-PATCH ACTIVE-1 accommodates four input sources (3 x stereo analog and 1 x USB) and three stereo analog outputs plus USB. In addition to the core functionality of providing seamless A/B switching between input signals and output speaker monitor systems, the ACTIVE-1 delivers a full complement of audio monitoring functions, including precision volume control, mono summing, mute, and dim (ducking). A handy footswitch-activated talk-back function, complete with on-board condenser microphone and selectable routing, has also been integrated, making the ACTIVE-1 the ideal low-cost solution for a broad range of studio production applications.



Designed to provide the lowest-noise operation possible in an active monitor controller, the ACTIVE-1 is ideal for applications where both signal attenuation and boost is needed. In addition to the feature complement found on the PASSIVE-1, the ACTIVE-1 also includes LED level metering and convenient switch-selectable +4dBu/-10dBV input stage operation.



The ACTIVE-1 features on-board USB, allowing for direct digital audio recording and playback when used with a computer DAW. The USB output mirrors the signals appearing at the analog 2 Track outputs, while the computer’s L/R output feeds the USB in.



Housed in a sturdy metal chassis and fitted with a durable array of switches and secure connectors, the ACTIVE-1 is built to provide years of worry-free operation.

+4/-10dB Output Level Switch

Used to select the output level to allow compatibility with professional and consumer products with varied input and sensitivities.

Two Independent Headphone Amplifiers

Each with its own volume control.

Dim Switch

Active this switch to decrease the level of the outputs by 20dB. The DIM feature effectively reduces the output signal and therefore the listening level to allow discussion in the control room without having to change the position of the volume knob.

Mono Switch

Activate this switch to listen to the audio outputs in monophonic modes. This combines the stereo signal into a monophonic signal, which is useful when checking for any phase cancellation issues in the stereo signal

Volume Control

As it is an ACTIVE device, the ACTIVE-1's volume control, control an electronic circuit, which in turn adjusts the level of the audio going through the device, providing gain increase as well as attenuation.

Talkback Switches and Volume

A built-in microphone can be routed to the headphone outputs or the 2TRACK outputs. When the talkback function is engaged, the Control Room output signal is attenuated by 20dB.

Monitor Select Switches

The monitor select switches activate the A & B outputs respectively. The A & B outputs can be selected simultaneously.
