Question 1

Shouldn't this Power supply come on without plugged into my motherboard?
Because it doesn't at all.
Fresh out of the box.

Accepted Answer

Power supplies generally require contact with a motherboard to power up.  The motherboard itself is what sends the on, active connection and off signals to the power supply, so without having a connection to a motherboard, I'm not sure how you are even trying to tell it to turn on (none of the buttons on the power supply can do that).
Hope that helps,

Question 2

Intel Core i7 2600
8gb ram
atx motherboard
Corsair 500r case
1 HDD
No optical drive

Wanted to know if this PSU will power an Nvidia Gigabyte Windforce 770 2GB?

Accepted Answer

Definitely! Im using it to push a 4.0 GHz overclocked AMD processeor and a 3GB Radeon 7970.

Question 3

Does this PSU come with a molex connector?

Accepted Answer

The nice part about this power supply is that all of the connectors are not connected to the PS. You choose the connectors that you need. It does have a molex connector for Motherboard as well as the molex for the 12volt hard drives and some video cards.

Question 4

I have a mid sized tower right now (18.30" x 8.10" x 18.00") just want to make sure that this power supply will fit. I want to replace my old power supply which was 5.9" x 3.4" x 6.3"?

Accepted Answer

Hi Wes,
I purchased this for a Aero cool Strike X mid tower build and it fits perfectly. In this case it mounts in the bottom of the case but should fit in a top mounting case as well. So far I have no issues and being semi-modular, the connections and wire routing was a breeze. I really think your making a great choice. I would truly recommend this power supply to anyone that's looking for a reliable power supply unit.

Question 5

ASUS R9280X-DC2T-3GD5 Radeon R9 280X 3GB

will this work together ? thank you .

Accepted Answer

Well the max amount of power that card will consume is 300 watts so that's leaves the rest of your system with enough watts.. also that card requires 2 8 pin connectors which I think that power supply has I'm not positive. So it should work but you should check to see if it has the 8 pin connectors

Question 6

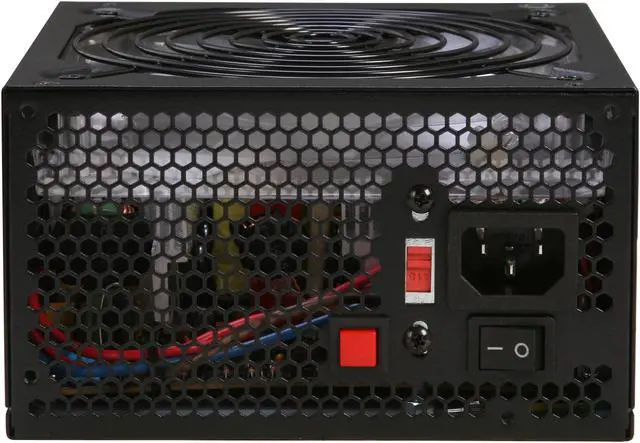

Behind the psu there is a red switch one side saying 115 and another 230 which way should the switch be facing should it be up and covering the 115 or down and covering the 230 I live in the US btw?

Accepted Answer

You should have it on 115. Try to play a game heavy on graphics. If you have an ASUS motherboard it will shut off after 45minutes or so if the wattage is too much. 115 is the safest way to go for those in the US. If you live outside of the US or 115 causes power issues Google your area and see which voltage setting is used in your area. Places like China etc. I have heard use 230. Remember if you set it to 230 and your motherboard cannot handle this wattage it will shut off or burn out when it reaches its limit. This happens in a high graphics game or when using programs like Skype that overload the power. Check before setting to 230.

Question 7

Will this power a single Nvidia Geforce 265 GTX or are the amps too low?

Accepted Answer

there is no 265 GTX - I assume its 275 GTX that has 550W min req from power supply (max GPU draw is 220W or something). I would say as long as you are not trying to SLI both of them on this power supply - its plenty enough

Question 8

will this spike up my electricity bill, if so is there any way i can save power without buying a new power supply?

Accepted Answer

It will not "spike" up your electricity bill, but it does pull more watts then some other supplies. However, if your system NEEDS that power, downgrading isn't really an option. Your power bill is usually a function of Kilo-watt-hours. So if this supply has 200 more watts, then you will be charged for 0.2 Kilowatt hours more per hour of running at max draw. If you are really worried about it, make sure you have the power saving features implemented on your machine so it isn't running unless you are using it.

Also it won't pull (much) more power than it needs, so you shouldn't see a large rise unless you are running power heavy software constantly on your computer

As a point of reference, an old school light bulb pulls 60 watts, and a microwave usually pulls 1100-1400 watts

Question 9

Would this power supply be able to support SLI of two gigabyte gtx 770's?

Accepted Answer

I would recommend a higher power supply to be safe but it does power my two gtx 660's

Question 10

will a R9 270x run on this PSU ?

Accepted Answer

The unit is rated for 730W and has good readings on the rails, It's advertised by RaidMax as being Crossfire Ready, which means it will support two pretty heavy duty video cards. Looks like your card draws about 230 watts. Sounds like there's plenty of room to spare. I'm not an engineer, however. You might check with Raidmax before you buy.

MODEL	RX-730SS
AC Input:	115 ~ 230VAC, 11-5.5A, 63-47HZ
DC Output:	+3.3V	+5V	+12V	-12V	+5Vsb
Max. Output Current:	20A	20A	54A	0.4A	2.5A
Max. Combined Power:	120W		648W	4.8W	12.5W
Total Power:	730W
Dimensions	6 x 6.2 x 3.3 inches (150 x 158 x 86mm)


MB 20 + 4-Pin	CPU 4 + 4-Pin	PCI-E 6 + 2-Pin	SATA	Molex 4-Pin	Aux.
x 1	x 1	1 with 2 connectors	x 6	x 3	x 1

Brand	RAIDMAX
Series	Hybrid II Series
Model	RX-730SS

Type	ATX12V V2.2/ EPS12V
Maximum Power	730 W

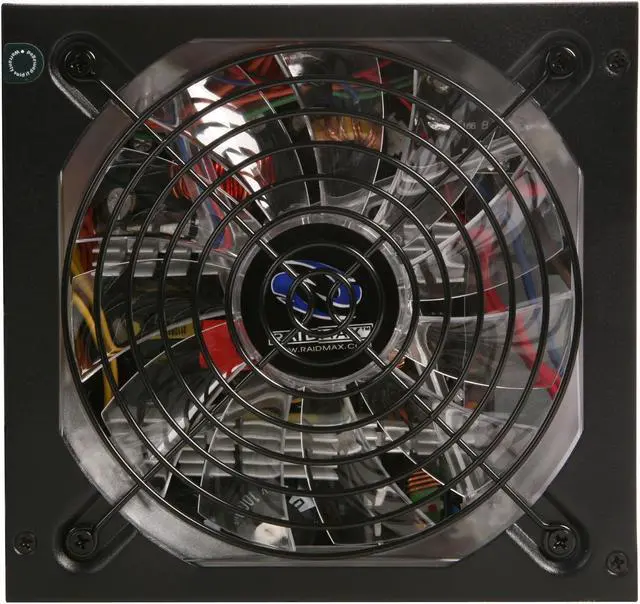

Fans	1 x 135mm Blue LED Fan
Fan LED	Blue LED
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	2 x 6+2-Pin
SATA Power Connector	6
SLI	SLI Ready
Haswell Support	Yes
CrossFire	CrossFire Ready
Max PSU Length	158 mm

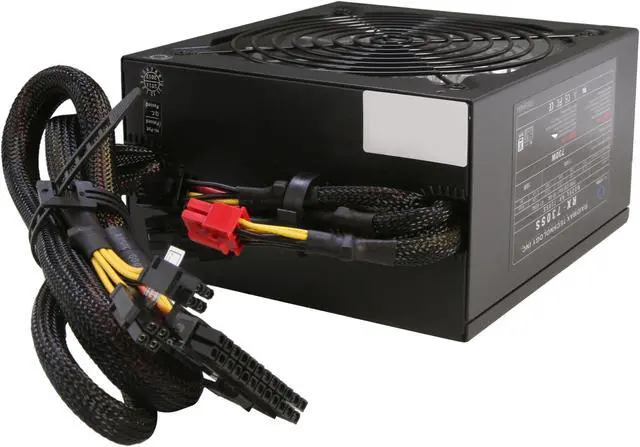

Modular	Semi-Modular
Efficiency	up to 86.43%
Energy-Efficient	80 PLUS BRONZE Certified
Over Voltage Protection	Yes
Input Voltage	115 - 230 V
Input Frequency Range	47 - 63 Hz
Input Current	11 / 5.5 A
Output	+3.3V@20A, +5V@20A, +12V@54A, [email protected] ,[email protected]
MTBF	>100,000 Hours
Approvals	FCC, CE, CB, BSMI, TUV, cTUVus

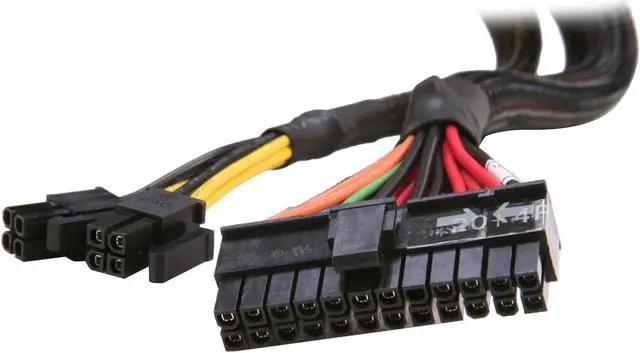

Connectors	1 x 20+4-Pin Main Connector 1 x 4+4-Pin ATX12V/EPS12V Connector 2 x 6+2-Pin PCI-E Connector 6 x 5-Pin SATA Connector 3 x 4-Pin Peripheral Connector 1 x 4-Pin Floppy Connector

Dimensions	3.39" x 5.91" x 6.22"
Weight	5.94 lbs.

RAIDMAX HYBRID 2 RX-730SS 730W ATX12V V2.2/ EPS12V SLI Ready CrossFire Ready Modular Power Supply, New Version with Build-in LED Fan On/Off Switch

FEATURES

Specifications

CONNECTORS

GALLERY

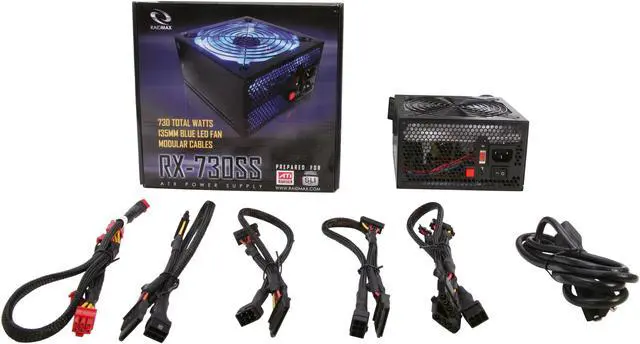

WHAT'S IN THE BOX
