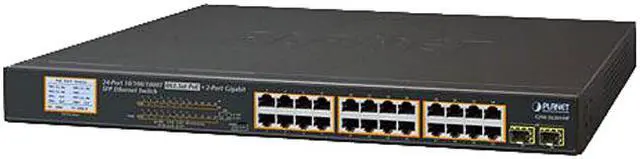

Planet GSW-2620VHP 24-Port 10/100/1000T 802.3at PoE + 2-Port Gigabit SFP Ethernet Switch with LCD PoE Monitor (300W)
- 8K MAC Address Table
- Unmanaged
- PoE
+
+
Specs
Reviews (1)
Learn more about the PLANET GSW-2620VHP
| Brand | PLANET |
|---|---|
| Model | GSW-2620VHP |
| Format | 19-inch Desktop size, 1U Height, Rack Mountable |
|---|---|
| Standards | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3z Gigabit SX/LX IEEE 802.3x flow control and back pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus |
| Network Management Type | Unmanaged |
| Primary Ports | 24 x RJ45 + 2 x SFP |
|---|---|
| Primary Port Speed | 10/100/1000Mbps |
| MAC Address Table | 8K |
|---|---|
| Switching Method | Store and Forward |
| Jumbo Frames | 9000 bytes |
| PoE | PoE Standard: IEEE 802.3af Power over Ethernet/PSE IEEE 802.3at Power over Ethernet Plus/PSE PoE Power Supply Type: End-span PoE Power Output: Per port 52V DC, 600mA. max. 30 watts Power Pin Assignment: 1/2(+), 3/6(-) PoE Power Budget: 300 watts (max.) Max. Number of Class 2 PDs: 24 units Max. Number of Class 3 PDs: 23 units Max. Number of Class 4 PDs: 11 units |
|---|---|
| LEDs | System: Power (Green) 10/100/1000BASE-T RJ45 Interfaces: 10/100Mbps LNK/ACT (Orange), 1000Mbps LNK/ACT (Green) 1000BASE-X SFP Interfaces: 1000Mbps LNK/ACT (Green) PoE Interfaces: PoE-in-Use (Orange) |
| Power | AC 100 - 240V, 50 / 60Hz, 5A max. n Max. 330 watts / 1132 BTU |
|---|
| Dimensions | 1.73" x 17.32" x 9.17" |
|---|---|
| Weight | 7.50 lbs. |
| Temperature | Operating: 0 - 50 degree Celsius Storage: -10 - 70 degree Celsius |
|---|---|
| Humidity | 5% - 95%, Non-condensing |
| Features | Physical Port: 24-port 10/100/1000BASE-T Gigabit Ethernet RJ45 copper 2 1000BASE-X mini-GBIC SFP interfaces Power over Ethernet: Complies with IEEE 802.3af/at Power over Ethernet end-span PSE Up to 24 ports of IEEE 802.3af/802.3at devices powered Supports PoE power up to 30.8 watts for each PoE port Each port supports 52V DC power to PoE powered device 300-watt PoE budget Auto detects powered device Circuit protection prevents power interference between ports Remote power feeding up to 100m in standard mode and 250m in extend modee Switching: Hardware based 10/100/1000Mbps auto-negotiation and auto MDI/MDI-X Flow control for full duplex operation and back pressure for half duplex operation IEEE 802.1Q VLAN transparency Hardware DIP switch for Standard, VLAN and Extend mode selection; the "Extend" mode features 30-watt PoE transmit distance of 250m at speed of 10Mbps and VLAN isolation Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing Hardware: 19-inch desktop size, 1U height, rack mountable LED indicators for system power, per port PoE ready and PoE activity, speed, Link/Act LCD monitor for system status and PoE usage status display 2 silent fan to provide stable and efficient power performance |
|---|
| First Listed on Newegg | August 08, 2017 |
|---|
