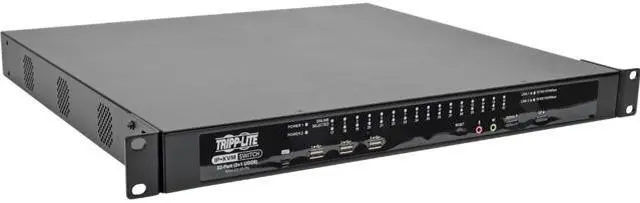

TRIPP LITE B064-032-02-IPG 32-Port Cat5 KVM Over IP Switch 2 IP + 1 Local User TAA / GSA

Be the first to review this product...

Simultaneous support for 3 users(1 local, 2 remote)
Supports IPv4, Link Local IPv6 Address and IPv6 Stateless Auto configuration protocols
Includes both DVI and VGA console ports for connection of either a DVI or VGA monitor
Features two RJ45 network ports for redundant or dual-IP operation

Overview

Specs

Reviews

MAIN OVERVIEW FEATURES: Number of Computers Supported: 32Number of Local Users Supported: 1Number of Remote Users Supported: 2Maximum Video Resolution: 1600 x 1200Network (RJ-45): YesPS/2 Port: YesUSB: YesNumber of Network (RJ-45) Ports: 32Number of PS/2 Ports: 2Number of USB Ports: 2Form Factor: Rack-mountableRack Height: 1UHeight: 1.8"Width: 17"Depth: 16"Weight (Approximate): 17 lbPackage Contents: NetDirector KVM Switch2 x C5 to 5-15P Power CordsCD With Owner's ManualQuick Start GuideRJ-45 to DB-9 Adapter For Dial-In Modem FunctionalityUSB/PS/2 Combo Console Cable KitGrounding WireSet of Foot PadsRackmount HardwareEnvironmentally Friendly: YesEnvironmental Certification: RoHSLimited Warranty: 3 Year

Model
Brand	TRIPP LITE
Model	B064-032-02-IPG

Details
Type	Consumer Electronics
PC Connectors	(x32) RJ45 Female
Console Connectors	Local Console Ports - Port 1 HD15 Female (via included console cable) Local Console Ports - Port 2 (x2) USB Female (via included console cable) Local Console Ports - Port 3 (x2) PS/2 Female (via included console cable)
Computer Connections	32 Ports
PC Selection	Push Buttons/Hot Keys/OSD

Environmental
Temperature	0ºC to 50ºC(32ºF to 122ºF)
Humidity	0% to 80%,Non-Condensing

Features
Features	Up to 3 users (1 Local, 2 Remote) can simultaneously access the connected computers/servers Features two RJ45 network ports for redundant or dual-IP operation Supports IPv4, Link Local IPv6 Address and IPv6 Stateless Auto configuration protocols Directly connect up to 32 computers / servers, or up to 512 by cascading a second level of switches Multi-level authentication; Super Administrator, Administrator and User Advanced encryption technologies - 1024 bit RSA; 56 bit DES; 256 bit AES and 128 bit SSL View multiple ports at the same time using the panel array mode feature Virtual Media allows computers connected to the KVM using a B055-001-USB-V2 SIU to access DVD / CD drives, flash drives and other storage media from a user's remote computer as if it were directly connected An additional three USB ports are located on the front of the KVM for the sharing of USB peripherals. Remote authentication support; RADIUS, LDAP, LDAPS and Active Directory Track critical events on the installation via email notification, SNMP traps, Windows-based Log Server or Syslog server Dual power supplies allow the unit to continue running in the event one power supply ceases to receive power Built-in sensors increase/decrease the speed of the unit's cooling fans according to the temperature Dial-in / Dial-out modem support Graphical OSD can be displayed in English, German, Russian, Japanese, traditional Chinese and simplified Chinese Features an on-screen keyboard with numerous language formats Supports 10Base-T, 100Base-T, 1000Base-T, Auto-Sense, TCP/IP, HTTP, DNS, DHCP, UDP, ARP and Ping Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases Compatible with all major operating systems Constructed of heavy-duty steel housing

Dimensions & Weight
Dimensions	1.75" x 17" x 16"
Weight	17 lbs.

Package Contents

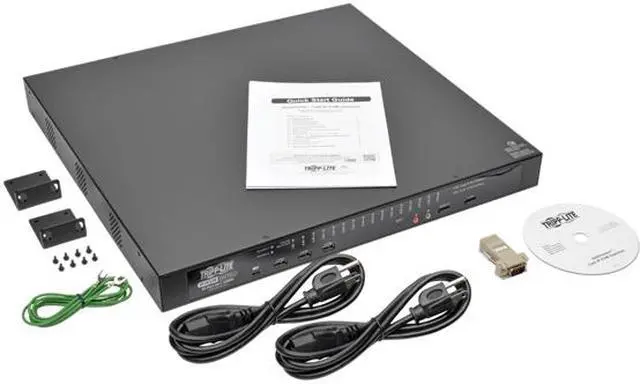

Package Contents	B064-032-02-IPG (2+1 User) NetDirector Cat5 IP KVM switch (x2) C5 to 5-15P power cords CD with owner's manual, quick start guide and device files Quick start guide RJ45 to DB9 adapter for dial-In modem functionality USB / PS/2 combo console cable kit Grounding wire Set of foot pads Rackmount hardware

Additional Information
First Listed on Newegg	April 20, 2010
