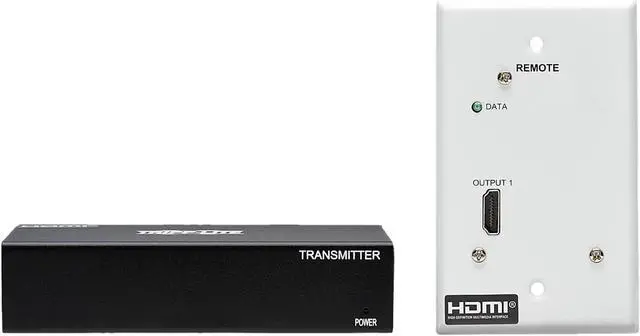

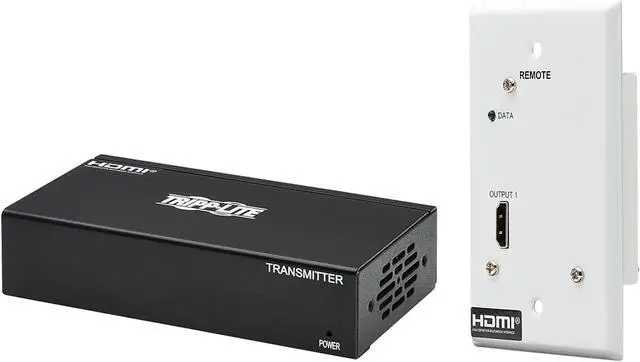

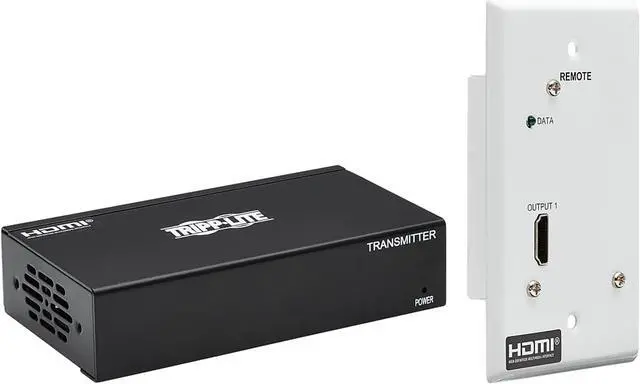

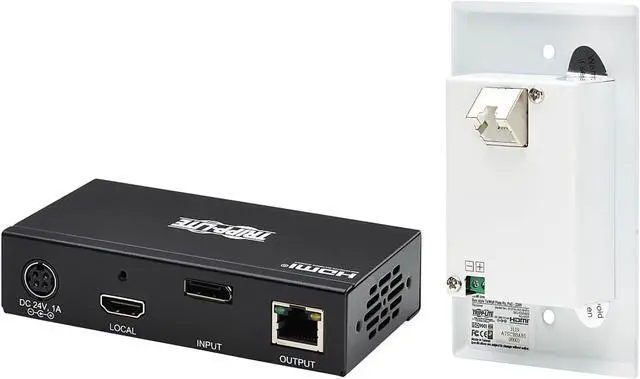

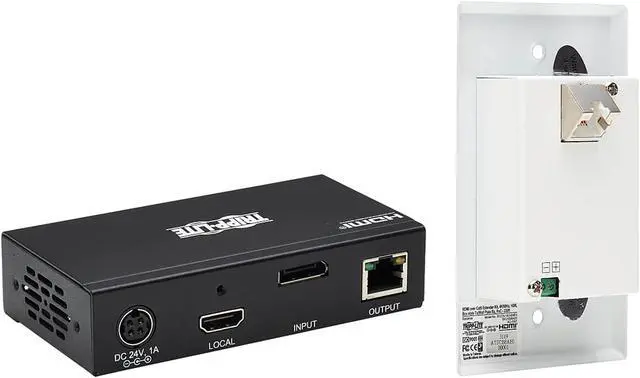

DisplayPort to HDMI Over Cat6 Extender Kit w Wall Plate Receiver
- Cat6 Extender Kit Ideal for Digital Signage in Schools, Restaurants and Lecture Halls
- Extends a 4K A/V Transmission up to 230 ft. or Even Farther
- Transmits Crystal-Clear 4K Video with Multi-Channel Audio and 4:4:4 Color
- Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
- Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
+
+
Specs
Reviews
Learn more about the Tripp Lite B127A-1A1-BDFH
| Brand | Tripp Lite |
|---|---|
| Model | B127A-1A1-BDFH |
| Type | DisplayPort to HDMI over Ethernet |
|---|---|
| Max Extend Distance | 230 feet |
| Color | Black / White |
| Specifications | Video Input: Displayport (FEMALE) Video Output: HDMI (FEMALE) Number of Monitors Supported: 1 Video Ports: (2) HDMI (FEMALE) Video Ports Details: DisplayPort 1.2a; HDMI 2.0; HDCP 1.4; HDCP 2.2 Resolutions Supported: 3840 x 2160 (4K x 2K) @ 60 Hz (both Local HDMI port and HDMI Output) Max Supported Video Resolution: 3840 x 2160 @ 60 Hz Audio Ports: HDMI (FEMALE) Audio Ports Details: HDMI outputs support passthrough audio formats including LPCM2.0/5.1/7.1 Audio Input: Displayport Audio Output: HDMI Audio Specification: Pass-through of Audio format includes LPCM2.0/5.1/7.1 |

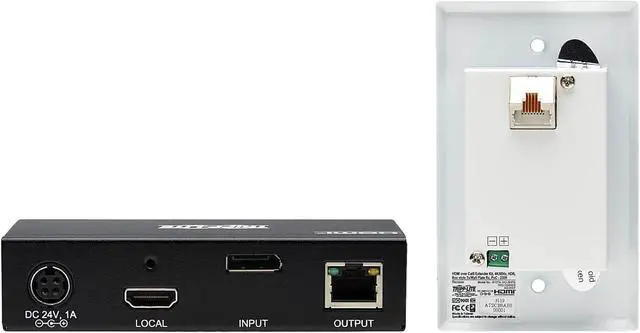

| Connector A | Side A - Connector 1: Displayport (FEMALE) Side A - Connector 2: HDMI (FEMALE) Side A - Connector 3: RJ45 (FEMALE) |
|---|---|
| Connector B | Side B - Connector 1: HDMI (FEMALE) Side B - Connector 2: RJ45 (FEMALE) |
| Features | Supports 4K @ 60 Hz video resolutions (4:4:4) as specified in HDMI 2.0. Power over Cable (PoC) technology provides power to the receiver via Cat6 cable. Transmitter's local port shows you the 4K image being displayed at the other end. Stretches 230 ft. signal to 400 ft. with addition of optional B127A-010-H repeater. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases. |
|---|

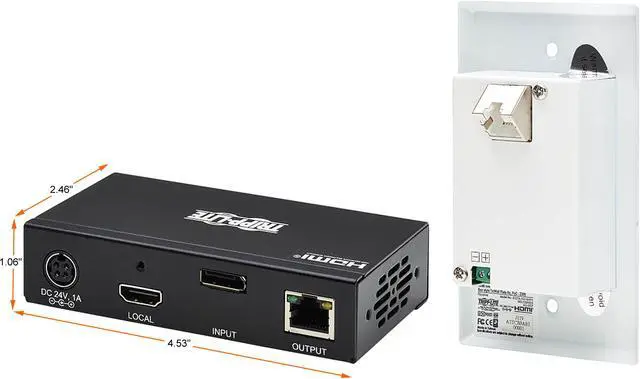

| Dimensions | Receiver Unit Dimensions: 4.53" x 2.76" x 1.33" Transmitter Unit Dimensions: 1.06" x 4.53" x 2.46" |
|---|---|
| Weight | Receiver Unit Weight: 1.00 lbs. Transmitter Unit Weight: 1.00 lbs. |

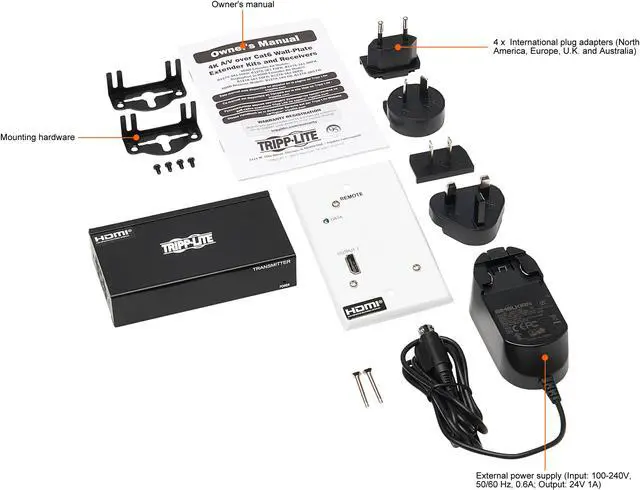

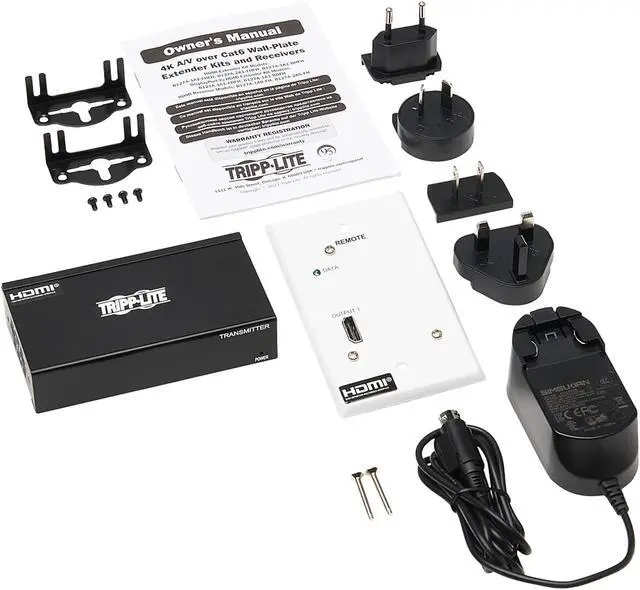

| Package Contents | Box transmitter Wall plate receiver External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A) (4) International plug adapters (North America, Europe, U.K. and Australia) Mounting hardware Owner's manual |
|---|
| First Listed on Newegg | April 03, 2025 |
|---|
