USB (HID enabled); DB9 Serial; Slot for SNMP/Web interface
+
+
Overview
Specs
Reviews

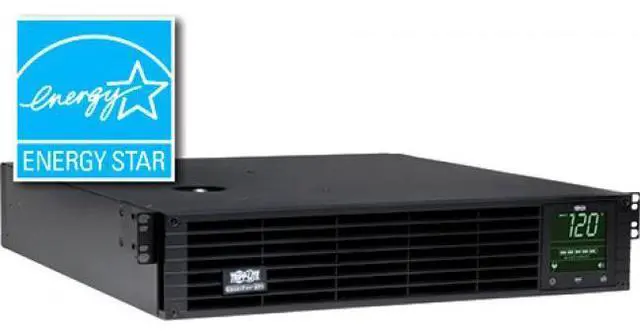

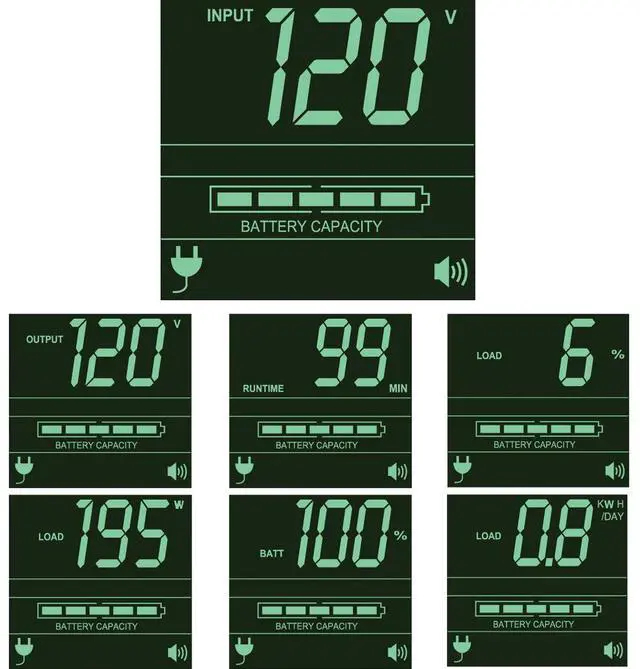

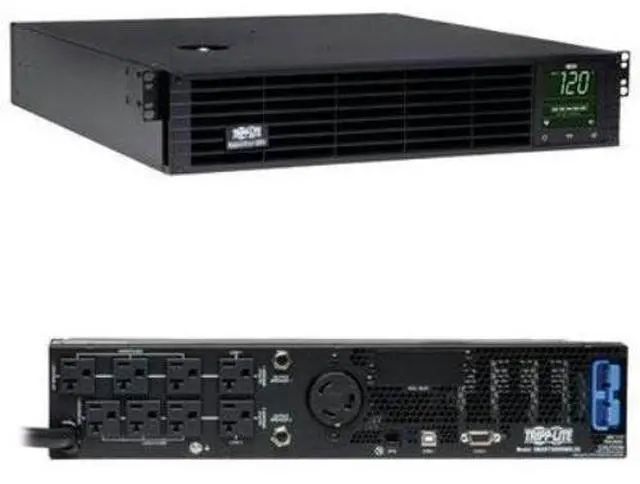

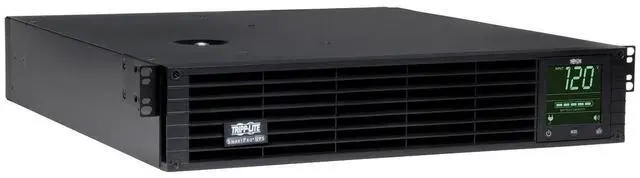

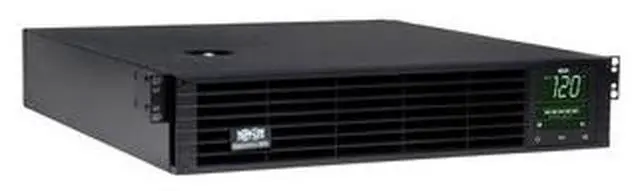

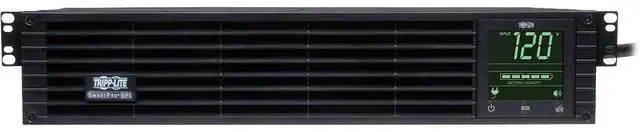

Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
USB (HID enabled); DB9 Serial; Slot for SNMP/Web interface
Management Software
PowerAlert
Approvals
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); TAA Compliant; ENERGY STAR Qualified
Rackmountable
2U
Surge Protection
Surge Energy Rating
570J
Features
Features

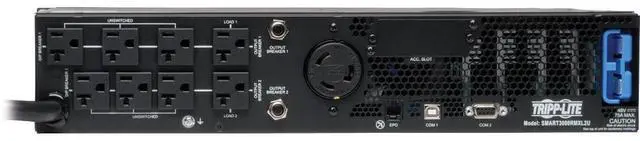

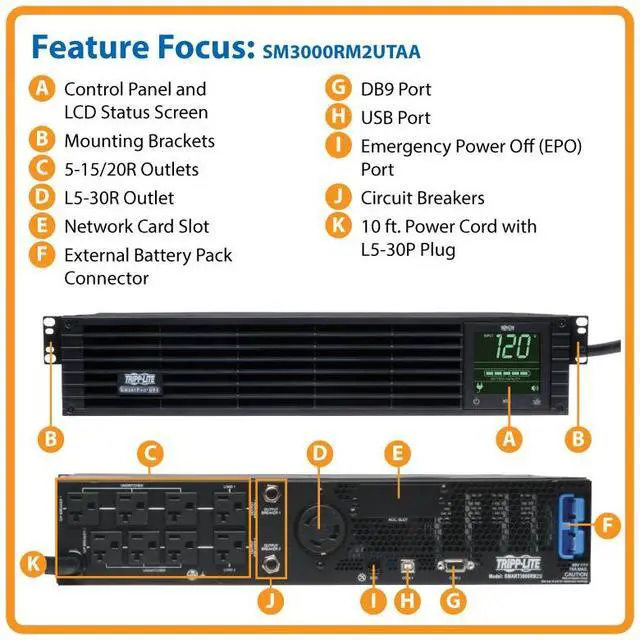

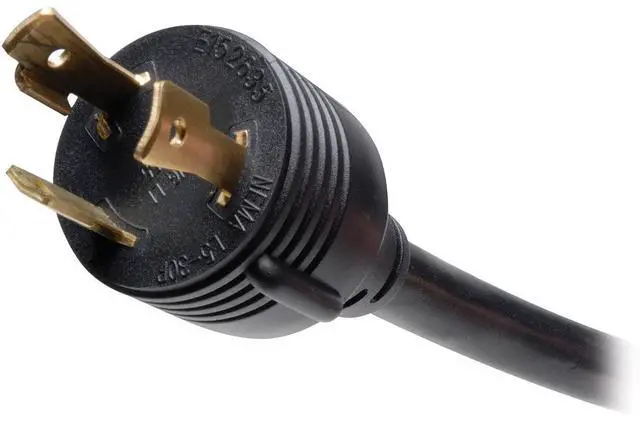

Federal Trade Agreements Act / TAA compliant for GSA schedule purchases 3kVA / 3000VA / 2250W line interactive 2U rack/tower UPS, Sine Wave 120V output, Corrects brownouts and overvoltages from 83V to 145V 0.75 Power Factor, Interactive LCD interface, Extended runtime options to 1600W 98% line-mode efficiency, 2 switched load banks, 4 post mounting accessories USB, RS232, EPO and slot for SNMPWEBCARD option 120V NEMA L5-30P input, 8 NEMA 5-15/20R & 1 L5-30R outlets
Dimensions & Weight
Dimensions
3.50" x 17.50" x 19.50" (H x W x D)
Weight
62.80 lbs.
Package Contents
Package Contents

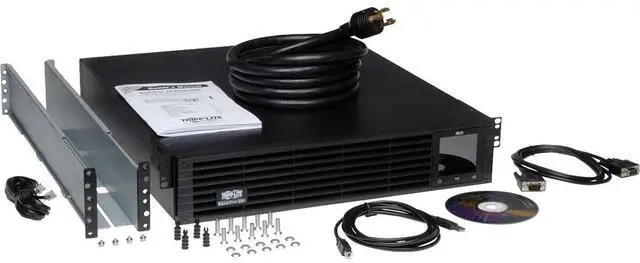

SM3000RM2UTAA UPS System PowerAlert Software with USB, Serial & EPO cabling 4-post rackmount installation kit Instruction manual
