USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
+
+
Overview
Specs
Reviews

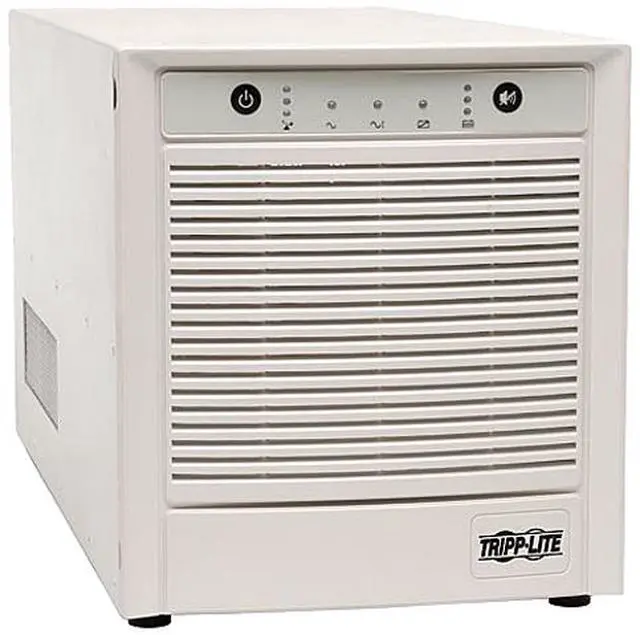

UL 60601-1 compliance is required for UPS systems within patient care areas. Get complete, compliant power protection with Tripp Lite's SMART2500XLHG SmartPro Medical UPS System. The SMART2500XLHG provides a high load capacity 2200VA/1920W, full UL 60601-1 3rd edition compliance. Protects connected medical equipment against data loss, downtime and equipment damage due to power outages, voltage fluctuations and transient surges. It features a USB port, input locking clamp, equipotential earth bonding lug, 4 NEMA 5-15/20R outlets, and 4 IEC C13 outlets for universally adaptable outlet options. The SMART2500XLHG offers a complete power protection solution for clinical labs, diagnostic imaging, ophthalmology, medical equipment, imaging and other devices requiring medical grade protection. With built-in Faraday shielding, the SMART2500XLHG provides full line isolation and reduces the ...Plug/Connector Type: IEC 60320 C20Receptacles: 4 x IEC 60320 C13Receptacles: 4 x NEMA 5-15/20RSerial Port: YesUSB: YesBackup/Run Time (Full Load): 4.40 MinuteBackup/Run Time (Half Load): 13 MinuteMaximum Battery Recharge Time: 4.50 HourLoad Capacity (VA): 2200 VALoad Capacity (Watt): 1920 WInput Voltage: 110 V ACOutput Voltage: 120 V ACHeight: 9.3Width: 8.9"Depth: 19.1"Form Factor: TowerWeight (Approximate): 73.30 lbPackage Contents: SMART 2500XLHG Medical Grade Tower UPS SystemPoweralert Software CDWarranty InformationInstruction ManualUSB CableDB9 CableLimited Warranty: 2 YearPackage ContentsSMART 2500XLHG Medical Grade Tower UPS SystemPoweralert Software CDWarranty InformationInstruction ManualUSB CableDB9 Cable"
Learn more about the Tripp Lite SMART2500XLHG
Model
Brand
TRIPP LITE
Series
SmartPro
Model
SMART2500XLHG
Input
Input Voltage Range
120 V AC
Input Connection
C20 inlet
Output
VA Rating
2200VA
Watts
1920W
Output Voltage
115V; 120V
Output Frequency
60 Hz
Outlets
8
Outlet Type
4 5-15/20R outlet(s); 4 C13 outlet(s)
Battery
Battery Type
Valve Regulated Lead Acid (VRLA)
Battery Run Time
Full Load Runtime: 4.4 minutes
Half Load Runtime: 13 minutes
Battery Recharge Time
4.5 hours MAX (10% to 90% capacity) Internal batteries only
Battery Replaceable
RBC48V-HGTWR
Details
Alarms
Audible alarm indicates power-failure, overload and low-battery conditions
Interface Port
USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Management Software
PowerAlert
Approvals
Tested to UL1778 (USA); Tested to CSA (Canada); Meets FCC Part 15 Category A (EMI); Tested to UL60601-1 (medical grade)
Surge Protection
Surge Energy Rating
510 Joules
Features
Features
Ideal UPS protection for applications in patient-care areas where UL 60601-1 3rd edition listed medical electrical equipment is required
Built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes
Full line isolation prevents shock potential and operational problems in sensitive electronic equipment
Provides connected equipment with continuous power during short and long duration loss of commercial power
Expandable runtime is available with the addition of one or more external battery packs (BP48V24-2U and BP24V60RT-3U)
Line-interactive voltage regulation corrects brownouts and over voltages from 83 to 143V back to usable 120V output levels, without using battery power
Resistant to electrostatic discharge
Supports loads up to 2200VA/1920W
13 min half-load runtime (1100VA/960W), 4 min full load runtime (2200VA/1920W)

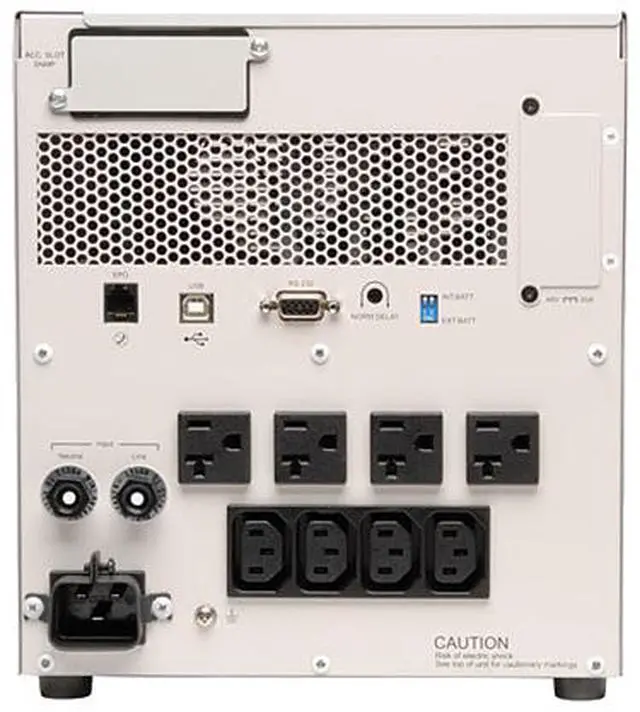

Input: IEC320-C20 inlet with locking clamp/ Output: 4 NEMA5-15/20R and 4 IEC C13
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.
