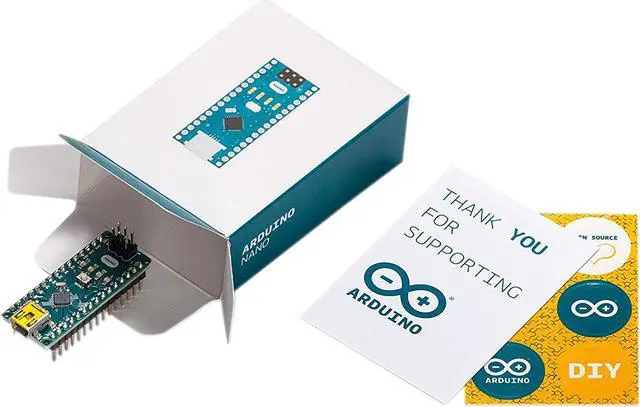

Arduino Nano Development Board ATmega328 MCU, 14 3.3V I/O, 6 PWM Outputs, USB Mini B
- The A000005 is an Arduino Nanoboard which is a small, breadboard-friendly board based on the ATmega328 (Arduino Nano 3.0) or ATmega168 (Arduino Nano 2.x). It has similar functionality to the Arduino Duemilanove, but in a different package. It lacks only a DC power jack and is instead powered through the Mini-B USB connector. The Nano was designed and is being produced by Gravitech.
- Microcontroller Atmel ATmega328
- Operating voltage is 5V
- Maximum supply voltage 6 to 20V
- Digital I/O pins 14 (of which 6 provide PWM output)
- DC current per I/O pin 40 mA
- DC current for 3.3V pin 50 mA
- Flash memory 16KB of which 2KB is used by Boot loader
- SRAM 1KB, EEPROM 512 bytes
- Clock speed 16 MHz
- USB Connector type Mini B male
+
+
Specs
Reviews
Learn more about the Arduino A000005
| Brand | Arduino |
|---|---|
| Model | A000005 |
| CPU | ATmega328 |
|---|
| Features | The A000005 is an Arduino Nanoboard which is a small, breadboard-friendly board based on the ATmega328 (Arduino Nano 3.0) or ATmega168 (Arduino Nano 2.x). It has similar functionality to the Arduino Duemilanove, but in a different package. It lacks only a DC power jack and is instead powered through the Mini-B USB connector. The Nano was designed and is being produced by Gravitech. Microcontroller Atmel ATmega328 Operating voltage is 5V Maximum supply voltage 6 to 20V Digital I/O pins 14 (of which 6 provide PWM output) DC current per I/O pin 40 mA DC current for 3.3V pin 50 mA Flash memory 16KB of which 2KB is used by Boot loader SRAM 1KB, EEPROM 512 bytes Clock speed 16 MHz USB Connector type Mini B male |
|---|
| First Listed on Newegg | November 07, 2024 |
|---|
