845GV ISA Motherboard
Specification
- ISA Motherboard with ISA PCI slots for Industrial Computer
- CHIPSET: Features the Intel 845GV+ ICH4 chipset, supporting Socket 478 Celeron 4 and Pentium 4 processors.
- EXPANSION SLOTS: Equipped with 3 ISA slots and 2 PCI slots, offering versatile legacy and modern expansion options.
- CONNECTIVITY: Offers a range of rear I/O ports including USB, LAN, and parallel port for broad peripheral support.
- FORM FACTOR: ATX form factor design ensures compatibility with standard ATX cases for easy installation.
- MEMORY SUPPORT: Includes 2 DDR memory slots supporting speeds up to 333 MHz and a maximum capacity of 2 GB for reliable system performance.
845 GV
ISA Motherboard
- CPU: Socket 478 for Celeron 4 /Pentiun4 ,
- FSB 533
- Memory: 2 x 184-pin DDR 266/333 DIMM max.up to 2GB
- Chipset: 845GV+ ICH*4
- BIOS: Award BIOS with 4Mbit Flash ROM
- ATX Motherboard
- Size: 255 x 180 mm

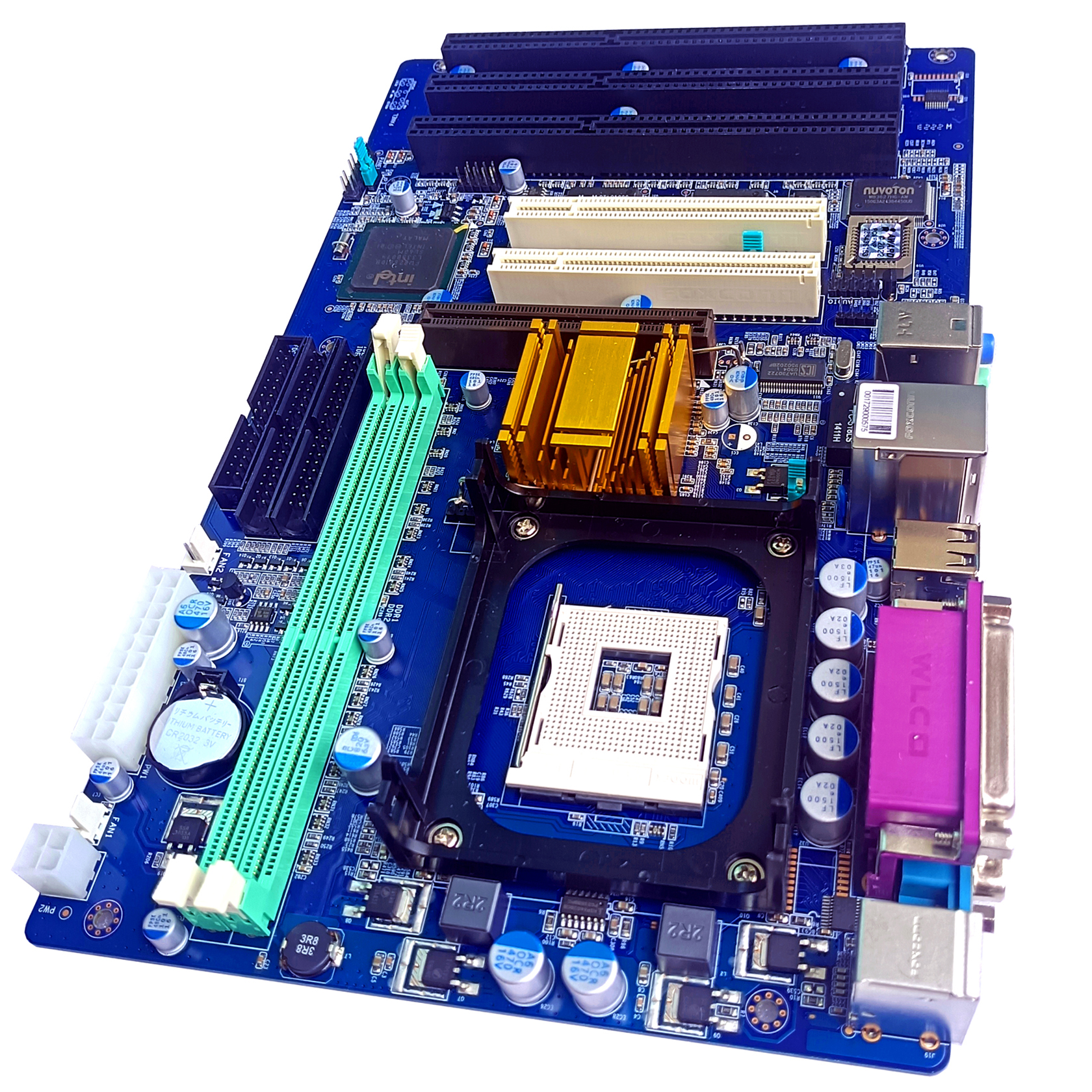

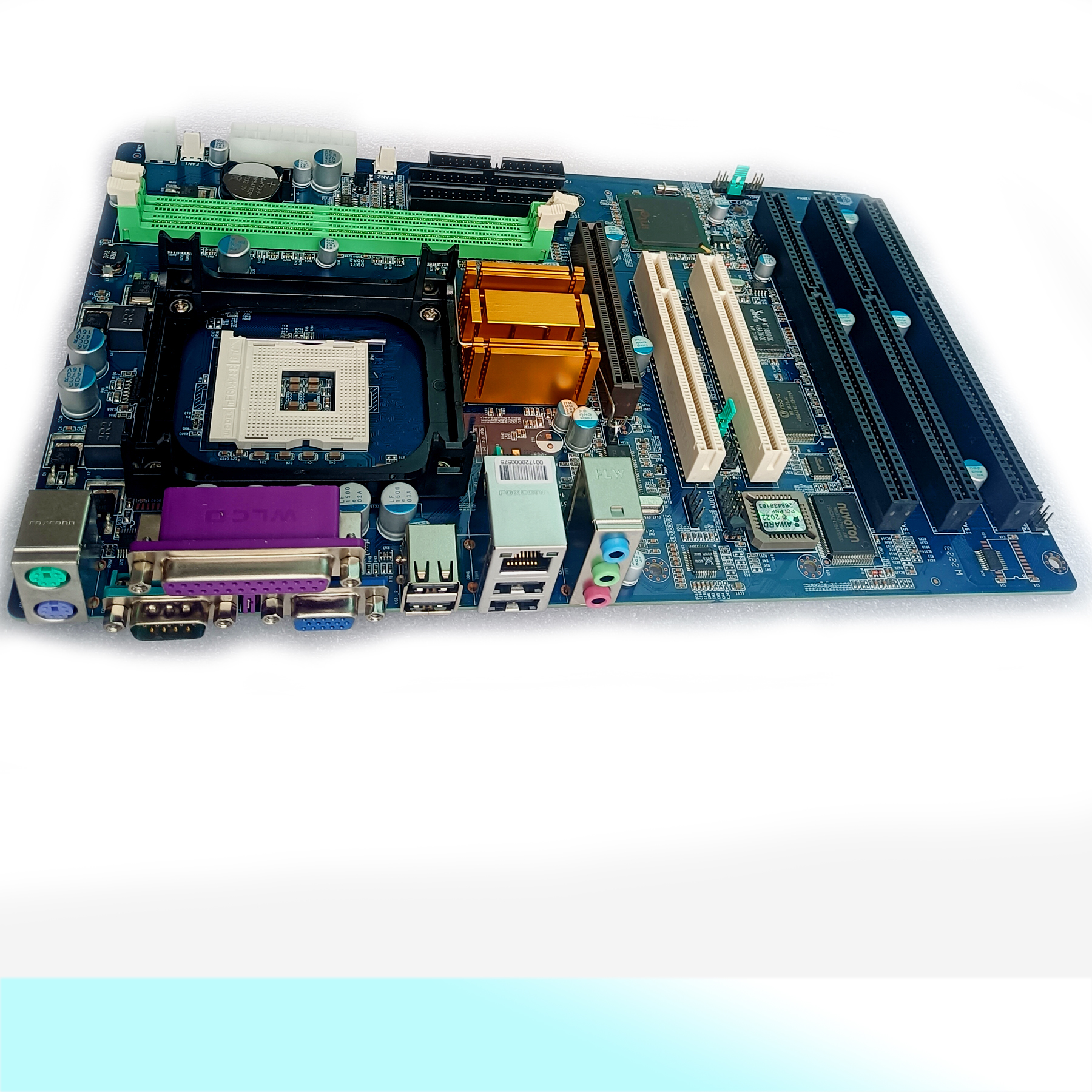

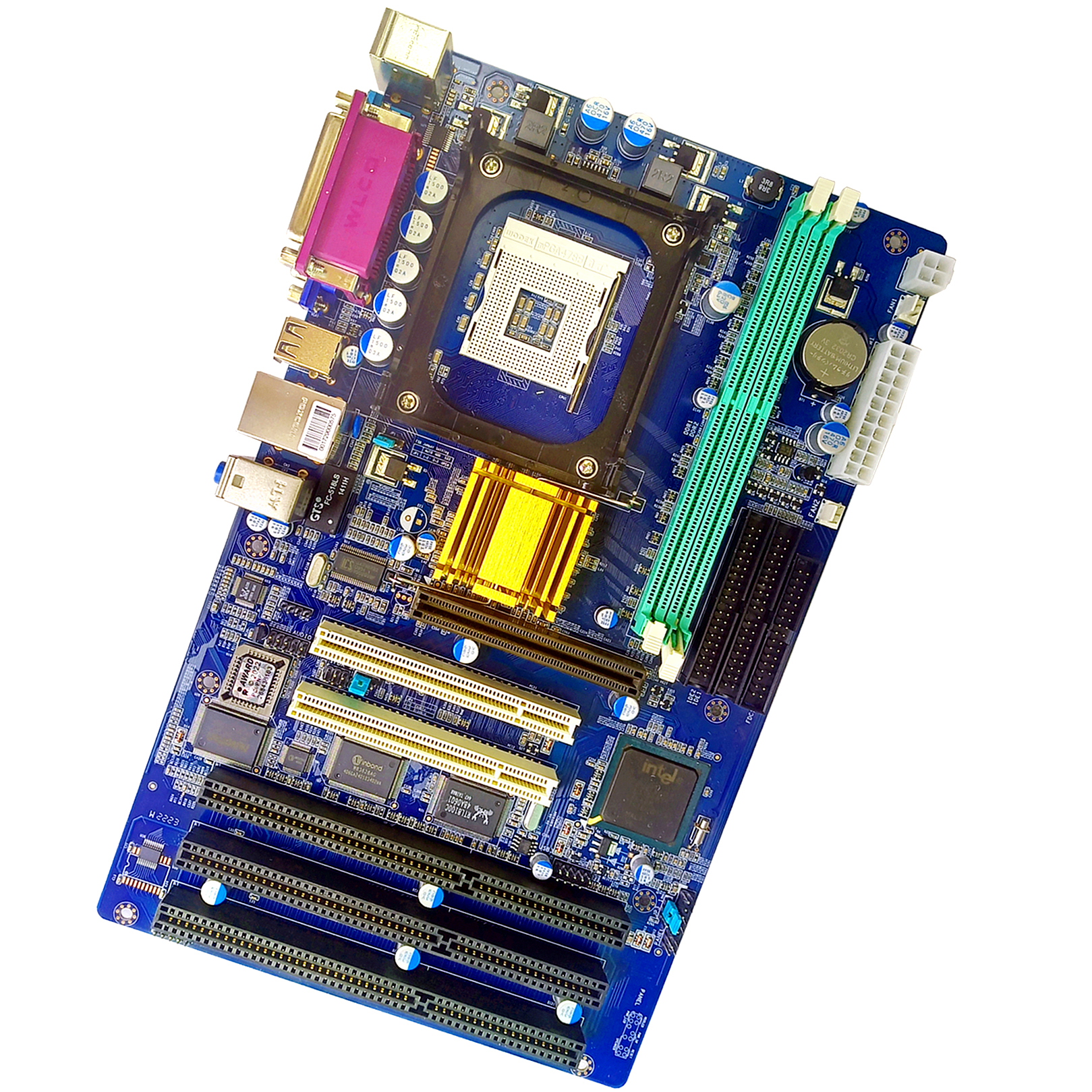

ATX Motherboard with 2 PCI 3 ISA Slots
Interface
- 2*PCI slots,
- 3*ISA
- 1*AGP 4/8X,
- 2 * IDE,
- 1 x PS/2 K/B,
- 1 x PS/2 MS,
- 1 x COM (1 x RS-232),
- 1 x LPT,
- 1 x RJ-45 Ethernet: Realtek RTL8100C Fast Ethernet controllers
- Audio: Realtek ALC655 AC'97 Codec Audio
- USB: 6 x USB 2.0 ports (2 ports form 1 header)
- Output Interface: VGA port
Description
845GV ISA Mainboard
- Upgrade or build your desktop PC with this 845GV ATX Motherboard, featuring the Intel 845GV+ ICH4 chipset and Socket 478 compatibility.
- Designed to support Intel Celeron 4 and Pentium 4 processors, this board delivers reliable performance for everyday computing tasks.
- It includes 2 DDR memory slots supporting speeds up to 333 MHz, giving you the flexibility to expand your system's RAM as needed.
- One of the standout features of this motherboard is its 3 ISA slots alongside 2 PCI slots, making it an excellent choice for users who need to integrate legacy hardware or specialized expansion cards.
- The ATX form factor ensures compatibility with a wide range of standard PC cases. Additional connectivity options are available through the onboard I/O ports, including USB and parallel interfaces.
- Whether you're refreshing an older system or building a specialized workstation that requires ISA slot support, this motherboard offers a dependable and versatile foundation.
