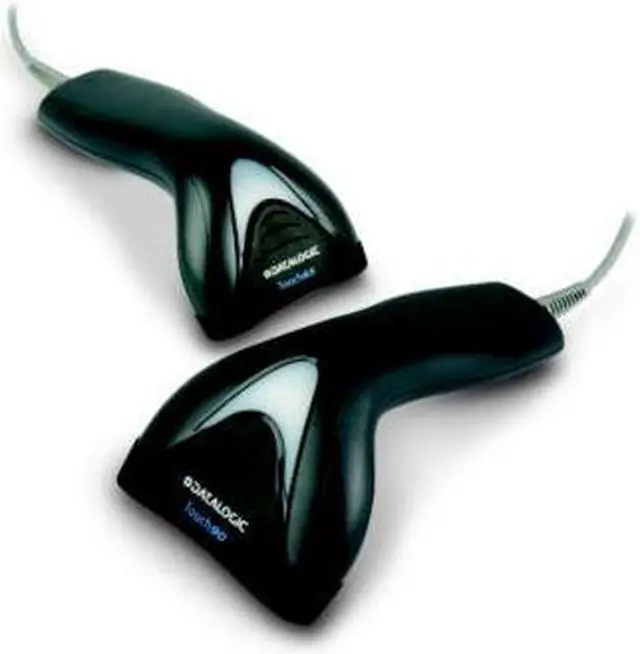

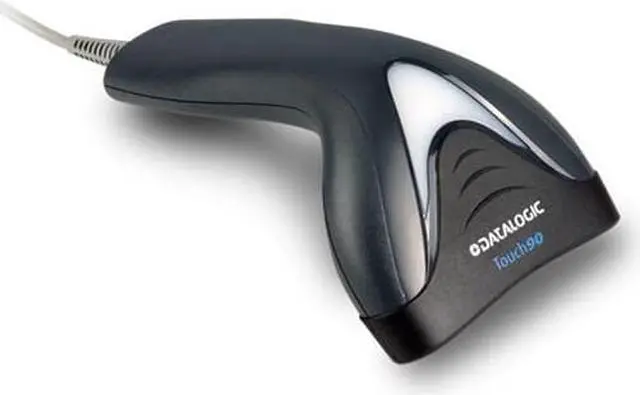

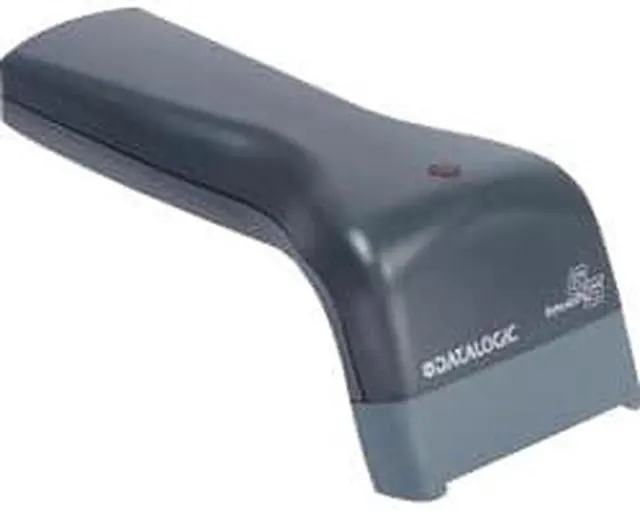

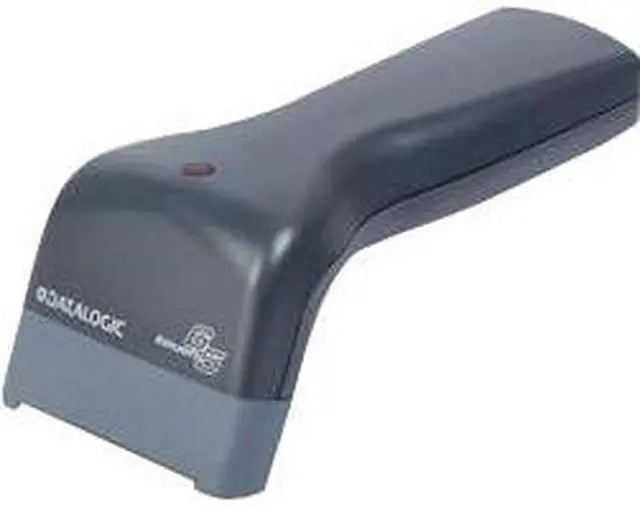

Datalogic TD1100 65 Lite, General Purpose Corded Handheld Linear Imager Bar Code Reader, USB Kit, Black - TD1120-BK-65K1
- The TD1100 series of linear imaging contact readers represent the Datalogic solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance
- Designed for low throughput applications within multiple markets, the TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes
- An innovative ‘read-thru’ holder provides the TD1100 readers with hands-free reading capability on documents or small items
- Size of reading windows: 6.5 cm / 2.6 in (TD1100-65) for reading standard bar codes
- Includes Scanner, Holder and 90A052065 Cable
+
+
Overview
Specs
Reviews
The Touch TD1100 series of linear imaging contact readers represent the Datalogic ADC solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance. Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.
Application/Usage: Library
Host Interface: USB
Application/Usage: Library
Barcode Symbology Supported: 1D /
Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
Stacked Codes: GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional Host Interface: USB
Product Type: Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Manufacturer Part Number: TD1120-BK-65K1
Weight (Approximate): 4.60 oz
Connectivity Technology: Cable
Form Factor: Handheld
Connectivity Technology: Cable
Form Factor: Handheld
Manufacturer: Datalogic S. p.
A Product Model: 65 Lite
Product Name: General Purpose Corded Handheld Contact Linear Imager Barcode Scanner Kit
Product Line: Touch
Brand Name: Datalogic
Scanning Distance: 5.91
Product Series: TD1100
Brand Name: Datalogic
Scanning Distance: 5.91
Country of Origin: Vietnam
Height: 6.3
Width: 2.3
Depth: 3.3
Scan Pattern: Omni-directional Image
Sensor Type: Linear Image
Sensor Type: Imager
Product Family: Touch TD1100
Product Color: Black
Rugged: Yes
Cable Type Included: USB
Scanning Capability: 1D
Drop Specification: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
Scan Pattern: Omni-directional Image
Sensor Type: Linear Image
Sensor Type: Imager
Product Color: Black
Rugged: Yes
Cable Type Included: USB
Scanning Capability: 1D
Reading Angle (Skew): 70°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 45° Maximum
Ambient Light: 20000 lux
Minimum Print Contrast: 25% Minimum Element
Resolution (Code 39): 7.5 mil Maximum Element
Resolution (Code 39): 10 mil
Application/Usage: Library
Host Interface: USB
Application/Usage: Library
Barcode Symbology Supported: 1D /
Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
Stacked Codes: GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional Host Interface: USB
Product Type: Barcode Scanner Kit
Product Type: Barcode Scanner Kit
Manufacturer Part Number: TD1120-BK-65K1
Weight (Approximate): 4.60 oz
Connectivity Technology: Cable
Form Factor: Handheld
Connectivity Technology: Cable
Form Factor: Handheld
Manufacturer: Datalogic S. p.
A Product Model: 65 Lite
Product Name: General Purpose Corded Handheld Contact Linear Imager Barcode Scanner Kit
Product Line: Touch
Brand Name: Datalogic
Scanning Distance: 5.91
Product Series: TD1100
Brand Name: Datalogic
Scanning Distance: 5.91
Country of Origin: Vietnam
Height: 6.3
Width: 2.3
Depth: 3.3
Scan Pattern: Omni-directional Image
Sensor Type: Linear Image
Sensor Type: Imager
Product Family: Touch TD1100
Product Color: Black
Rugged: Yes
Cable Type Included: USB
Scanning Capability: 1D
Drop Specification: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
Scan Pattern: Omni-directional Image
Sensor Type: Linear Image
Sensor Type: Imager
Product Color: Black
Rugged: Yes
Cable Type Included: USB
Scanning Capability: 1D
Reading Angle (Skew): 70°
Reading Angle (Pitch): 65°
Reading Angle (Roll): 45° Maximum
Ambient Light: 20000 lux
Minimum Print Contrast: 25% Minimum Element
Resolution (Code 39): 7.5 mil Maximum Element
Resolution (Code 39): 10 mil
Datalogic TD1100 Series
A CONTACT READER FOR ID BAR CODES
The Touch™ TD1100 Series of linear imaging contact readers represent the Datalogic ADC solution for customers who require a cost-effective solution for close contact bar code reading without sacrificing quality and performance.
Designed for low throughput applications within multiple markets, the Touch TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes.
ROBUST READER HAS TWo OPTIONS FOR THE READING WINDOW
Small, lightweight and low on energy consumption, the Touch TD1100 readers continue to provide robustness and a 5.0 ft. (1.5m) drop resistance, which is typically included in a higher range of products.
The Touch readers are available with the option of two different sizes of reading windows: 2.6 in. (6.5cm) (Touch 65) or 3.5 in. (9.0cm) (Touch 90), which benefits the user when reading standard or wide bar codes.
MULTI-PURP0SE USES FOR DIFFERENT APPLICATIONS
The Touch TD1100 65/90 Pro readers provide a complete all-in-one multi-interface solution, including RS-232, USB, Keyboard Wedge and Wand Emulation, while the Touch 65/90 Lite readers provide USB or RS-232/Keyboard Wedge interfaces.

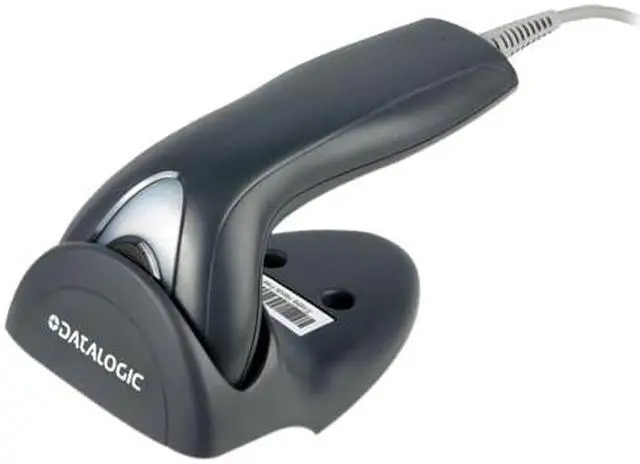

An innovative "read-thru" holder provides the Touch TD1100 readers with hands-free reading capability on documents or small items.
FEATURES
- Wide reading windows: 2.6 in. (6.5cm) and 3.5 in. (9.0cm)
- Excellent reading performance on damaged or poorly printed bar codes
- Interface options: USB or Keyboard Wedge / RS-232 (Touch 65/90 Lite); USB / RS-232 / Keyboard Wedge / Wand Emulation (Touch 65/90 Pro)
- Supports GS1 DataBar™ linear codes
- Compact and innovative "read-thru" holder for hands-free reading capability
- Drop Resistance to 5.0 ft. (1.5m)
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
INDUSTRY APPLICATIONS
- Retail: Non-food specialty stores and Service points
- 1D Coupons on mobile phones
- Public Administration and Services: Libraries, Schools, Governments Agencies
- Excellent for wide codes on books, documents and bills
- Banking and Finance: Banks, Insurance, Utilities
- Excellent for wide codes on documents, paper, utility billing
