Similar to previous question... the scanner or wand to hear tones sent through cables... which piece is it? The small box doesn't look like a tone scanner or wand but must be.. is that it?

This tester does not have a toner. The small box that clips into the bottom of the main unit goes on one end of the cable and the main unit attaches to the other end of the cable. Press the test button and if the first 4 LEDs at the top light up green then the cable is good (the 5th LED is for the shield). If there is a problem one or more of the red LEDs on the side will light up.

฿6,984^.75

VAT-Inclusive Price

฿3,560.78 Shipping

Limit 99999 per customer.

Ships from Canada.

Most customers receive within 4-17 days.

Add to wish list

Sold by BTE Outlet

3.5 (1,429 seller ratings)

Shipped by BTE Outlet

Meet Your Seller

BTE Outlet

See Seller Store

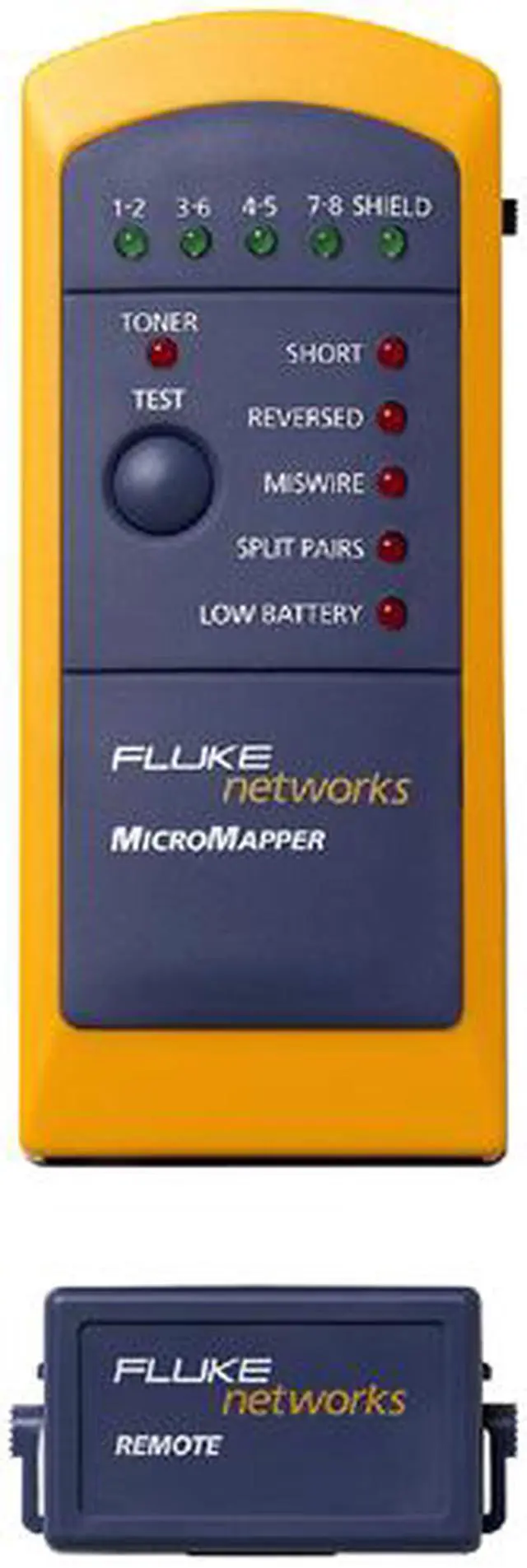

Main image of Fluke Networks MT-8200-49A MicroMapper Network Testing Device

Alt view image 2 of 2 - Fluke Networks MT-8200-49A MicroMapper Network Testing Device

Shop All FLUKE networks Products | Visit BTE Outlet Store

Fluke Networks MT-8200-49A MicroMapper Network Testing Device

(4) Write a Review

Cable tester for simple verification of wiremaps and identification of faults with LEDs
Testing of twisted pair cables for open circuits, shorts, crossed pairs, reversed pairs and split pairs
Remote identifier enables one-person testing
Tone generator for tracing installed cables hidden in walls, floors and ceilings
Easy-to-read fault display on cable tester

Overview

Specs

Reviews (4)

MAIN OVERVIEW FEATURES: Device Function: Speed TestingNetwork (RJ-45): YesNumber of Network (RJ-45) Ports: 1Battery Size Supported: AAABattery Chemistry: AlkalineHeight: 4.92" (125 mm)Width: 2.05" (52 mm)Depth: 1.18" (30 mm)Weight (Approximate): 130 gPackage Contents: MicroMapper MT-8200-49A Network Testing DeviceMicroMapper RemotePatch Cable6-Volt Alkaline BatteryUser GuideLimited Warranty: 1 Year

Whether you're an electrical contractor, a home networking professional, datacom specialist or IT/network manager, the Fluke Networks family of powerful Voice/Data/Voice (VDV) verification and troubleshooting tools will allow you to verify your work while delivering a quality installation.

The MicroMapper is a small handheld cable tester which enables network professionals to quickly and easily verify the integrity of Ethernet twisted pair cabling.

Model
Brand	Fluke Networks
Model	MT-8200-49A

Spec
Specifications	Test Services: Fault Display High Speed Testing Generation of two tones for tracing cables and locating hidden cables Length Measurement: 15.75" to 656 ft Twisted Pair Ports: 1 x RJ-45 Status Indicators: 5 green LEDs for pairs and shield display 6 red LEDs (TONER, SHORT, REVERSED, MISWIRE, SPLIT PAIRS, and LOW BATTERY) Batteries: Alkaline AAA Features Features Auto-sleep mode Generation of two tones for tracing cables and lication hidden cables Packaging Package Contents MicroMapper MT-8200-49A Network Testing Device MicroMapper Remote Patch Cable 6-Volt Alkaline Battery User Guide The MicroMapper quickly and easily tests twisted pair cabling, giving you visibility of opens, shorts, crossed, reversed and split pairs. Just push the TEST button and MicroMapper will automatically scan all wire pairs for any existing faults in your cable. MicroMapper's built-in tone generator works with the IntelliTone™ Pro Probe or any other analog probe, allowing you to trace cable through walls, floors, and ceilings. The MicroMapper also includes a remote unit that allows one person to test installed cabling or patch cords.

Features
Features	Auto-sleep mode Generation of two tones for tracing cables and lication hidden cables

Packaging
Package Contents	MicroMapper MT-8200-49A Network Testing Device MicroMapper Remote Patch Cable 6-Volt Alkaline Battery User Guide

Manufacturer Warranty
Parts	1 year limited
Labor	1 Year

Additional Information
Date First Available	October 03, 2018
