Can the front panel be reversed so that the power button and usb ports are near the top of the case?

Unfortunately, no. The USB ports and power buttons are built into the case itself; the front cover is just that and just covers the connections. You could potentially flip the entire case, but thermally, that would probably be less than ideal.

Is this case easy to build in?

Less than an hour to put together a build. Cable management can be tight.

Does this case have room for SSD storage?

Yes, this case supports SSD storage with 4 internal 2.5" drive bays.

Will this fit larger graphics cards, such as the 30 series?

I got the MSI RTX 3060 Ventus 3X 12G OC GeForce RTX 3060 12GB 12 GB Video Card, it fit fine, just a little wiggle, but still good. No need to bring extra tools for that graphics card.

฿7,905^.52

VAT-Inclusive Price

฿3,611.35 Shipping

This product is available from Newegg.

Limit 99999 per customer.

Ships from United States.

Most customers receive within 9-17 days.

Add to wish list

Sold by Hot Deals 4 Less

Top Rated

4 (3,668 seller ratings)

Shipped by Hot Deals 4 Less

Best Sellers

Newegg

฿5,175^.58
+ ฿3,579.03 Shipping

BTE Outlet

3.5 (1,429 total ratings)

฿7,280^.42
+ ฿15,312.52 Shipping

Deal Targets

Top Rated

3.2 (2,118 total ratings)

฿9,217^.25
+ ฿99,999.00 Shipping

Meet Your Seller

Hot Deals 4 Less

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

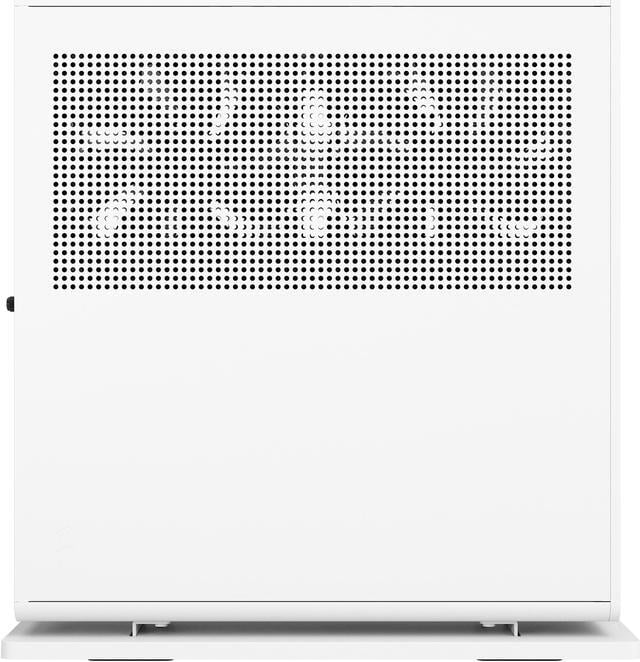

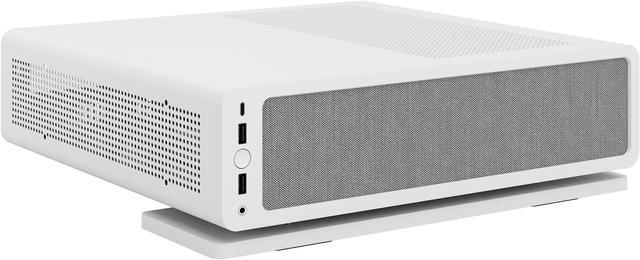

Main image of Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Alt view image 2 of 20 - Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Alt view image 3 of 20 - Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Alt view image 4 of 20 - Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Alt view image 5 of 20 - Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Alt view image 6 of 20 - Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Alt view image 7 of 20 - Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Alt view image 8 of 20 - Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Alt view image 9 of 20 - Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Alt view image 10 of 20 - Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Alt view image 11 of 20 - Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Alt view image 12 of 20 - Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Alt view image 13 of 20 - Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Alt view image 14 of 20 - Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Alt view image 15 of 20 - Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Alt view image 16 of 20 - Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Alt view image 17 of 20 - Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Alt view image 18 of 20 - Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Alt view image 19 of 20 - Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Alt view image 20 of 20 - Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Customer images

Shop All Fractal Design Products | Visit Hot Deals 4 Less Store

Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

Name: Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser
Uploaded: 2025-08-26
Description: Fractal Design Ridge White Mini-ITX Slim Small Form Factor Console PC Case with PCIe 4.0 Riser

(28)(14) Write a Review

Options: White

Black
White

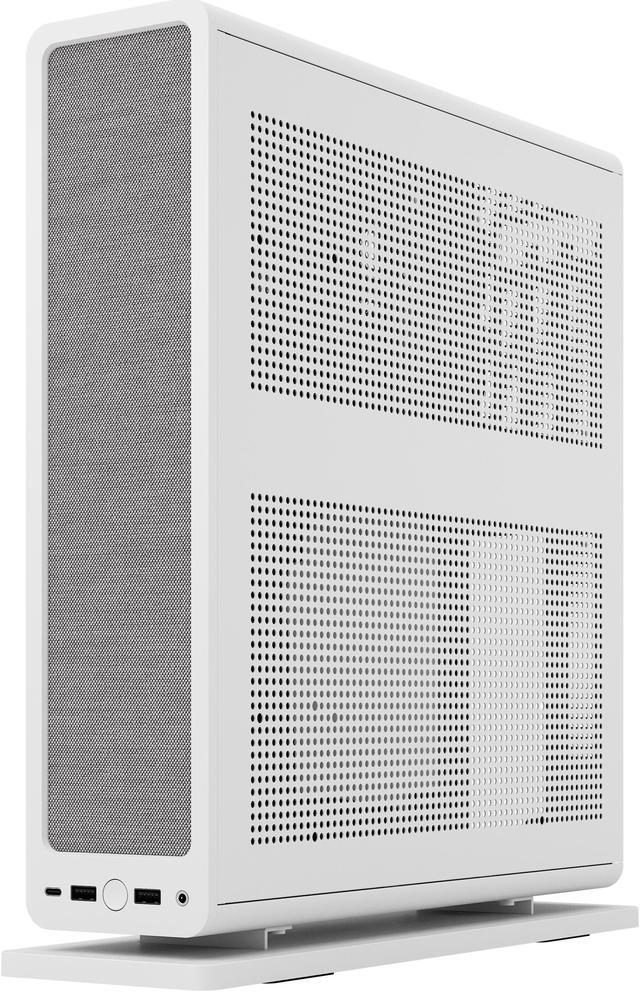

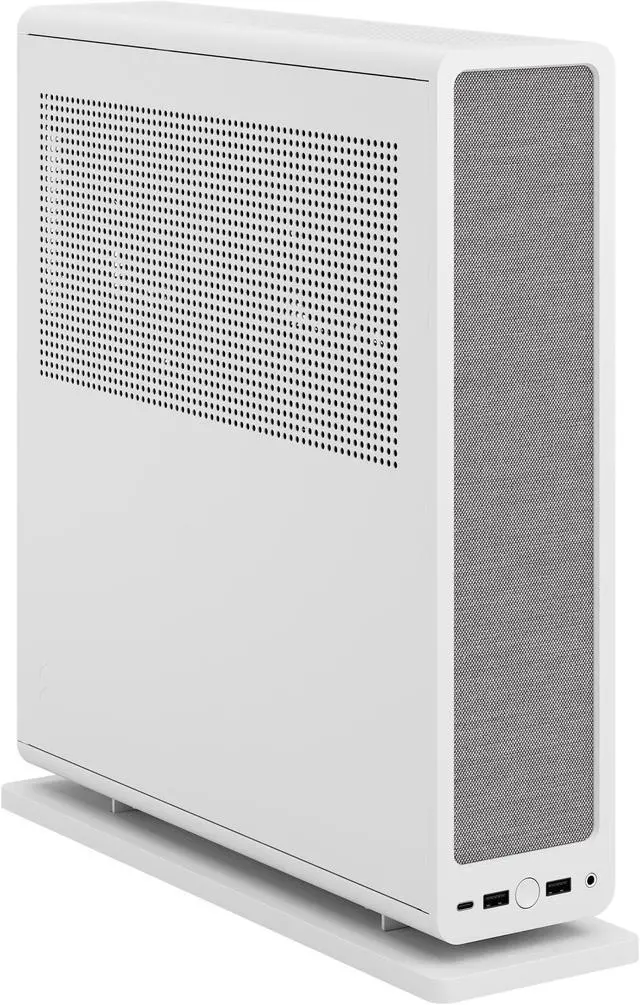

Compact SFF console-type case
SFX/SFX-L support
6 mm anodized and CNCd aluminum front

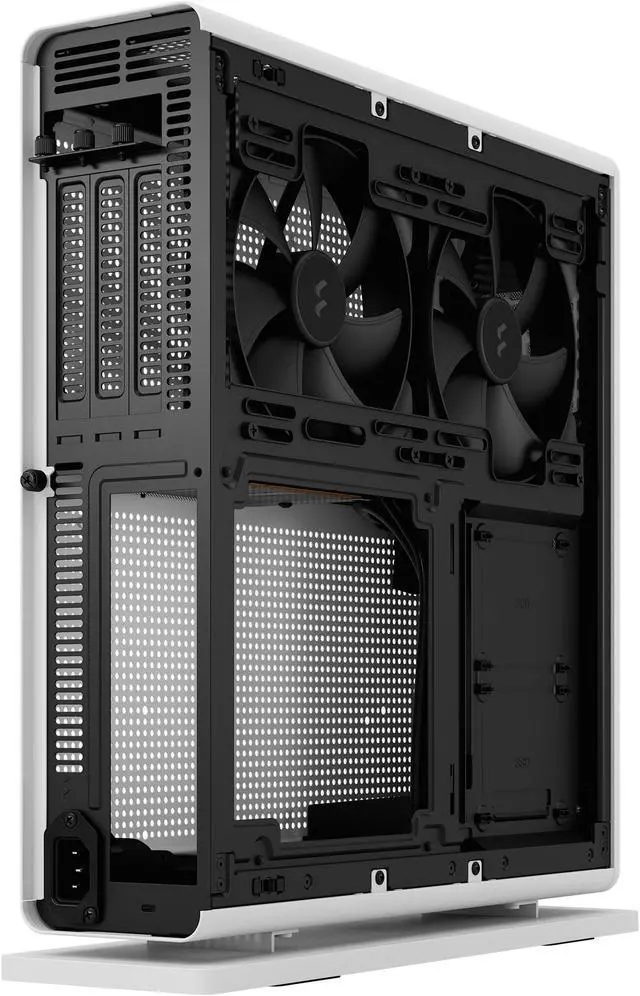

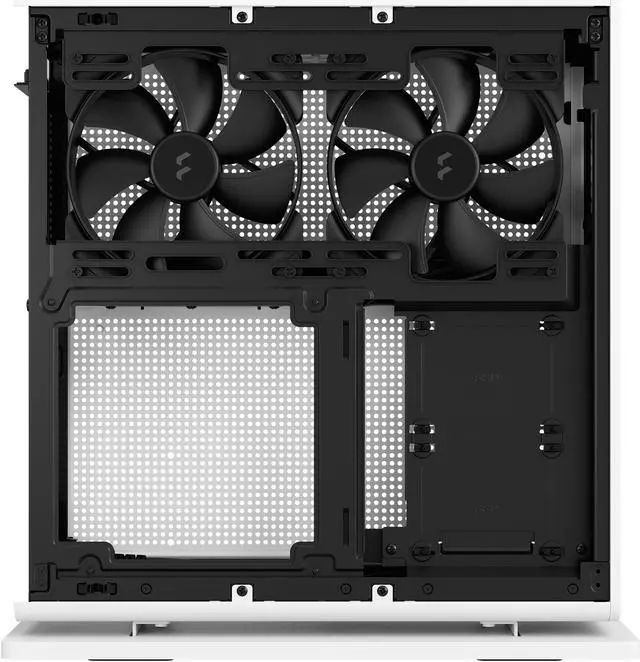

PCIe 4.0 riser card and 2x 140 mm PWM Aspect fans included

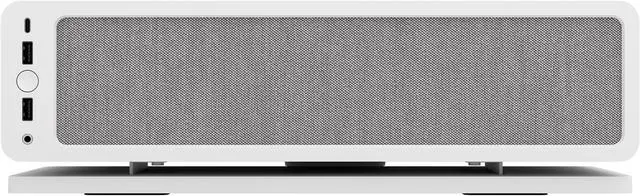

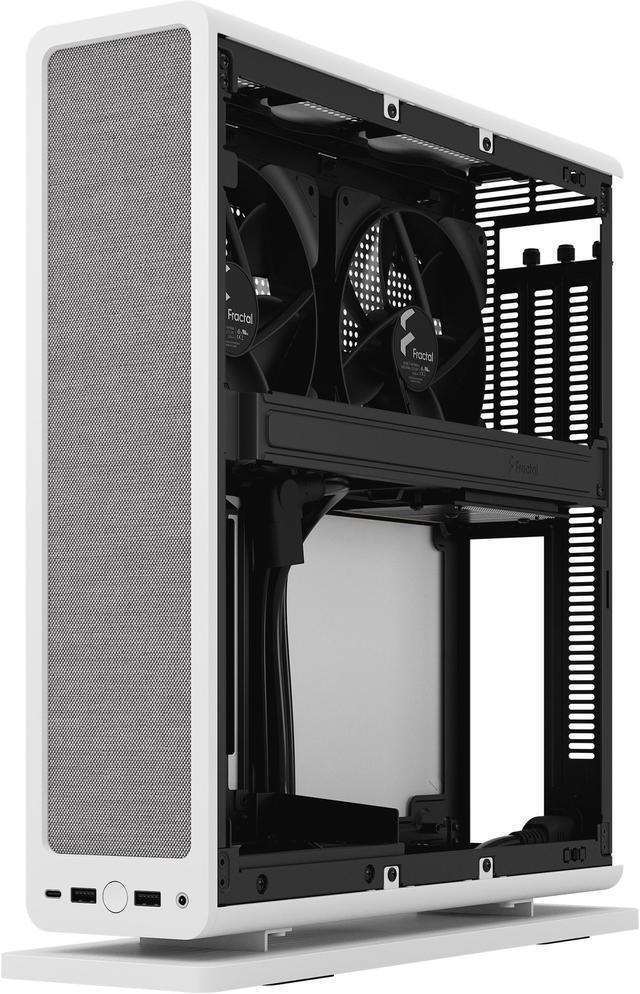

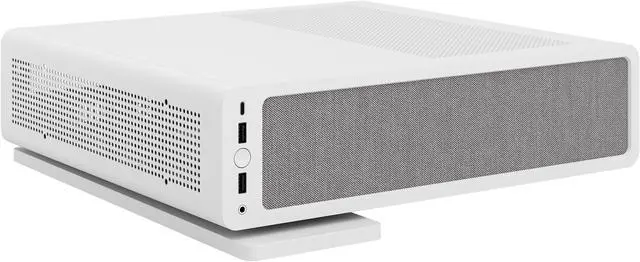

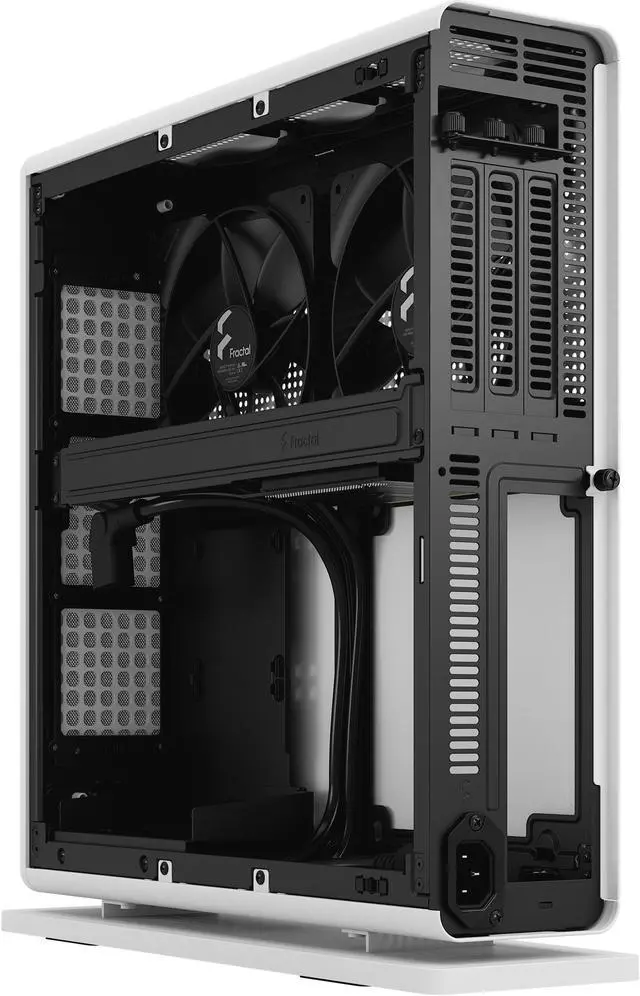

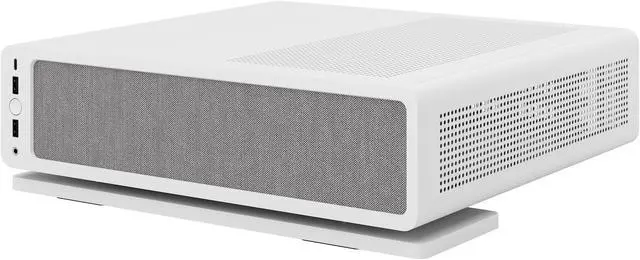

Horizontal and vertical orientation (multiple foot configurations)
Excellent GPU cooling

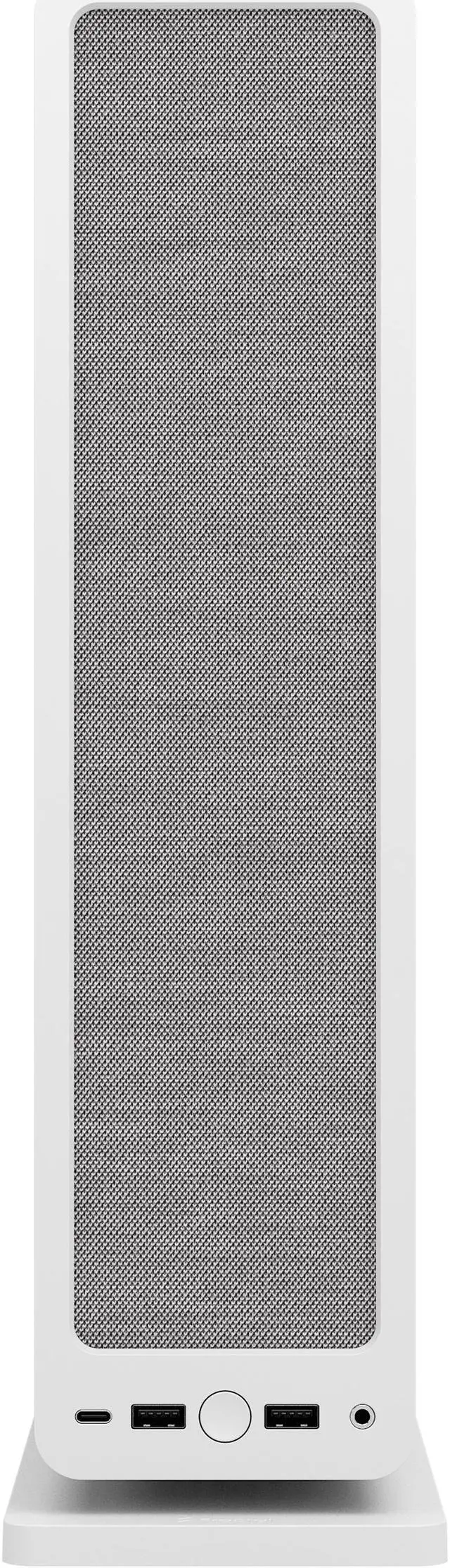

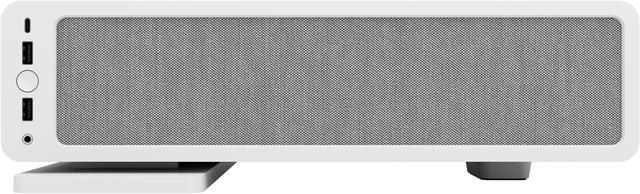

Front I/O with 2x USB 3.0, 1x USB-C and Combo jack

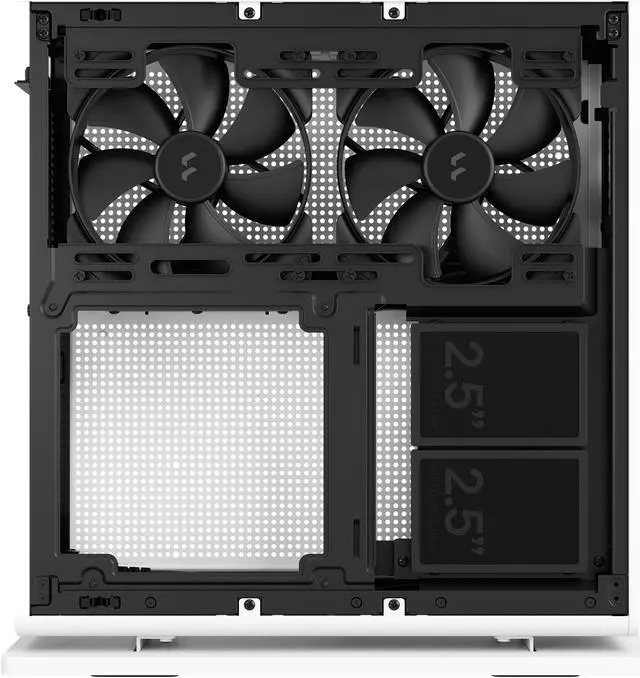

2x 140 mm side and 3x 80 mm top fan support

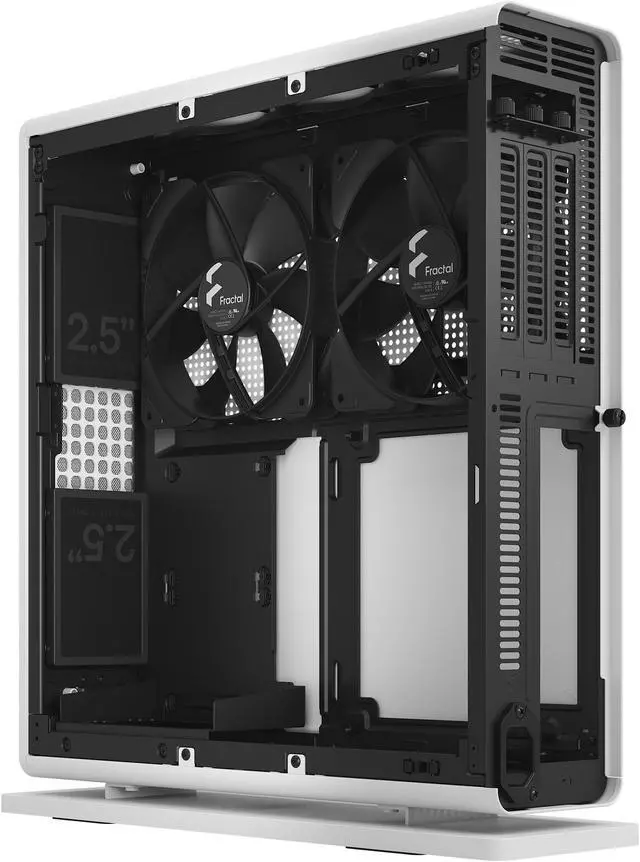

4x SSD support, 2x screw mount and 2x clip-in fast mounts
Discreet power LED bar in front
Compatible with SFF-Ready Enthusiast GeForce Graphics Cards

Overview

Specs

Reviews (28)

Model
Brand	Fractal Design
Series	Ridge
Model	FD-C-RID1N-12

Details
Type	Small Form Factor
Color	White
Case Material	Steel
With Power Supply	No
Power Supply	SFX/SFX-L
Power Supply Mounted	Bottom
Motherboard Compatibility	Mini-ITX / Mini-DTX (with one 140 mm case fan removed)
Side Panel Window	No
LED	Front power LED bar

Expansion
Internal 2.5" Drive Bays	4 (included)

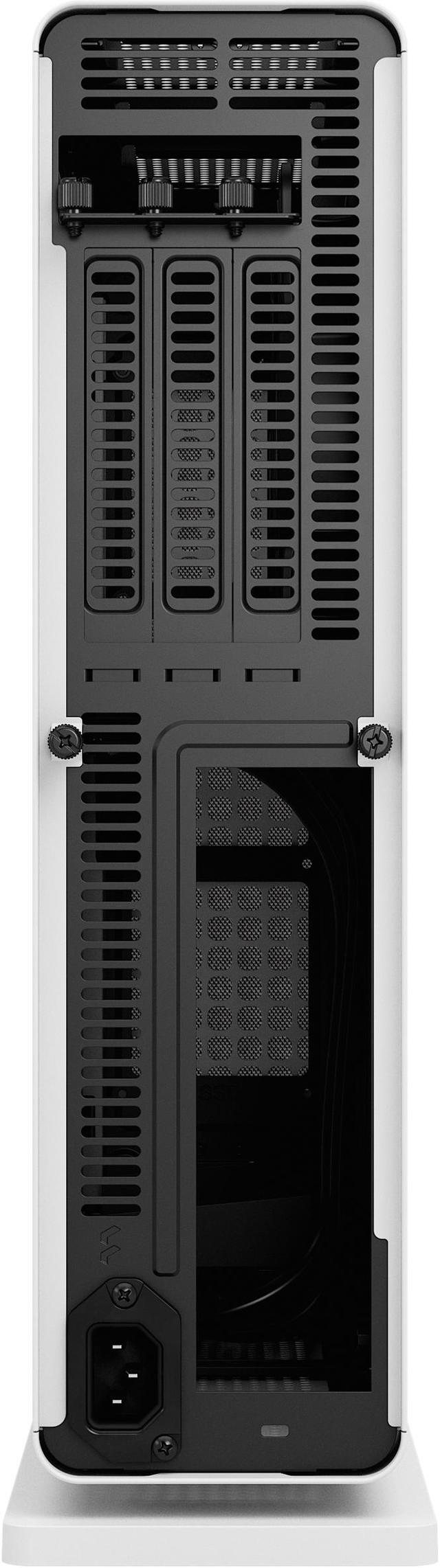

Expansion Slots	3

Front Panel Ports
Front Ports	1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.0, 1 x Audio

Cooling System
Fan Options	Total fan mounts: 2x 120/140 mm and 3x 80 mm Side: 2x 120/140 mm (2x Aspect 140 mm PWM included) Top: 3x 80 mm
Radiator Options	Side: 120 mm with GPU up to 175mm in length, 240/280 mm without GPU

Dimensions & Weight
Max GPU Length	Max GPU Length: 335 mm total, 325 mm with SSD installed Max GPU Height: 137 mm total, 125 mm with top fan(s) installed Max GPU Thickness: 82 mm total, 57 mm with side fan(s) installed overlapping GPU
Max CPU Cooler Height	70 mm
Max PSU Length	130 mm
Dimensions (H x W x D)	"374 x 110 x 395.4 mm in vertical orientation w/ stand 360 x 375 x 115 mm in horizontal orientation w/ stand" 355 x 375 x 94.6 mm w/o feet/protrusions/screws
Weight	4.3 kg

Additional Info

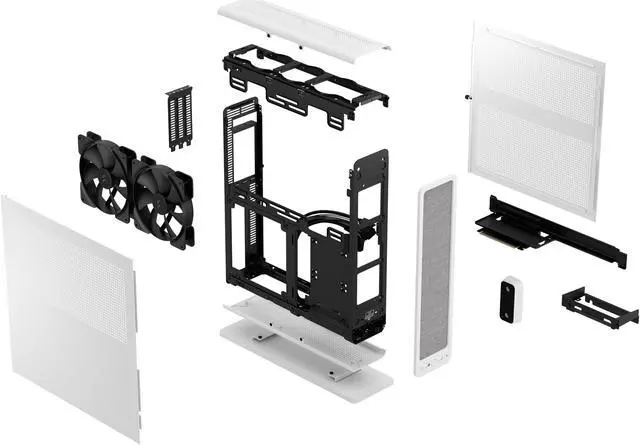

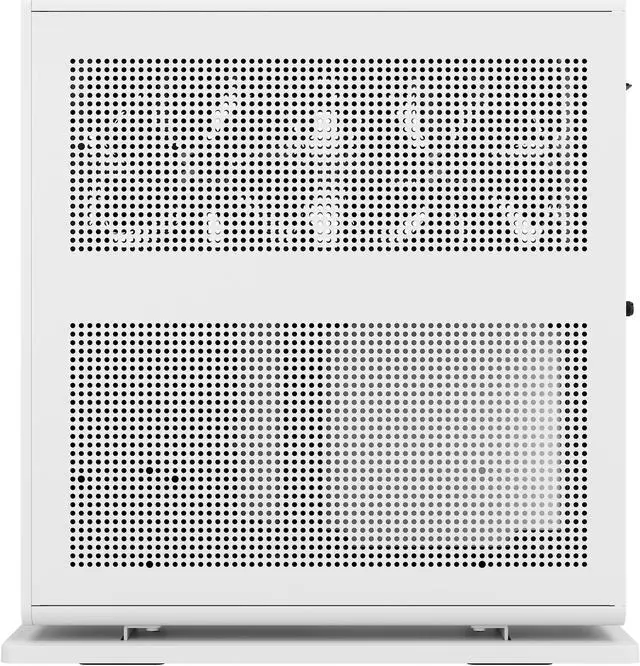

Features	• Compact SFF console-type case • All panels come off for maximum accessibility • 6 mm anodized and CNCd aluminum front • PCIe 4.0 riser card included • Horizontal and vertical orientations with multiple foot configurations • Ventilated side, top and bottom panels • 2x 140 mm PWM Aspect fans included • 2x 140 mm side fan and 3x 80 mm top fan support • Front I/O comes with 2x USB 3.0, 1x USB type-C and a combined mic and headphone jack • 4x SSD support, 2x screw mount and 2x clip-in fast mounts • Excellent GPU Cooling • Supports GPUs up to a length of 335 mm • 57 mm thick GPU support with included 140 mm fans (82 mm without fans) • 70 mm CPU cooler support • Fits a 120 mm radiator (without full-length GPU) • SFX/SFX-L Support • Power LED bar in front • Built-in security lock slot • Radiator support without GPU: Up to 240/280 mm (max 328 mm length, 144 mm width) • Radiator support with GPU under 175 mm long: 120 mm
Package Content	Case Accessory box Manual
