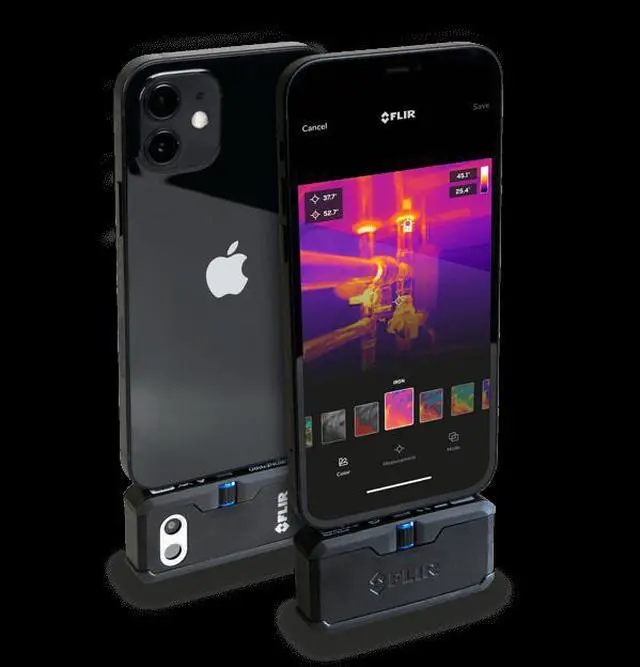

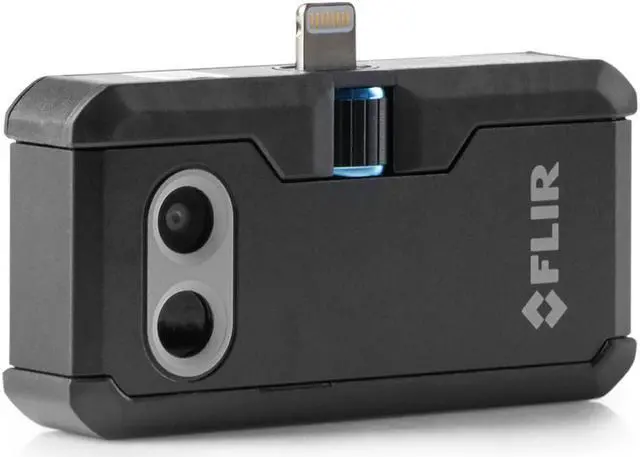

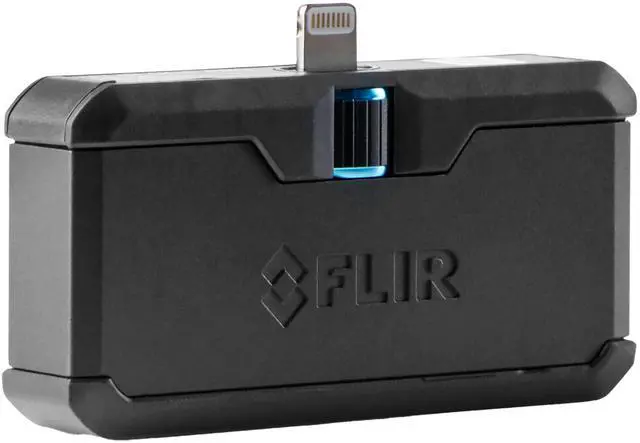

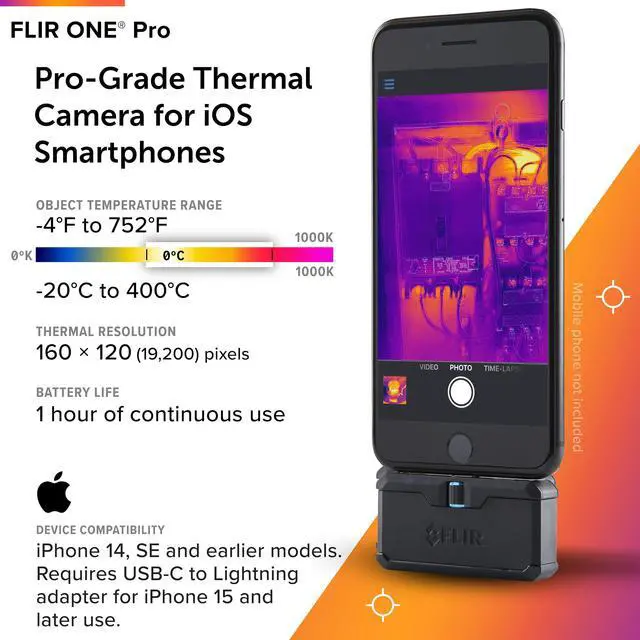

FLIR ONE Pro - iOS

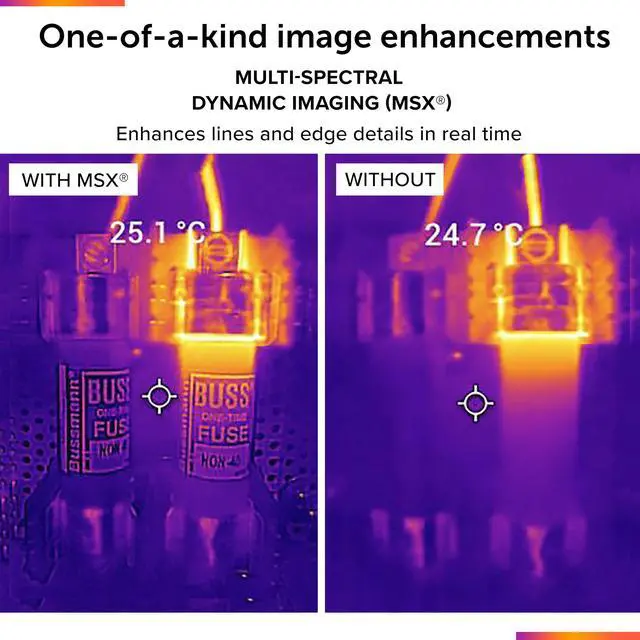

Professional Grade Thermal Camera for Smartphones - with VividIR and MSX Image Enhancement Technology The FLIR ONE Pro helps you find invisible problems faster than ever, whether you're inspecting electrical panels, troubleshooting mechanical systems, looking for HVAC problems, or finding water damage. This FLIR ONE Pro-Series camera offers 4x the native resolution of the FLIR ONE Pro LT, for sharper image clarity that's further enhanced by the revolutionary FLIR VividIR™. Measure temperatures more than 3x higher than any FLIR ONE model—up to 400°C (752°F)—with a sensitivity that detects temperature differences down to 70 mK.

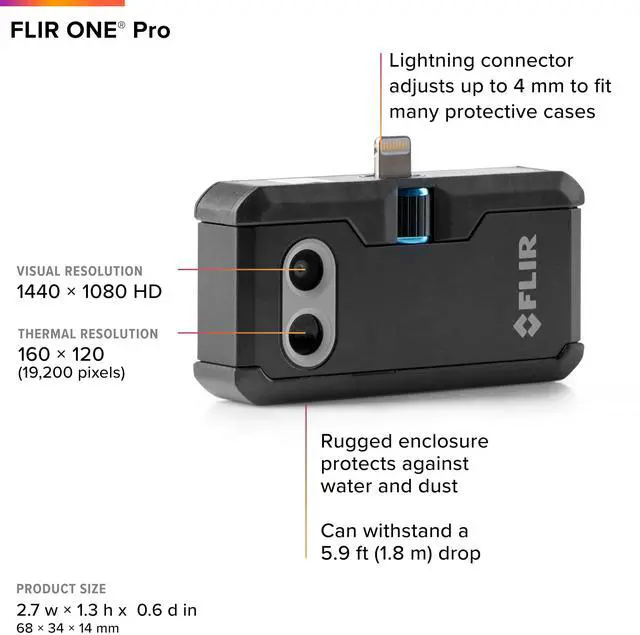

Packed with powerful measurement tools, the FLIR ONE Pro will work as hard as you do. SPECIFICATIONS OVERVIEW Dimensions (H x W x D) 68 × 34 × 14 mm ( 2.7 × 1.3 × 0.6 in) FLIR Screen-EST Mode No Non-Operating Temperature -20°C — 60°C (-4°F — 140°F) Phone iOS Weight 36.5 g COMPLIANCE & CERTIFICATIONS Certifications MFi (iOS version), RoHS, CE/FCC, CEC-BC, EN61233 CONNECTIONS & COMMUNICATIONS Charging Female USB-C (5V/1A) Video Male Lightning ENVIRONMENTAL Drop test Drop from 1.5 m
Emissivity Settings Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30% Operating Temperature 0°C — 35°C (32°F — 95°F), battery charging 0°C — 30°C (32°F — 86°F) IMAGING & OPTICAL Focus Fixed 15 cm — Infinity Frame Rate 8.7 Hz General Description Thermal and Visual Cameras with MSX HFOV/VFOV 50° ±1° / 43° ±1° Palette Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel Shutter Automatic/Manual Thermal Resolution 160 × 120 Thermal Sensitivity/NETD 70 mK Thermal Sensor Pixel size 12 µm, 8 — 14 µm spectral range Video and Still Image Display/Capture Saved as 1440 × 1080 Visual Resolution 1440 × 1080 MEASUREMENT & ANALYSIS Accuracy ±3°C or ±5%, typical Percent of the difference between ambient and scene temperature. Applicable 60 sec after start-up when the unit is within 15°C — 35°C and the scene is within 5°C — 120°C. Object Temperature Range -20°C — 120°C (–4°F — 248°F) and 0°C — 400°C (32°F — 752°F) Spot Meter Hottest, Coldest and 3 spot measurement OTHER Adjustable MSX distance 0.3 m — Infinity Battery charge monitor 0 — 100% Capture modes Video, Still image POWER Battery charge time 40 min Battery Life Approximately 1 hr STORAGE MEDIA File Formats Radiometric JPG, MPEG-4 (file format MOV)
