SIIG - CE-H24X11-S1 - SIIG 1x2 HDMI 2.0 4k Splitter with Audio Extractor / Auto Scaling & EDID Management - 18Gbps Bandwidth - TAA Compliant

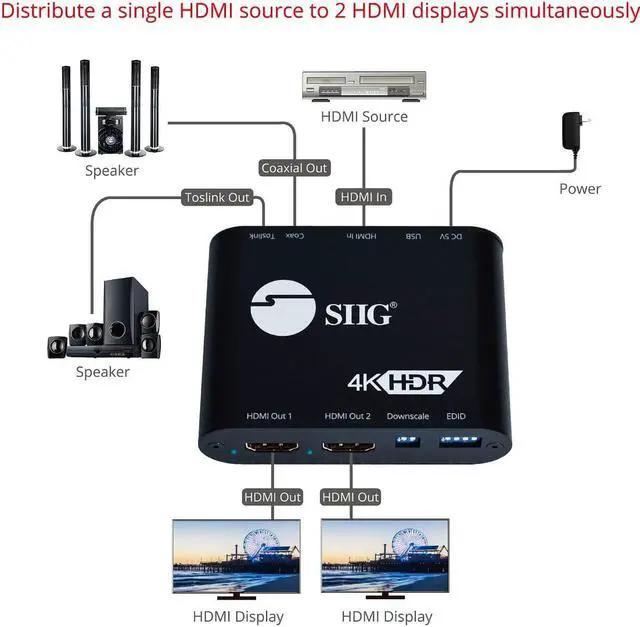

Distributes HDMI video & audio from a single source to 2 HDMI displays simultaneously without signal degradation Distributes HDMI video and audio from a single source to up to 2 HDMI displays simultaneously while maintaining signal quality Compliant with HDMI 2.0 a, HDCP 2.2 / 1.4 with 18Gbps bandwidth Supports up to 4K@60Hz (YUV 4:4: 4 8-bit), HDR
4K@60Hz (YUV 4:2: 0 10-bit), 3D, xvYCC, x. v. Color & Deep Color & 7.1 CH surround sound audio.

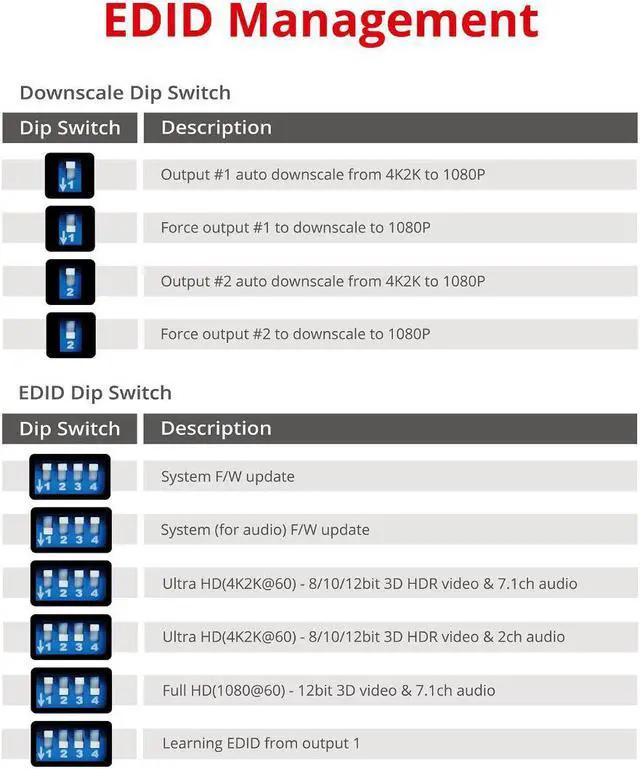

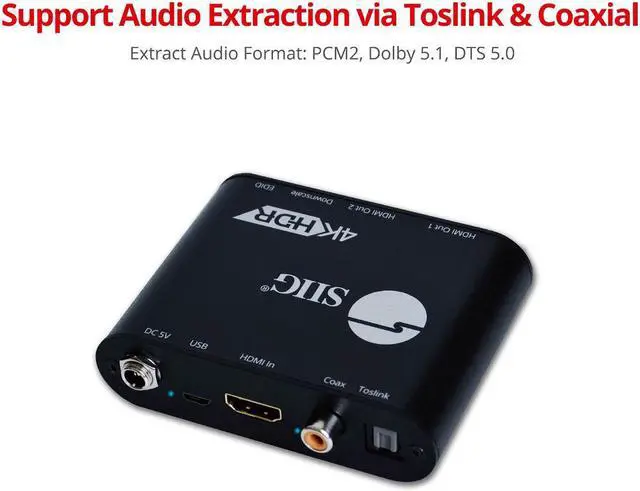

Note: Different setups may require adjustments to the EDID settings to work Supports Dolby Digital, DTS-HD and Dolby TrueHD audio Auto Video Scaling Feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. Use Elgato or other game capture devices to record game play footage in 1080p, while actually playing in 4K. Limit HDMI cable length to no more than 10m ( 32.8 ft) 5m Input + 5m Output. Extracts audio from an incoming digital HDMI signal and converts it to an Optical S/PDIF Toslink and an S/PDIF RCA audio output. Capable of splitting audio to all three outputs simultaneously High quality materials with sturdy metal enclosure provides durability and minimizes EMI/RFI noise interference Built-in EDID management and firmware update mechanism further expand compatibility

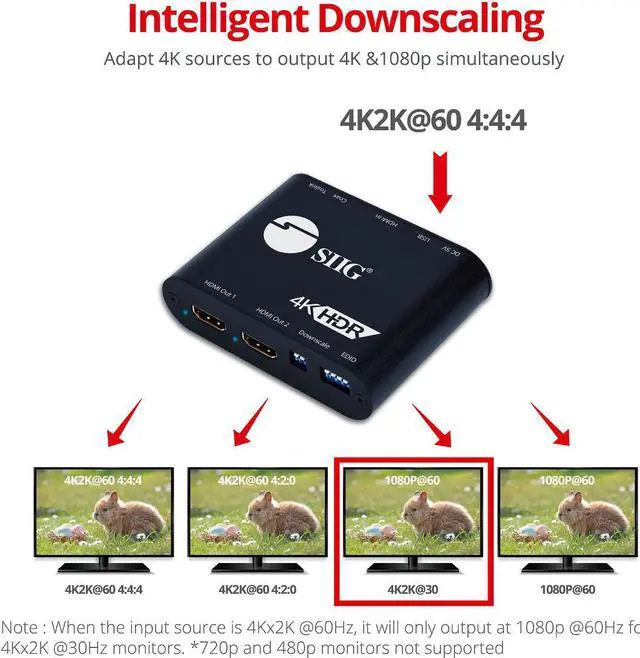

Notes: Auto downscale from 4K to 1080p should work in most cases. If Auto doesn't work, try the Forced downscale option Downscaling to 720p and 480p is not supported. Does NOT support resolution downscaling from 4K2K @60Hz 4:2: 2 to 1080P.
YCbCr 4:2: 2 downscaling is not supported. Frame rate conversion (e. g., 60Hz to 24Hz) is not supported. 4K @30Hz monitors will display in 1080p @60Hz when the source content is 4K @60Hz. Some Sharp 4K TV models (such as 4T-C45AH1T, LC-43UC30U) are found incompatible with our Splitter in a downscaling operation. Contact us before purchasing if you are not sure about compatibility. Splitter can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally.
Package Contents: 1x2 HDMI 2.0 Splitter with Audio Extractor / Auto Scaling & EDID Management Power Adapter Quick Start
Guide Material: Metal
Product Type: Signal Splitter
Product Type: Signal Splitter
Input Voltage: 230 V AC
Input Voltage: 120 V AC
Manufacturer Part Number: CE-H24X11-S1
Packaged Quantity: 1
Limited Warranty: 3 Year
Weight (Approximate): 4.96 oz

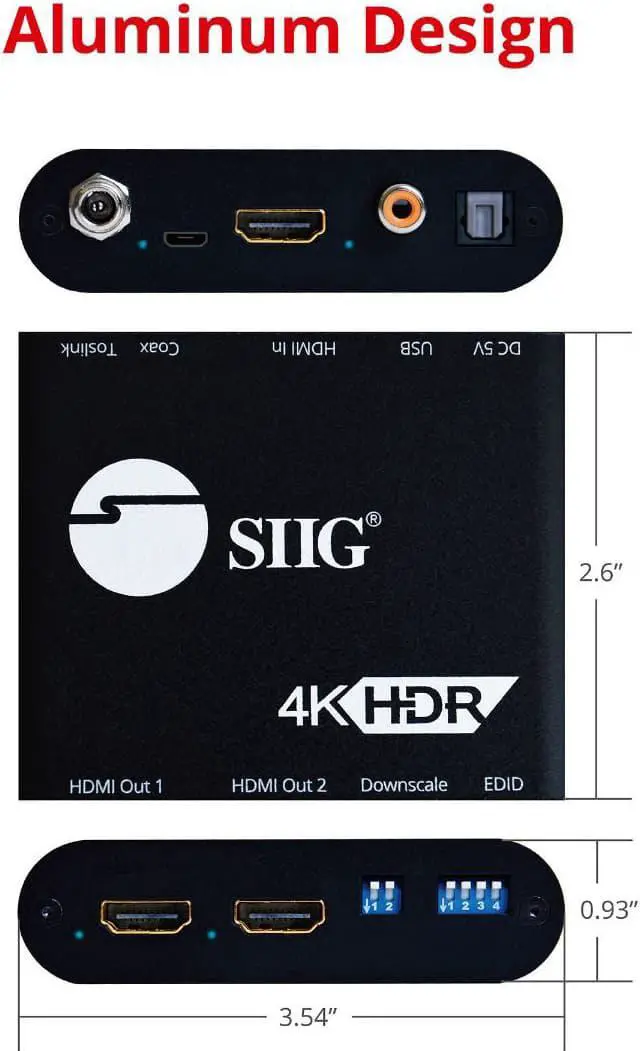

Length: 3.5
Manufacturer: SIIG, Inc
Product Name: 1x2 HDMI 2.0 Splitter with Audio Extractor / Auto Scaling & EDID
Management Brand Name: SIIG
Brand Name: SIIG
Country of Origin: China
Height: 0.9
Width: 2.6 Number of
HDMI Inputs: 1 Number of
HDMI Outputs: 2
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Certification: RoHS
Maximum Operating Distance: 49.21 ft
USB: Yes Number of
HDMI Inputs: 1 Number of
HDMI Outputs: 2
HDMI In: Yes
HDMI Out: Yes
TAA Compliant: Yes
