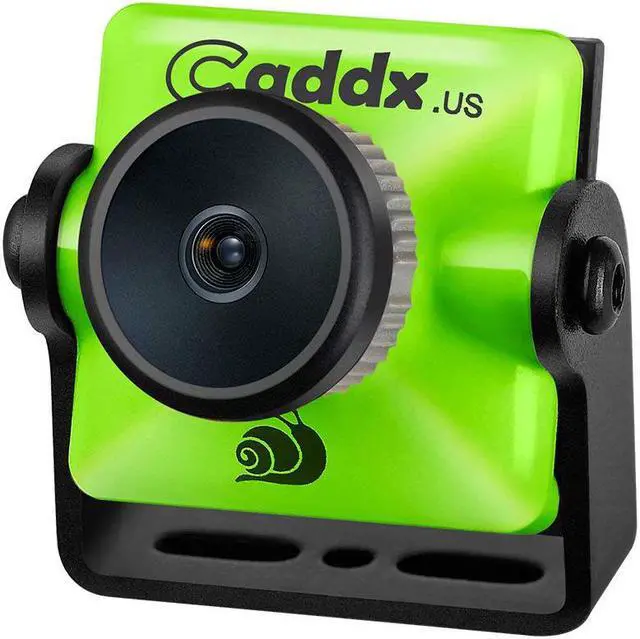

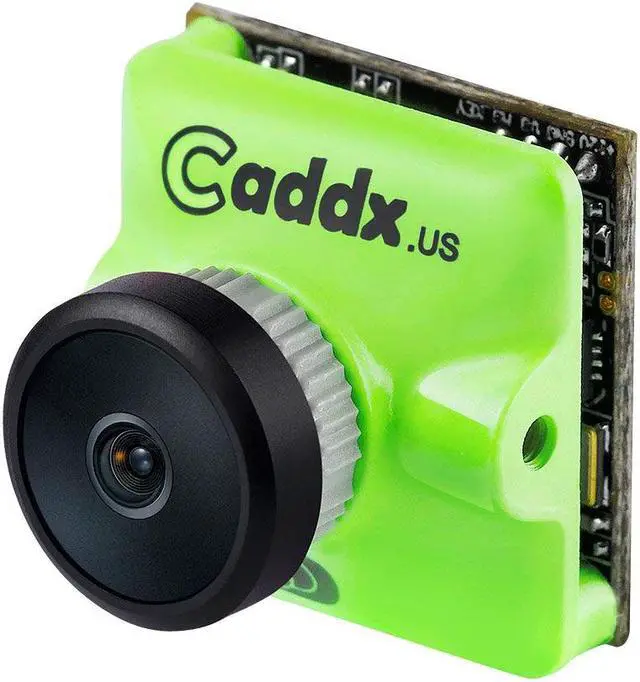

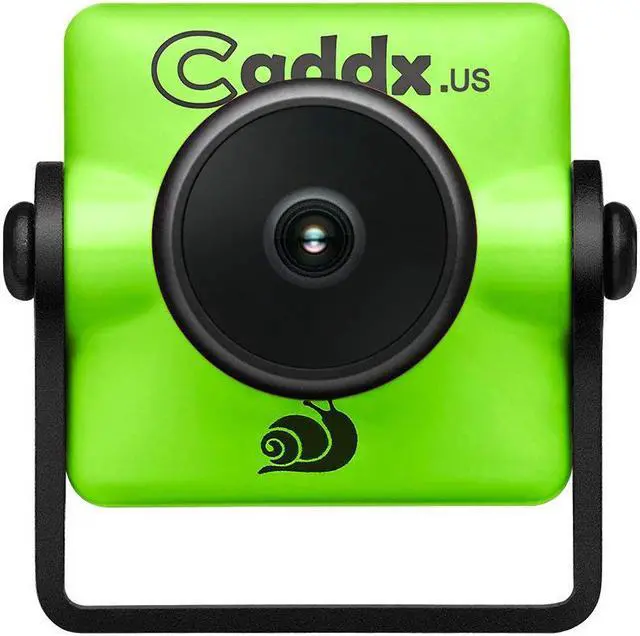

Mini FPV Camera 1200TVL NTSC PAL IR Blocked DC 5V-40V Wide Voltage for RC Drone

Upgrade Version of Micro SDR1 - The turbo Micro SDR2 is upgraded version for micro SDR1, perfectly increased its total performance. Many testers including Fat Shark has tested this new camera and they all confirm this camera must be the best one among its similar class.
Small Size, Light Weight - Net Weight: 5.5g. Lens: 2.1mm. Smaller, lighter and clearer than other comparable cameras on the market.
Night Vision - Excellent night vision performance and electronic shutter.
Super Image Sensor - No delays, no ripple, more fluent image for high-speed racing.
Super WDR & Wide Voltage Range - NTSC / PAL changeable, with double scan super WDR. Support 5-40V input voltage.

Product description

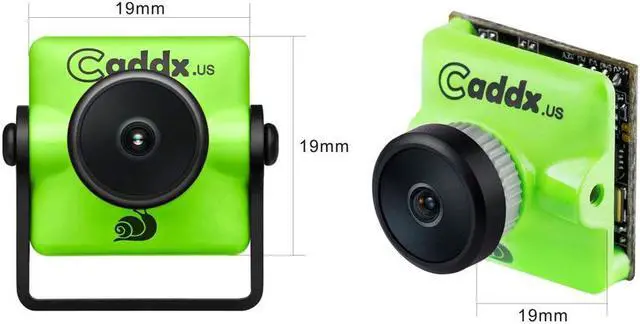

Double Scan Super WDR with beautuful image, 1200TVL, Sony 1/2.8 inch Exmor sensor. Low latency, 16:9/4:3 changeable by OSD, Metal extend bracket: 19mm*19mm

Features:
No delays, no ripple, more fluent image for high-speed racing.
Excellent night vision performance and electronic shutter
Smaller, Lighter, Clearer than other comparable cameras on the market.
Unique color design gives a fresh new look that will stand out from the crowd.
Super Wide Voltage Range: Support 5-40V input voltage.
Designed specifically for FPV use with Drone racing in mind.

Specifications:
Image Sensor: 1/2.8? SONY Exmor-R STARVIS sensor
Horizontal Resolution: 1200TVL
TV System: NTSC/PAL (changeable)
IMAGE: 16:9 4:3 (changeable)
WDR: Super WDR (Double Scan)
Min. Illumination: [email protected] (Starlight)
Lens: 2.1mm
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio: >60dB (AGC OFF)
Video Output: CVBS
Camera OSD: ADVANCE MENU
DNR: 3-DNR
LANGUAGE: ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN
Day/Night: Auto/Color/B&W/EXT
Wide Power Input: DC 5-40V
Work Temperature: -20?~+60?
Work Humidity: 20%~80%

Package Includes:
1x Caddx Turbo Micro SDR1 FPV Camera
1x Aluminum bracket
1x 5D-OSD menu board
1x FPV silicone cable (4-pin port one side, 3-pin port the other side)
1x Internal hexagonal wrench
1x Warranty card
1x Set screws
