HUNSN 17 Inch Industrial IP65 Front Panel PC, I3 10110U, PX04, Multi Touch Resistance Touch Screen, Windows 11 or Linux Ubuntu, TPM2.0, 9-36V 2Pin Phoenix, 2 x COM, HDMI, 2 x LAN, 16G RAM, 256G SSD
- 17 inch tft led industrial grade touch panel pc, front panel protection IP65, multi-touch resistance touch screen, typical 1280 x 1024 resolution, powered by intel core i3 10110u processor, applicable to a wide range of industrial applications, 7 x 24 hours of stable work
- Windows 11 pro (64 bit) installed, set up is effortless and it's ready to run straight out of the box
- Aluminum alloy fanless passive cooling design, silent solution thats ultra energy-efficient
- HUNSN PX04 designed with power switch, 9-36v 2pin power supply phoenix connector, 2 x com com1/com2 for rs232/rs422/rs485 optional, hdmi, 2 x lan, 4 x usb3.0, audio, industrial aesthetic design and reasonable interface layout, support automatically power on after power failure, with mounting embedded buckle kitsSize at 408.5 x 346 x 61mm, 4.7kgs, 12v5a power supply, with power cord, all use a big brand memory and ssd/hdd with quality assurance, very powerful fanless all in one panel touch pc
+
+
Overview
Specs
Reviews
Model Number: HUNSN PX04
Panel: 17" TFT LED panel, IP65 full flat front panel
CPU: Intel® Core i3-10110U Processor 4M Cache, up to 4.10 GHz
Security: TPM2.0
Memory: 1 x SODIMM DDR4-2666, max. to 32GB RAM
Storage: 1 x M.2 2280 SATA SSD, 1 x 2.5" SATA SSD/HDD, support RAID 0/1

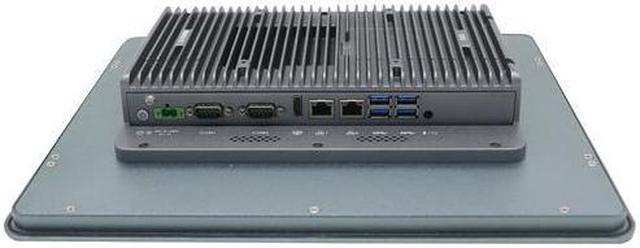

I/O: Power Switch, 9-36V 2Pin power supply phoenix connector, 2 x COM COM1/COM2 for RS232/RS422/RS485 optional, HDMI, 2 x LAN, 4 x USB3.0, Audio
Expansion: 1 x Mini PCIE slot for WiFi/4G, with sim slot
Network Card: 2 x Intel 1000M LAN
Speaker: Two 8-ohm 2-watt speaker

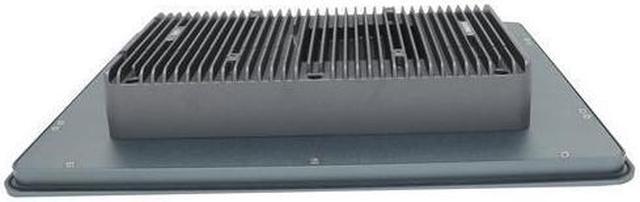

Cooling System: Aluminum alloy, fanless
Dimension: 408.5 x 346 x 61mm
Embedded Installation: 389 x 321mm
Weight: 4.7kgs
Resolution: 1280 x 1024
Brightness: 250cd/m2
Viewing Angle: Full angle
Ratio: 4 : 3
Touch Screen: Industrial grade multi-touch resistance touch screen
Life Time: More than 50000 Thousand Times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Working Temperature: 0 ~ 50°C for commercial, -20 °C ~ 60 °C for industrial SSD, surface air flow
Working Humidity: 5% ~ 95% non-condensing
Power Supply: DC100-240V AC/50-60Hz, 12V5A, DC 9V ~ 36V wide voltage Input, support positive pole and negative electrode connect reversely protection
Packing List: HUNSN PX04 Panel PC, Power Supply, Power Cord, Embedded Mounting Clip x4, Warranty Card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0255 level
System Support: Windows 11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave HUNSN message on the order, thank you
Panel: 17" TFT LED panel, IP65 full flat front panel
CPU: Intel® Core i3-10110U Processor 4M Cache, up to 4.10 GHz
Security: TPM2.0
Memory: 1 x SODIMM DDR4-2666, max. to 32GB RAM
Storage: 1 x M.2 2280 SATA SSD, 1 x 2.5" SATA SSD/HDD, support RAID 0/1
I/O: Power Switch, 9-36V 2Pin power supply phoenix connector, 2 x COM COM1/COM2 for RS232/RS422/RS485 optional, HDMI, 2 x LAN, 4 x USB3.0, Audio
Expansion: 1 x Mini PCIE slot for WiFi/4G, with sim slot
Network Card: 2 x Intel 1000M LAN
Speaker: Two 8-ohm 2-watt speaker
Cooling System: Aluminum alloy, fanless
Dimension: 408.5 x 346 x 61mm
Embedded Installation: 389 x 321mm
Weight: 4.7kgs
Resolution: 1280 x 1024
Brightness: 250cd/m2
Viewing Angle: Full angle
Ratio: 4 : 3
Touch Screen: Industrial grade multi-touch resistance touch screen
Life Time: More than 50000 Thousand Times
Installation: Embedded recommended/Wallmounted/Desktop/Cantilevered etc
Working Temperature: 0 ~ 50°C for commercial, -20 °C ~ 60 °C for industrial SSD, surface air flow
Working Humidity: 5% ~ 95% non-condensing
Power Supply: DC100-240V AC/50-60Hz, 12V5A, DC 9V ~ 36V wide voltage Input, support positive pole and negative electrode connect reversely protection
Packing List: HUNSN PX04 Panel PC, Power Supply, Power Cord, Embedded Mounting Clip x4, Warranty Card
Function: Support Auto power on, Timing boot, Wake on LAN, PXE boot, Watchdog 0255 level
System Support: Windows 11, Linux Ubuntu etc
System Default Option: Windows 11 pro in English
ATTENTION: Other options, Linux or other system, other system language, do leave HUNSN message on the order, thank you
