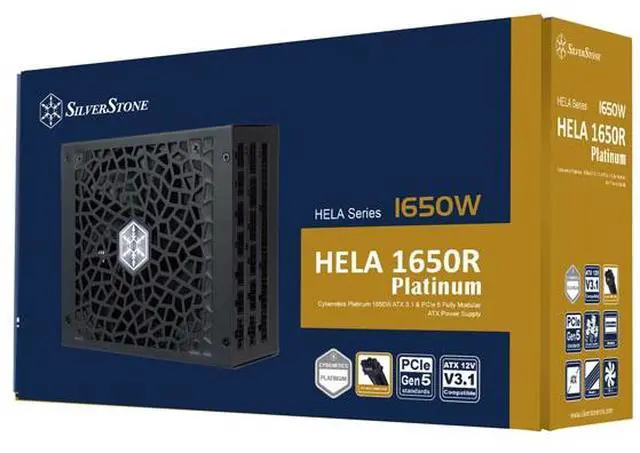

SilverStone Technology HELA 1650R Platinum Cybenetics Platinum 1650W PCIe 5 Fully Modular ATX (PS2) Power Supply (SST-HA1650R-PM)

Be the first to review this product...
  • Supports 12V-2x6 PCIe connector with ATX 3.1 and PCIe Gen 5 standard
  • High efficiency with Cybenetics Platinum certification
  • 24/7 continuous power output with 50 operating temperature
  • Fully modular design with SilverStones 3rd generation modular interface
  • Silent-running 140mm FDB fan with delayed shut-off function
  • All black flat cables
+
+
Overview
Specs
Reviews
Silverstone1
HELA 1650R Platinum

Easily and efficiently power high-end systems with the latest graphics cards.

Designed for Cybenetics Platinum level of efficiency, to minimize wasted heat while significantly reducing electricity consumption.

Included are flat cables that offer exceptional flexibility, enabling easy and efficient cable folding and management.

All Japanese electrolytic capacitors

Equipped with a 140mm FDB bearing fan that delivers exceptional airflow and operates quietly. It also features a delayed shut-off function, which extends the cooling process after the system powers down, helping to dissipate residual heat and protect sensitive components.

Product Specifications
Product No. SST-HA1650R-PM
Color Black (lead-free paint)
Power density 710.6W/L
Combined +3.3V & +5V 130W
Input Voltage 1650W: 103~264 Vrms; 1350W: 90~264 Vrms
PFC Active PFC (PF>0.9 at full load)
MTBF 100,000 hours
Protection Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection Under Voltage Protection
Cooling System Silent 140mm FDB fan
Certification Cybenetics Platinum
Dimension 5.91" (W) x 3.39" (H) x 7.1" (D)
Model (safety certification) SST-AX1650MCPT-A
Max. DC Output 1650W
Load Range Output | +3.3V | +5V | +12V1 | +5VSB | -12V |||||||| Max Amps | 25A | 25A | 137.5A | 3A | 0.3A ||||||||| Min Amps | 0A | 0A | 0A | 0A | 0A |||||||||||||||||||| Range (%) | ±3% | ±3% | ±3% | ±5% | ±3% |||||||||| Line Reg. | ±1% | ±1% | ±1% | ±1% | ±1% |||||||||| Ripple (mV)| 40 | 40 | 80 | 40 | 80
Combined +12V 1650W
Input Frequency Range 47Hz ~ 63Hz
Efficiency 89% ~ 91% overall efficiency
Operating temperature 0°C ~ 50°C
Connectors 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connectors 9 x 8 / 6-Pin PCIe connectors 2 x 12+4-Pin 12V-2x6 connectors 16 x SATA connectors 6 x 4-Pin Peripheral connector 1 x 4-Pin Floppy adapter connector
Noise Level 18 dBA minimum
Form factor ATX (PS2)
Weight 3.83 kg
The HELA 1650R Platinum is an ATX 3.1 power supply, which means it incorporates components designed to adhere to the ATX 3.1 specification, which requires power supplies to handle much high peak power draw than those in the ATX 2 generation and faster sleep / wake response. Notably, it also features 2 x PCIe Gen5 12V-2x6 12+4pin connectors. With a maximum output of 1650W, the HELA 1650R Platinum offers an exceptional wattage capacity, making it an ideal choice for providing a steady and reliable flow of power for overclocking or handling power peaks from high-end graphics cards.

The HELA 1650R Platinum is a Cybenetics Platinum efficiency certified ATX (PS2) unit, boasting a relatively compact 180mm total depth. Its fully modular design utilizes SilverStone's 3rd generation modular interface, featuring a notable and innovative characteristica unified EPS/PCIe connector setup. This design streamlines cable management and facilitates easy installation. The power supply is capable of delivering a maximum wattage of 1650W, with 1200W obtainable through its dual 12+4 pin 12V-2x6 connectors. To ensure efficient cooling, the HELA 1650R Platinum is equipped with a 140mm Fluid Dynamic Bearing (FDB) fan. Its also incorporated with a delayed shutoff function that allows the cooling fan to run for a short period of time after shutdown, while also providing protection of system from power surges or fluctuations that may occur during system shutdown helping improve system reliability, protection from component damages and prolonging of its lifespan.
