Digital Optical Audio Switcher 4 in 1 out Switch SPDIF Toslink 4x1 with IR Control and DC Power Adapter Supports 5.1CH/ LPCM2.0/ DTS/Dolby-AC3

Highlights:

The machine shares 4 distinct audio inputs between 1 independent output devices Audio format support: LPCM2.0/DTS/Dolby-AC3 Support signal retiming

The output transmission distance is up to 40m 130 ft(Max) when using optical fiber cable that losses less than 0.2dB/m Switched by remote control or front push-button Support last time working state memory when power off

Over-voltage protection can prevent the damage from connecting unmatched power adapter to the machine, if the light for standby indication flashed,voltage from the power adapter is too high and the power adapter needs to be changed

The matrix features a LCD display for easy status monitoring No loss of quality Installs in minutes

Product description

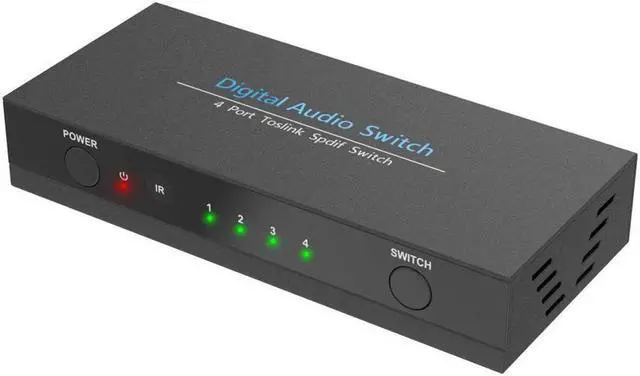

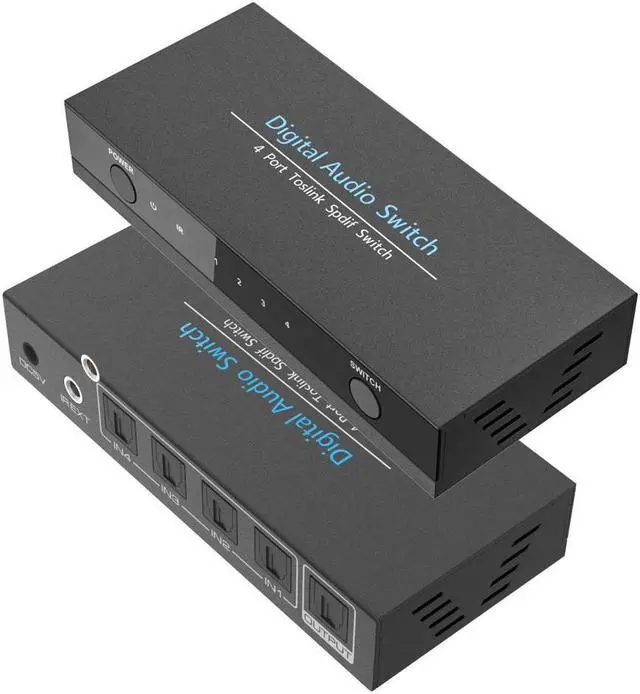

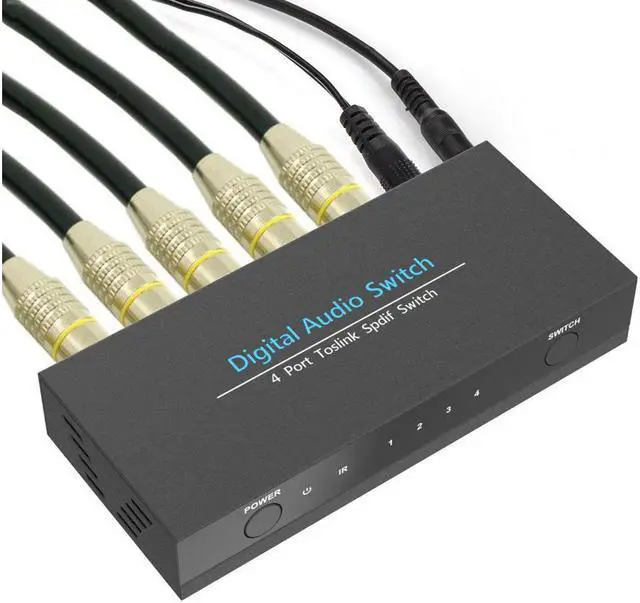

The Digital Optical (SPDIF/ TOSLINK) Audio switcher enables 4 optical audio signal source switch to 1 optical audio output.

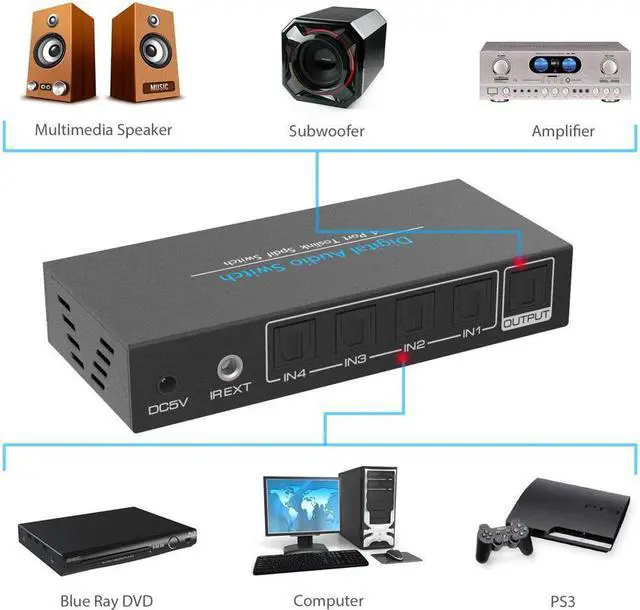

It provides a great solution for users who want to split one way digital optical audio source (Apple TV, PS3, PS4, Xbox, Blu-ray player, or HDTV etc.) to four sets of sound system (home theater and amplifiers).


Features
1. Four input, one outputs.
2.Reliable and accurate digital audio signal transmission, no loss of quality.
3.Support power off memory function.
4.Support signal retiming.
5.Remote control including IR extender.
6.LED status indication.
7.Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine.


Notes
1.Before purchasing, please make sure that you are clear about the difference between a optical audio switcher and a optical audio splitter.
2.Please know the connection of your audio devices and optical audio splitter is via digital optical fiber cable,
so your audio devices should have an optical port. If not, you need a converter to get connected with our optical audio splitter.
3.Not include digital optical fiber cable.

Specification
Input: 4 x SPDIF TOSLINK digital optical audio port
Output: 1 x SPDIF TOSLINK digital optical audio port
Output Distance: 130 feet(MAX) with optical fiber cable
Support Audio Formats: LPCM2.0/DTS/Dolby-AC3

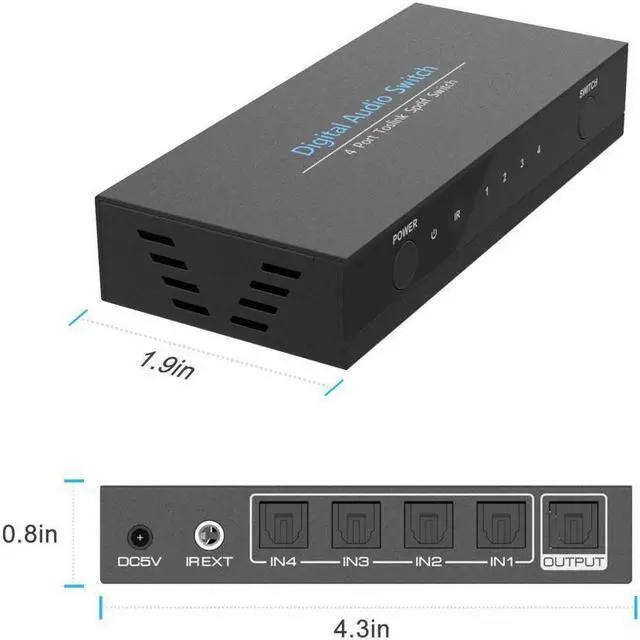

Dimension: 4.33x1.89x0.78(in)
Weight:135g

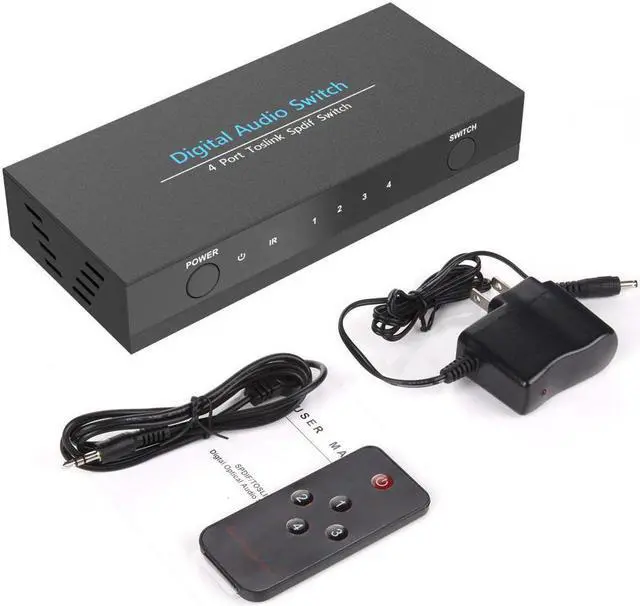

Package Includes
1x SPDIF TOSLINK Digital Optical Audio switcher 4x1
1x Power adapter
1x Remote Control
1x IR Extender Receiver
1x User Manual
