Will a liquid cooler, such as Corsair H80i v2 fit in this case?

I have this case and like the other person stated they are awesome cases. I personally don't need water cooling for my rig. but based on the H80i v2 water cooler being 120mm in size. After looking as to where a cooler could be placed is. Removing the 120mm stock fan from the drive cage to the front right side of the case. you could probably mount a water cooler there. not sure if you could do push/pull configuration but you could theoretically run water cooling in this case. But depending on the thickness of the fans and cooler you may only be able to do a push or pull fan configuration, but not both. the other bracket where the other 2 fans that can be mounted to this case are 80mm size fan mounting. So with that said if you find a water cooling solution with 80mm in size you could mount one there. Hope this helps. Kind regards, Johnnathan B.Enter an answer to this question.

Returns

& Orders

Clearance

PC Builder

Feedback

Help Center

฿6,761^.32

VAT-Inclusive Price

฿4,376.73 Shipping

Limit 99999 per customer.

Add to PC build list

Ships from United States.

Add to wish list(Found on 3 wish lists)

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

Main image of SilverStone Sugo Series SG12 SST-SG12B-V2 Black Refinement of Classic Small Form Factor Case

Alt view image 2 of 19 - SilverStone Sugo Series SG12 SST-SG12B-V2 Black Refinement of Classic Small Form Factor Case

Alt view image 3 of 19 - SilverStone Sugo Series SG12 SST-SG12B-V2 Black Refinement of Classic Small Form Factor Case

Alt view image 4 of 19 - SilverStone Sugo Series SG12 SST-SG12B-V2 Black Refinement of Classic Small Form Factor Case

Alt view image 5 of 19 - SilverStone Sugo Series SG12 SST-SG12B-V2 Black Refinement of Classic Small Form Factor Case

Alt view image 6 of 19 - SilverStone Sugo Series SG12 SST-SG12B-V2 Black Refinement of Classic Small Form Factor Case

Alt view image 7 of 19 - SilverStone Sugo Series SG12 SST-SG12B-V2 Black Refinement of Classic Small Form Factor Case

Alt view image 8 of 19 - SilverStone Sugo Series SG12 SST-SG12B-V2 Black Refinement of Classic Small Form Factor Case

Alt view image 9 of 19 - SilverStone Sugo Series SG12 SST-SG12B-V2 Black Refinement of Classic Small Form Factor Case

Alt view image 10 of 19 - SilverStone Sugo Series SG12 SST-SG12B-V2 Black Refinement of Classic Small Form Factor Case

Alt view image 11 of 19 - SilverStone Sugo Series SG12 SST-SG12B-V2 Black Refinement of Classic Small Form Factor Case

Alt view image 12 of 19 - SilverStone Sugo Series SG12 SST-SG12B-V2 Black Refinement of Classic Small Form Factor Case

Alt view image 13 of 19 - SilverStone Sugo Series SG12 SST-SG12B-V2 Black Refinement of Classic Small Form Factor Case

Alt view image 14 of 19 - SilverStone Sugo Series SG12 SST-SG12B-V2 Black Refinement of Classic Small Form Factor Case

Alt view image 15 of 19 - SilverStone Sugo Series SG12 SST-SG12B-V2 Black Refinement of Classic Small Form Factor Case

Alt view image 16 of 19 - SilverStone Sugo Series SG12 SST-SG12B-V2 Black Refinement of Classic Small Form Factor Case

Alt view image 17 of 19 - SilverStone Sugo Series SG12 SST-SG12B-V2 Black Refinement of Classic Small Form Factor Case

Alt view image 18 of 19 - SilverStone Sugo Series SG12 SST-SG12B-V2 Black Refinement of Classic Small Form Factor Case

Alt view image 19 of 19 - SilverStone Sugo Series SG12 SST-SG12B-V2 Black Refinement of Classic Small Form Factor Case

Shop All Silverstone Products

SilverStone Sugo Series SG12 SST-SG12B-V2 Black Refinement of Classic Small Form Factor Case

(6) Write a Review

Built-in handle bar design for easy transport
Supports graphics cards of any length
Ample space for CPU cooling (82mm in height)
Micro ATX motherboard & ATX PSU compatible
Cleanly styled SFF chassis with modernized layout
Amazing capacity for 2.5” drives

Overview

Specs

Reviews (6)

Material Aluminum front panel, steel body
Motherboard Micro-ATX, Mini-DTX, Mini-ITX
Drive bay External 5.25"" x 1
--
Internal 3.5"" x 3 (compatible with 2.5"" ), 2.5” x 9
Cooling system Front --
Rear 1 x 80mm fan slot, Optional cross-flow fan
Side 1 x 120mm intake fan, 1200rpm
Top 1 x 80mm fan slot
Bottom --
Internal --
Expansion slot 4

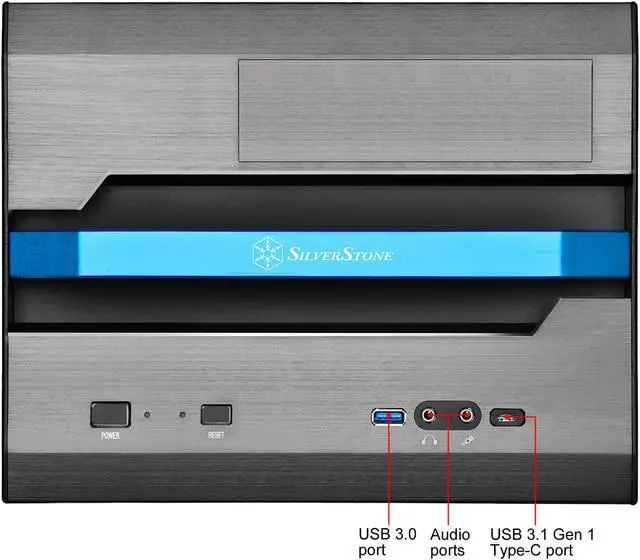

Front I/O port USB 3.0 Type A x 1
USB 3.1 Gen 1 Type C x 1
Audio x 1
MIC x 1
Power supply Optional standard PS2(ATX)
Expansion card *Compatible up to 14.5"" (368mm) long, width restriction-4.46"" (113mm)
Limitation of CPU cooler 82mm
Limitation of PSU PSU + optical drive/5.25"" device = 370mm
Net weight 5kg

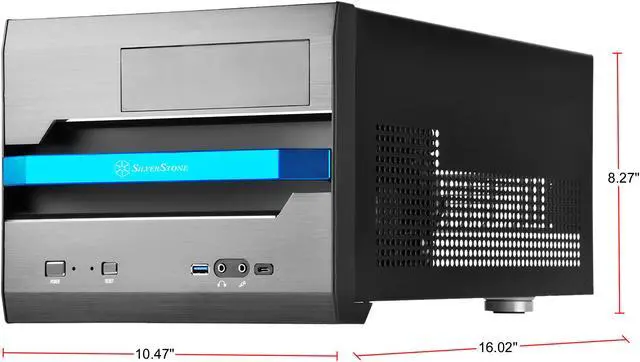

Dimension 266 mm (W) x 210 mm (H) x 412 mm (D), 23 liters
10.47"" (W) x 8.27"" (H) x 16.22"" (D), 23 liters

SilverStone SG12

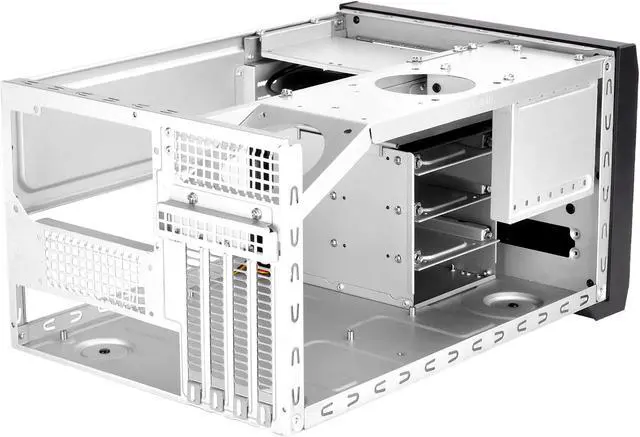

The SilverStone SG12 case lets you build a compact, easy-to-carry PC without sacrificing performance. Thanks to the smart layout design, it can accommodate large-sized motherboard, VGA card, and PSU, while allowing you to install multiple storage devices and cooling fans.

Amazing Storage Capacity

One 5.25" drive bay space

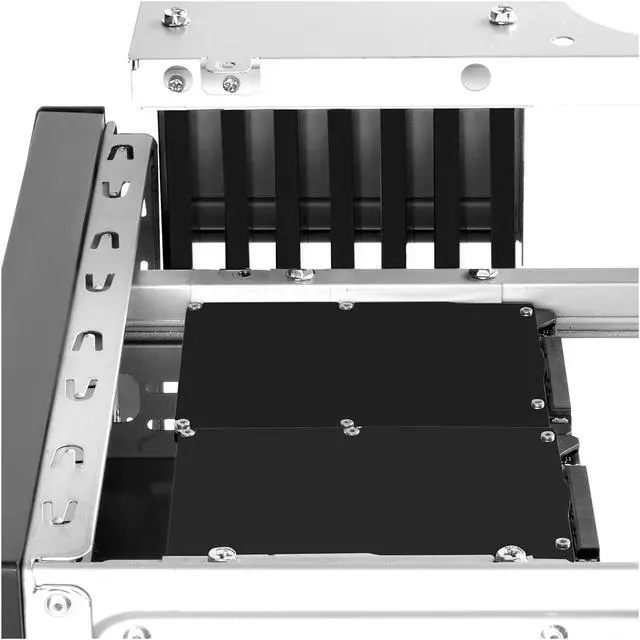

Two 2.5" SSD/HDD slots on top bracket

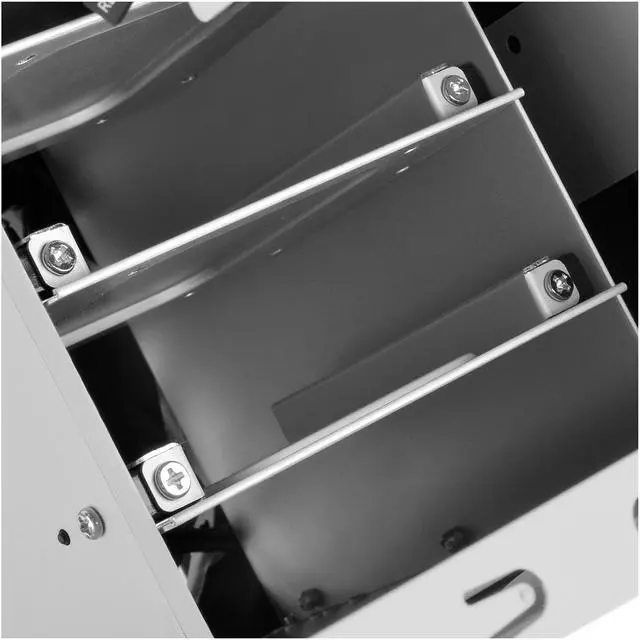

Side HDD bracket offers support for up to seven 2.5" hard drives

Three HDD brackets designed to accommodate any combination of 2.5" or 3.5" drives

Impressive Component Support

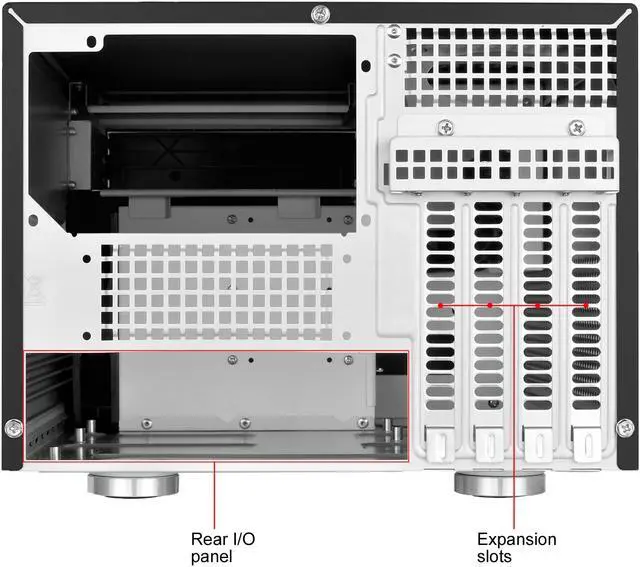

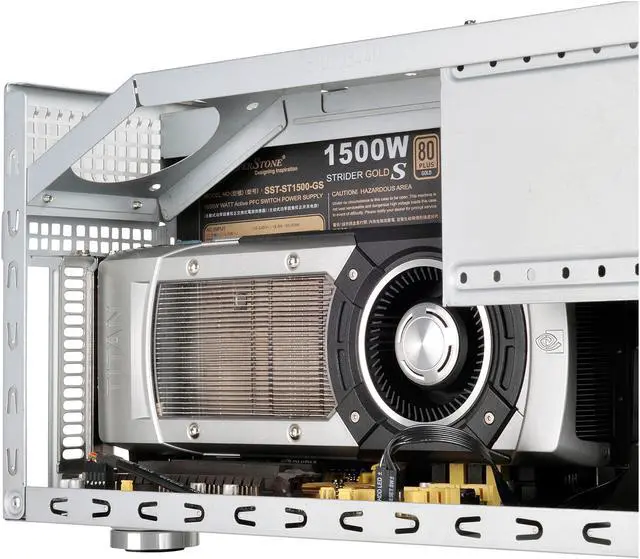

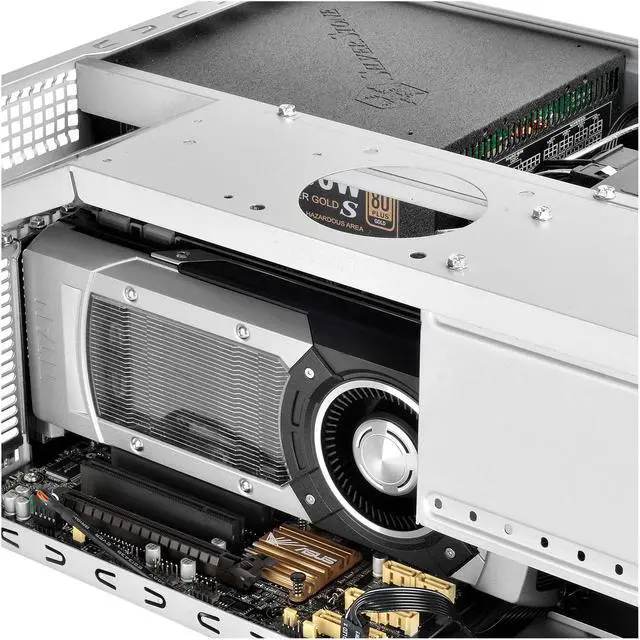

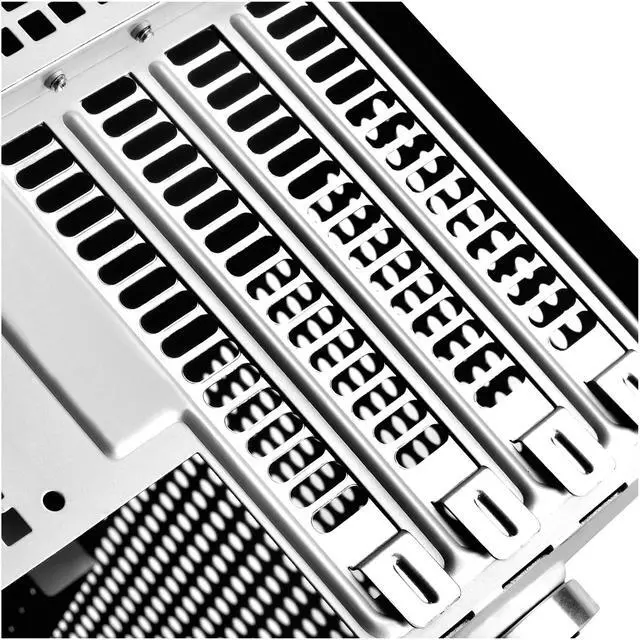

Four expansion slots accommodates top-end graphics card up to 14.5" long

Micro ATX motherboard & ATX PSU compatible

Built -in handle bar design for easy transport

Optimized for Cooling

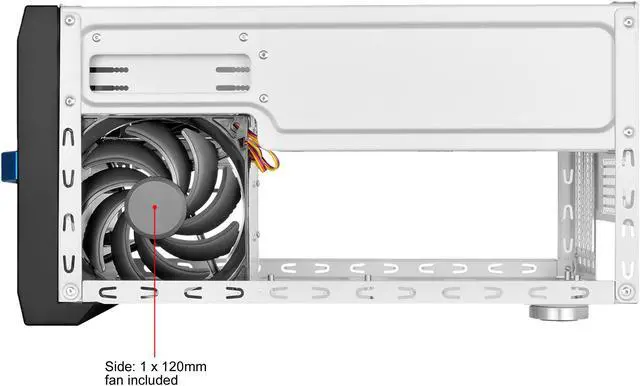

A side intake 120mm fan is pre-installed

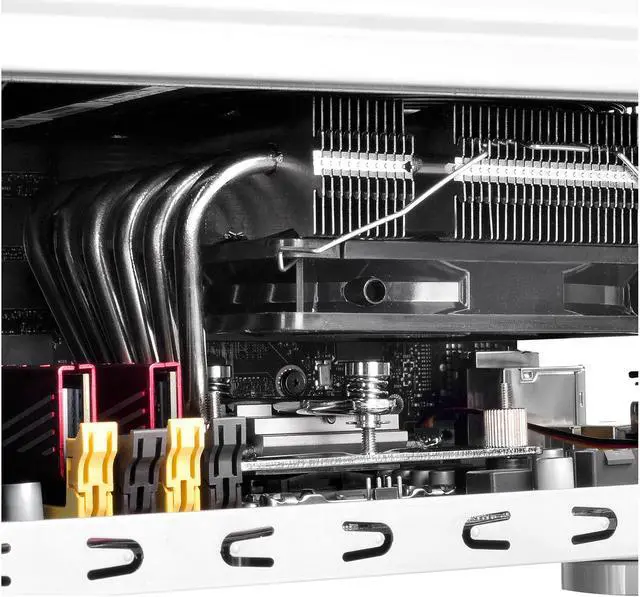

Ample space to allow an 82mm tall CPU cooler

Dual 80mm fan slots support two in-take fans to enhance VGA card cooling

Model
Brand	SilverStone
Series	Sugo Series
Model	SST-SG12B-V2

Details
Type	Micro ATX
Color	Black
Case Material	Aluminum / Steel
With Power Supply	No
Motherboard Compatibility	Micro-ATX / Mini-ITX / Mini-DTX

Expansion
External 5.25" Drive Bays	1
Internal 3.5" Drive Bays	3 x 3.5" (compatible with 2.5" )
Internal 2.5" Drive Bays	9
Expansion Slots	4

Front Panel Ports
Front Ports	1 x USB 3.0 / 1 x USB 3.1 Type-C / Audio / Mic

Cooling System
Fan Options	Side: 1 x 120mm fan (included) Rear: 1 x 80mm fan, Optional cross-flow fan Top: 1 x 80mm fan
80mm Fans	Rear: 1 x 80mm fan slot, Optional cross-flow fan Top: 1 x 80mm fan slot
120mm Fans	Side: 1 x 120mm intake fan, 1200rpm

Dimensions & Weight
Max GPU Length	Compatible up to 14.5" (368mm) long, width restriction-4.46" (113mm) Fan and drive cage configuration will affect graphics card length support, please refer to manual for detailed information.
Max CPU Cooler Height	82 mm
Max PSU Length	370 mm
Dimensions (H x W x D)	8.27" x 10.47" x 16.02"
Weight	11.02 lbs.

Additional Info
Features	Built-in handle bar design for easy transport Supports graphics cards of any length Ample space for CPU cooling (82mm in height) Micro ATX motherboard & ATX PSU compatible Cleanly styled SFF chassis with modernized layout Amazing capacity for 2.5" drives
