Everything looks good. Same model number. There are three cables grouped together that attach to motherboard from my power supply. Connectors are 24 Pin ATX, (1) 8 pin labeled P-22, and a flat 5 pin connector. The last is the critical one. It's the SMBus. Does this PS have that connector?

Question

Everything looks good.  Same model number.  There are three cables grouped together that attach to motherboard from my power supply.  Connectors are 24 Pin ATX,  (1) 8 pin labeled P-22, and a flat 5 pin connector.  The last is the critical one.  It's the SMBus.  Does this PS have that connector?

Accepted Answer

I checked this PS on the supermicro website before I purchased; Newegg had it slightly less expensive.  here are the PS connector specs for this model directly taken from
superMicro:

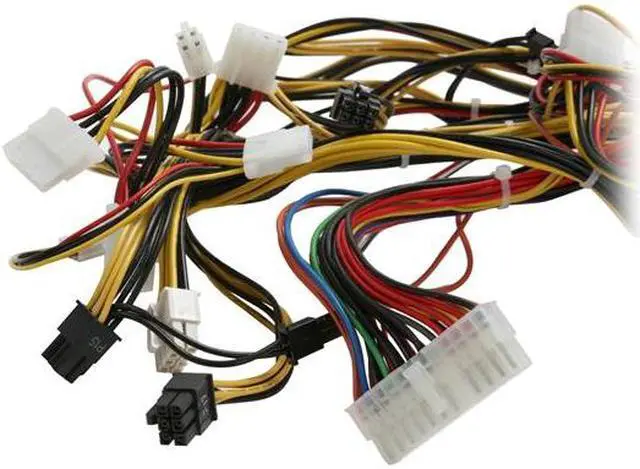

Cables Included:
1x 24 Pin ATX (Motherboard)
2x 8 Pin 12V (CPU)
1x 4 Pin 12V (CPU)
2x 6 Pin PCI-E
2x (6+2) 8 Pin PCI-E
6x 4 Pin Legacy HDD
2x 4 Pin Floppy/DVD Drive
2x SATA Power Connectors
1x SMBus

I hope this helps!

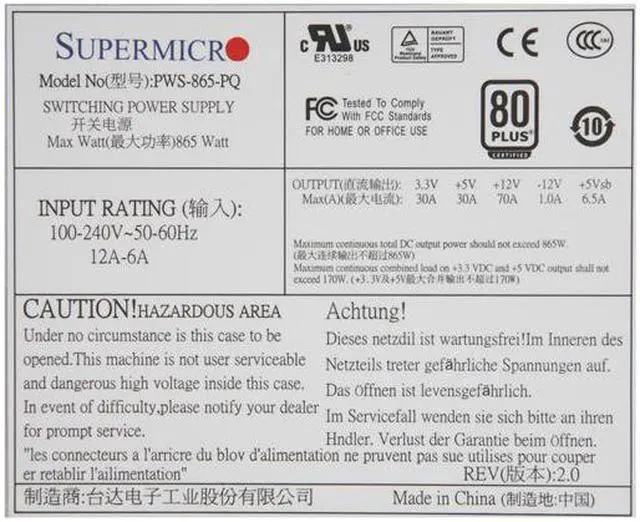

Brand	SuperMicro
Model	PWS-865-PQ

Single/Redundant	Single
Maximum Power	865W
Output Current	+12V@70A, +5V@30A, +3.3V@30A, [email protected]

Parts	1 year limited
Labor	3 years limited

Meet Your Seller

SuperMicro PWS-865-PQ 865W Single Server Power Supply

Learn more about the Supermicro PWS-865-PQ

Customer Reviews of the Supermicro PWS-865-PQ

Warranty & Returns

Warranty, Returns, And Additional Information

Return Policies*

Manufacturer Contact Info

Dimensions & Weight
Dimensions	7.5" x 5.91" x 3.39"
Weight	5

Item#: 9SIAD6HKGF1067
