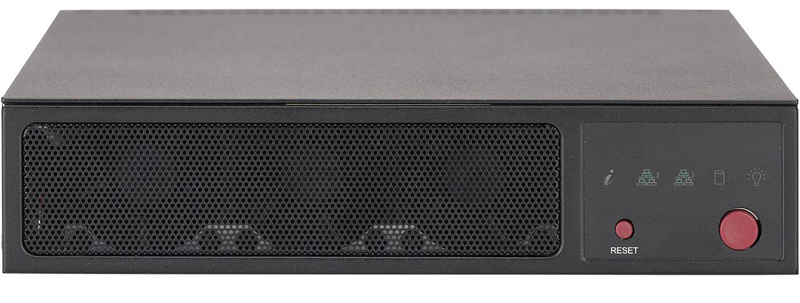

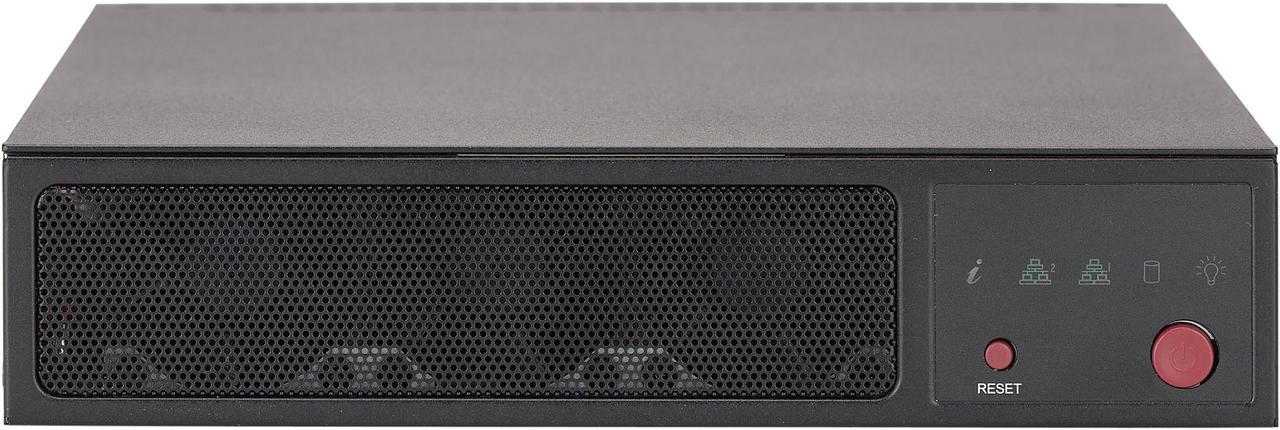

With mighty performance and features in a Mini-1U form factor, this server barebone system is ideal for embedded network applications, network security appliance, virtualization server and firewall applications. It comes with a BGA-soldered Intel Xeon D-1528 processor (6 core, 12 threads), and has four DIMM slots that support up to 128GB ECC RDIMM DDR4 memory. This server also features two 10GbE ports, two GbE ports, an M.2 PCIe 3.0 x4 connector (SATA & PCIe support), and a 2.5" drive bay. An external AC power adapter means no inside heat buildup from a power supply, resulting in better stability and reliability.
To complete this system, you’ll need system memory, a storage drive and Operating System software.
- 2.5" fixed drive bay with bracket (Design for 9.5mm thickness HDD with Low Profile Memory)
- VGA via BMC

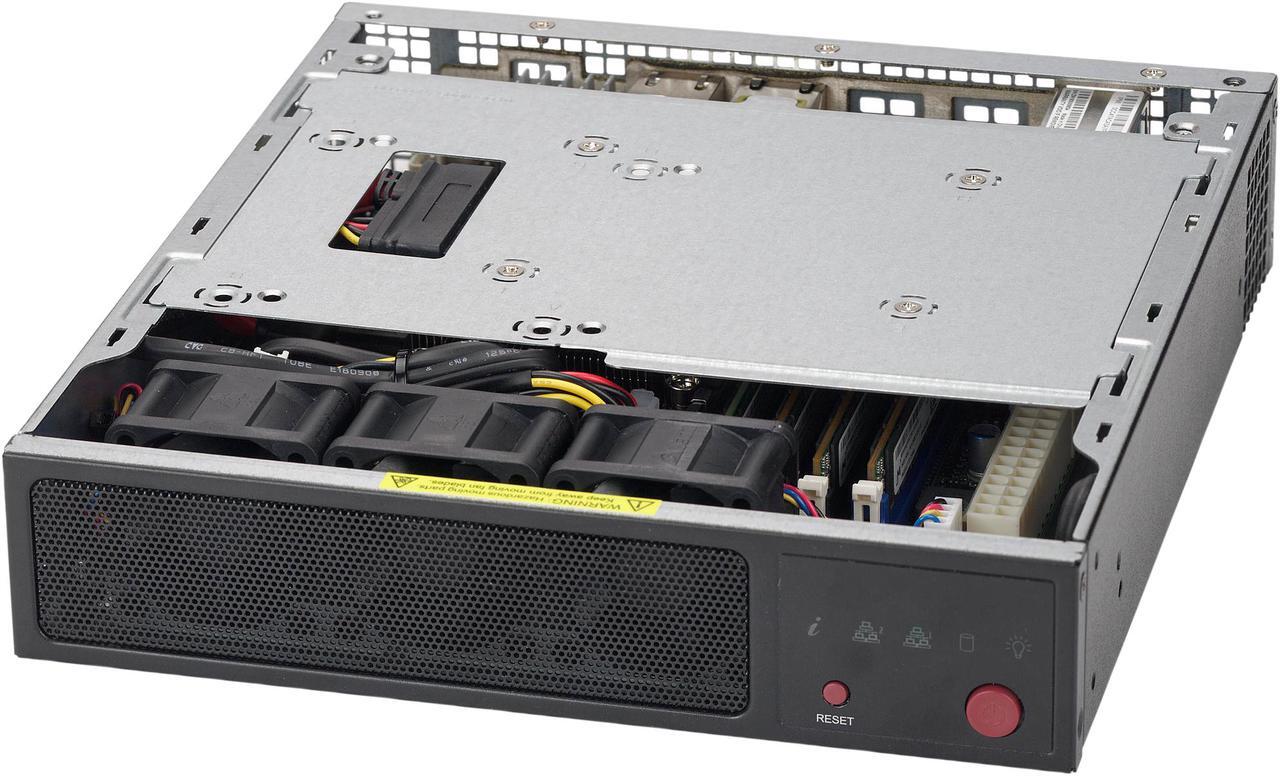

- Passive CPU heat sink and 2x 40mm chassis fans
- DC power adapter

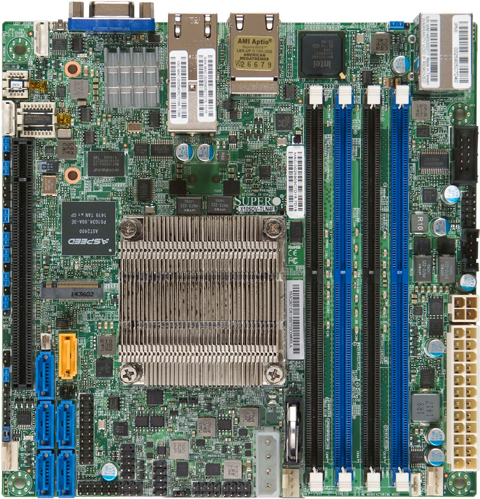

- Intel Xeon processor D-1528, single socket FCBGA 1667; 6-Core, 12 Threads, 35W
- System on Chip
- Up to 128GB ECC RDIMM DDR4 2133MHz or 64GB ECC/non-ECC UDIMM in four sockets
- One PCI-E 3.0 x16, M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/2280

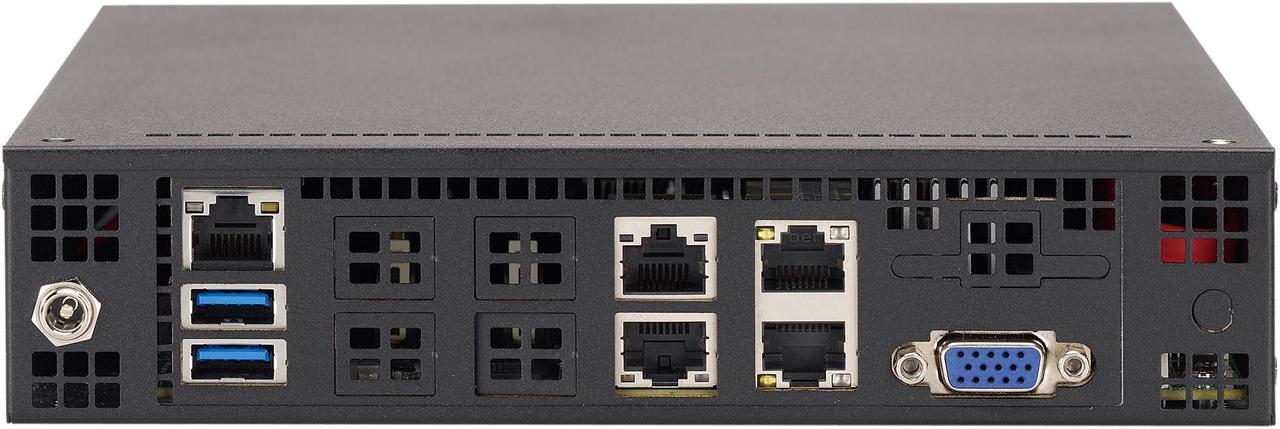

- Two 10GbE and two GbE LAN ports
- Six SATA 3 (6Gbps) ports via SoC
- Two USB 3.0 ports (rear), four USB 2.0 ports (via headers)
- One SuperDOM, 1 COM, TPM header, GPIO and SMbus headers
- 12V DC input and ATX Power Source
Please note: images in the description may show a varied configuration or optional parts.
