What exactly does this do and why would I want it? I have 2 poe switches and one addition switch along with the gateway. does this simply offer to connect all via sfp?

The Ubiquity Aggregation (USW-Aggregation) is an 8-port, Layer 2 switch designed for 10G SFP+ connections. It offers fanless, silent cooling and is suitable for connecting multiple devices via 10G SFP+ ports, which can provide high-speed data transmission. This would enable you to connect your existing switches and gateway using SFP+ for improved network performance.

฿11,487^.51

VAT-Inclusive Price

฿2,913.29 Shipping

Limit 99999 per customer.

Ships from United States.

Add to wish list(Found on 2 wish lists)

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

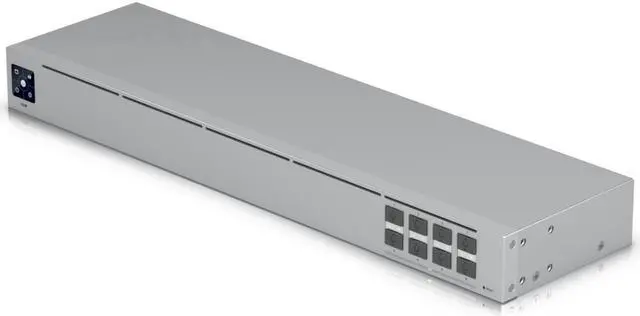

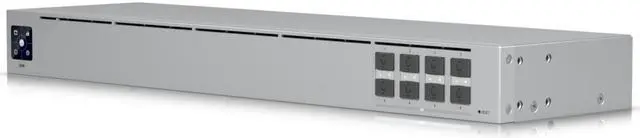

Main image of Ubiquiti Aggregation, 8-port Layer 2 (USW-Aggregation)

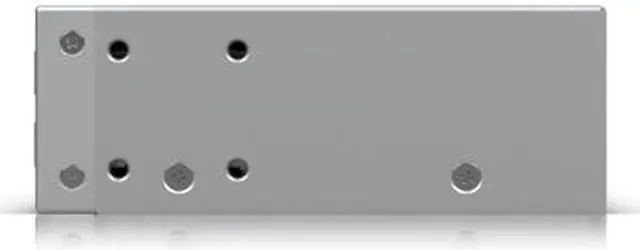

Alt view image 2 of 6 - Ubiquiti Aggregation, 8-port Layer 2 (USW-Aggregation)

Alt view image 3 of 6 - Ubiquiti Aggregation, 8-port Layer 2 (USW-Aggregation)

Alt view image 4 of 6 - Ubiquiti Aggregation, 8-port Layer 2 (USW-Aggregation)

Alt view image 5 of 6 - Ubiquiti Aggregation, 8-port Layer 2 (USW-Aggregation)

Alt view image 6 of 6 - Ubiquiti Aggregation, 8-port Layer 2 (USW-Aggregation)

Shop All Ubiquiti Networks Products

Ubiquiti Aggregation, 8-port Layer 2 (USW-Aggregation)

(3) Write a Review

An 8-port, Layer 2 switch made for 10G SFP+ connections.
(8) 10G SFP+ ports
Fanless, silent cooling

Overview

Specs

Reviews (3)

NEW Ubiquiti USW-AGGREGATION UniFi Switch Aggregation Ethernet USWAGGREGATION

condition: New

SKU: USWAGGREGATION

Brand: Ubiquiti

MPN: USW-AGGREGATION

Type: Ethernet Switch

Model: USW-AGGREGATION

Compatible Rack Unit: 1U

Depth: 4.7

Ethernet Technology: 10 Gigabit Ethernet

Expansion Slot Type: SFP+

Form Factor: Rack-mountable

Height: 1.7

Input Voltage: 120 V, 230 V

Layer Supported: 2

Manageable: Yes

Media Type Supported: Optical Fiber

Modular: Yes

Network Technology: 10GBase-X

Number of Power Supplies Installed: 1

Number of SFP+ Slots: 8

Number of Total Expansion Slots: 8

Port/Expansion Slot Details: 8 x 10 Gigabit Ethernet Expansion Slot

Power Consumption: 30 W

Power Source: Power Supply

Product Family: UniFi

Product Line: UniFi

Product Type: Ethernet Switch

Weight (Approximate): 5.84 lb

Width: 17.4

Model
Brand	Ubiquiti Networks
Series	Network Switch
Model	Aggregation
Part Number	USW-Aggregation

Format & Standards
Format	Rackmount
Network Management Type	Managed

Ports & Interface
Primary Ports	8 x SFP+
Primary Port Speed	Total non-blocking throughput 80 Gbps Switching capacity 160 Gbps Forwarding rate 119.04 Mpps
Primary Port Type	(8) 10G SFP+ ports

Data Transmission
Management Interface	Ethernet In-Band
VLAN Support	Yes
Jumbo Frames	Yes

Details
PoE	No
Layer	2
Layer 2 Features	LACP Port Aggregation STP & RSTP Advanced IGMP Configuration (Querier, Fast Leave, Router Port) IGMP Snooping 802.1X Control MAC-Based ACLs & Device Isolation DHCP Snooping & Guarding Egress Rate Limit Flow Control Storm Control Multicast & Broadcast Rate Limiting MAC Address Blocking IP-Based ACLs & Network Isolation MAC-Based Port Restriction Port Isolation Port Mirroring Jumbo Frames LLDP-MED Voice VLAN Loop Protection
Port Mirroring	Yes
LEDs	System: Status SFP+: Link/activity
Button	Factory reset

Power Supply
Power	Power method Universal input, 100—240V AC, 50/60 Hz Power supply AC/DC, internal, 36W
Max Power Consumption	30W

Dimensions & Weight
Dimensions	442 x 120 x 43.7 mm (17.4 x 4.7 x 1.7")
Weight	Without mounting brackets: 2.6 kg (5.8 lb) With mounting brackets: 2.7 kg (6 lb)

Environmental
Certification	CE, FCC, IC
System Requirement	UniFi Network Version 5.14.12 and later
Temperature	-5 to 40° C (23 to 104° F)
Humidity	10 to 90% noncondensing

Manufacturer Warranty
Parts	1 Year
Labor	1 Year

Additional Information
Date First Available	August 12, 2021
